HEPER NORMA S Instrucciones de instalación y funcionamiento

S13

40 Nm

NORMA S LED

Installation&Maintenance Instructions

3xM8 Washers

3xM8 Nuts

Mm/ Inch

200

148

Min 40

200

7 2/3

5 53/64

Min 1 37/64

7 2/3

1 37/64

HEPER USA LLC

W227 N546 Westmound

Drive Waukesha

WI 53186 – USA

Tel: +1 917 244 20 32

[email protected]

www.heperlighting.com

2020-0/12.24.2020

(Mm)

(Inch)

(Mm)

(Inch)

(Mm)

(Inch)

AĞIRLIK

WEIGHT

(Kg)

(Lb)

BOLARD

KODU

BOLARD

CODE

1015

39 61/64

100

3 15/16

100

3 15/16

3,5

7,72

LB6054.693

S10

10 Nm

2xM6 Nuts

M4 Flat Head Screws

1.5 Nm

2xM4 Flat Head Screws

1.5 Nm

M3 Flat Head Screws

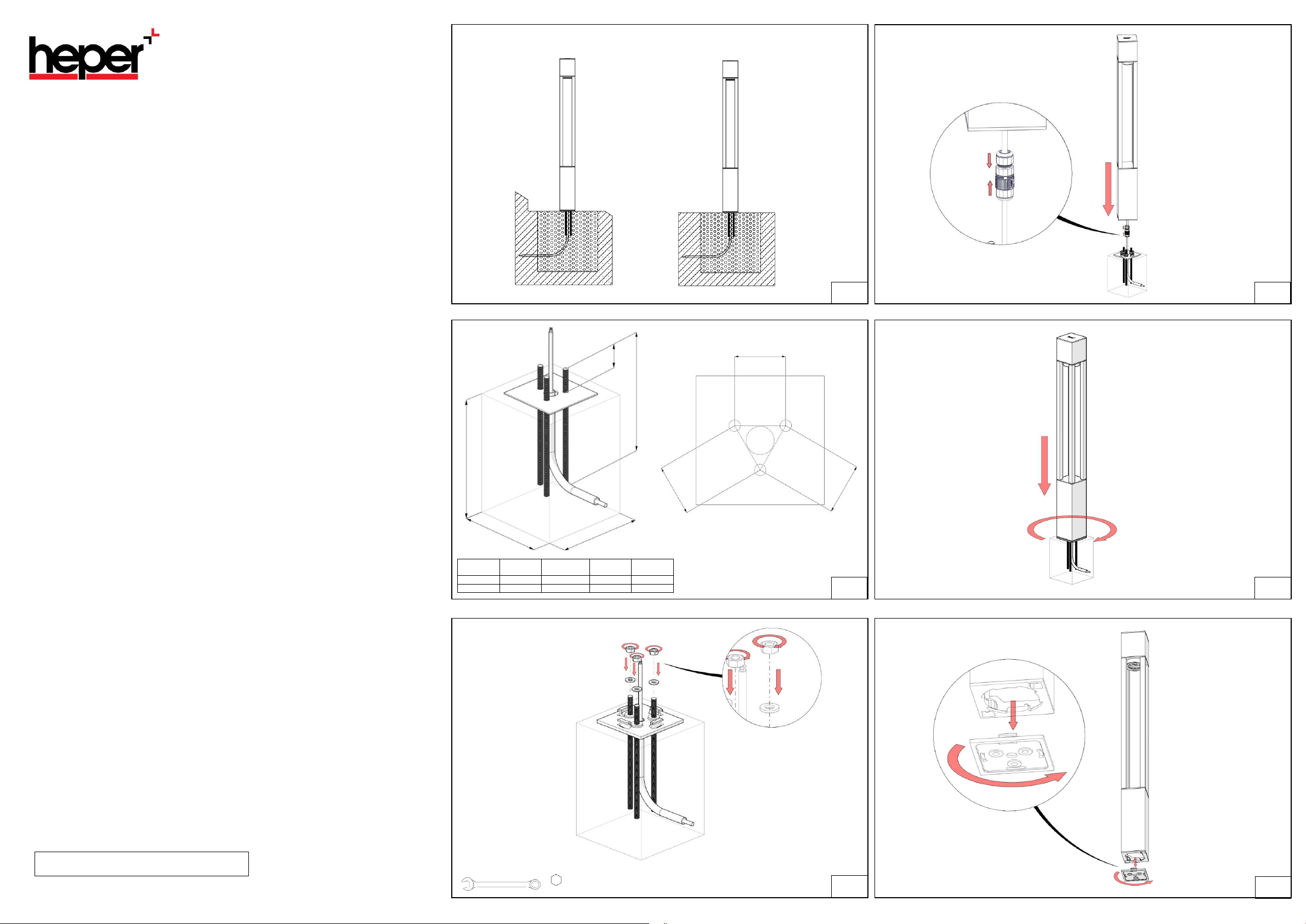

ASSEMBLY INSTRUCTIONS

To mount the Bollard onto the ground;

1. The floor on which the bolars will be mounted must be flat.

2. Concrete detail;

2.1. A template plate is used to align the connection holes of the product. ( Hole Center: 40

mm)

2.2. The anchor bolt is fixed in the concrete using the template plate at least 40 mm

above the floor.

3. After the anchor flange plate is placed in its place, flat washers are placed under them

and the nuts are fixed in their places with a torque of 25Nm. (3 Pieces, M8 Nuts)

4. The cable coming from the Floor to Bolard and the cable coming out of the product

are assembled with the help of a socket.

Note: It does not come with a socket for connecting cables. Please purchase a socket with

a minimum IP66 certification suitable for the product.

5. The bollard is placed on the ground anchor flange plate in the direction of the arrow. It

is locked by turning it in the direction of the arrow.

To Reach LED Driver ;

6. Anchor flange plate is removed.

7. The stud bolts holding the bolard together are removed. (2 Pieces, M6 Nuts)

Note: Nuts are fixed with 10Nm torque when assembling.

8. Studs and upper profile are removed.

9. Disconnecting the LED driver group;

9.1. The grounding bolt is removed. (1 Piece, M4 YSB Bolt)

Note: M4 YSB Bolt is tightened with 1.5Nm torque while installing the grounding

cable.

9.2. Sockets are removed.

10. Led driver group is removed.

11. The LED driver group is turned and removed from its place on

the body.

To Reach LED Driver;

12. Cables coming to PCB in LED driver are disconnected.

13. To remove LED Driver;

13.1. LED driver plate bolts are removed. (2 Pieces, M4 YSB Bolts)

13.2. M3 bolt is removed. Led driver plate is separated from the LED

driver.

Note 1: Care should be taken not to drop the LED driver.

Note 2: When mounting the LED driver to its place, the bolts should be tightened with 1.5

Nm torque.

English

Safety Instructions

•The light source contained in this luminaire shall only be replaced by the manufacturer or his

service agent or a similar qualified person. Always switch off the power prior to installation,

maintenance or repair activities.

•

The manufacturer is then discharged from liability when damage is caused by improper use or

installation.

If any luminaire is subsequently modified, the persons responsible for the modification shall be

considered as manufacturer.

To reduce the risk of death, personal injury or property damage from fire, electric shock, falling

parts, cuts, abrasions and other hazards, please read all warnings and instructions included

with the luminaire, on the luminaire’s packaging and affixed to the luminaire itself..

Installatio

LEDs are high-quality electronic components! Please avoid contacting the light output opening

of the LED directly during installation or relamping.

IMPORTANT

To ensure secure connection, the luminaire housing must be positioned precisely in relation to

the mounting plate.

Cleaning And Maintenance

•Clean luminaire regularly with solvent-free cleaners from dirt. Please do not do not clean the

luminaire with using high-pressure liquids.

WARNINGS AND REMARKS FOR

INSTALLATION AND MAINTENANCE
