Henry Schein 112-7154 Manual de usuario

112-7154

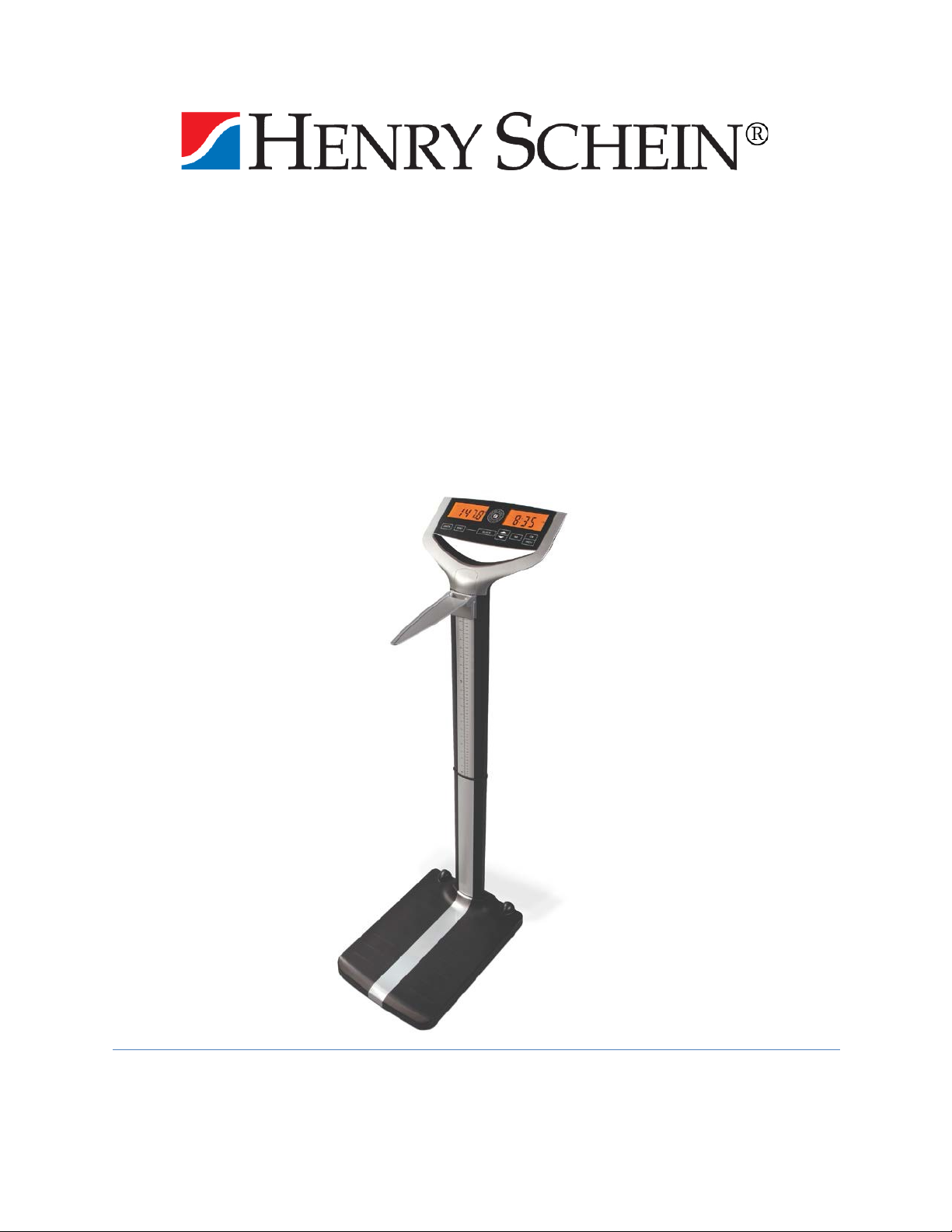

Digital Electronic Eye Height Scale

Table of Contents

Congratulations! ....................................................................................................................................... 3

Safety......................................................................................................................................................... 3

Before you start........................................................................................................................................ 4

Unpacking ............................................................................................................................................... 4

Power supply........................................................................................................................................... 4

Operation................................................................................................................................................... 5

Display Module Types ............................................................................................................................. 5

Buttons.................................................................................................................................................... 5

Scale Features .................................................................................................................................................... 5

Scale Operation....................................................................................................................................... 6

Assembly Instructions.............................................................................................................................. 7

Cleaning................................................................................................................................................... 10

What do I do if....................................................................................................................................................10

Maintenance............................................................................................................................................ 11

Changing the batteries .......................................................................................................................... 11

Technical data ........................................................................................................................................ 11

Disposal................................................................................................................................................... 12

Disposing of the device ......................................................................................................................... 12

Technical Support…………………………………………………………………………………………………………………………………..12

Warranty ................................................................................................................................................... 12

Congratulations!

The Henry Schein Digital Electronic Eye Height Scale you have purchased is a high-

precision yet sturdy piece of equipment. In accordance with national regulations, the Henry

Schein Digital Electronic Eye Height Scale is used primarily in hospitals, gyms, and in-

patient nursing facilities. Weight is determined within a few seconds. In addition to the

conventional determination of weight, the Henry Schein Digital Electronic Eye Height Scale

also has a function for determining body mass index. For this purpose, height is entered on the

keypad and the body mass index associated with the weight value is output. The scale is of a

very sturdy construction and will give you long and loyal service. It is easy to operate and the

large display is easy to read. The Henry Schein Digital Electronic Eye Height Scale can

easily be moved on its 1.5” wheels.

Safety

Before using the new scale, please take time to read the following safety instructions.

•Follow the instructions for use.

•Do not drop the scale or subject it to violent shocks.

•Use only the type of battery stated.

Before you start...

Unpacking

Carefully remove the scale from the shipping carton. If you notice any shipping damage to the

product, please contact the shipper immediately. Please retain all shipping material in case the

product needs to be returned or the scale needs to be shipped to another location.

Remove the packaging and place the scale on a firm, level surface. The scope of supply

includes:

• Weighing platform

• Column with display indicator

• 4 mounting screws to attach the base

• Height Rod with Lever

• 4-AA batteries

• AC-Transformer

Power supply

The scale is generally powered by the supplied AC-Transformer. 4-AA batteries are used as a

power back-up and will supply enough power to power the scale for 10 days.

– Carefully turn over the scale so that the base of the scale is accessible.

– Push the battery compartment closure towards “Battery” and open the cover.

– Install the supplied 4-AA batteries.

– Close the cover and then turn the scale back up the right way.

The AC power connection socket for the main unit is in the rear of the base of the scale.

Operation

Display Module Types

Buttons

Zero: The scale can be reset to a zero weight by pressing the zero button.

Units: Press the Units button to toggle between Lb/Kg modes.

BMI: The scale will go into BMI mode.

Clock: Accesses the clock setting. See instructions below for clock settings.

Up/down Arrow

Enter the BMI mode, height of the user can be entered using the arrow keys

above and below the BMI button.

Scale Features

Instant On: The scale will turn on automatically when the user steps on the scale or any button

is pressed. The scale will automatically turn off after 15 seconds.

BMI: Accesses BMI mode. See instructions below for BMI use.

Scale Display: Two LCD displays are utilized to indicate the Weight, BMI, Clock and the

current scale status.

Weight Display: The user weight is displayed on the left side LCD.

Low Batt: Indicates when the batteries require replacement.

BMI/Clock Display: The BMI measurement is displayed on the right side LCD. The clock will

be displayed when the BMI feature is not in use.

Scale Operation

User weighing

1. Step on the scale and remain still.

2. When a stable weight is reached, the display will lock and hold the weight reading.

3. The scale will hold the weight and after 15 seconds shut off automatically.

BMI (Body Mass Index) Reading

1. Step on the scale and remain still.

2. When a stable weight is reached, the display will lock and hold the weight reading.

3. Press the BMI button.

4. The height will flash on the right side display. Enter the height with the up/down arrow

buttons. Press the BMI button to accept the correct height.

5. The BMI value will be displayed on the right side display and the weight will be displayed

on the left side display.

Zero Button

1. Press the zero button.

2. The display will display a zero button after the scale becomes stable.

Setting the Clock

1. Press and hold the Clock button.

2. The left side display will show 12Hr or 24Hr, release the clock button.

3. To select 12Hr or 24Hr mode press the up/down arrow buttons then press the Clock

button to accept.

4. The hour digit will flash, use the up/down button to enter the correct hour. Press the

clock button to accept.

5. The minute digit will flash, use the up/down button arrow buttons then press the clock

button to accept and exit the clock setting mode.

Assembly Instructions

Step 1. Connect the cable to the base. The cable will

be located inside the column.

Step 2. Insert column into base as shown.

Column

Base

Step 3. Turn over the base and column and insert 4

washers, 4 lock washers and 4 butterfly nuts to attach

the column to the base. Please make sure to tighten

the 4 butterfly nuts to secure the column.

Butterfly nuts

and washers

Cleaning

Clean all external surfaces with a clean damp cloth or tissue. Mild antimicrobial or antibacterial

soap and water solution may be used. Dry with a clean soft cloth. Do not immerse the scale

into cleaning or other liquid solutions. Do not use abrasive cleaners.

Under no circumstances use abrasive or acid cleaners, white spirit, benzene or the like for

cleaning. Such substances can damage the high-quality surfaces. Proper care and cleaning is

essential to ensure a long life of accurate and effective operation.

What do I do if...

… no weight display comes on?

oCheck the batteries.

oIs the plug connector on the scale properly connected?

… 0.0 does not appear before the weighing operation?

oPress the Zero button to turn on the scale

othere is no load on the scale

… ---- appears instead of 0.0 before weighing?

oPress the Zero button

othere is no load on the scale.

… one segment is illuminated constantly or not at all?

oThe relevant segment has a fault. Contactthe Service department for more info.

… Low Batt appears in the display?

oBatteries are low. Replace with a new set of batteries.

… ou Ld appears in the display?

oMaximum load has been exceeded.
