HECKLER WindFall H603 Manual de instrucciones
Assembly & Installation
H603
WindFall®
VESA MOUNT
for iPad 10.2-inch 7th Generation
Limited Warranty
Heckler Design warrants your product to be free from defect in material and
workmanship for a period of two years from the original date of purchase.
Electronic components are warranted to be free from defect for a period of one
year from the original date of purchase. If you discover a defect, please contact
service@hecklerdesign.com. Heckler Design will repair, at our discretion, using
new or refurbished components. If repair is not possible, Heckler Design will
replace the item.
Compatible with:
iPad 10.2-inch 7th Generation
All manuals and user guides at all-guides.com

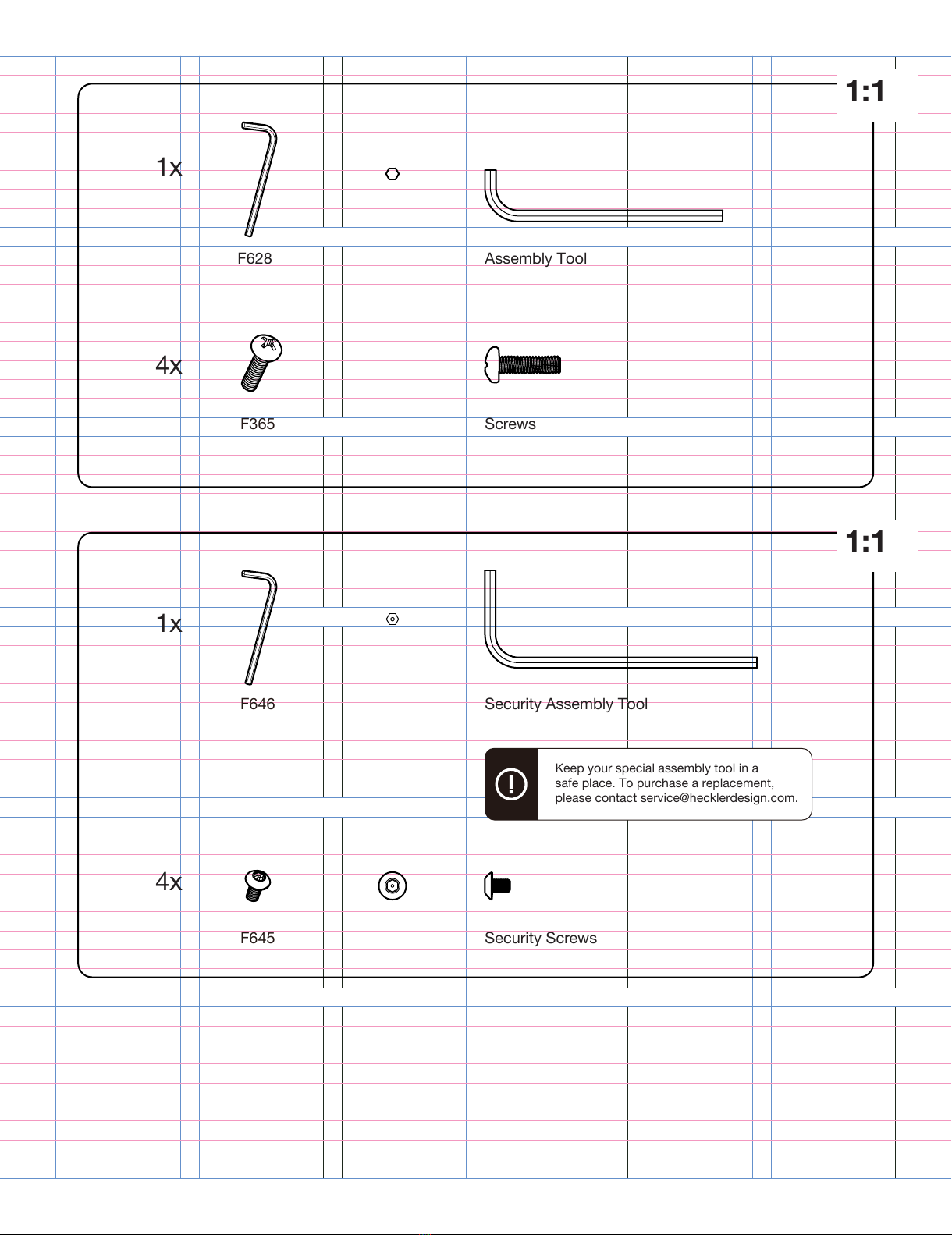

F365
4x
4x
1x
Screws
F645
F646
Security Screws
Security Assembly Tool
1x
Assembly ToolF628
1:1
1:1
Keep your special assembly tool in a
safe place. To purchase a replacement,
All manuals and user guides at all-guides.com

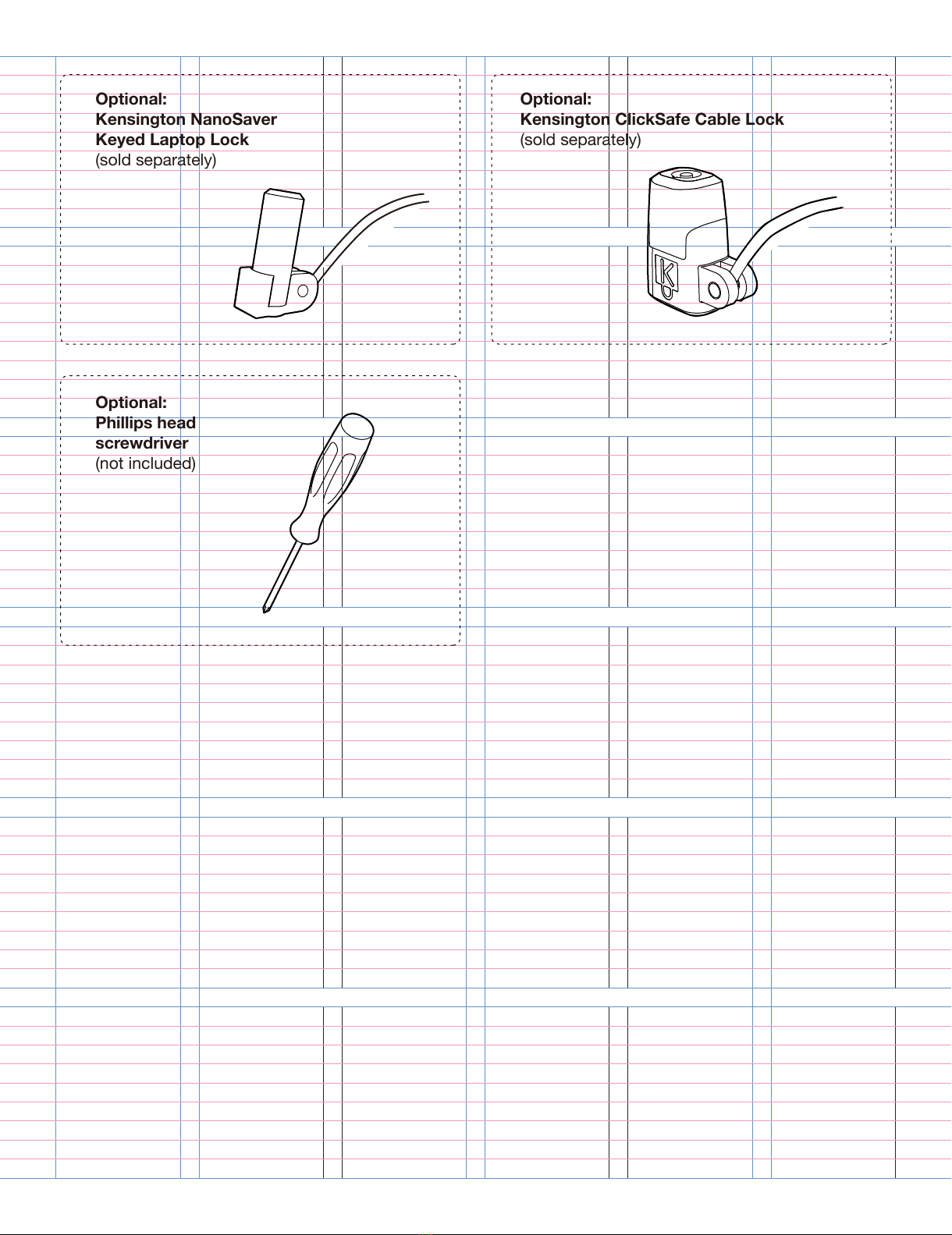

Optional:
Kensington ClickSafe Cable Lock
(sold separately)
Optional:
Kensington NanoSaver
Keyed Laptop Lock
(sold separately)
Optional:
Phillips head
screwdriver
(not included)
All manuals and user guides at all-guides.com

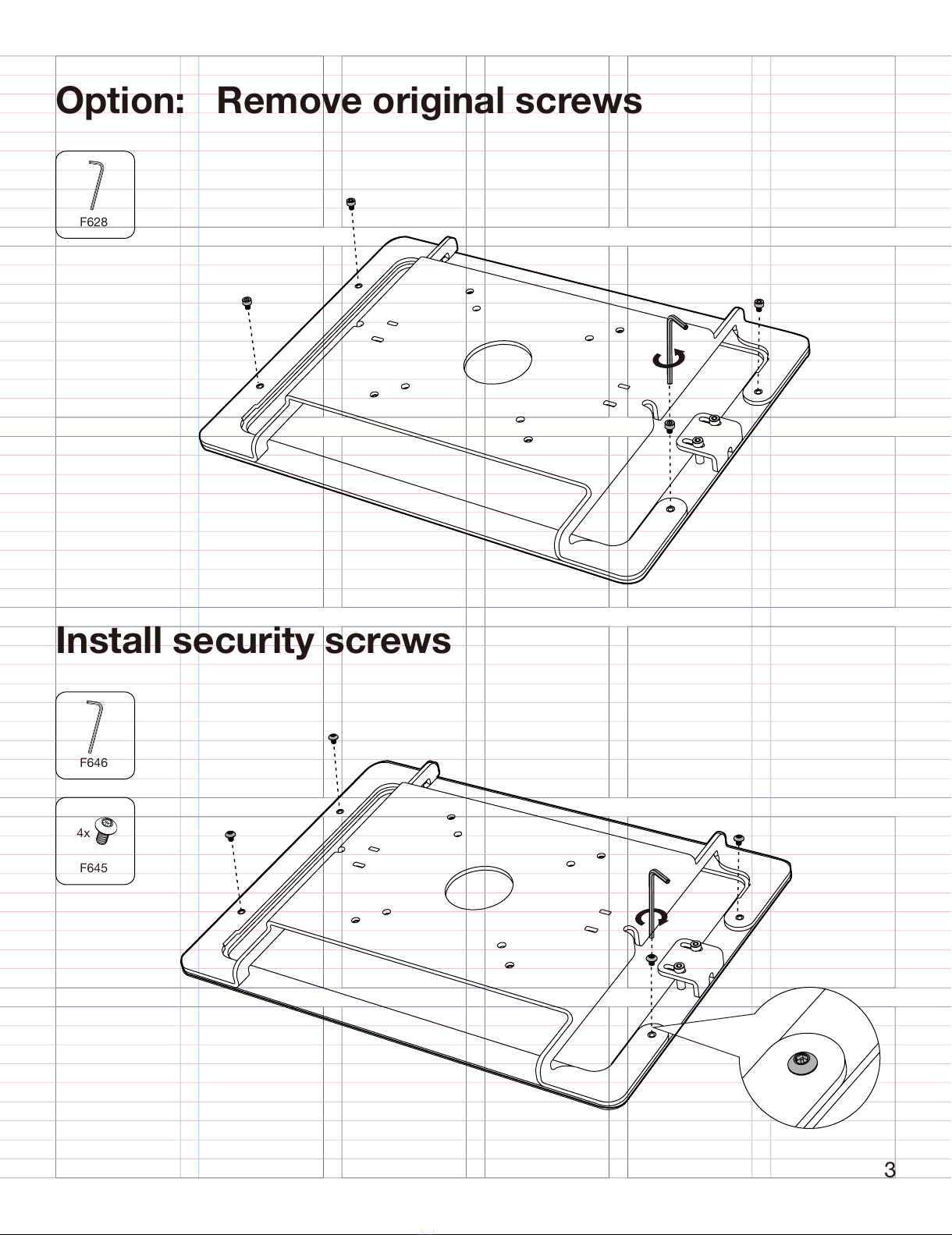

Option: Remove original screws
Install security screws
3
F628
F646
F645
4x
All manuals and user guides at all-guides.com
F628

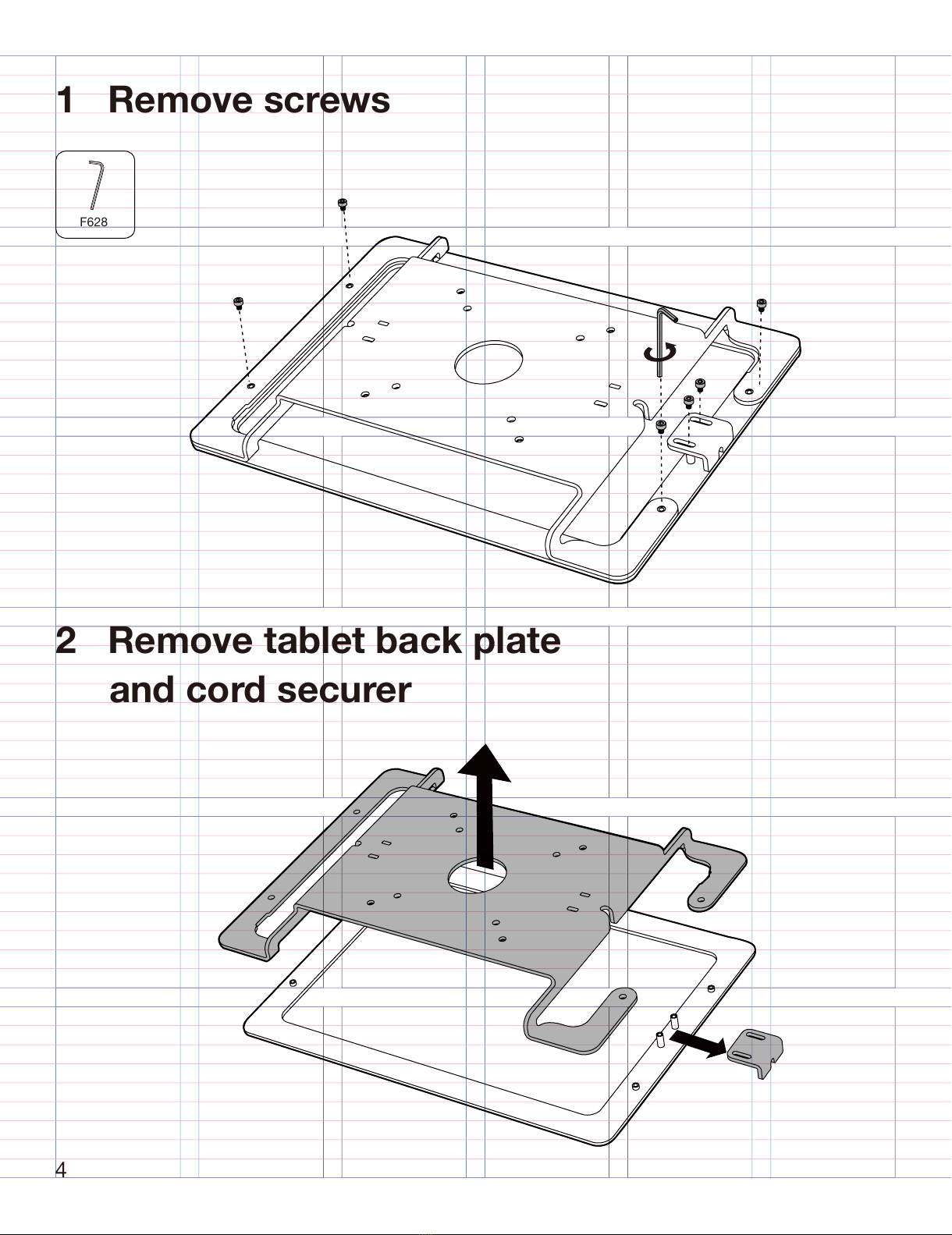

1 Remove screws
2 Remove tablet back plate
4
and cord securer
All manuals and user guides at all-guides.com
5
3 Install iPad
4 Route your USB-C cable and
reinstall tablet back plate
F628
All manuals and user guides at all-guides.com

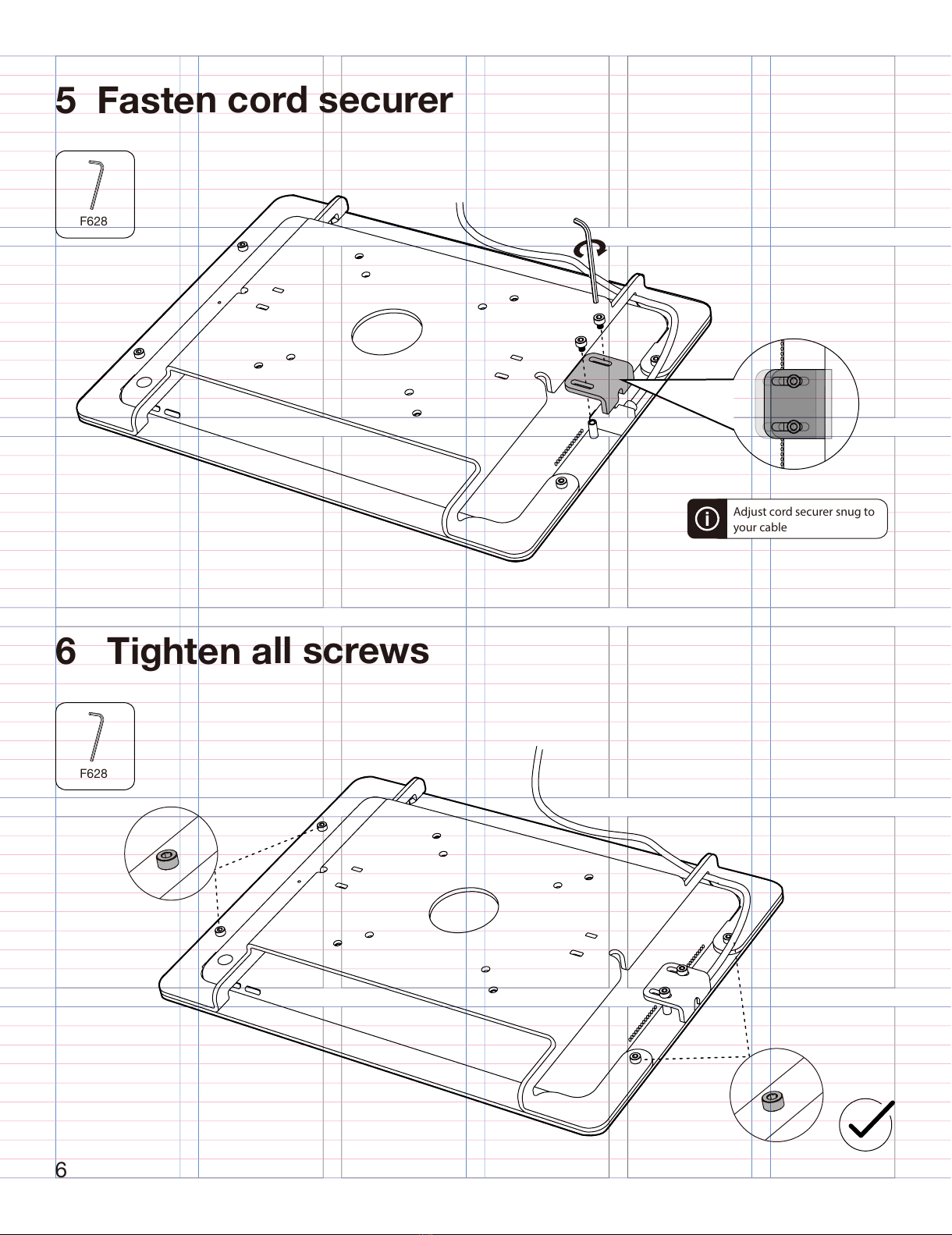

5 Fasten cord securer
6 Tighten all screws
6
Adjust cord securer snug to
your cable
F628
F628
All manuals and user guides at all-guides.com
7
8 Done
7 VESA arm mounting
F365
4x
Ergotron VESA arm not included
(Not included)
All manuals and user guides at all-guides.com
8
Kiosk Floor Stand mounting
(Sold Separately)
(Not included)
Kensington Nano ClickSafe Cable Lock
Kiosk Floor Stand not included
All manuals and user guides at all-guides.com
9

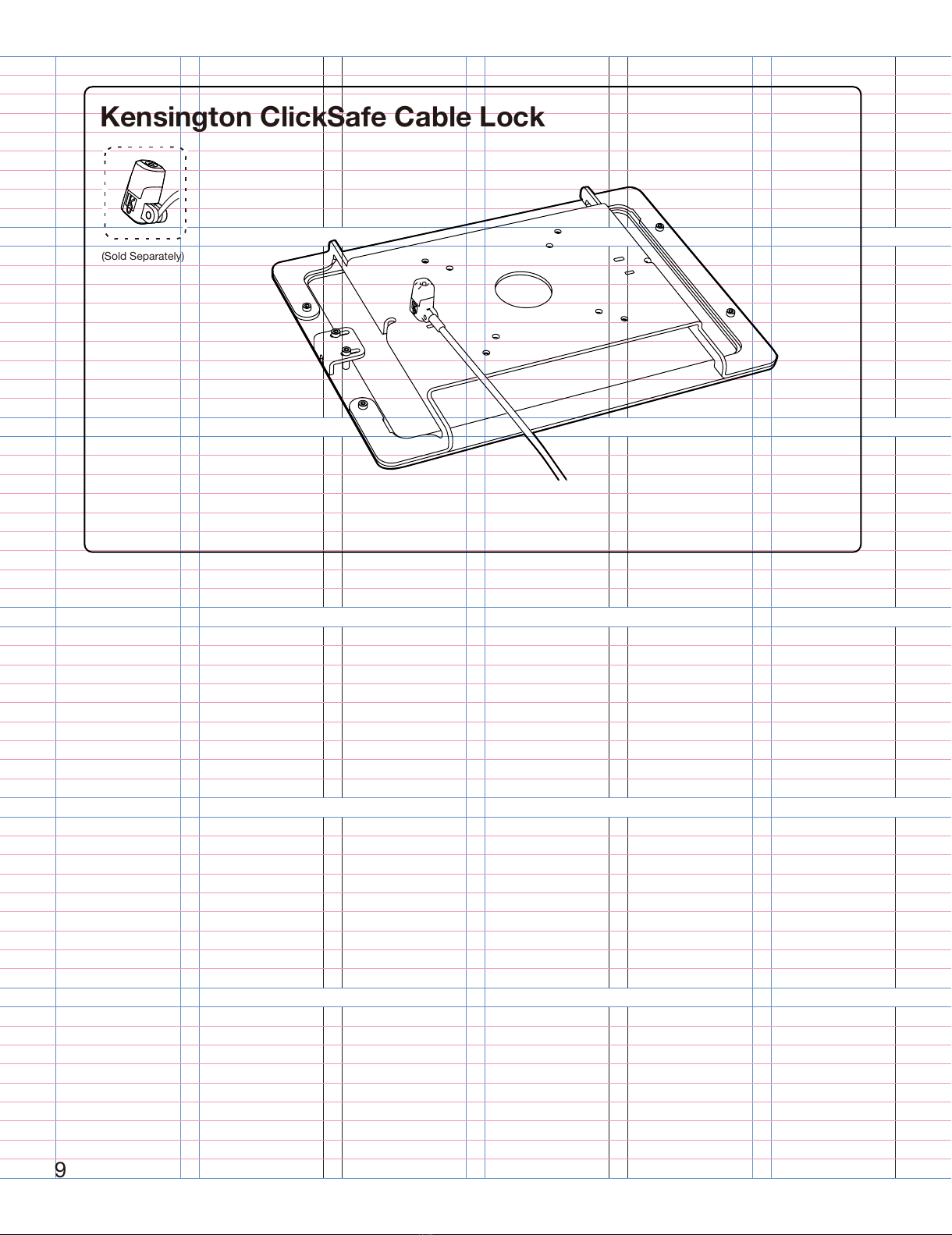

Kensington ClickSafe Cable Lock
(Sold Separately)
All manuals and user guides at all-guides.com
