Heatilator WTBC36BB Manual de usuario

12/05 4040-227 Rev B 1

These refractories are intended for use with the Caliber CB Series B-Vent and CD Series Direct Vent gas appliances. Refer to the installa-

tion instructions supplied with the appliance for the correct accessories to be used. If you encounter any problems regarding code approv-

als or if you need clariﬁcation of the instructions contained here, contact your local distributor/dealer or the Heatilator Technical Services

Department, Hearth & Home Technologies Inc., 1915 W. Saunders Street, Mt. Pleasant, IA 52641, phone 1-800-927-6841.

INSTALLATION INSTRUCTIONS

REFRACTORIES FOR CB & CD SERIES

WTBC36BB and WTBC42BB - B-vent Refractory

WTBC36DB and WTBC42DB - Direct Vent Refractory

CAUTION:

Install this refractory only after the appliance has

cooled and the gas and electricity have been shut

off.

CAUTION:

Wear gloves and safety glasses for protection.

Note: An arrow () found in the text signiﬁes change in content.

2 4040-227 Rev B 12/05

REFRACTORY - CB & CD SERIES INSTALLATION INSTRUCTIONS

1. Shut off the electricity to the appliance and turn the gas shutoff

valve to the closed position. See Figure 1. Remove the screen

and glass from the appliance.

OFF

Figure 1 - Gas Shutoff Valve

Screws

Figure 2 - Loosen Grate

2. Lift the two top logs off the log set. See Figure 2.

3. Remove the grate/log assembly by removing the two screws

as shown in Figure 2. Lift and pull the grate/log assembly from

the front of the ﬁrebox.

Remove four screws securing the rear log. See Figure 3. Lift

rear log and remove from ﬁrebox.

Figure 3 - Remove Rear Log

4. Carefully install a side refractory. Tip the bottom edge into posi-

tion, and swing the top up. This will hold the back refractory in

place. See Figure 4.

Figure 4 - Tip Side Refractory

5. To secure the side refractory in place, remove the screw in

the ﬁrebox side. Attach a refractory bracket (using the screw

removed) to the ﬁrebox side. Leave screw loose until Step 7

to allow for adjusting. See Figure 5.

Figure 5 - Refractory Brackets

12/05 4040-227 Rev B 3

REFRACTORY - CB & CD SERIES INSTALLATION INSTRUCTIONS

7. Repeat Step 4 to install the other side refractory piece.

8. Adjust the back and sides so no gaps are visible in the corners

where the pieces come together.

9. Tighten screws.

10. Reinstall the rear log, grate/log assembly, glass panel assembly

and screen.

11. Restore power and gas ﬂow. Your refractory installation is now

complete.

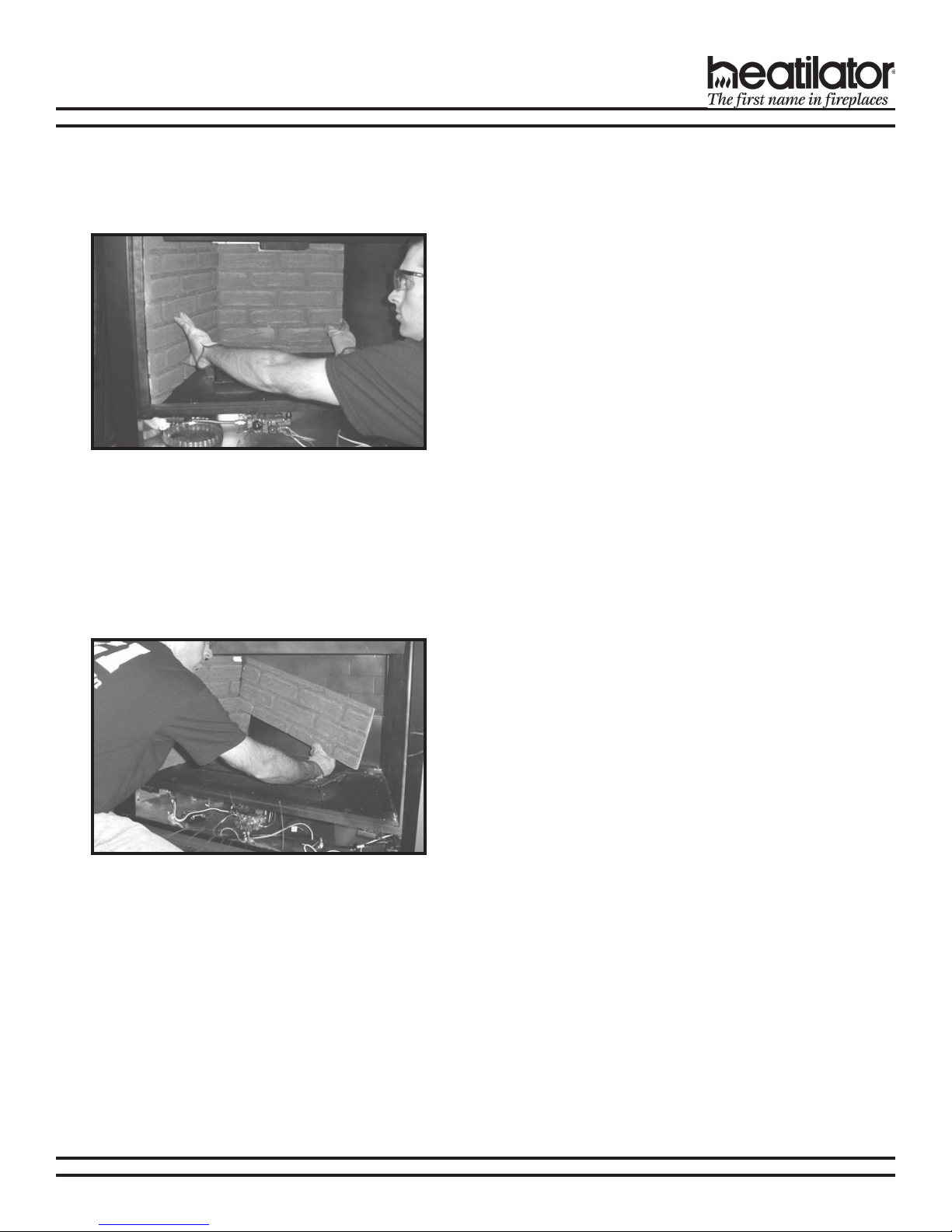

Figure 6 - Place Back Refractory-Direct Vent

Figure 7 - Place Back Refractory-B-Vent

6. Direct Vent

Place the back refractory into position and slide the side edge

of the back refractory behind the side refractory. This will hold

the back refractory in place. See Figure 6.

B-Vent

Place the back refractory into position and slide the side edge

of the back refractory behind the side refractory. Hold the back

refractory in place until the second side refractory is installed.

See Figure 7.

4 4040-227 Rev B 12/05

REFRACTORY - CB & CD SERIES INSTALLATION INSTRUCTIONS
