Heath Zenith Motion Sensing 3-Way Wall Switch SL-6107 Manual de usuario

SL-6107

The Heath®/Zenith Motion Sensing 3-Way Wall Switch

automatically controls indoor lighting:

• In AUTO mode, the control automatically turns the

light on when you enter the room.The length of time

the light stays on is adjustable.

The Heath®/Zenith SL-6107 Motion Sensing 3-Way

Wall Switch replaces any “3-way” switch. Perfect for

rooms or hallways where two wall switches control

a single light.

This package includes:

• light control

• wire connectors

• wire jumper

• decorative cover plate

• mounting hardware

MOTION SENSING

3-WAY WALL SWITCH

AUTO

OFF ON

595-4514-14

-2-

Some local building codes may require installation by a quali-

ﬁed electrician.

INSTALLATION

❐For your safety, turn off power at the fuse or circuit breaker.

Note: A “3-way” circuit controls lights from two separate switches. If

you want to use this product in a single switch circuit or if you want

to install more than one motion sensing wall switch, see Special

Installations, page 8.

❐Select a 3-way circuit that controls a light or an outlet to a lamp.

Total lighting must be from 25 to 500 watts incandescent, or 60 to

400 watts ﬂuorescent using a rapid start ballast. Note: May not

be used to operate electronic or magnetic ballasts. Less wattage

than the minimum may not allow the control to work properly. The

switch selected for replacement should be in a place that can detect

motion in the desired area.

✓For easier re-wiring later, mark the house wiring with tape

indicating where the wire had been connected.

In the following section you will install a jumper wire at one 3-way

switch and replace the other switch with the SL-6107.

*Note: The existing 3-way switch will be referred to as the “Remote

Switch” throughout the rest of the installation manual.

-3-

595-4514-14

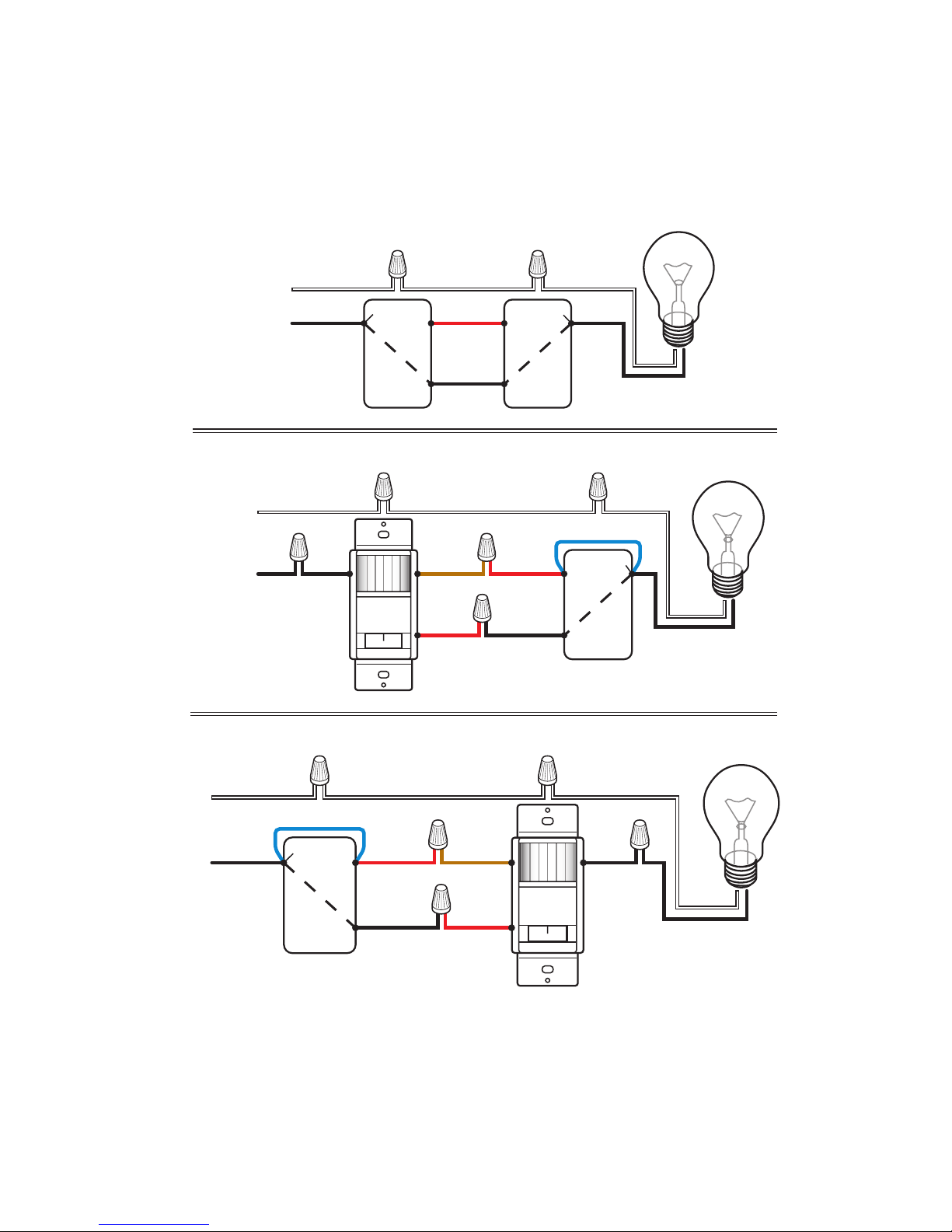

INSTALLATION

AUTO

OFF ON

AUTO

OFF ON

SL-6107 SWITCH 1

IN CIRCUIT

WHITE

FROM

POWER

SOURCE

BLACK BLACK

WHITE

RED

(In Wall)

BROWN

BLACK

EXISTING

3-WAY SWITCH

ADD JUMPER WIRE

SL-6107

RED

(From 6107)

WHITE

BLACK

*COMMON

ONE SL-6107 SWITCH IN CIRCUIT

WHITE

FROM

POWER

SOURCE BLACK

WHITE

BLACK

WHITE

BLACK

*COMMON *COMMON

SL-6107 SWITCH 2

IN CIRCUIT

WHITE

FROM

POWER

SOURCE

BLACK BLACK

WHITE

RED

(In Wall)

BROWN

BLACK

EXISTING

3-WAY SWITCH

ADD JUMPER WIRE

SL-6107

RED

(From 6107)

WHITE

BLACK

*COMMON

RED

(In Wall)

*COMMON-Used for illustrative Purposes Only. Check Your Switch.The common may be in a different loca-

tion, depending on the brand of your switch.

RED is used to represent the second wire between two standard three-way switches. This may not be the color

used in all installation. If you are not sure about your wiring, call an electrician for installation help. There is also

a RED wire on the SL-6107 switch. Check the instructions above closely and do not confuse the two.

See pages 4 through 6 for detailed instructions for installing and

wiring the SL-6107 Wall Switch.

595-4514-14

-4-

COMMON

The switch may

indicate the common

Color of screw may

be different for the

common

INSTALLATION

1. Add Jumper At Remote 3-Way Switch.

A jumper wire between the common wire and one of the switched

wires is used to supply power to the SL-6107 regardless of the posi-

tion of the remote switch.

❐Remove remote switch from the junction box.

❐Connect the jumper wire to the common lug (usually labeled on

the switch) and to either one of the two switched lugs. If you're

not sure which lug is common, install the jumper on any two of

the wires, and test the jumper as explained on the next page.

Jumper

Common Switch Lug

To brown wire of SL-

6107 (note color)

Connect Jumper at the Remote Switch

Hot Wire

To Red wire of SL-6107

(note color)

-5-

595-4514-14

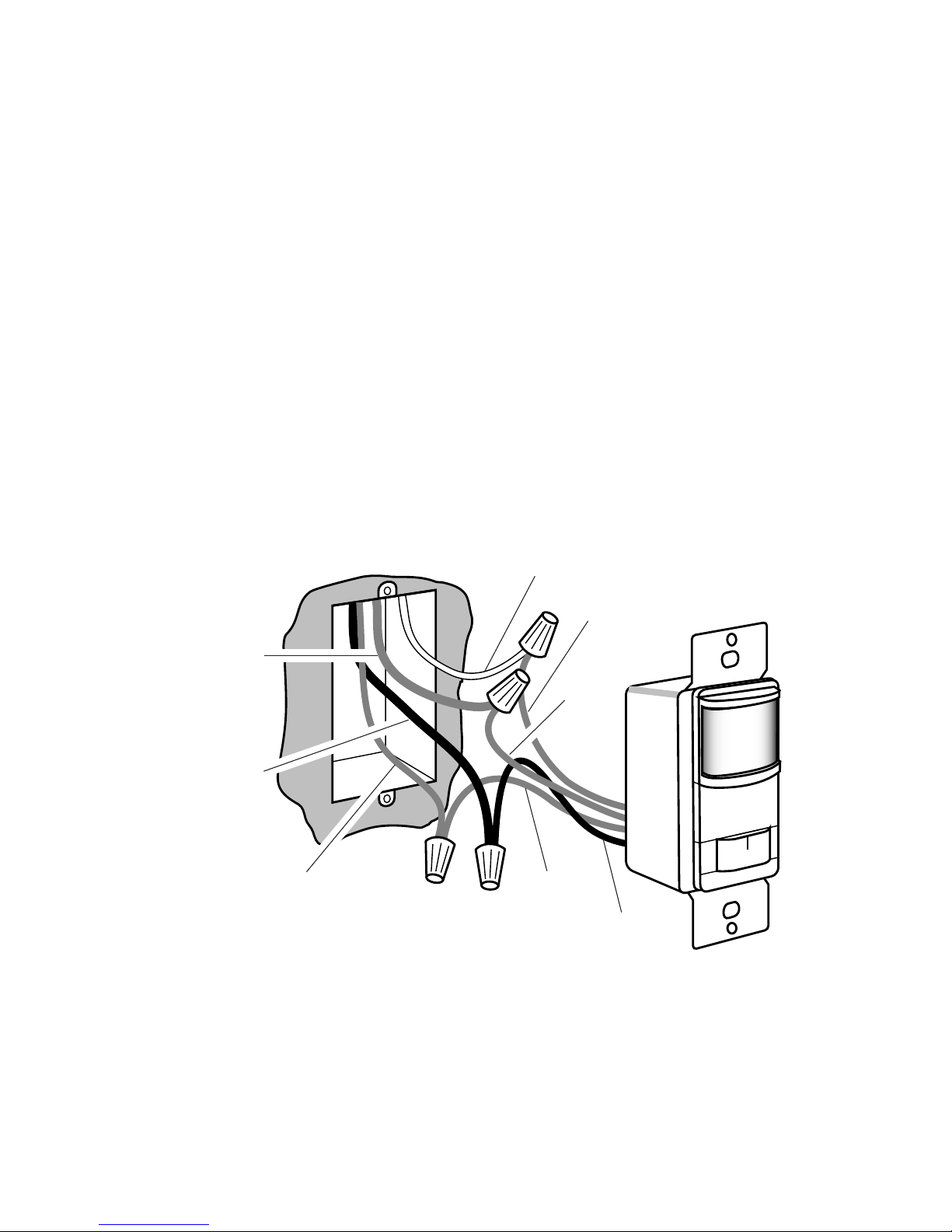

2. Replace Other Switch.

❐Turn the power off at the circuit breaker.

❐Remove and disconnect the old switch.

Note: If you can’t tell which wire is common, etc., connect the wires

in the following steps as best you can, then follow the test on the

next page.

❐Connect the black motion sensor wire to the common wire.

❐Connect the brown motion sensor wire to the jumpered wire on

the remote switch.

❐Connect the red motion sensor wire to the non-jumpered wire.

❐Connect the green motion sensor wire to the ground wire.

Connect the SL-6107 to Existing Wiring

INSTALLATION

AUTO

OFF

Jumpered Wire

Brown

Wire Removed

from Common

Ground Wire

(Green or Bare Wire) Black

Green

Non-Jumpered

Red

595-4514-14

-6-

INSTALLATION

Test For Correct Common Wire Connection:

Re-install the switch.

Turn the circuit

breaker back on.

Leaving the jumpered switch in one position,

flip the other 3-way switch on and off.

Lights

turn on

and off.

Lights

turn on

and off.

Jumper is

correct. Go

to next page.

Flip the switch with the

jumper wire to the

other position.

Flip the unjumpered switch

on and off.

Jumper is

correct. Go

to next page.

Move one end of the jumper

wire to the previously

unconnected terminal.

Remove the jumpered

switch from the

junction box.

Turn the power

off at the

circuit breaker.

Yes

YesNo

-7-

595-4514-14

❐Mount the SL-6107 into the junction box with the two junction box

screws.

❐Turn the circuit breaker back on.

❐Preset the controls: Time to minutes, Photo Adjustment fully

clockwise. Cover the lens with masking tape.

❐With the motion sensor in the “ON” position, turn the remote

switch on and off several times. Go to step 1, 2, or 3, depending

on results.

INSTALLATION

* Turn power off before rewiring!

Test again. Go

to 2 or 3.

If light does not

turn on:

Exchange*

Control’s

Red ⇔Black

wires.

➯

If light turns

on with remote

switch in either

position:

Set sensor to “AUTO”. Wait for the

unit to warm up (up to 1 min.). If the

remote switch can turn the lights on,

it’s OK. Otherwise:

Exchange* Control’s

Black ⇔Brown wires. Remove

the tape. Go to the next page.

2. ➯

If light turns on in

only one position

of remote switch:

Exchange*

Control’s

Red ⇔Brown

wires.

Troubleshooting Wiring Connections

➯

Test again. Go

to 1 or 3.

➯

595-4514-14

-8-

For single switch

installations, con-

nect the wall switch as

shown here.

Ifyouwanttohavemo-

tion sensors at both

3-way switches, con-

nect them as shown

below. The minimum

wattage may increase

to 100 W for ﬂuores-

cent and 50 W for in-

candescent lighting.

SPECIAL INSTALLATIONS

AUTO

OFF ON

SINGLE SWITCH INSTALLATION

FROM

POWER

SOURCE

BLACK

WHITEWHITE

BROWN

SL-6107

RED BLACK

EXISTING LIGHT SWITCH CONFIGURATION

WHITE

FROM

POWER

SOURCE BLACK

WHITE

RED

(In Wall)

RED (In Wall)

BLACK

WHITE

BLACK

2 SWITCH INSTALLATION

AUTO

OFF ON

WHITE

FROM

POWER

SOURCE

BLACK

WHITE

SL-6107

WHITE

BLACK

AUTO

OFF ON

BLACK

BROWN

SL-6107

RED

(From 6107)

BROWN

RED

(From 6107)

*COMMON *COMMON

*COMMON-Used for illustrative Purposes Only. Check Your Switch.The common may be in a different loca-

tion, depending on the brand of your switch.

RED is used to represent the second wire between two standard three-way switches. This may not be the color

used in all installation. If you are not sure about your wiring, call an electrician for installation help. There is also

a RED wire on the SL-6107 switch. Check the instructions above closely and do not confuse the two.

-9-

595-4514-14

OFF

AUTO

ADJUSTMENT

TIME LIGHT

Test 20

151

5 10

Dark

Any Light Level

5 Seconds

20 Minutes

Press in with screwdriver.

Swing out cover to remove.

The sensor can be prevented from turning on lights when there is

already enough light in the room. Use a small screwdriver to set

the light level using this diagram as a guide. In the fully clockwise

position, the sensor turns on lights even in full daylight. In the fully

counter-clockwise position, the sensor only turns on lights when the

surrounding light level is very low.

❐With the switch in the AUTO position and the light at the desired

level for the lights to turn on, put the LIGHT control to the minimum

dark (fully counter-clockwise) position. Wait for the lights to turn

off.

❐Move your hand in front of the sensor. While moving your hand in

front of the sensor, slowly turn the LIGHT adjustment clockwise

until the lights controlled by the sensor come on.

PHOTO SENSITIVITY

595-4514-14

-10-

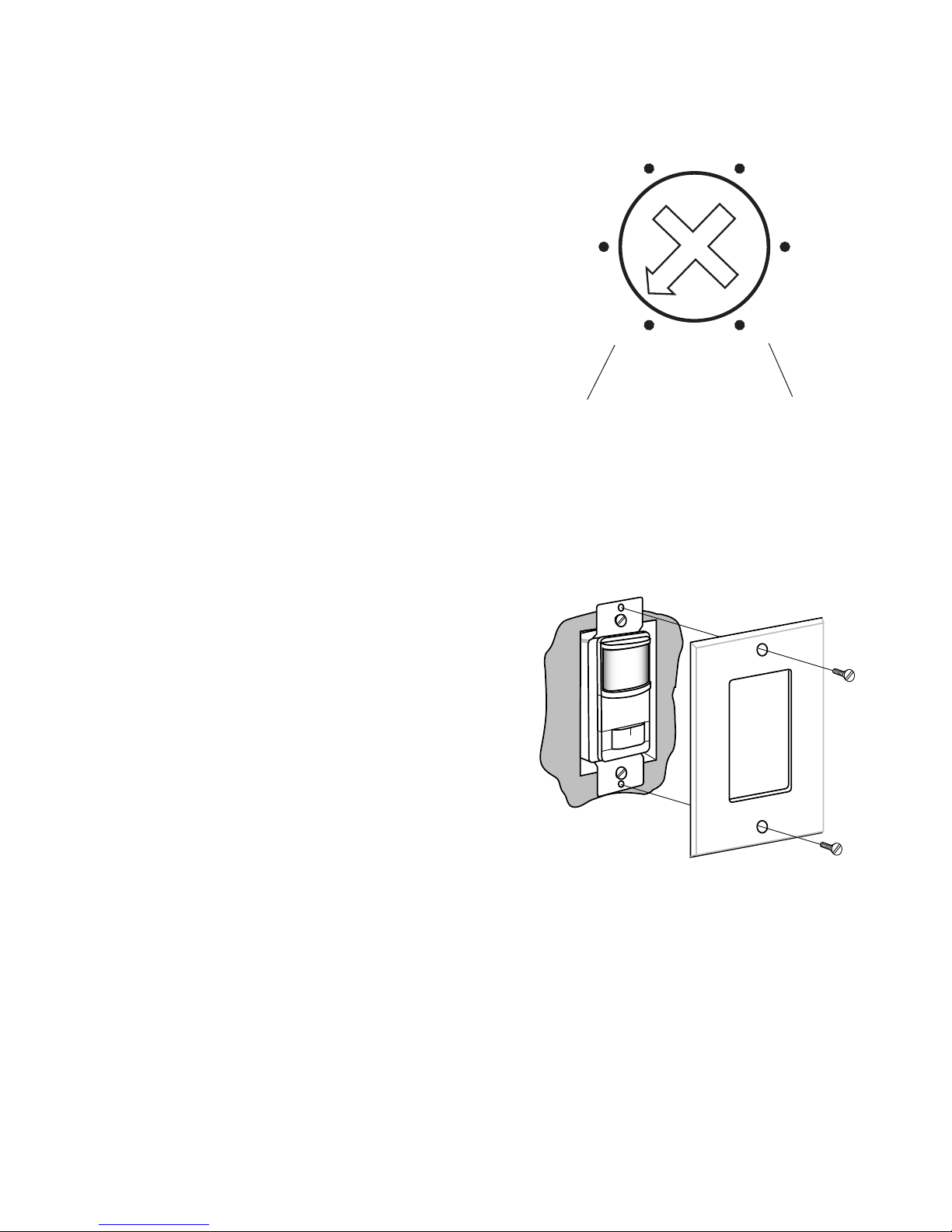

TIME CONTROL

There are 6 preset selections for

the amount of time the lights stay

on: Test (5 seconds), 1, 5, 10,

15, and 20 minutes. Use a small,

phillips screw driver to adjust the

TIME control (see Figure 4). Turn

theTIMEcontroluntilit“snaps”into

the desired time position.

ADJUSTMENT

Outlet Cover Plate

AUTO

OFF

INSTALL WALL COVER

PLATE

❐Securetheincludedwallplatewith

the screws provided.

TIME LIGHT

Test 20

151

5 10

20 Minutes5 Seconds
