Heat Controller B-VFH09MA-1 Manual de instrucciones
Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
InverterFlex Series®
Indoor Ductless Mini-Split
Heat Pumps
B-VFH09MA-1
B-VFH12MA-1
B-VFH18MA-1
2
VFH InverterFlex® - Ductless Mini-Split Heat Controller
!
Caution
• Contact an authorized service technician for repair or maintenance of this unit
• Contact an authorized installed for installation of this unit.
• Installation work must be performed in accordance with local and national electrical codes and
standards by authorized personnel only
TABLE OF CONTENTS
Warnings and Cautions ....................................................................................................... 3
Parts Identication ............................................................................................................... 4
Operation of Wireless Remote Control ............................................................................. 5-9
Special Features of Wireless Remote Control ................................................................... 10
Battery Installation and Replacement ................................................................................ 10
Manual Operation .............................................................................................................. 11
Operation Tips ................................................................................................................... 12
Care and Cleaning ............................................................................................................. 13
Troubleshooting ............................................................................................................14-16
Installation Notices ............................................................................................................ 17
Installation of Location and Clearances............................................................................. 18
Indoor Unit Installation ..................................................................................................19-20
Indoor Wiring ..................................................................................................................... 21
Initial Start-up Checks ....................................................................................................... 23
Installation of Optional Filter .............................................................................................. 23
3
Heat Controller VFH InverterFlex® - Ductless Mini-Split
WARNING!
!
CAUTION!
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
This symbol denotes item that is PROHIBITED from doing.
CAUTION!
!
• Read the follow SAFETY PRECAUTIONS carefully before installation.
• Electrical work must be performed by a licensed electrician.
• Incorrect installation due to ignoring the instruction will cause harm or damage.
n
1) Do not install without an authorized services/installer.
2) Install according to this installation instruction. If installation is defective, it can cause water
leakage, or electric shock/re.
3) Use the supplied accessories and specied parts for installation.
4) Install the indoor unit on a wall strong enough to hold the unit’s weight.
5) For electrical work, follow local and national electric codes and these installation instructions.
An independent circuit and single outlet must be used. If electrical circuit capacity is not
enough or defects are found in electrical work, it may cause electrical shock or re.
6) Use the specied cable and connect tightly. Clamp the cable so that no external force will
stress the connections. Loose wiring may overheat at the connection points and create a
possible re hazard.
7) Wiring routing must be properly arranged so that control board cover is xed properly. If control
board cover is not xed perfectly, it will cause overheating at connection point of terminal, re
or electrical shock.
8) When charging the unit, take care not to let air/substances other than the specied refrigerant
go into refrigeration circuit. Otherwise it will cause lower capacity, abnormal high pressure
in the refrigeration circuit, explosion and injury.
1) This equipment must be grounded it may cause electrical shock if grounding work
doesn’t comply with local/national electric codes.
2) Do not install the unit at place where leakage of ammable gas may occur. If gas
leaks and accumulates near the unit, it may cause re.
3) Condensate must properly drain away from the unit as mentioned in installation instructions.
If not done correctly, water may enter the room and damage personal belongings.
WARNING!
!
4
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Air Inlet
Air Outlet
Indoor Unit
The icons displayed:
Cool
Dry
Heat
Power
Set temp.
(1) Remote controller
(2) Front panel
(3) Filter
(4) Horizontal louver
(5) Wall pipe bushing
(6) Binding tape
(7) Connection pipes
(8) Condensate drain hose
5
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Operation of wireless remote control
Features and functions of wireless remote control
Be sure that there are no obstructions between the unit’s receiver and remote control. Be careful not to drop the
remote control; Don’t let any liquid get inside the remote control, don’t put the remote control directly in sunlight or any
other place where it is very hot.
Signal transmitter
Remote controller
ON/OFF
MODE MODE button
ON/OFF button
AUTO
COOL
DRY
FAN
HEAT
TEMP button
TEMP
FAN button
FAN
High fan
Medium-high fan
Medium-low fan
Medium fan
Low fan
AUTO
• Press this button, Auto, Low, Medium-low, Medium,
Medium-high, High speed can be sequentially
selected. Auto mode is the default mode. In dry mode,
the only available fan speed is low.
• Press this button, the following temperatures
can be set sequentially: the set temperature,
indoor ambient temperature and outdoor ambient
temperature. When the indoor unit rst powers on,
it will display the set temperature and this icon .
If the button is pressed again, this icon and the
indoor ambient temperature is shown. Pressing the
button a third time will display this icon and the
outdoor ambient temperature. 3 seconds later the
display will return to the set temperature or unless
there is another signal.
Outdoor ambient temperature display range
is 0~60°C (32~99°F). However, if the outdoor
ambient temperature is below 0°C, it still will display
0°C (32°F). The display can’t show temps below
0°C (32°F).
• Press this button, Auto, Cool, Dry, Fan, Heat
mode can be selected sequentially. When
unit powers on, Auto mode is the default
mode. In Auto mode, the temperature is not
shown on the display. The unit will operate
in heating or cooling modes automatically
based on the room temperature. Under Heat
mode the initial set point is 28°C (82°F);
in other modes, the initial set point is 25°C
(77°F).
• Press this button, the unit will turn on, press
it once more, the unit will turn off. Sleep
function cancels while unit is off.
When
operating buttons
on the cover please
make sure the cover
is closed completely
on the remote.
6
VFH InverterFlex® - Ductless Mini-Split Heat Controller
When quiet mode is used, the fan operates at a low speed. Pressing
the Quiet button activates the mode and the icon “ “ is displayed.
To cancel Quiet mode, press the button again.
• When Quiet mode is selected during the cooling mode, the fan
speed operates at Medium-high speed for 10 minutes or until
the room temperature is < 82°F (28C), after that the fan speed
decreases to Medium-low.
• In heating mode, the indoor fan operates at Medium fan speed.
• During Auto mode, when Quiet mode is enabled, the Quiet icon
“ “ along with the “AUTO” icon is displayed. The fan will operate
as noted above, depending on the mode the unit selects based on
the room temperature (COOL, HEAT, or FAN ONLY).
Features and functions of wireless remote control
LIGHT
LIGHT button
TURBO
TURBO button
CLOCK
CLOCK button
Remote controller
• To set the time, press the clock button until
the clock symbol blinks. While blinking, the
time can be adjusted by pressing the (+)
or (-) buttons within 5 seconds. Once the
time is set, press the clock button again to
conrm, the clock symbol will no longer
blink. The rst time the unit is powered on
the time will display 12:00 as the default.
• Under Cool or Heat mode, the turbo button can turn on or
turn off the Turbo function. After the Turbo function turned
on, the Turbo symbol will display. The Turbo mode will
be automatically cancelled if the mode or fan speed is
changed. The Turbo mode can be used to quickly heat or
cool the room.
• When powered on the light is defaulted on. Press the light
button to turn on/off the light.
Operation of wireless remote control
X-FAN
X-FAN button
++ button
-
- button
QUIET
QUIET button
• Using this button, the temperature can be
increased. The temperature can be set
to 61-86°F (16-30°C). The temperature
adjustment can not be made in Auto mode.
• Using this button the temperature can be
decreased. The temperature can be set
to 61-86°F (16-30°C). The temperature
adjustment can not be made in Auto mode.
• By pressing X-FAN button in COOL or DRY mode, the
icon is displayed and the indoor fan will operate for 2
minutes in order to dry the indoor unit after powering off
the unit. X-FAN OFF is the default setting. The X-FAN
feature is not available in AUTO, FAN or HEAT mode.
The X-FAN mode is used to dry the unit out when it won’t
be used for a long time. This helps prevent mold and
mildew from forming inside the unit.
7
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Features and functions of wireless remote control
AUTO LOUVER SWING LEFT-RIGHT button
SWING UP AND DOWN button
SWING LEFT AND RIGHT button
Remote controller
OFF
OFF
• Press swing left and right buttons continuously more than 2s
the lower will swing back and forth from the left to the right.
When you release the buttons the louver will stop swinging and
the present position of the louver will be kept.
• Press this button to set left & right swing angle cycling as shown below.
• Adjust the swing of the louver to direct the air ow to the most
comfortable position.
I FEEL I FEEL button
• Due to temperature stratication in the room,
it is more comfortable if the unit senses the
temperature at the level the remote sits,
rather that at the indoor unit, which is up
high on the wall. To select the sensing at
the remote control room temperature rather
than at the unit, press the I-FEEL button.
The I-FEEL icon will be displayed and the
temperature signal will be sent from the
remote to the unit every 10 minutes as long
as the remote controller is in range of the
indoor unit. To cancel, press the I-FEEL
button again.
• Press this button to set swing angle of the louver, which cycles
through the options below.
• Adjust the swing
of the louver
to direct the air
ow to the most
comfortable
position.
• This icon indicates that the
louver swings back and forth.
TIMER ON TIMER ON button
• The Timer feature is a program that can be
used to turn the unit on/off after a certain
amount of time has transpired. To set the
Timer on, press the Timer on button. The “ON”
icon will blink indicating that the program can
be set. Press the (+) or (-) buttons to adjust
the time duration in minutes. After the time
duration is set, press the Timer on button
again to begin the Timer on operation. To
cancel the Timer on operation, press the
Timer on button again.
Be sure the clock is set to the actual
time before setting the timer. See clock
instructions to set the clock time.
Operation of wireless remote control
TIMER OFF TIMER OFF button
• Press the Timer off button to create the timer off program. The
Timer off icon will blink, indicating it is in programming mode.
The set up process is the same as the timer on process - see
Timer On for instructions. The timer off program allows you to
determine when the unit should turn off based on how much
time has transpired.
AUTO LOUVER SWING button
• Press swing, + and - buttons continuously for more than
2s, the louver will swing back and forth when you release
the button, the louver will stop swinging and the present
position of the louver will be kept.
8
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Features and functions of wireless remote control
SLEEP SLEEP button
Operation of wireless remote control
The sleep program allows for the most comfortable
conditions while you sleep, as body temperatures change.
To activate the sleep mode, press the sleep mode button.
There are (3) different programmed settings to choose
from Sleep 1 ( 1), Sleep 2 ( 2), and Sleep 3 ( 3)
described below. To cancel the Sleep mode, press the
Sleep mode button and cycle through options 1, 2, and 3,
until the Sleep icon disappears from the display.
The Sleep function can not be enabled when the
unit is in Fan or Auto mode. Sleep 1 can only be selected
when the unit is in Cool or Dry mode. When Sleep mode
is enabled, Quiet mode is also automatically enabled
in conjunction. However, Quiet mode can be turned off
manually.
When Sleep 1 is activated while the unit is in Cool or Dry
mode, the unit’s set temperature will increase 1-2 degrees
during the rst hour, then after 2 hours it will decrease
by 3-4 degrees more and then continue to run at this
temp. When Sleep mode is activated while the unit is in
Heat mode, the unit will operate by decreasing the set
temperature by 1-2 degrees the rst hour and then by
3-4° degrees the next 2 hours. Then the unit will continue
to run at this temperature.
Sleep 2 operates differently than Sleep 1, as it takes into
account the set temperature.
• When the initial set temperature is between 61°F-74°F
(16°C-23°C), the temperature will increase 1-2 degrees
every hour until it reaches a 5-6 degree difference. It will
operate at this setting for (7) hours. After 7 hours, the
temperature will decrease 1-2 degrees and continue to
operate under this condition.
• When the initial set temperature is between 75°F-81°F
(24°C-27°C), the temperature will increase 1-2 degrees
every hour until a 3-4 degree difference is achieved.
This will be maintained for (7) hours, after which another
1-2 degree decrease will take place. Then the unit will
continue to operate under this condition.
9
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Features and functions of wireless remote control
SLEEP SLEEP button
Operation of wireless remote control
• When the initial set temperature is between 82°F-85°F
(28°C-29°C), the temperature will increase 1-2 degrees
every hour until a 1-2 degree increase is achieved and
that will be maintained for (7) hours. After (7) hours,
the temperature will decrease another 1-2 degrees and
continue to operate under this condition.
• When the initial set temperature is 86°F (30°C), after 7
hours the temperature will decrease 1-2 degrees and
continue to run under this condition.
• When the initial set temperature is set to 61°F (16°C),
the unit will maintain this temperature.
• When the initial set temperature is between 62°F-68°F
(17°C-20°C), the temperature will decrease 1-2 degrees
every hour until a 1-2 degree decrease is maintained.
• When the initial set temperature is between 69°F-81°F
(21°C-27°C), the temperature decreases 1-2 degrees
every hour, then this temperature is maintained.
• When the initial set temperature is between 82°F-86°F
(28°C-30°C), the temperature decrease 1-2 degrees
every hour until a 5-6 degree decrease has been
achieved. Then the unit will continue to operation under
this condition
Allows customization of the Sleep mode conditions by
setting the temperature and hours it will be maintained
up to 8 hours. To create the individualized program under
the Sleep 3 mode, hold the turbo button until the remote
control displays “1 hour” and the set temperature will
display and blink “88”. Adjust the set temperature by
pressing the (+) or (-) buttons for the rst hour of sleep
mode. Press the “Turbo” button to conrm. The remote
will advance to the next hour and display “2 hours” and
allow you to set the temperature again. After the set
temp is set, press the turbo button to conrm. Repeat
this process for the 8 hours of Sleep mode, setting
the temperature for each hour. After programming is
complete, the remote will resume it’s normal display.
10
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Special features of the wireless remote
Press + and - buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, the icon will
be displayed. If the keyboard is unlocked, the mark will disappear.
While the unit is off, press the MODE and - buttons simultaneously to switch between °C and °F.
In cool mode PRESS the “TEMP” and “CLOCK” buttons simultaneously to enable the energy saving mode. The
remote control will display “SE”. Repeat this operation to cancel the Energy Saving mode.

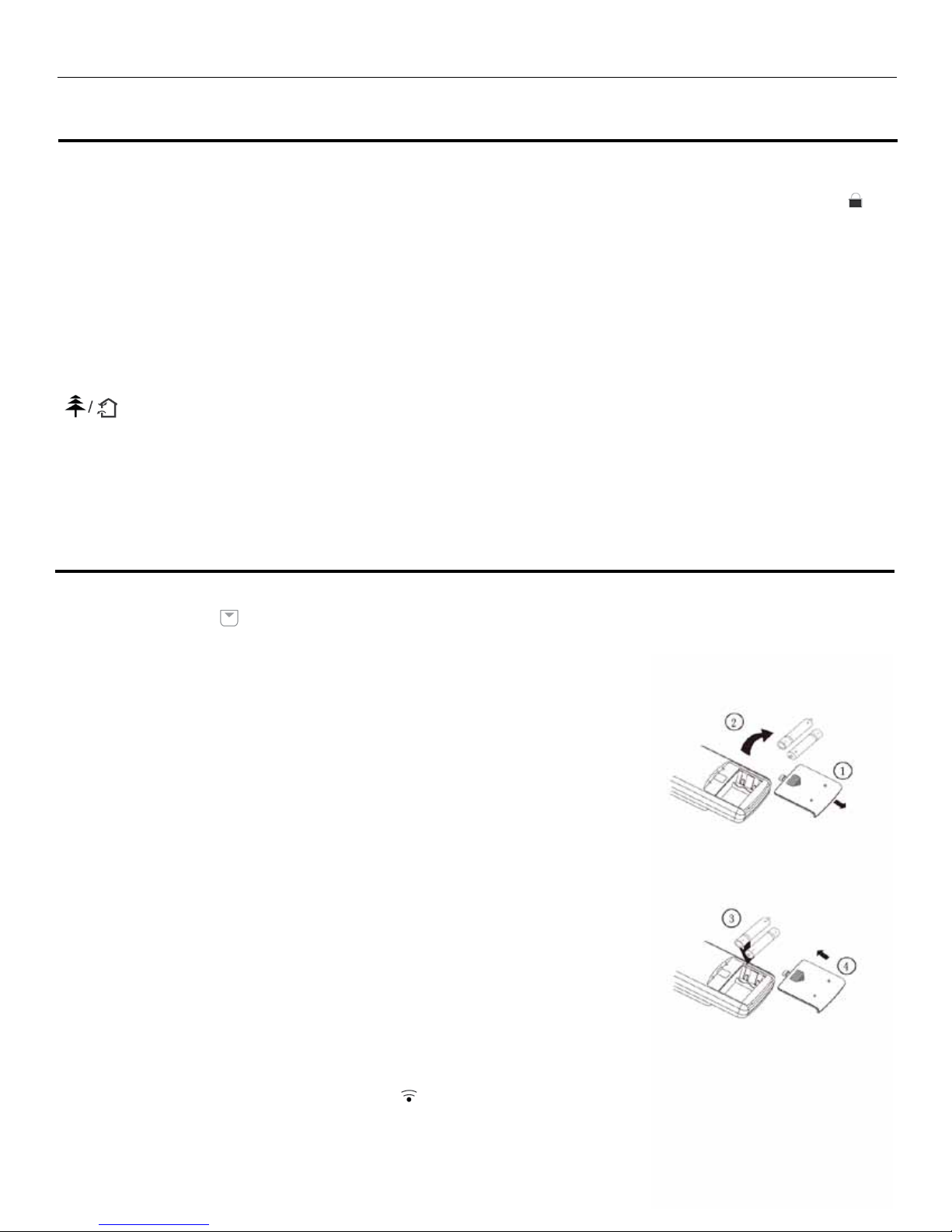

1. Press the place with and push the back cover of wireless remote controller in
the direction of the arrow.
2. Take out the old batteries.
3. Insert two new AAA1.5V dry batteries. Ensure they are inserted with the proper
polarity (+/-). (As show in Fig. 2.)
• When changing the batteries, do not use the old or different brands of batteries,
otherwise it can cause a malfunction of the wireless remote control.
• If the wireless remote control will not be used for a long time, please take the
batteries out. Old batteries can leak battery acid and damage the remote.
• Ensure the signal of the remote is not obstructed and is in range of the indoor unit.
• Due to possible signal interference with other devices, such radios or televisions, be
sure these devices are at least 3 ft (1m) away.
• If the remote control cannot operate normally, take the batteries out and then
reinsert them 30s later; if abnormal operation continues, aim remote controller at
the receiver of the indoor at a closer proximatey to improve the receiving sensitivity
of the indoor unit.
• When the remote controller sends out a signal a symbol will icker for about
1s. The beep signal will be heard when the indoor unit receives the signal from the
remote. Absence of this icon/beep signal may indicate that the batteries need to be
replaced in the remote.
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Bomba de calor de Heat Controller
Heat Controller
Heat Controller SMA Series Manual de usuario
Heat Controller
Heat Controller VMH09SC-1 Manual de usuario
Heat Controller
Heat Controller VMH 09 Manual
Heat Controller
Heat Controller SMA 09 Manual de usuario
Heat Controller
Heat Controller VMH C Series Manual de usuario
Heat Controller
Heat Controller MMC18DA-1 Manual de usuario
Heat Controller
Heat Controller AS-W303DPZ0 Manual de usuario
Heat Controller
Heat Controller TPRG Series Manual de usuario
Heat Controller
Heat Controller H 006 Manual de usuario
Heat Controller
Heat Controller HEV Series Manual de instrucciones
Heat Controller
Heat Controller RAH-183G Manual de usuario
Heat Controller
Heat Controller HSS Series Guía
Heat Controller
Heat Controller AS-W093E7Y0 Manual de usuario
Heat Controller
Heat Controller TPR Series Guía
Heat Controller
Heat Controller Energy Knight B/A-HMC09AS Manual de usuario
Heat Controller
Heat Controller HKV Manual del propietario
Heat Controller
Heat Controller VMH30SB-1 Manual de usuario
Heat Controller
Heat Controller HBH/V Compact Manual de instrucciones
Heat Controller
Heat Controller HBH Series Guía
Heat Controller
Heat Controller HRE1318/1360-1A Manual de usuario
Manuales populares de Bomba de calor de otras marcas
Mitsubishi Electric
Mitsubishi Electric PUZ-SWM60VAA Manual de usuario
Dimplex
Dimplex LI 16I-TUR Guía del usuario
Carrier
Carrier WSHP Open v3 Guía de configuración rápida
TGM
TGM CTV14CN018A Manual de usuario
Carrier
Carrier 38MGQ Series Manual de usuario
Kokido
Kokido K2O K880BX/EU Guía de solución de problemas
Viessmann
Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida
Carrier
Carrier 48EZN Manual de usuario
Viessmann
Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento
Ariston
Ariston NIMBUS Manual de usuario
Weishaupt
Weishaupt WWP L 7 Guía del usuario
GE
GE Zoneline AZ85H09EAC Manual de usuario
