Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com

SERVICE MANUAL

Inverter Single Zone

Ductless Mini Split Heat Pump

VMH Series Version C

VMH30SC-1

VMH36SC-1

Service Manual VMH 30, 36 SerieS Heat Controller

CONTENTS

1.Safety Precautions ............................................................................................................................. 3

2. Functions ........................................................................................................................................... 8

3. Dimensions ...................................................................................................................................... 10

3.1 Indoor Unit.............................................................................................................................. 10

3.2 Outdoor Unit ........................................................................................................................... 11

4. Refrigerant Cycle Diagram ............................................................................................................. 12

5. Wiring Diagrams.............................................................................................................................. 13

5.1 Indoor Unit.............................................................................................................................. 13

5.2 Outdoor Unit ........................................................................................................................... 14

6. Installation Details........................................................................................................................... 15

6.1 Wrench torque sheet for installation....................................................................................... 15

6.2 Power Wiring .......................................................................................................................... 15

6.3 Pipe length and elevation....................................................................................................... 16

6.4 Pressure test and evacuation................................................................................................. 17

7. Operation characteristics ............................................................................................................... 18

8. Electronic functions........................................................................................................................ 19

8.1 Abbreviation............................................................................................................................ 19

8.2 Display function ...................................................................................................................... 19

8.3 Main Protection ...................................................................................................................... 20

8.4 Operation Modes and Functions ............................................................................................ 21

9. Troubleshooting .............................................................................................................................. 33

9.1 Indoor Unit Error Display ........................................................................................................ 33

9.2 Diagnosis and Solution........................................................................................................... 34

Heat Controller VMH 30, 36 SerieS Service Manual

1. Precaution

1.1 Safety Precaution

nTo prevent injury to the user or other people and property damage, the following

instructions must be followed.

nIncorrect operation due to ignoring instructions will cause harm or damage.

nBefore servicing unit, be sure to read this service manual.

1.2 WARNING

uInstallation

nDo not use a defective or underrated circuit breaker. Use this appliance on a dedicated

circuit.

There is a risk of re or electric shock.

nFor electrical work, contact the dealer, seller, a qualied electrician, or an authorized

service center.

Do not disassemble or repair the product, there is a risk of re or electric shock.

nAlways ground the product.

There is a risk of re or electric shock.

nInstall the panel and the cover of control box securely.

There is a risk of re or electric shock.

nAlways install a dedicated circuit and breaker.

Improper wiring or installation may cause re or electric shock.

nUse a correctly rated breaker of fuse.

There is risk of re or electric shock.

nDo not install, remove, or reinstall the unit by yourself (customer).

There is risk of re, electric shock, explosion, or injury.

nUse caution when unpacking and installing the product.

Sharp edges could cause injury, be especially careful of the case edges and the ns on the

condenser and evaporator.

Service Manual VMH 30, 36 SerieS Heat Controller

nFor installation, always contact the dealer or an Authorized service center.

There is a risk of re or electric shock.

nDo not install this product on a defective installation stand.

It may cause injury, accident, or damage to the product.

nBe sure the installation area does not deteriorate with age.

If the base collapses, the air conditioner could fall with it, causing property damage, product failure,

and personal injury.

nDo not let the air conditioner run for a long time when the humidity is very high and a door

or a window is left open.

Moisture may condense and wet or damage furniture

nTake care to ensure that the power cable can not be pulled out or damaged during

operation.

There is a risk of re or electric shock.

nDo not place anything on the power cable.

There is a risk of re or electric shock.

nDo not touch this product with wet hands during operation.

There is a risk of re or electric shock.

nDo not place a heater or other appliance near the power cable.

There is a risk of re or electric shock.

nDo not store or use ammable gas or combustibles near this product.

There is risk of re or failure of product.

nDo not use this product in a tightly closed space for a long time.

Oxygen deciency could occur.

nIn the event of ammable gas leaks, turn off the gas, open a window for ventilation, and

repair leaks before turning the product on.

Do not use the telephone or turn power switches on or off.

There is risk of explosion or re.

Heat Controller VMH 30, 36 SerieS Service Manual

nIf strange sounds, smells, or smoke come from product, turn the breaker off or disconnect

the power supply.

There is a risk of electric shock or re.

nDo not open the inlet grill of this product during operation. (Do not tough the electrostatic

lter, if the unit is so equipped.)

There is risk of physical injury, electric shock, or product failure.

nUse caution that water does not enter the product.

There is risk of re, electric shock, or product damage.

nTurn the main power off when cleaning or maintaining this product.

There is risk of electric shock.

nWhen this product is not used for a long time, disconnect the power supply or turn off the

breaker.

There is risk of product damage or failure, or unintended operation.

uCAUTION

nAlways check for gas (refrigerant) leakage after installation or repair of product.

Low refrigerant levels may cause failure of product.

nInstall the drain hose to ensure that water is drained away properly.

nKeep level even when installing the product.

It can avoid vibration or water leakage.

nDo not install this product where noise or hot air from the outdoor unit could damage the

neighboring property.

It may cause a problem for your neighbors.

Service Manual VMH 30, 36 SerieS Heat Controller

nUse two or more people to life and transport this product.

Avoid personal injury.

nDo not install this product where it will be exposed to sea wind (salt spray) directly.

It may cause corrosion. Corrosion, particularly on the condenser and evaporator ns, could cause

product malfunction or inefcient operation.

uOPERATIONAL

nDo not expose skin directly to cool air for long periods of time. (Do not sit in the draft).

This could cause harm to your health.

nDo not use this product for special purposes, such as preserving foods, works of art, etc. It

is a consumer air conditioner, not a precision refrigerant system.

There is risk of damage or loss of property.

nDo not block the inlet or outlet of air ow.

It may cause product failure.

nUse a soft cloth to clean. Do not use harsh detergents, solvents, etc.

There is a risk of re, electric shock, or damage to the plastic parts of the product.

nDo not touch the coil ns when removing the air lter. They are very sharp.

There is risk of personal injury.

nDo not step on or put anything on this product. (outdoor units)

There is risk of personal injury and failure of product.

nAlways insert the lter securely. Clean the lter every two weeks or more often if

necessary.

A dirty lter reduces the efciency of the air conditioner and could cause product malfunction or

damage.

nDo not insert hands or other objects through air inlet or outlet while this product is

operating.

There are sharp and moving parts that could cause personal injury.

nDo no drink the water drained from this product.

It is not sanitary could cause serious health issues.

Heat Controller VMH 30, 36 SerieS Service Manual

nUse a rm stool or ladder when cleaning or maintaining this product.

Be careful to avoid personal injury.

nReplace all batteries in the remote control with new ones at the same type. Do not mix old

and new batteries or different types of batteries.

There is risk of re or explosion.

nDo not recharge or disassemble the batteries. Do not dispose of batteries in a re.

They may burn of explode.

nIf the liquid from the batteries gets onto your skin or clothes, wash it well with clean water.

Do not use the remote if the batteries have leaked.

The chemical in batteries could cause burns or other health hazards.

Service Manual VMH 30, 36 SerieS Heat Controller

2. Function

When the power supply is

interrupted and then restored,

the air conditioners

automatically restores the

previous function setting.

Maintain the room temperature in accordance

with the setting temperature.

The mode can be changed automatically by the

room temperature.

The louver can be set at the desired position or

swing up and down automatically

The function is usually used on rainy days

in springtime or damp areas to remove to

moisture from the air.

The fan is turned to low speed

(cooling/heating).

The unit will turn off after seven hours.

The unit will decide the louver direction

according to operation mode.

Turbo wind, high, med, low, auto.

Restarting after for approx. 3 minutes to

protect the compressor.

Prevents the water from freezing on evaporator by

sensing the evaporator pipe temperature in cooling

mode.

Indoor unit

Operation by remote controller

Sensing by room temperature

Room temperature control

Anti-freezing control in cooling

Time Delay Safety control

Indoor fan speed control

Two-direction air vane

Sleep mode auto control

Air flow Direction control

Auto mode

Temp. Compensation Flexible wiring connection

Auto defrost

Anti-cold function

Self-diag. function

Auto-restart function

Prevents indoor unit from blowing

cold air when the unit starts up..

Independent dehumidification

Timer function

Ionizer (optional)

Follow me (optional)

Restarts after for approx. 3 minutes to

protect the compressor.

Maintains the room temperature in accordance

with the temperature setting.

Senses room temperature

Heat Controller VMH 30, 36 SerieS Service Manual

It protects the valves and prevents water from dripping.

The unit has 3 minute delay between ON/OFF operations.

Outdoor unit

Power relay control

Valve protection cover

Low noise air flow system

Propeller fan makes the outdoor unit run more quietly.

Compressor crankcase heater

Anti-rust cabinet

Discharge pipe temperature protection

Service Manual VMH 30, 36 SerieS Heat Controller

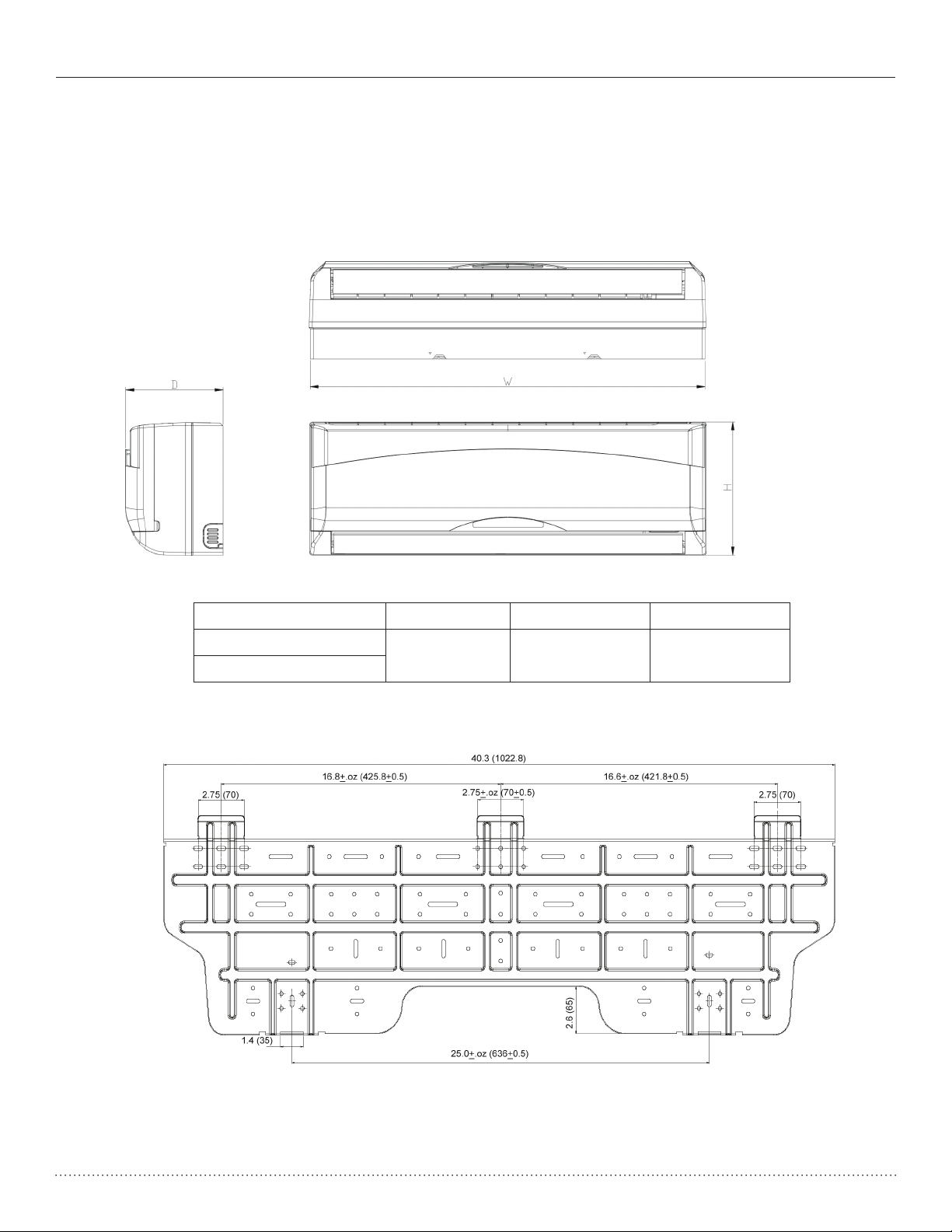

3. Dimension

3.1 Indoor Unit

Model W in.(mm) D in.(mm) H in.(mm)

B-VMH30SC-1 56.9(1445) 8.9(277) 13.4(340)

B-VMH36SC-1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de Heat Controller

Heat Controller

Heat Controller Geothermal Manual de usuario

Heat Controller

Heat Controller Energy Knight B/A-HMC30AS Manual de usuario

Heat Controller

Heat Controller HRE1318/1360-1A Manual de usuario

Heat Controller

Heat Controller VMH09SC-1 Manual de usuario

Heat Controller

Heat Controller HP Series Manual de instrucciones

Heat Controller

Heat Controller VMH 09 Manual de usuario

Heat Controller

Heat Controller A-HMC09AS Manual de usuario

Heat Controller

Heat Controller A-VFH24TA-1 Manual de instrucciones

Heat Controller

Heat Controller TPRG Series Manual de usuario

Heat Controller

Heat Controller HBH Series Manual de instrucciones

Heat Controller

Heat Controller TGC Series Manual de usuario

Heat Controller

Heat Controller VMH 09 Manual

Heat Controller

Heat Controller B-VFH09MA-1 Manual de instrucciones

Heat Controller

Heat Controller MMC18DA-1 Manual de usuario

Heat Controller

Heat Controller B-DVH09SD-0 Manual de usuario

Heat Controller

Heat Controller RPHE-093G Series Manual de usuario

Heat Controller

Heat Controller SMA 09 Manual de usuario

Heat Controller

Heat Controller HBH Series Guía

Heat Controller

Heat Controller VMH 09 Manual de usuario

Heat Controller

Heat Controller Energy Knight HMC30AS-1 Manual de usuario

Heat Controller

Heat Controller VMH30SB-1 Manual de usuario

Heat Controller

Heat Controller SMA Series Manual de usuario

Heat Controller

Heat Controller RAH-183G Manual de usuario

Heat Controller

Heat Controller HEV Series Manual de instrucciones

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
