1Heat & Glo • LOGS-550F Log Instructions • 2297-983 Rev. F • 2/20

Log Set Assembly: LOGS-550F

Models: SL-550F, SL-550F-LP, SL-5F, SL-5F-IFT

LOG PLACEMENT INSTRUCTIONS

CAUTION: Logs are fragile, handle with care. Log #1 (SRV2297-700): Place Log #1 into position by holding it upright and

placing it onto the pins on the back of the basepan. See Figure 3. Log #1 will sit upright as shown in Figure 4.

Figure 3. Log #1 - Bottom View

Log #2 (SRV2033-709): Log #2 has holes on the bottom side that will be used for positioning them in the rebox. See

Figure 5. Place Log #2 on the pins in the front of the rebox as shown in Figure 6.

Figure 1. Figure 2. Location of Log Placement Pins and Corresponding Log #’s

Figure 4. Log #1 in Position

Figure 5. Log #2 - Bottom View

3322

HOLES FOR LOG LOCATION PINSHOLES FOR LOG LOCATION PINS

Figure 6. Log #2 in Position

LOG PLACEMENT PINSLOG PLACEMENT PINS

(CIRCLED)(CIRCLED)

HOLES FOR LOG LOCATION PINSHOLES FOR LOG LOCATION PINS

Heat & Glo • LOGS-550F Log Instructions • 2297-983 Rev. F • 2/202

Figure 7. Log #3 Bottom View

Figure 8. Log #3 in Position

Log #3 (SRV2033-708): Log #3 also has holes on the bottom side that will be used for positioning it in the rebox. See

Figure 7. Place the two holes on the bottom of Log #3 onto the pins on the left side of the basepan as shown in Figure 8.

Figure 9. Log #4 in Position

1/4 IN.1/4 IN.

FLAT AREASFLAT AREAS

HOLES FOR LOG LOCATION PINSHOLES FOR LOG LOCATION PINS

LOCATING PINLOCATING PIN 11

3322

LOCATING GROOVESLOCATING GROOVES

Log #4 (SRV2033-721): Place Log #4 on the left side of the rebox as shown in Figure 9. Position one end on the at spot

on the top of Log #1 and place the other end against the locating pin on the basepan. There should be a gap of approximately

1/4 inch between the bottom left edge of the log and the rebox.

LAVA ROCK (4021-297): Place lava rock on the base pan and around the logs as shown in Figure 10. Use the supplied

rock jig to prevent the rock from going in between the base pan and burner. DO NOT allow any lava rock to fall in the slot

and onto the burner.

Figure 10. Lava Rock and Rock Jig

LAVA ROCKLAVA ROCK

ROCK JIGROCK JIG

WARNING

RISK OF EXPLOSION!

• Place lava rock according to instructions.

• Do NOT place lava rock on burner top.

• Do NOT place lava rock in a position that they

may fall into area in front of pilot.

• Use ONLY Hearth & Home Technologies-approved

optional media with this appliance.

• Do NOT use more than 3 pounds of lava rock per replace.

Improperly placed lava rock interferes with proper burner op-

eration.

Delayed ignition may occur.

Remove the rock jig by removing the shipping screw on the back. Keep the rock jig and screw in the lower cavity of the

appliance. It will be needed for future cleaning of the logs and lava rock or servicing of the appliance. Once the rock jig is

removed, visually inspect the burner area to ensure that no lava rock is there. See Figure 11.

Note: When applying Lava Rock or Media in areas of the base pan that is covered by mesh, apply only one layer of

Lava Rock or Media.

3Heat & Glo • LOGS-550F Log Instructions • 2297-983 Rev. F • 2/20

Log #5 (SRV2033-720): Log #5 is used twice in this log set. The left log is located by placing the “Y-Shaped” end on the

locating grooves of Log #3 and setting the other end on the at area of Log #1. See Figure 9 to reference locations of at areas

and grooves. Figure 12 shows the left side Log #5 in position. The right side Log #5 is located by placing the “Y-Shaped”

end on the locating grooves of Log #1 and setting the other end on the right side log #2. See Figure 12 and Figure 13. The

log should be approximately 1-1/2 inch from the end of Log #2. See Figure 14.

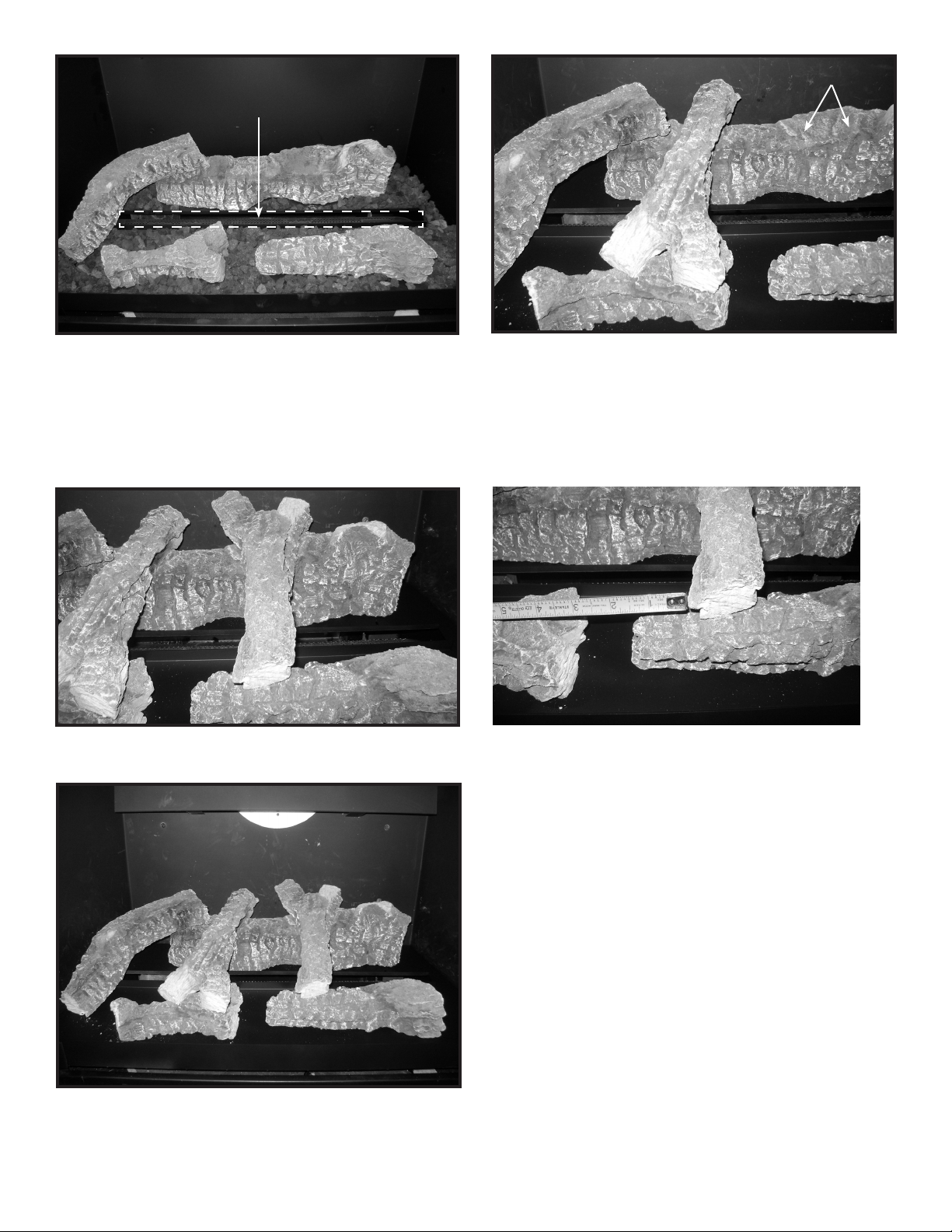

Figure 12. Log #5 (1st of 2)

Figure 13. Log #5 (2nd of 2) Figure 14. Log #5 Placement

Figure 15. Logs-550F Installed

LOCATING GROOVESLOCATING GROOVES

NO LAVA ROCK IN BURNER SLOT

(INSIDE DASHED LINE)

Figure 11. Rock Jig Removed
