1Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

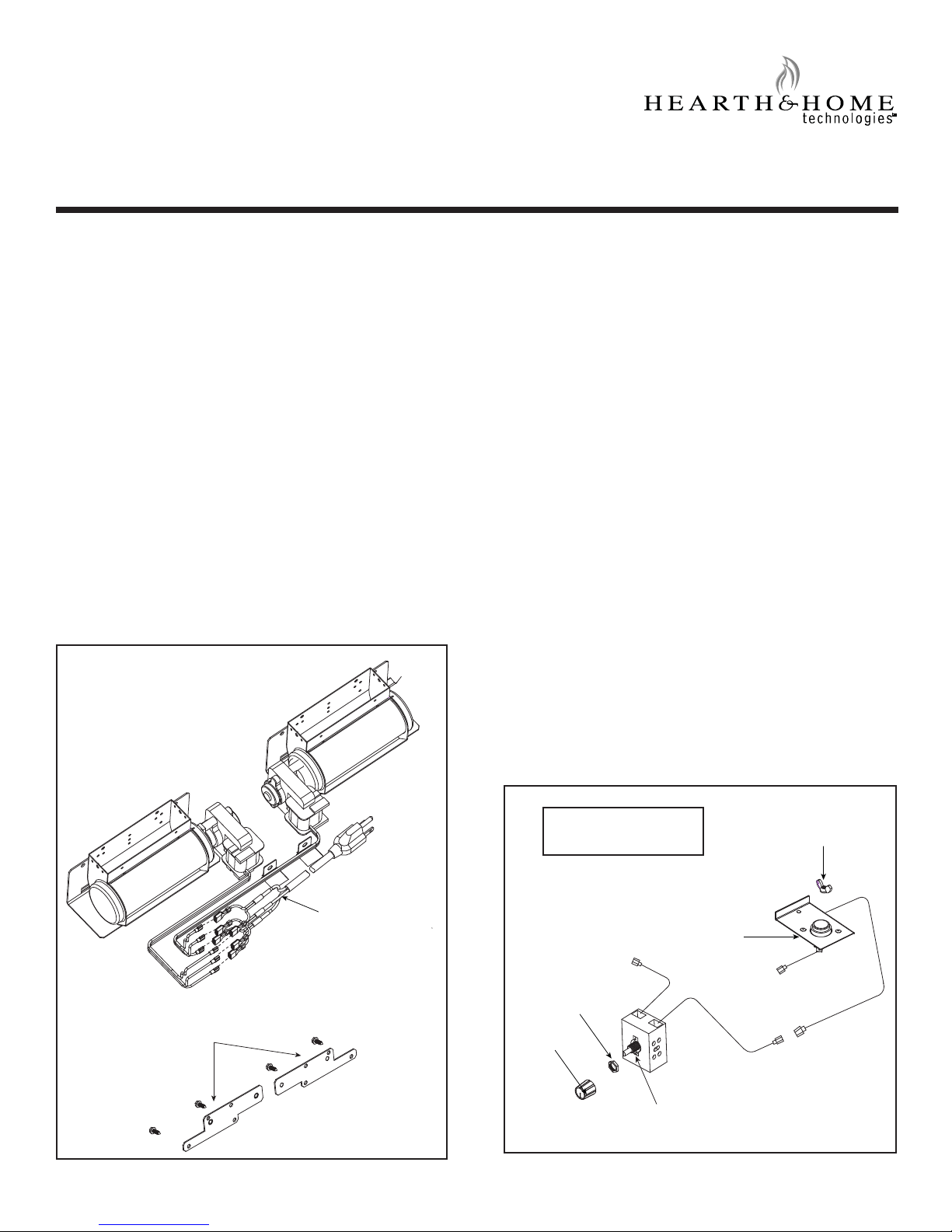

Figure 1. Carton Contents - GFK-210-C

GFK-210-C Blower System

- Installation and Operating Instructions -

1.0 INTRODUCTION

The GFK-210-C Blower System has been designed to

circulate room air through the ﬁreplace to enhance heat

output. The GFK-210-C blower system operates on 120

VAC, 60 Hz power. This is available through a receptacle

in the factory installed power cord assembly. The power

cordislocatedinthecontrolscompartmentoftheﬁreplace.

An optional variable speed control is available for use

with the blower system to provide quiet forced air ﬂow at

the desired speeds. A temperature sensor switch, which

automatically turns the blower ON/OFF, is also provided

with this kit. See Figure 2 and Section 8.0.

NOTICE: The variable speed control and temperature

sensor switch are not used with some remote control

systems.

3.0 INSTALLATION PRECAUTIONS

TheGFK-210-CBlowerKitis testedandsafe wheninstalled

inaccordance withthisinstallationmanual. Itisyour respon-

sibility to readall instructions before startinginstallation and

to follow these instructions carefully during installation to

assure maximum beneﬁt from, and safe operation of, the

blower.

This blower is carefully engineered and must be installed

only as speciﬁed. If you modify it or any of its components,

youmaycausea ﬁre hazard and will void the WARRANTY.

In addition, such action may void the coverage provided

by the owner's home insurance.

CAUTION: Allwiring should be doneby a qualiﬁedelectri-

cian and shall be in compliance with local codes and with

the National Electric Code ANSI/NFPA NO. 70-current (in

theUnitedStates), or with thecurrentCSAC22.1Canadian

Electric Code (in Canada).

CAUTION! DO NOT connect 110-120 VAC wiring to the

gas control valve of the ﬁreplace.

WARNING! Risk of Shock! Turn electrical power off at

the circuit breaker before beginning this installation.

CAUTION! Do not install a damaged blower kit.

VARIABLE SPEED CONTROL

WING

NUT

CONTROL

KNOB

CONTROL

NUT

TEMPERATURE

SENSOR

SWITCH

OPTIONAL

RHEOSTAT/TEMPERATURE

SENSOR ASSEMBLY

Figure 2. Carton Contents - SRV2206-800

BLOWER CORD

FAN

BRACKETS

2.0 CHECK CONTENTS OF SHIPPING CARTON

Compare CONTENTS OF CARTON in Figure 1 with the

actualpartsreceived. If any parts are missing ordamaged,

contact your dealer before starting installation.

2 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

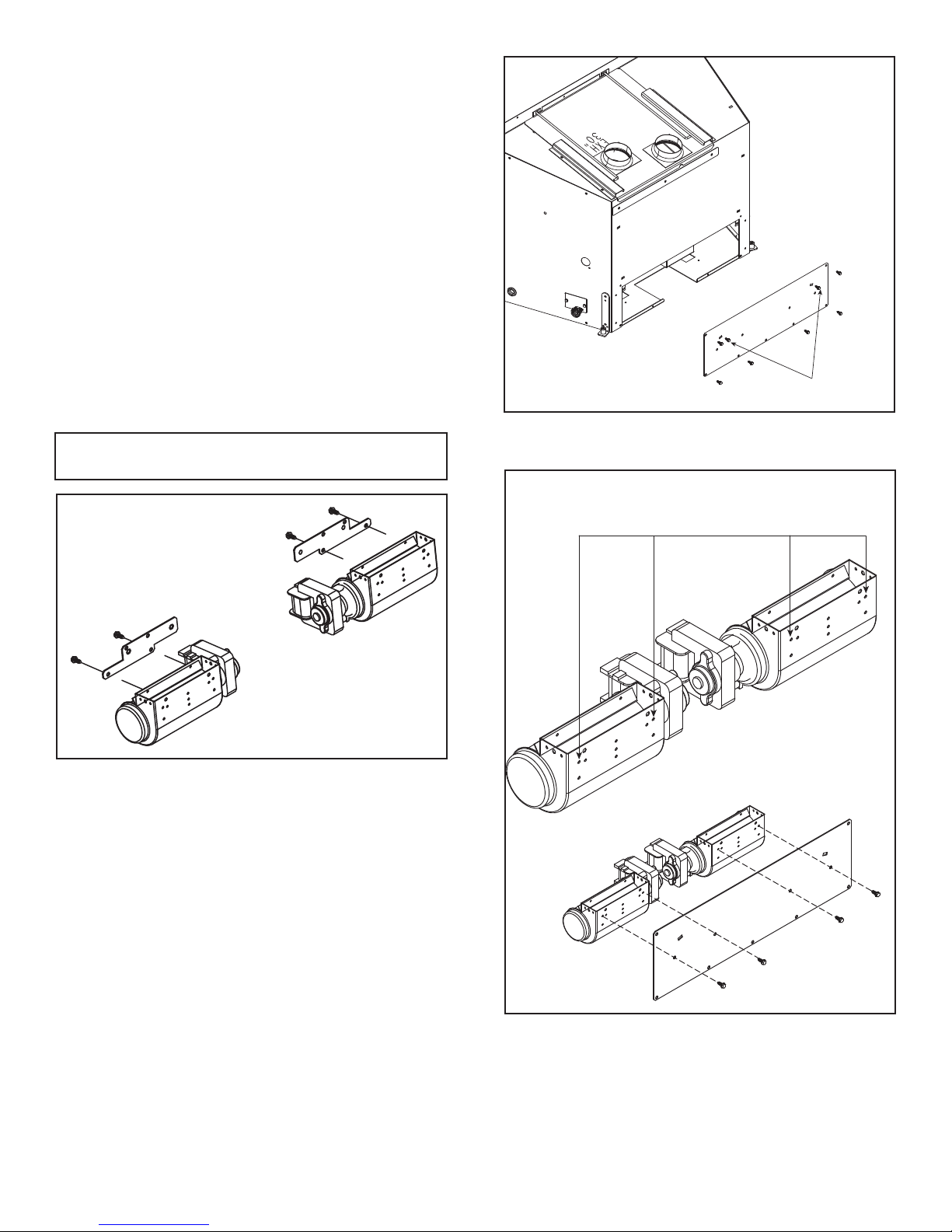

Figure 4. Remove Access Cover

Figure 5. Attach Blowers to Access Cover

Figure 3. Remove Blower Brackets

NOTE: Install the blower using the access panel located on

the back side of the appliance.

4.0 INSTALLING THE BLOWER (Metal Inserts)

1. Remove factory-installed blower brackets by removing

four screws. Brackets are only used for the FireBrick

inserts. See Figure 3.

2. Remove appliance from wall.

3. Remove access panel by removing screws. See Figure

4. Note: 35 inch models have two more screws than

30 inch models.

4. Screw blowers to access panel on rear of insert with

four screws. See Figure 5.

5. Plug the blower cord into the blower receptacle. Con-

nect the white, black, and green spade connectors

from blower cord harness to each blower. See Figure

1 and Figure 7.

6. Bundle and zip tie any wires to keep them from contact-

ing the fan blades. See Figure 7, Detail A.

7. Reinstall access panel.

35 INCH MODELS ONLY

BRACKET HOLES

3Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

5.0 INSTALLINGTHEOPTIONALVARIABLESPEED

CONTROLAND TEMPERATURE SENSOR SWITCH

If using a remote control system that utilizes a blower

(fan) control, disregard steps 1-3 and follow remote con-

trol installation instructions.

NOTICE! The sensor switch and rheostat are not used

if the blower is controlled with the RC300 remote control.

1. Slide the variable speed control behind the control

panel. With the stem sticking out of the pre-punched

hole,attachthe locknut tightly and reattach theknobon

the stem. See Figure 6. Turn the speed control switch

to the "ON" position.

2. Slide the temperature sensor switch onto the blower

stud located on the bottom of the combustion box. See

Figure 3. Secure the temperature sensor switch with

the wing nut provided.

NOTICE: The blower stud is located on the bottom of the

combustion box. See Figure 6.

NOTICE:Thetemperature sensor switch must be installed

so that the sensor switch is facing the combustion box

surface. See Detail A of Figure 6.

3. Connectthevariablespeedcontroland the temperature

sensor switch to the power cord. See Figure 7.

4. Gather the loose wires underneath the appliance and

use the zip ties to restrain them and keep them away

from the blower wheel (fan blades). See Figure 7,

Detail A.

5. Turn the 110-120 VAC service "ON" at the circuit

breaker.

6.0 RECOMMENDED OPERATING PROCE-

DURES WHEN VARIABLE SPEED CONTROLAND

TEMPERATURE SENSOR SWITCH ARE USED

Ignitetheﬁrein the ﬁreplacewiththevariablespeedcontrol

switch in an "ON" position. The fan will automatically turn

on when the temperature sensor switch closes at approxi-

mately 110OF. Heated air will be delivered at the outlet

grille. The fan will continue to operate after the ﬁreplace

is turned OFF until the temperature sensor switch opens.

NOTICE! During operation, ensure that all wiring is

kept away from the blower wheel (fan blades).

Various conditions (such as ﬁreplace model, type of ﬁre-

place installation, outside air temperature vs. inside air

temperature) can contribute to the length of the time the

blower remains on after the ﬁreplace is turned OFF. The

blower can be turned off manually with the speed control

switch.

WARNING! Risk of Injury! DO NOT contact the blower

wheel (fan blades) during operation.

7.0 MAINTENANCE

Periodically check the ﬁreplace and remove any dust, dirt

or obstructions.

8.0 REPLACEMENT PARTS AND CUSTOMER

SERVICE

Replacement parts and service may be obtained through

your dealer.

Rheostat/Temperature Sensor Assembly:

SRV2206-800

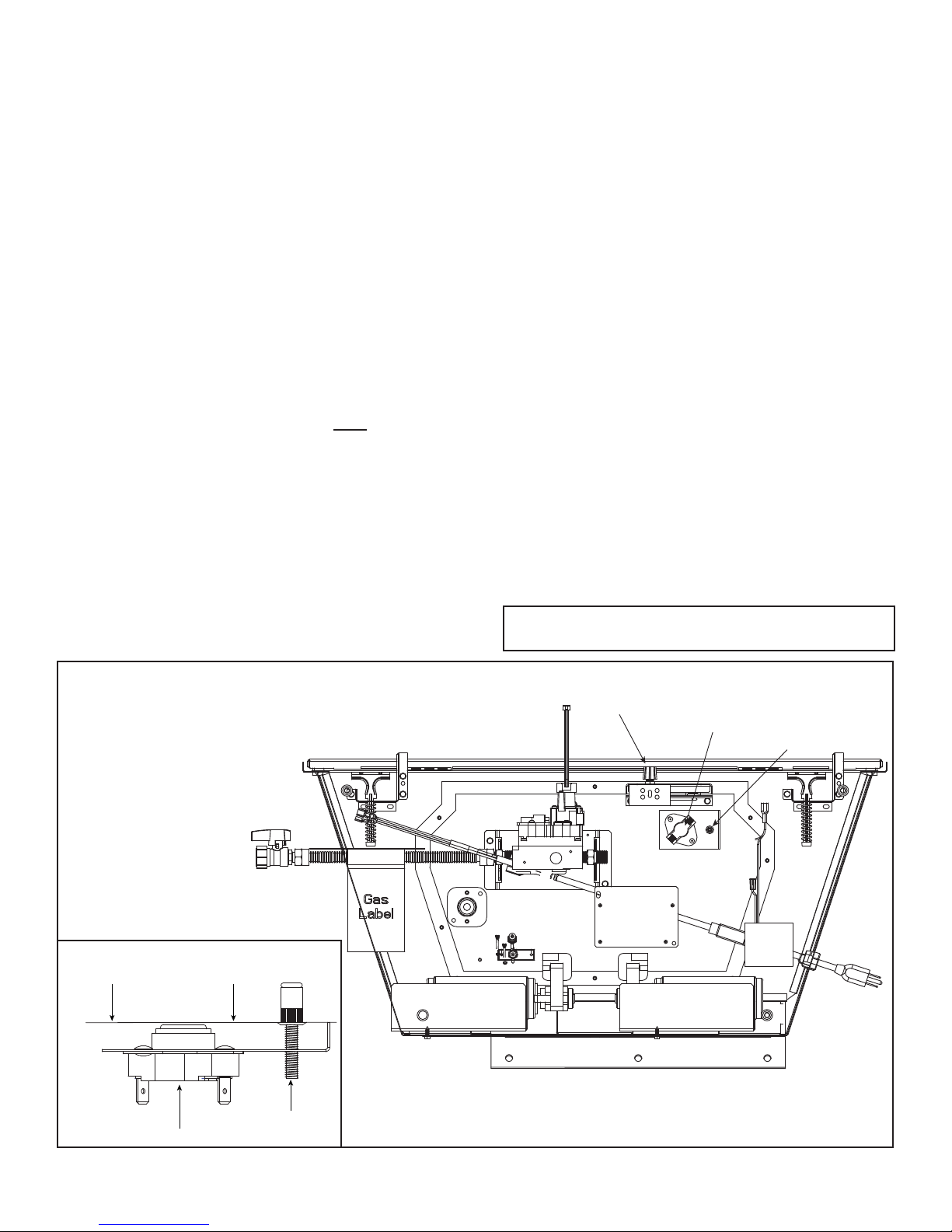

Figure 6.

TEMPERATURE SENSOR SWITCH

COMBUSTION BOX SURFACE

BLOWER STUD

BLOWER

STUD

VARIABLE

SPEED

CONTROL TEMPERATURE

SENSOR

SWITCH

DETAIL A

4 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

NOTE: IF ANY OF THE ORIGINAL

WIRE AS SUPPLIED WITH THE

APPLIANCE MUST BE REPLACED,

IT MUST BE REPLACED WITH

TYPE 1050C RATED WIRE.

BLOWERS

BLOWER

RECEPTACLE

BLK

GRN

BLK

GRN

BLK

WHT

GRN

BLK

GRN

WHT

BLK

PLUG INTO 120V

EXISTING OUTLET

TEMPERATURE

SENSOR SWITCH

VARIABLE SPEED

CONTROL

DC REGULATOR

RECEPTACLE

BLOWER

CORD

POWER

CORD

PLUG

120V EXISTING

OUTLET

BRN

REDBLACK

TO VALVE

TO VALVE BRACKET

(GROUND)

ORG

GRN

BLOWER

VARIABLE

SPEED

CONTROL

(RHEOSTAT)

TEMPERATURE

SENSOR

SWITCH CONTROL

PANEL

POWER CORD

BLOWER

CORD

DETAIL A

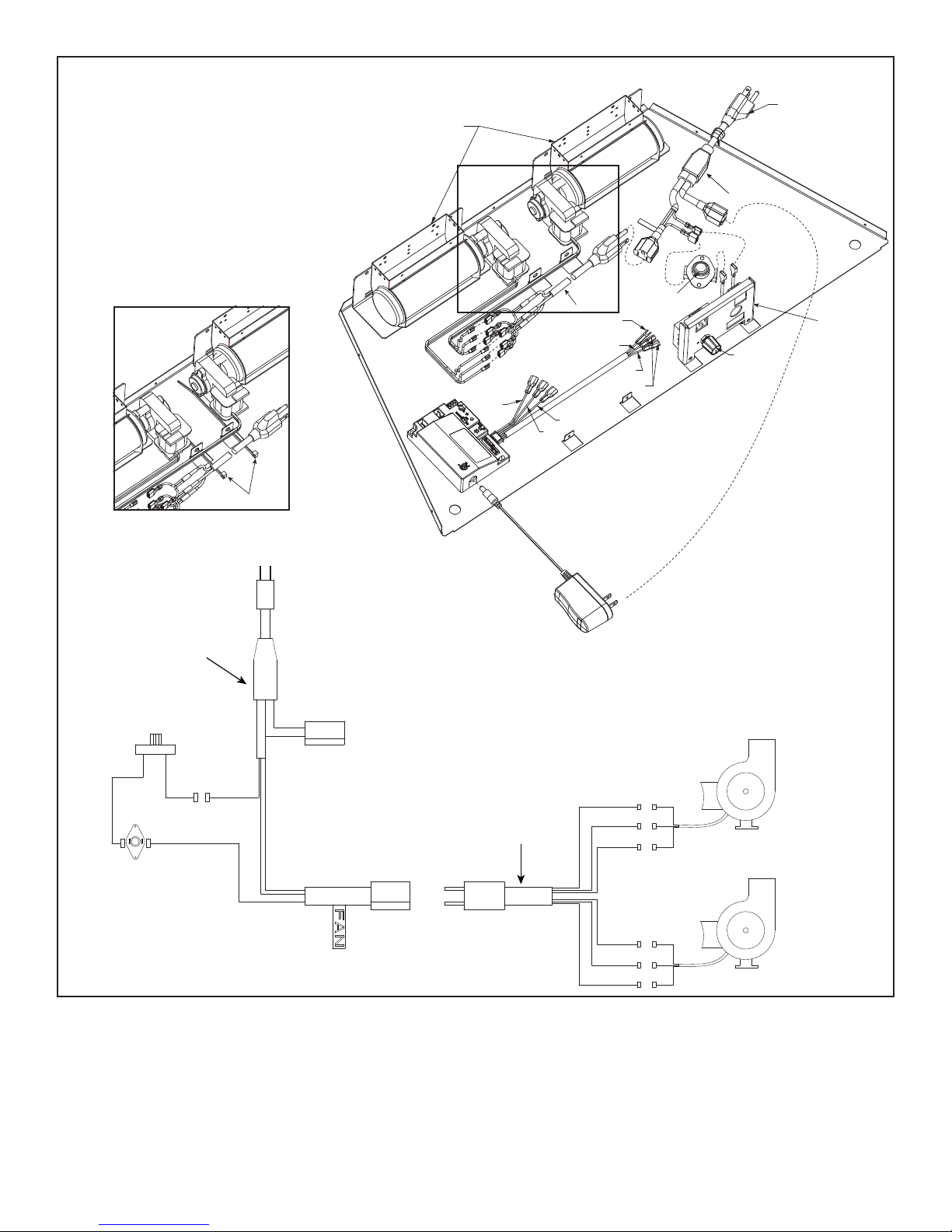

Figure 7. Fan Wiring Diagram - Metal Insert Without RC200/RC300

ZIP TIES

DETAIL A

5Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

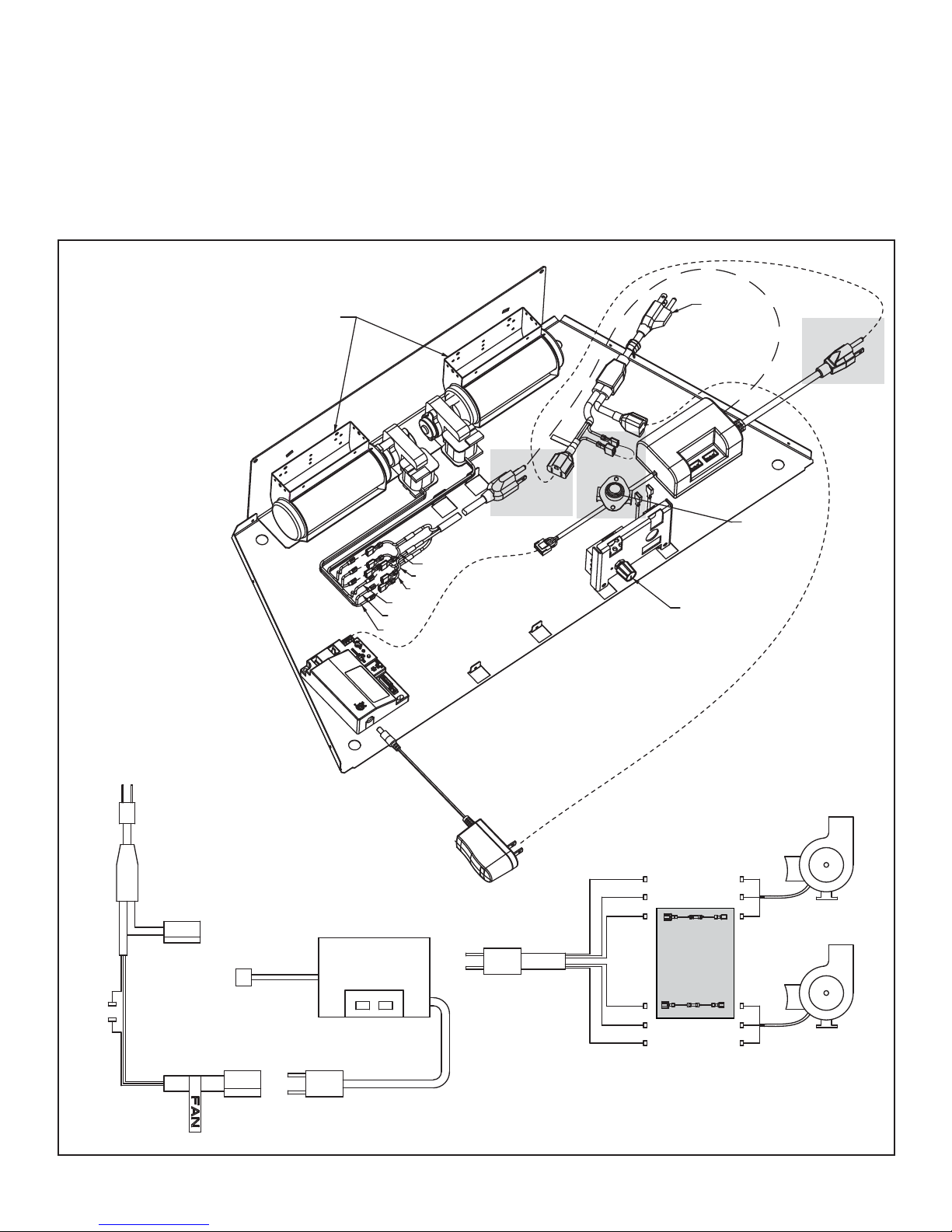

Figure 8. Fan Wiring Diagram - Metal Insert with RC200/RC300 Remote

PLUG

120V EXISTING

OUTLET

GRN (2)

BLK (2)

GRN (2)

BLK (2)

STEPS

3 & 5

WHT (2)

BLOWER

SPEED CONTROL

(RHEOSTAT)

SENSOR SWITCH

STEPS

1 & 2

STEP 5

BLOWERS

BLOWER

RECEPTICLE

BLK

GRN

BLK

GRN

BLK

WHT

GRN

BLK

GRN

WHT

BLK

PLUG INTO 120V

EXISTING OUTLET

DC REGULATOR

RECEPTICLE AUX 300 MODULE

FAN

TO CONTROL

MODULE

FUSE WIRE

ASSEMBLY

FUSE WIRE

ASSEMBLY

9.0 Fan Wiring with Remote

This appliance may be used with an RC200 or RC300

remote control. See Figure 8.

1. Remove cord assembly spades from rheostat and

sensor switch.

NOTICE: Fan speed and operation are controlled by the

remote control. The sensor switch and rheostat are no

longer needed.

NOTE: USEZIPTIESTORESTRAIN

THE LOOSE WIRES UNDERNEATH

THE APPLIANCE AND KEEP THEM

AWAY FROMTHE BLOWER WHEEL

(FAN BLADES).

NOTE: IF ANY OF THE ORIGINAL

WIRE AS SUPPLIED WITH THE

APPLIANCE MUST BE REPLACED,

ITMUSTBEREPLACEDWITHTYPE

1050C RATED WIRE.

NOTE: SENSOR SWITCH AND

RHEOSTATSPEEDCONTROLMUST

BE REMOVED FROM CIRCUIT IF

SYSTEM IS CONTROLLED WITH

RC200/300 REMOTE.

2. Plug two cord assembly spade connectors together.

3. Unplug fan cord assembly from standard cord assembly.

4. Install fuse wire assembly in series between the black

lead wires of the fan cord and black lead wire on each

blower. See Figure 8.

5. Plug fan cord assembly into AUX300 module.

6. PlugAUX300 module into the standard cord assembly.

6 Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

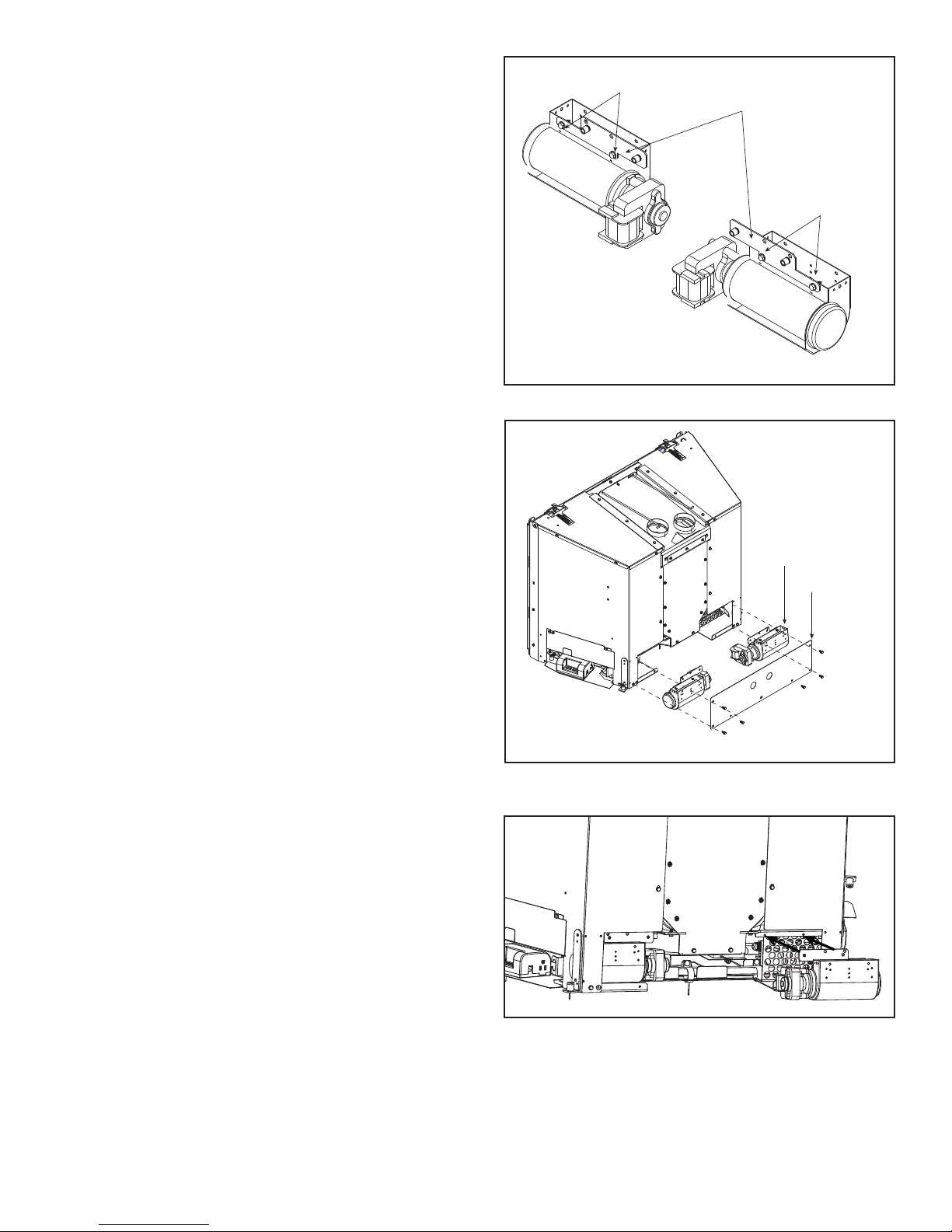

Figure 10. Remove Access Panel

10.0 INSTALLING THE BLOWER (FireBrick Inserts)

For Models: ESCAPE-I30FB, ESCAPE-I35FB,

QFI30FB, QFI35FB

The factory installed brackets must be replaced with the

brackets included in the instruction bag before proceeding

with blower installation instructions below. See Figure 9.

For Models: ESCAPE-I30-C, ESCAPE-I35-C,

QFI30FB-C, QFI35FB-C

Proceed as follows:

1. Remove appliance from wall.

2. Disconnect power by shutting off circuit breaker or

unplugging appliance power cord from its receptacle.

3. Remove access panel from lower rear of the ﬁreplace

insert. See Figure 10.

4. Connect white and green wires from blower wire as-

sembly to each blower. See Figure 12. Connect the

fuse wire assembly in series between black wires of

blowerwireassemblyandeachblower. SeeFigure12.

5. Routeblowerplugassemblythroughbackof appliance

to right side of appliance. Ensure cable assembly is

routed in front of fan blade guard and through plastic

bushing on auxiliary mounting plate.

6. Insert plug from blower cable assembly into AUX300

receptacle. See Figure 12.

7. Positiontherightandleftblowerassemblyintotherear

opening. Fasten each assembly with two sheetmetal

screws. Take care to ensure that blower housing or its

motor is clear of any adjacent metal. This will ensure

that no undue noise occurs during blower operation.

8. Bundle and zip tie loose wires to keep them from con-

tacting blower impeller blades

9. Reinstall access panel.

10. Reconnect power to the insert and install into wall.

Figure 11. Attach Blower to Base

SCREWS

BRACKETS

(INCLUDED IN INSTRUCTION BAG)

Figure 9. Attach Brackets

BLOWER

ACCESS PANEL

7Hearth & Home Technologies • GFK-210-C Blower System Instructions 2201-938 Rev. F • 1/13

Please contact your Hearth & Home Technologies dealer

with any questions or concerns.

For the location of your nearest

Hearth & Home Technologies dealer,

please visit www.ﬁreside.com.

Hearth & Home Technologies Inc.

7571 215th Street West, Lakeville, MN 55044

www.ﬁreside.com

Figure 12. Fan Wiring Diagram - FireBrick Inserts

Note: ifanyof theoriginal wire as

supplied with the appliance must

be replaced, it must be replaced

with type 105 °C rated wire.

Note: use zip ties to restrain

the loose wires underneath the

appliance and keep them away

fromthe blowerwheel(fanblades).

BLOWERS

BLK

GRN

BLK

GRN

BLK

WHT

GRN

BLK

GRN

WHT

PLUG INTO 120V

EXISTING OUTLET

FUSE WIRE

ASSEMBLY

FUSE WIRE

ASSEMBLY

BLK

RED

BRN

ORANGE - TO VALVE

GROUND - TO VALVE

BRACKET

GREEN - TO VALVE

TO IPI MODULE

PLUG INTO

EXISTING

OUTLET





BLOWERS

Tabla de contenidos

Otros manuales de Soplador de Hearth and Home Technologies

Hearth and Home Technologies

Hearth and Home Technologies GFK-160A Manual de usuario

Manuales populares de Soplador de otras marcas

Weed Eater

Weed Eater VS2000BV Manual de usuario

KRAUSMANN

KRAUSMANN U37020-00 Manual de usuario

Bosch

Bosch ALB 36 LI Manual de usuario

Cub Cadet

Cub Cadet HB425 Manual de usuario

GreenWorks Pro

GreenWorks Pro BLB482 Manual de usuario

ARIETE

ARIETE 2768 Manual de usuario

NuTone

NuTone 331H Manual de usuario

GÜDE

GÜDE GLB 200 18 Li-Ion Manual de usuario

I.VA.CO.

I.VA.CO. SC Series Instrucciones de funcionamiento

DeWalt

DeWalt DCE100 Manual de usuario

Becker

Becker SV 7.330 Manual de usuario

Metabo

Metabo AG 18 Pro Manual de usuario

Desa

Desa GA3650TB Manual de usuario

Echo

Echo Power Blower PB-230LN Manual de usuario

Echo

Echo PB-413H Manual de usuario

Black & Decker

Black & Decker BV3100 Manual de usuario

Ryobi

Ryobi RY08570 Manual de usuario

Haaga

Haaga 355 Manual de usuario
