A Higher Level of Performance

www.hawkmeasurement.com

For more information, please visit >

OptioLaser

L200

Level, Distance & Position Measurement

of Solids and Liquids

Manual

Table of Contents

OptioLaser L200

Table Of Contents

Overview 3

Principle of Operation 3

Applications 3

Features 3

Quick Start Guide 4

Connections & Instructions for Safe Use

Connections & Instructions for Safe Use & Labels 7

Laser Radiation Information 7

Labels 7

Apendix A 8

Specifications 8

Apendix B 9

Dimension Drawings 9

Part Numbering 10

PROPRIETARY NOTICE

The information contained in this publication is derived in

part from proprietary and patent data. This information has

been prepared for the express purpose of assisting operating

and maintenance personnel in the efficient use of the

instrument described herein. Publication of this information

does not convey any rights to use or reproduce it, or to use

for any purpose other than in connection with the installation,

operation and maintenance of the equipment described

herein.

WARNING

This instrument contains electronic components that

are susceptible to damage by static electricity. Proper

handling procedures must be observed during the removal,

installation, or handling of internal circuit boards or devices:

Handling Procedure:

1. Power to unit must be removed prior to commencement

of any work.

2. Personnel must be grounded, via wrist strap or other safe,

suitable means, before any printed circuit board or other

internal devices are installed, removed or adjusted.

3. Printed circuit boards must be transported in a conductive

bag or other conductive container. Boards must not be

removed from protective container until the immediate time

of installation. Removed boards must be placed

immediately in a protective container for transport, storage,

or return to factory.

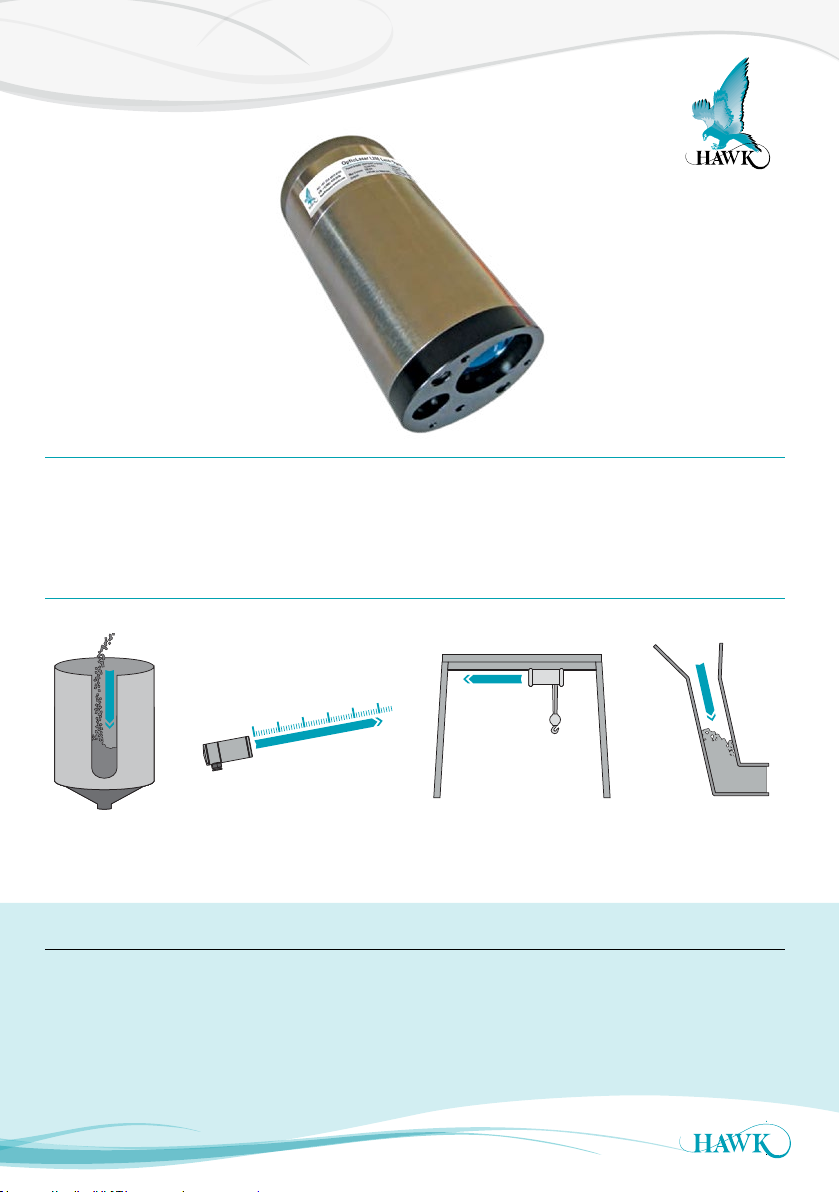

Overview

Principle of Operation

The OptioLaser L200 uses time-of-flight laser technology for continuous non-contact distance or level

measurement. Able to measure to any solid or liquid surface, at any angle, the L200 an ideal sensor for level,

positioning and detection applications.

• Non-contact measurement with laser technology

• Level, distance & position measurement of solids and

liquids

• 303 Stainless steel housing

• Measurement range up to 100 m (328’)

• Continuous measurement, 10 mm (0.39”) resolution

• NAMUR compliant 4 … 20 mA output

• 2 Normally open relay outputs

• Easy conguration via USB

• 220 / 110 V ac or 24 V dc power supply

• Visible aiming pointer

Features

OptioLaser L200

Applications

Level control Distance measurement Positioning Blockage detection

Quick Start Guide

OptioLaser L200

1. CAUTION - The OptioLaser L200 Sensor contains a laser. Do not look at the beam directly with

optical instruments.

2. Download the Laser Terminal Software from hawkmeasurement.com/downloads/

3. Open the Laser Terminal Package and follow the installation instructions.

Everything needed for communicating with the L200 will automatically be installed.

4. Plug a USB cable into the USB A connector in the terminal compartment of the L200 .

5. Plug the other end of the USB cable into a PC and the L200’s LED indicators will light up.

6. Open Terminal software on the PC, a connection with the L200 will automatically be established using

baud rate of 115200,8,n,1.

7. Click the “Connect” icon to open a communications port and the distance measured in meters, the milliamp

output and the signal strength as a percentag will begin to scroll in the Terminal window.

8. If an automatic connection is not created, click the “Laser” icon and select the appropriate USB port and

115200 baud rate.

9. To access the configuration settings menu of the L200, press the <CORRESPONDING> key on the

keyboard:

Menu Selection Default Description

<A>

4 … 20 mA

settings

<B> 4 mA 25.00 m Enter the distance corresponding to the 4 mA output value.

<C> 20 mA 0.60 m

Enter the distance corresponding to the 20 mA output value.

<D> Fail safe

current

> 21.0

Enter the failsafe condition of the 4...20 mA range for alarm

indications.

<E> Test 21.50 mA Output test of the 4 ... 20 mA.

<F>

Relay

settings

<G> Relay A switch

point 1

1.00 m First distance at which Relay A activates.

<H> Relay A switch

point 2

2.00 m Second distance at which Relay A activates.

<I> Relay A mode near =>

closed far

=> open

Select polarity of the relay

<J> Relay B switch

point 1

1.00 m First distance at which Relay B activates.

<K> Relay B switch

point 2

2.00 m Second distance at which Relay B activates.

<L> Relay B mode near =>

closed far

=> open

Select polarity of the relay

<M> Relay test A:closed

B:closed

Tests relay functionality.

Quick Start Guide

OptioLaser L200

Menu Selection Default Description

<N>

System

settings

<O> Measuring

units

meters Enter the required measuring units, either meters or feet.

<P> Zero distance

offset

0.00 m

Enter the distance corresponding to the zero datum trim.

<Q> Lost signal

timeout

4.0 sec Enter the lost signal hold time delay in seconds.

<R> Smoothing

filter

ON Turns the smoothing filter OFF (raw) or ON (filtered).

<S> Filling rate

filter

OFF Turns the filling rate filter OFF (fast filling) or ON (slow

filing).

<U> Moving

obstacle filter

ON Turns the moving obstacle filter OFF (raw) or ON (reject

obstacles).

<V> Obstacle filter

size

16 results If the “Moving obstacle filter” is ON, this buffer allows for

selection of the number of results used to reject obstacles.

<W> Visible aimer OFF Turns the visible aiming laser OFF or ON.

10. Press the appropriate keyboard key to select a menu item, e.g. type <A> for “a: Hide 4-20 mA settings” to

show or hide the 4-20 mA settings menu.

11. To restart measurements, press the <SPACE> keyboard key.

12. To save a copy of the current screen data, click the “Save” icon.

13. If you wish to start recording data, click the “Log” icon.

14. To clear the screen of measurement data, click the “Clear” icon.

15. Once you have configured the L200 , click the “Disconnect” icon and disconnect the USB cable from the

unit.

16. Connect the 220 / 100 V ac or 24 V power supply, the 4 … 20 mA output, and the relays, as necessary for

your application.

Connections & Instructions for Safe Use

OptioLaser L200

Figure 1 :: Connection diagram

The L200 is a laser rangefinder that emits ionizing laser radiation from its measuring laser. The level of the

laser emission from the measuring laser is Class 1M which indicates that the laser beam is safe to look at with

the unaided eye but must not be viewed using binoculars or other optical devices at a distance of less than 15

meters. Notwithstanding the safety rating, avoid looking into the beam and switch the unit off when working in

the area.

CAUTION -- The use of optical instruments with this product will increase eye hazard.

The L200 also contains an aiming laser that emits visible laser radiation when switched ON. The level of the

laser emission from the aiming laser is Class 2 which indicates that the laser beam must not be stared at with

the unaided eye.

CAUTION — DO NOT STARE INTO THE BEAM

The L200 should not be disassembled or modified in any way. The laser eye safety rating depends on the

mechanical integrity of the optics and electronics so if these are damaged do not continue using the L200.

There are no user serviceable parts and maintenance or repair must only be carried out by the manufacturer

or a qualified service agent. No regular maintenance is required for the L200 but if the lenses start to collect

dust then they may be wiped with suitable lens cleaning materials. Make sure that the L200 is switched OFF

before looking into the lenses.

The L200 should be mounted using the four holes provided in the circuit board. Do not hold or clamp the lens

tubes as this may cause damage and adversely affect the laser safety rating.

Figure 1 :: Connection diagram

Connections & Instructions for Safe Use & Labels

OptioLaser L200

Labels

Power Supply: 220/110VAC or 24VDC

(12-28VDC)

Max Current: 100 mA

Output: 4-20 mA, 2 x Relays (N/O)

Programming: USB

Laser Safety: Class 1M & Class 2 (aim)

Enclosure Rating: IP66

Temperature: -20 to 60°C (-40 to 140ºF)

AU: +61 (0)3 9873 4750

US: +1(888) 429-5538

hawkmeasurement.com

OptioLaser L200 Laser Transmitter

Power Supply: 220/110VAC or 24VDC

(12-28VDC)

Max Current: 100 mA

Output: 4-20 mA, 2 x Relays (N/O)

Programming: USB

Laser Safety: Class 1M & Class 2 (aim)

Enclosure Rating: IP66

Temperature: -20 to 60°C (-40 to 140ºF)

AU: +61 (0)3 9873 4750

US: +1(888) 429-5538

hawkmeasurement.com

OptioLaser L200 Laser Transmitter

Company identification label

Figure 2 :: Labelling on the OptioLaser L200

Specification Measuring laser’s

value / AEL

Aiming laser’s

value / AEL

Notes

Laser wavelength 905 nm, pulsed 670 nm, CW

Pulse width < 20 ns

Pulse frequency < 36 kHz

Peak power < 10 W 0.0008 W 50 millimeter aperture at 2 meters

Average power < 0.6 mW 7 millimeter aperture

Average energy per

pulse

< 300 nj

NOHD 15 m Distance beyond which binoculars with may

be used safely

Laser Radiation Information

Specications

Apendix A

OptioLaser L200

Performance data

Sensing range 0.3 ... 100 m (0.98’ ... 328’)

Resolution 10 mm (0.39”)

Accuracy <0.1% of full range at 20°C

Update rate 5 readings per second

Technical data

Power supply 220 / 100 V ac or 24 V dc nominal (12 ... 28 V dc)

Current consumption 100 mA nominal

Output

Analog 4 ... 20 mA NAMUR compliant self-powered & non-isolated. 2 x Relays (N/O),

60 V dc at 3.5 A.

Communication USB at 115200 baud 8-N-1

Mechanical data

Diameter L200 : 88.9 mm (3.5”) L200/DT: 140 mm (5.51”)

Length L200 : 180 mm (7.09”) L200/DT: 110 mm (4.33”)

Weight L200 : 2.7 kg (5.59 lb) L200/DT: 0.7 kg (1.54 lb)

Connection Flange accessory (L200 /DT) with 4 Ø 8.5 mm holes on 120 PCD

Housing material 303 Stainless steel Powder coated stainless steel

Optical data

Laser power Measuring laser: 15 W (peak) Visible aiming laser: < 5 mW red

Optical aperture 75 mm (2.95”)

Beam divergence < 1° to half power points

Lens material Impact resistant acrylic

Laser safety

classification

Measuring laser: Class 1M

CAUTION: Do not view laser directly with

optical instruments.

Visible aiming laser: Class 2

CAUTION: Do not stare into the

beam.

Environmental data

Operating temperature -20°C ... +60°C

Pressure Atmospheric

Enclosure rating IP66

Dimension Drawings

Apendix B

OptioLaser L200

unit in milimeter (inch)

L200

L200/DT

88.9 (3.5)

180 (7.09)

M20 Cable

gland

110 (4.33)

140 (5.51)

Ø8.5

4 Holes on 120 PCD

140 (5.51)

3 Equi-spaced

holes tapped M5

on 74 PCD for front

face mounting

Laser optics

Receiver

optics

Aiming pointer

64.09 (2.52)

(1.46)

120 (4.72)

USB

connector

Neutral

+24 V dc

Common

Live

4...20 mA

Earth

Relay 1

Relay 2

COM

+ 24 V

Load

220 / 110 V ac power supply

Figure 3 :: Dimension drawings of the L200

Part Numbering

Hawk Measurement Systems

(Head O󰀩ce)

15 - 17 Maurice Court

Nunawading VIC 3131, AUSTRALIA

Phone: +61 3 9873 4750

Fax: +61 3 9873 4538

[email protected]

Hawk Measurement USA

5010 Gateway Drive, Medina, OH 44256, USA

Phone: +1 888 HAWKLEVEL (1-888-429-5538)

Phone: +1 978 304 3000 / +1 877-356-5463

Fax: +1 978 304 1462 / +1 330-331-7172

[email protected]

For more information and global representatives: www.hawkmeasurement.com

DOC-OL-L200-MAN v.1.03 0321

OptioLaser L200

OptioLaser L200 Laser Transmitter for Level

Model

L10 0 OptioLaser Laser Level Transmitter (up to 164ft)

L200 OptioLaser Laser Level Transmitter (up to 328ft)

Dust Tube + USB Programming Cable (Required for every OptioLaser L100/L200)

DT Dust Tube, Stainless Steel

Accessories - Handheld Programmer (Optional)

HP Handheld Programmer

XX Not Required

Accessories - Swivel Bracket (Optional)

SB Swivel Bracket

XX Not Required

L200 DT HP SB

Model

LXDT Dust Tube for L100/L200 OptioLaser Laser Level Transmitter

LXHP Handheld Programmer for L100/L200 OptioLaser Level Transmitter

LXSB Swivel Bracket for L100/L200 OptioLaser Laser Level Transmiteer

OptioLaser L100/L200 Laser Transmitter Spare Parts

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Hawk

Hawk

Hawk RF5600 Manual de usuario

Hawk

Hawk Centurion CGR Series Manual de usuario

Hawk

Hawk Sultan Flow Series Manual de usuario

Hawk

Hawk OptioLaser L100 Manual de usuario

Hawk

Hawk Acoustic Wave Series Manual de usuario

Hawk

Hawk MiniWave Ultrasonic Level Series Manual de usuario

Hawk

Hawk Senator S24S Manual de usuario

Hawk

Hawk Gladiator Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
