Havis-Shields Telescoping Computer Base C-TCB-34 Guía de configuración

C-TCB-34_INST_9-07

INSTALL INSTRUCTIONS C-TCB-34

TELESCOPING COMPUTER BASE

2004-2008 GMC / CHEVROLET CANYON/COLORADO

TOOLS REQUIRED:

Ratcheting Wrench

Standard & Metric Socket Set

Power Drill

Drill Bit Set

HARDWARE:

QTY DESCRIPTION PART #

2 ¼” x 1” Hex head lag bolts GSM33060

1 5/16-18 Nylock Nut GSM30017

1 5/16-18 x 1” Hex head bolt GSM33012

2 5/16” Flat Washers GSM31006

1 Pole Support Assembly CM97031-34W

1 Lateral Cross Brace 110-000034

1 Inner Telescoping Pole Assembly CM93072-1

Always!

 Read all instructions before installing any Havis-Shields Equipment Corp products.

 Disconnect the vehicle battery. Removing seat bolts on some vehicles may give the vehicles computer a false

reading, causing a warning light on the instrument cluster. This requires the vehicles’ computer to be reset with

a vehicle diagnostics tool.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use only hardware provided with install kit.

 For product support, visit the Install Instructions Section of our website at

http://havis.com/Installation/Installation.html, email technicalsupport@havis.com or call 1-800-524-9900 and

ask for technical support.

SUB ASSEMBLY:

1. Confirm receipt of all parts.

2. Remove passenger side, front seat bolts.

INSTALLATION:

1. Mount C-TCB-34:

• Press back on seat and slide Pole support

assembly between seat bracket and floor of

vehicle.

• Line up slots in Pole support assembly with

bolt holes on floor.

• Reattach bolts removed in sub-assembly.

Hand-tighten only.

• Attach Lateral cross brace to tab on side of

TCB using 5/16-18 x 1” bolts, washers and

Nylock nut. Tighten.

• Pre-drill 5/32” holes into floor of vehicle where support brace and floor meet.

• Attach to vehicle using (2) ¼” x 1” Hex head lag bolts.

• Completely tighten seat bolts and insert Telescoping Pole.

Inner Telescoping

Pole Assembly

Lateral Support

Brace

Pole Support

Assembly

Tabla de contenidos

Otros manuales de Accesorios para automóviles de Havis-Shields

Havis-Shields

Havis-Shields Van Slide Out Side Step KK-S-ST-SS Guía de configuración

Havis-Shields

Havis-Shields C-TCB-24 Guía de configuración

Havis-Shields

Havis-Shields Chevrolet Impala C-TCB-30 Guía de configuración

Havis-Shields

Havis-Shields WBI-F7 Manual de usuario

Havis-Shields

Havis-Shields 1996-2006 Ford Taurus C-TCB-10 Guía de configuración

Havis-Shields

Havis-Shields C-TCB-31 Manual de usuario

Havis-Shields

Havis-Shields P-MFK-9 Manual de usuario

Havis-Shields

Havis-Shields Ford Explorer C-VS-1200-EXPL Guía de configuración

Havis-Shields

Havis-Shields Heavy Duty Trak Mount 2006-2009 Chevrolet Impala... Guía de configuración

Havis-Shields

Havis-Shields K9/Prisoner Transport Unit KK-K9-C20-K-PT Manual de usuario

Havis-Shields

Havis-Shields C-D2300-FL1 Manual de usuario

Havis-Shields

Havis-Shields Brow Mount KR-1531-24-SP-KOV Manual de usuario

Havis-Shields

Havis-Shields Slide-Out Radio Tray C-3190 Manual de usuario

Havis-Shields

Havis-Shields C-VS-800-CV Guía de configuración

Havis-Shields

Havis-Shields Telescoping Computer Base C-TCB-21 Guía de configuración

Havis-Shields

Havis-Shields Cold Cathode Compartment Light KR-CCL Series Manual de usuario

Havis-Shields

Havis-Shields Heavy Duty Trak Mount C-TM-F250-1 Guía de configuración

Havis-Shields

Havis-Shields 1996-2008 Crown Victoria Swing-Out Dash Monitor Mount... Guía de configuración

Havis-Shields

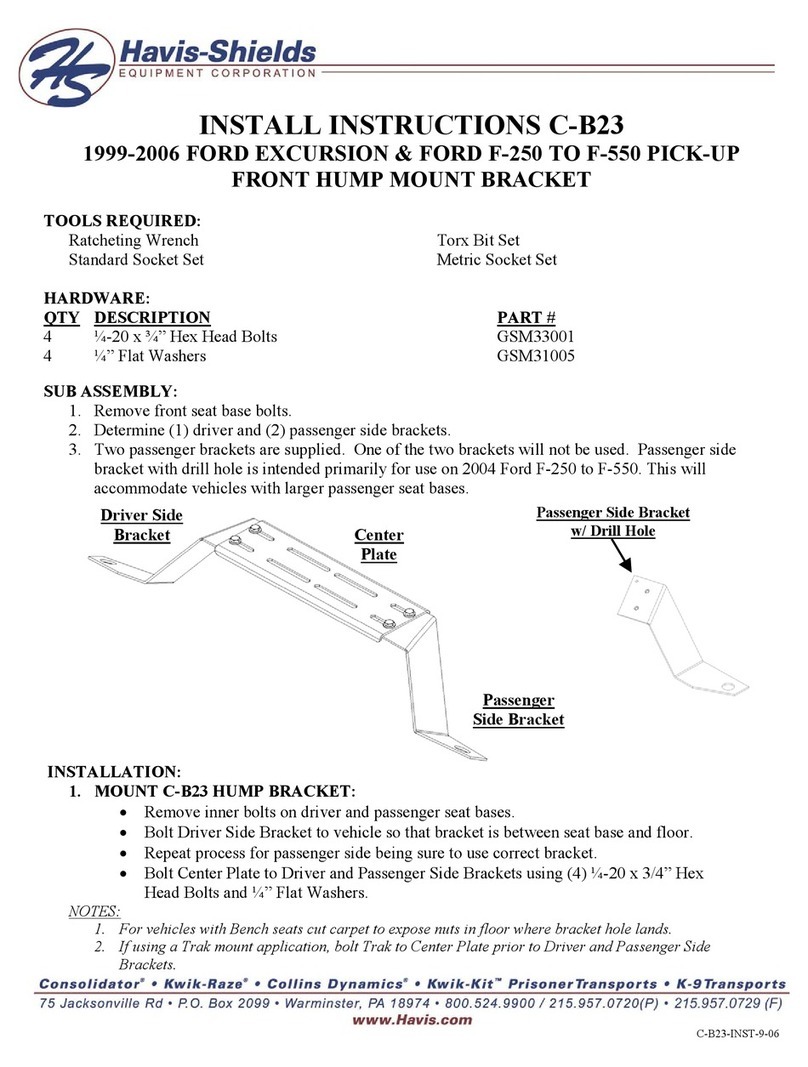

Havis-Shields C-B23 Guía de configuración
