Hausted MBC Manual de usuario

MBC-IN-INS-LAB-REVC16

MBC MAMMOGRAPHY / BIOPSY CHAIR

OPERATING MANUAL

READ THIS MANUAL BEFORE OPERATING YOUR

MBC MAMMOGRAPHY / BIOPSY CHAIR.

SAVE THIS MANUAL FOR FUTURE USE.

THE MOST CURRENT VERSION OF THIS MANUAL CAN BE

FOUND ONLINE AT WWW.HAUSTED.COM.

MBC-IN-INS-LAB-RevC16 2

CONTENTS

INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC. ..................................................................................................... 3

INDICATIONS FOR USE ..................................................................................................................................................................... 3

SERVICE INFORMATION ................................................................................................................................................................... 3

ADVISORY........................................................................................................................................................................................... 3

1 LIST OF WARNINGS AND CAUTIONS .............................................................................................................................................. 4

SIGNIFICANCE OF SAFETY STATEMENTS...................................................................................................................................... 4

DANGER / WARNING / CAUTION / NOTICE SUMMARY........................................................................................................... 4

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY .................................................................................... 4

WARNING — PROPER OPERATION ........................................................................................................................... 4

IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY............................................................................................... 5

NOTICE — POSSIBLE EQUIPMENT DAMAGE................................................................................................................................. 5

WARNING — PERSONAL INJURY HAZARD .................................................................................................................................... 5

UNPACKING INSTRUCTIONS............................................................................................................................................................ 5

3 OPERATING INSTRUCTIONS ............................................................................................................................................................ 6

MBC SPECIFICATIONS ...................................................................................................................................................................... 7

3.1 BRAKING AND STEERING OPERATION ................................................................................................................................... 8

3.1.1 APPLYING THE BRAKES ............................................................................................................................................. 8

3.1.2 RELEASING THE BRAKES .......................................................................................................................................... 8

3.1.3 APPLYING THE STEERING LOCK............................................................................................................................... 8

3.1.4 RELEASING THE STEERING LOCK............................................................................................................................ 8

3.2 HEIGHT AND TOP ADJUSTMENT .............................................................................................................................................. 9

3.2.1 HEIGHT ADJUSTMENT................................................................................................................................................. 9

3.2.2 LOWERING THE UNIT .................................................................................................................................................. 9

3.2.3 TOP ADJUSTMENT ....................................................................................................................................................... 9

3.2.4 TRENDELENBURG ADJUSTMENT.............................................................................................................................. 9

3.3 CPR / SURGICAL SUPPORT LEG ACCESSORY NUMBER HAPC02500............................................................................... 10

3.3.1 OPERATING INSTRUCTIONS..................................................................................................................................... 10

CPR USE...................................................................................................................................................................... 10

STORAGE .................................................................................................................................................................... 10

4 PREVENTIVE MAINTENANCE FOR THE USER ..............................................................................................................................11

5 OPTIONAL ACCESSORIES.............................................................................................................................................................. 12

6 GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND PRODUCT LINE OUTSIDE THE U.S. ............. 13

7 DISPOSAL AND KEY TO SYMBOLS ............................................................................................................................................... 14

DISPOSAL......................................................................................................................................................................................... 14

KEY TO SYMBOLS ........................................................................................................................................................................... 14

8 INDEX ................................................................................................................................................................................................ 15

COPYING PROHIBITED

This manual is protected by Federal Copyright Law, which provides for damages of up to

USD $20,000, as well as criminal nes and imprisonment, for unauthorized copying.

MBC-IN-INS-LAB-RevC16 3

INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC.

This manual contains important information on proper use and maintenance of the Hausted

MBC Mammography / Biopsy Chair. All personnel involved in the use and maintenance of this

equipment must carefully review and comply with the warnings, cautions and instructions

contained in this manual. These instructions are important to protect the health and safety of

personnel operating the MBC and should be retained in a conveniently accessible area for quick

reference.

Complete instructions for uncrating and putting your new equipment in service, as well as

equipment drawings, have been furnished. If missing, contact GF Health Products, Inc. for

replacement copies, giving the serial number and model number of the unit.

GF Health Products, Inc. carries a complete line of accessories for use with these chairs; your

representative will gladly review these with you.

INDICATIONS FOR USE

The Hausted MBC Mammography / Biopsy Chair is intended for use in patient treatment, transport

or recovery.

The chair’s backrest can be positioned from sitting to supine, and height is adjustable. Four easy-

rolling, steerable casters allow maximum mobility and maneuverability.

SERVICE INFORMATION

A thorough preventive maintenance program is essential to safe and proper unit operation. This

manual contains maintenance schedules and procedures which should be followed for satisfactory

equipment performance.

We encourage you to contact GF Health Products, Inc. with maintenance concerns.

ADVISORY

A listing of the safety precautions to be observed when operating and servicing this equipment

can be found in Section 1 of this manual. Do not operate or service the equipment until you

have become familiar with this information. Any alteration of this equipment not authorized or

performed by GF Health Products, Inc., could affect its operation, will void the warranty, could

violate national, state, and local regulations, and could jeopardize your insurance coverage.

EC REP

EC Authorized

Representative:

CEpartner4U BV

ESDOORNLAAN 13

3951DB MAARN

The Netherlands

+31(0)6 516 536 26

Manufactured by:

GF Health Products, Inc.

336 Trowbridge Drive

Fond du Lac, WI 54937

1-770-368-4700 Main

1-770-368-2386 Fax

www.grahameld.com

www.Hausted.com

Info: The base language of this document is ENGLISH. Any translations must be made from the

base language document.

Class 1 Equipment

Type B Equipment

Equipment not suitable

for use in the presence

of ammable anesthetic

mixture with air or oxygen

or nitrous oxide.

IPX4 (Splash-proof

equipment)

Not suitable for continuous

operation (Duty Cycle:

10% six minutes in one hour)

MBC-IN-INS-LAB-RevC16 4

1 LIST OF WARNINGS AND CAUTIONS

IMPORTANT: Before using the Hausted MBC Mammography / Biopsy Chair, please read and

adhere to the following safety precautions and warnings. Failure to do so could result in

serious personal injury or damage to the MBC Mammography / Biopsy Chair.

Always consult your healthcare professional to determine safe methods most suitable for your

individual abilities. Protect yourself, your attendant, and the Hausted MBC Mammography / Biopsy

Chair by having it serviced regularly. If you experience any malfunction, contact your Graham-

Field authorized distributor immediately, as a hazardous condition could result, causing personal

injury or damage to the Hausted MBC Mammography / Biopsy Chair.

Periodic inspection, adjustment and replacement of worn parts are necessary to provide years of

excellent service. Maintenance MUST be performed by qualied personnel ONLY.

SAVE THESE INSTRUCTIONS.

SIGNIFICANCE OF SAFETY STATEMENTS

Please note the following special statements, used throughout this manual, and their signicance:

DANGER: Indicates a potential hazard situation or unsafe practice that, if not avoided, will

result in death or serious personal injury.

WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided,

could result in death or serious personal injury.

CAUTION: Indicates a potential hazard situation or unsafe practice that, if not avoided,

could result in minor or moderate personal injury.

sNOTICE: Indicates a potential hazard situation or unsafe practice that, if not avoided, could

result in product or property damage.

Info: Provides application recommendations or other useful information to ensure that you get

the most from your product.

DANGER / WARNING / CAUTION / NOTICE Summary

The following is a listing of the safety precautions which must be observed when operating and

servicing this equipment. These precautions are repeated (in whole or in part), where applicable,

throughout the manual.

WARNING: To Reduce the Risk of Personal Injury

WARNING: LACERATION HAZARD — When cutting bands always use a tool specically

designed for that purpose. This will help to avoid personal injuries frequently incurred

when bands are cut and tension released.

WARNING: Notice for California Customers- California Proposition 65 Warning: This

product contains a chemical known to the State of California to cause cancer and

reproductive or developmental harm.

WARNING — Proper Operation

WARNING: The MBC Mammography / Biopsy chair maximum patient weight is 325 lb

(147 kg), EVENLY DISTRIBUTED.

WARNING: The chair is not intended to replace a stretcher or gurney.

WARNING: PERSONAL INJURY HAZARD — Do not sit on end — tipping may occur.

MBC-IN-INS-LAB-RevC16 5

WARNING: PERSONAL INJURY HAZARD — When the unit is in the stretcher position, DO

NOT sit on the head or foot end of the patient surface.

WARNING: PERSONAL INJURY HAZARD — DO NOT stand on the footrest or use it as a

step stool. Tipping may occur.

WARNING: Always secure patient with restraint straps when left unattended in a fully

reclined position.

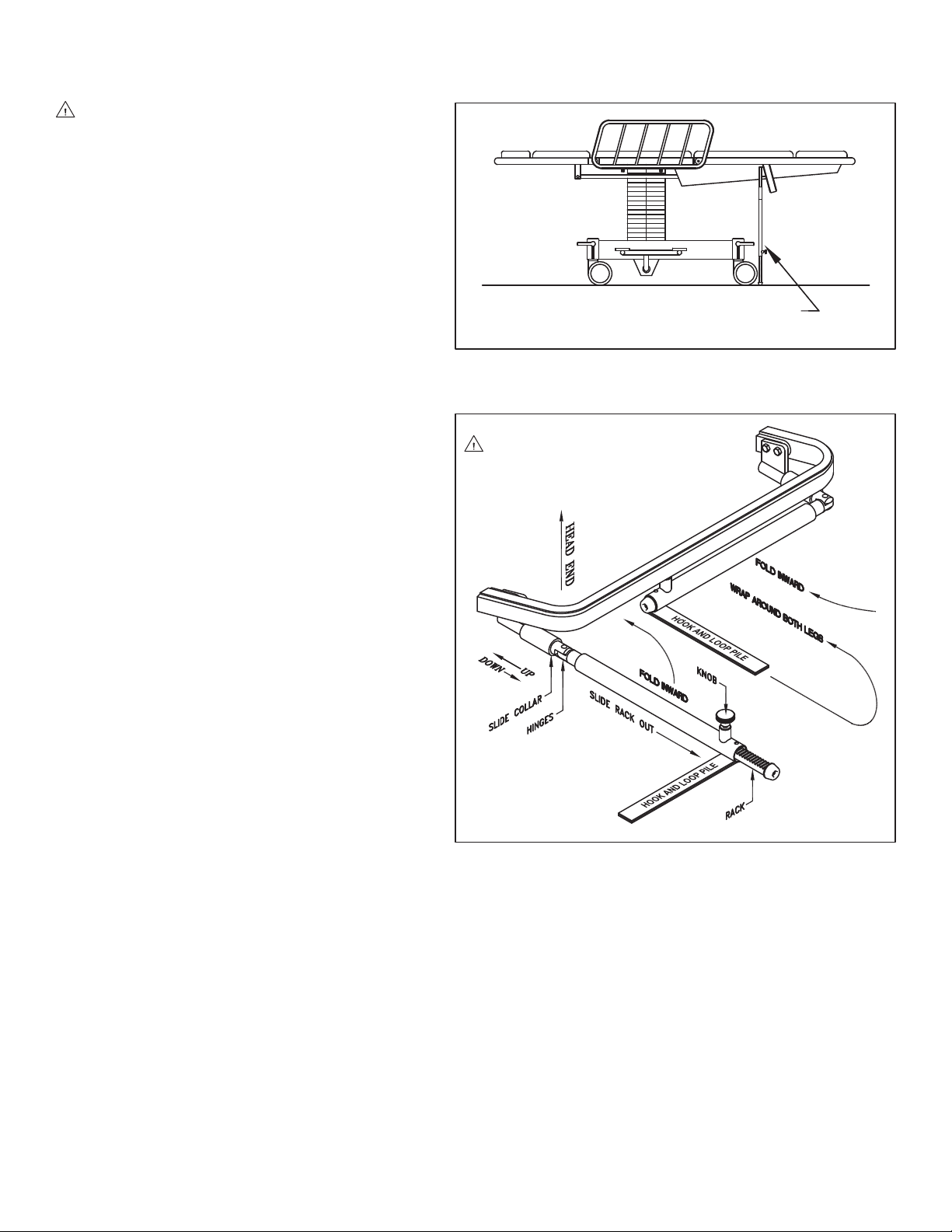

WARNING: TIPPING HAZARD — The CPR / Surgical Support Legs should be used at any

time when the unit is in the horizontal position, as shown in Figure 3-8.

WARNING: It is recommended that only accessories approved by GF Health Products, Inc.

be used with this device. The use of accessories, transducers, and cables other than those

specied by the manufacturer may result in increased emissions or decreased immunity of

the Hausted equipment.

2 UNCRATING INSTRUCTIONS

IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY

WARNING: Inform shipper of any damages — leave carton intact. Leave equipment in the

receiving area until inspection is complete.

NOTICE — POSSIBLE EQUIPMENT DAMAGE

sNOTICE: This crate contains fragile, expensive medical equipment. Uncrate and handle

carefully. If after uncrating the equipment you nd any damage (no matter how slight),

report the damage to GF Health Products, Inc.

WARNING — PERSONAL INJURY HAZARD

WARNING: When cutting bands, always use a tool specically designed for that purpose.

This will help avoid personal injuries possibly incurred when bands are cut and tension is

released.

IMPORTANT: Follow each step in the order shown in these instructions.

UNPACKING INSTRUCTIONS

Your Hausted equipment has been carefully packed at our manufacturing plant to ensure safe

shipment to your medical facility. There are several procedures you must follow to put your new

equipment in service. These procedures only take a few minutes to complete and all are required

to ensure proper operation of the equipment.

1. Cut the two bands around the shipping carton.

2. Remove the top half of the carton and cut one side of the bottom half.

3. Remove the equipment from the carton.

4. Check to see if all features of the equipment work properly. If all features work, advance to step

5. If any of the features do not work properly, call GF Health Products, Inc. at 1-770-368-4700.

5. Clean the equipment using mild detergent to remove any dirt accumulated during shipment,

and place the equipment into service.

MBC-IN-INS-LAB-RevC16 6

3 OPERATING INSTRUCTIONS

This Operation Manual is to ensure proper use is understood and followed in order to obtain

optimum safety and function of your Hausted MBC Mammography / Biopsy Chair.

The MBC’s versatility in moving from a chair position to a fully reclined position is designed

to permit convenient patient positioning and treatment. The MBC is not intended to replace a

stretcher or gurney, of which we offer a complete product line for your specialty needs.

Hausted’s MBC has a warning label located at the head and foot ends of the chair’s frame, stating:

Do not sit on end: tipping may occur.

FIGURE 3-1

Patient entry, egress, and transfer from the MBC should always be from the center side rail

locations by lowering the side rail as shown in diagrams A and B above. At no time should the

patient be permitted to enter or exit from the ends of the MBC as shown on diagrams 1, 2 and 3,

except in a full chair position.

WARNING: PERSONAL INJURY HAZARD — When the unit is in the stretcher position, DO

NOT sit on the head or foot end of the patient surface.

WARNING: PERSONAL INJURY HAZARD — DO NOT stand on the footrest or use it as a

step stool. Tipping may occur.

WARNING: Always secure patient with restraint straps when left unattended in a fully

reclined position.

Info: when not in use, do not leave the MBC in a fully reclined position.

These operating instructions are to ensure patient safety and permit you to use your Hausted MBC

to treat, transport and transfer your patient with ease.

If you have any questions, please contact GF Health Products, Inc.’s Customer Service Department

at 1-770-368-4700.

MBC-IN-INS-LAB-RevC16 7

Grasp RECLINE to position

unit anywhere from the chair

position to the stretcher

position.

To position the unit in or out of the

Trendelenburg position from the

chair position, grasp TRENDELENBURG.

When the unit is in the stretcher position,

grasp RECLINE to raise the backrest

slightly, then use TRENDELENBURG.

Depress for STEERING LOCK.

Depress for BRAKE.

Depress and hold to lower unit.

Pump to elevate.

FIGURE 3-2

MBC SPECIFICATIONS

Height adjustment

Hydraulic

Backrest adjustment

(including 10° Trendelenburg)

Pneumatic

Caster braking system

Four-wheel braking system with steering lock

Dimensions

Overall dimensions of

patient surface

Chair position Stretcher position

Width 22 in. (56 cm) 22 in. (56 cm)

Length 50 in. (127 cm) 70.5 in. (179 cm)

MBC-IN-INS-LAB-RevC16 8

3.1 BRAKING AND STEERING OPERATION

FIGURE 3-3

FIGURE 3-4

3.1.1 Applying the Brakes

Activate the four-wheel central braking system

by depressing the red pedal at patient left

front to approximately 45° (Figure 3-3). This

locks all four caster wheels from swiveling and

rotating.

3.1.2 Releasing the Brakes

Release the four-wheel central braking system

by depressing the green pedal at patient left

rear until the pedal is in a horizontal position

(Figure 3-3). All four wheels should then rotate

and swivel freely.

WARNING: Ensure the brakes are locked

when the patient is not being transported.

3.1.3 Applying the Steering Lock

Apply the steering lock by depressing the

green pedal at patient left front downward

to approximately 45° into locked position

(Figure 3-3) and push the unit forward. One or

both of the caster wheels at the opposite end

will lock into a non-swivelling position that

enables straight tracking and swivelling by the

attendant; the steering lock will guide the unit

along a straight path with minimal steering

effort by the attendant. (See Figure 3-4)

3.1.4 Releasing the Steering Lock

Release the steering lock by depressing the

red pedal at patient left rear until the pedal is

in a horizontal position (Figure 3-4). All four

casters should then rotate and swivel freely.

MBC-IN-INS-LAB-RevC16 9

3.2 HEIGHT AND TOP ADJUSTMENT

3.2.1 Height adjustment

To elevate the unit, pump the UP pedal, using

smooth full strokes to ensure patient comfort

(See Figure 3-5).

Info: Pedals are located on both sides of the

unit.

When the unit reaches the desired height, stop

the pumping action.

sNOTICE: Do not stand on the pedal.

3.2.2 Lowering the unit

To lower the unit, depress and hold the DOWN

pedal (See Figure 3-6).

Info: Pedals are located on both sides of the

unit.

When the unit reaches the desired height,

return the pedal to its original position.

sNOTICE: Do not stand on the pedal.

3.2.3 Top adjustment

To adjust the unit anywhere from the chair

position to the stretcher position, grasp the

RECLINE handle, (A), adjust the unit to the

desired position, and release the handle (See

Figure 3-7).

3.2.4 Trendelenburg adjustment

To adjust the unit into Trendelenburg position

the unit must be in the CHAIR position.

Grasp the TRENDELENBURG handle (B), adjust

the unit into Trendelenburg, and release the

handle (See Figure 3-7).

FIGURE 3-5

FIGURE 3-6

FIGURE 3-7

MBC-IN-INS-LAB-RevC16 10

FIGURE 3-8

FIGURE 3-9

CPR / SURGICAL

SUPPORT LEGS

WARNING: TIPPING HAZARD —

THE CPR / SURGICAL SUPPORT LEGS

SHOULD BE USED AT ANY TIME WHEN

THE UNIT IS IN THE HORIZONTAL POSITION,

AS SHOWN IN FIGURE 3-8.

WARNING: TIPPING HAZARD —

The CPR / Surgical Support Legs

should be used at any time when the

unit is in the horizontal position, as

shown in Figure 3-8.

3.3.1 Operating Instructions

See Figure 3-9.

CPR Use

1. Pull the hook and loop fastener away

from the tubes.

2. Adjust the MBC to the desired

horizontal position. The legs will

automatically hinge into position and

lock.

3. Pull the knob out and allow the rack

to slide until it makes contact with the

oor. Release the knob to engage the

lock.

4. Ensure the knob is locked into position

by pushing down on the head end of

the unit. No slippage of the rack should

occur.

5. The legs are now ready for use,

ensuring rigid stability.

Storage

1. Pull the knob and slide the rack until it

is fully retracted. Release the knob.

2. Push the slide collar up and fold the

legs inward.

3. Wrap the hook and loop fastener

around both legs and fasten it to itself.

3.3 CPR / SURGICAL SUPPORT LEG ACCESSORY NUMBER HAPC02500

Tabla de contenidos

Otros manuales de Equipo médico de Hausted

Hausted

Hausted Horizon 462 - A Manual de usuario

Hausted

Hausted ESC2EYEST Manual de usuario

Hausted

Hausted HORIZON Series Manual de usuario

Hausted

Hausted APC Series Manual de usuario

Hausted

Hausted HORIZON Series Manual de usuario

Hausted

Hausted UNICARE Series Manual de servicio

Hausted

Hausted HORIZON Series Manual de usuario

Hausted

Hausted ESC2 Manual de usuario

Hausted

Hausted HORIZON Series Manual de usuario

Hausted

Hausted EPC500ST Manual de usuario

Hausted

Hausted APC Series Manual de usuario

Hausted

Hausted 4160 Manual de usuario

Manuales populares de Equipo médico de otras marcas

TekTone

TekTone Tek-CARE160 Manual de usuario

NeuroMetrix

NeuroMetrix Quell 2.0 Manual de usuario

AMT

AMT XLR8 Manual de usuario

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Manual de usuario

EDAN

EDAN SONOTRAX Pro Manual de usuario

Restorative Therapies

Restorative Therapies RT300 Manual de usuario

Gendex

Gendex Expert DC Manual de usuario

Dexcowin

Dexcowin ADX4000W Manual de usuario

Libelium

Libelium MySignals Manual de usuario

Acelity

Acelity V.A.C.ULTA 4 Manual de usuario

Caputron

Caputron ActivaDose II tDCS Manual de usuario

FujiFilm

FujiFilm Sonart Manual del propietario

Plinth 2000

Plinth 2000 93CDT Manual de usuario

GE SENOGRAPHE 800T Manual de usuario

GE Definium 5000 Manual de usuario

Kanmed

Kanmed GE-1380 Manual de usuario

Huntleigh

Huntleigh FD1 Manual de usuario

Stryker

Stryker SPR Plus Manual de usuario
