Hatco 3CS-3B Guía de aplicación

Sanitizing Sink Heater

REPLACEMENT

PARTS LIST

3CS-3B

3CS-4B

3CS-6B

3CS-9B

3CS-B (BALANCED) Series

HATCO 3CS-B SERIES

SANITIZING SINK HEATERS

Model Designation

3CS-XB

3=Three

C=Compartment

S=Sink Heater

X=Kilowatts

B=Balanced 3 Phase

Form No. 3CS-BRP-0601 2 Printed in U.S.A.

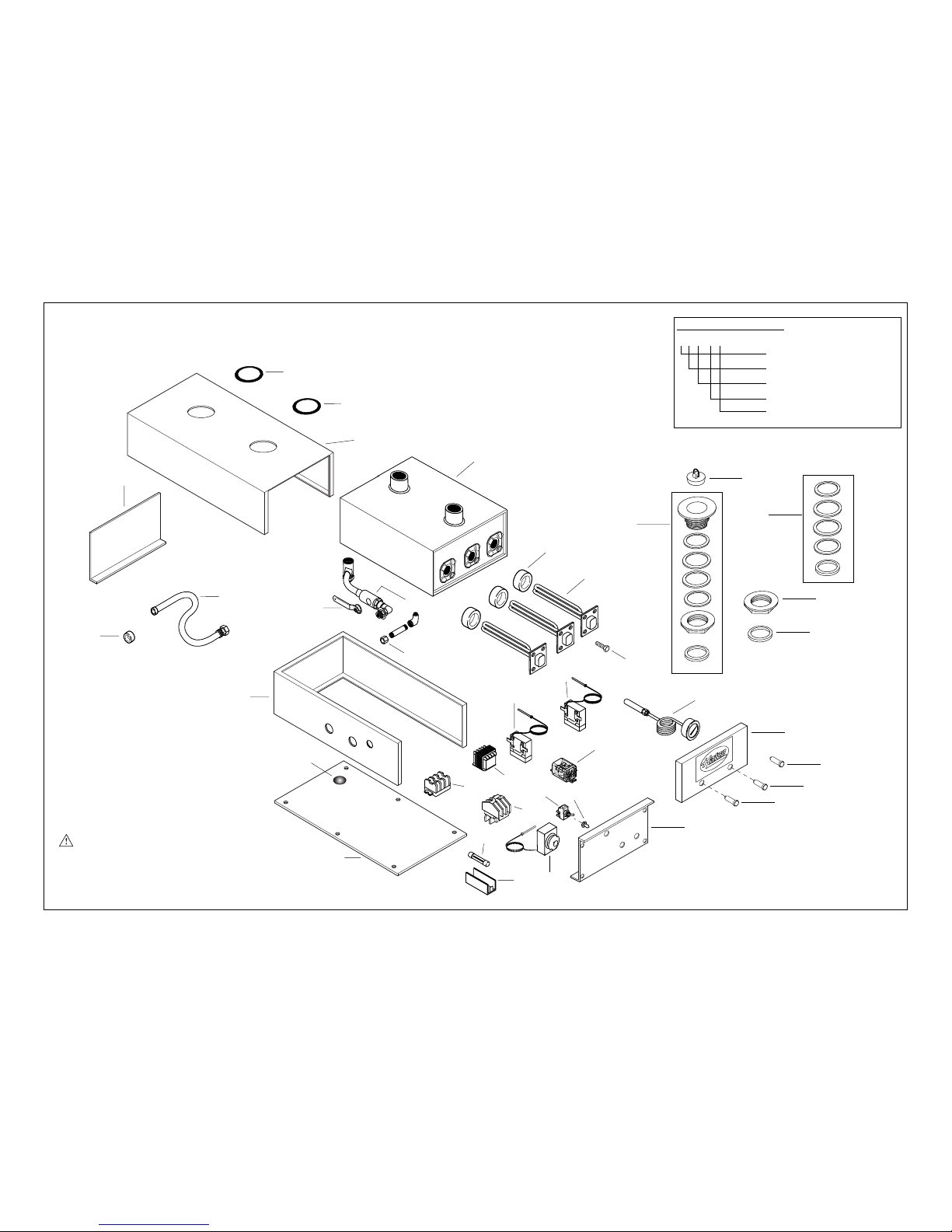

CAUTION - Use of replacement parts

other than those supplied by Hatco

Corporation may result in damage to the

unit or injury to personnel.

39 35

569

25, 26

10, 40

15 13,14

Form No. 3CS-BRP-0601 3 Printed in U.S.A.

1 Water Tank R01.04.006.00 1

2 Control, Thermostat

192°F (89°C) 02.16.003A.00 1

3 Overtemp, Thermostat

205°F (96°C) 02.16.004.00 1

4 At-Temp, Thermostat

175°F (79°C) (optional) 02.16.004A.00 1

5 On/Off Power Switch R02.19.008A.00 1

6 Rubber Boot, Toggle Switch 02.20.040.00 1

7 Control Relay R02.01.025.00 1

8 Indicator Light, Red 02.19.151.00 1

9 Indicator Light, Green 02.19.150.00 1

10 Indicator Light, Yellow 02.19.152.00 1

11 Mounting Bolts, Elements 05.04.062.00 12

12 Gasket, Element 05.06.005.00 3

13 Ball Valve, Thread Fitting

(old style) 03.02.001.00 1

14 Ball Valve, Sweat Fitting

(new style) 03.02.002.00 1

15 Handle, Sump Drain 03.02.001B.00 1

16 Drain Cap, Heating

Compartment R03.40.014.00 1

17 Sink Strainer Assembly Kit R05.30.009.00 2

18 Strainer Gasket Kit R00.05.0002.00 1†

19 Temperature Monitor (optional) 03.01.005.00 1

20 Stopper, Rubber 05.06.026.00 1

PARTS COMMON TO ALL 3CS-B MODELS

21 Flush Hose with Adaptor 05.06.010.00 1

22 Adaptor for Hose 05.06.007.00 1

23 Jacket, Painted 04.06.089.00 1

Jacket, S.S.* 04.06.090.00 1

24 Base, Painted 04.06.113.00 1

Base, S.S.* 04.06.114.00 1

25 Base Front, Painted 04.06.081.00 1

Base Front, S.S.* 04.06.082.00 1

26 Base Front With Monitor Hole,

Painted 04.06.083.00 1

Base Front With Monitor Hole,

S.S.* 04.06.084.00 1

27 Rear Plate, Painted 04.06.022.00 1

Rear Plate, S.S.* 04.06.004A.00 1

28 Bottom Cover, Painted 04.06.016.00 1

Bottom Cover, S.S.* 04.06.018.00 1

29 Front Cover For Two

Indicator Lights, S.S. 04.06.073.00 1

Front Cover For Three

Indicator Lights, S.S.* 04.06.074.00 1

30 Drain Screen Plug, 1" (3 cm) 02.20.026.00 1

31 Brass Locknut 05.30.009A.00 2

32 Union Gasket 05.06.009.00 2

33 Grommets, Black Molded

Rubber 05.06.008.00 2

ITEM DESCRIPTION PART NO. QTY. ITEM DESCRIPTION PART NO. QTY.

Note: S.S. is an abbreviation for stainless steel.

† Includes all gaskets for both strainers

* Not Shown

34 Heating Element (Qty. 3)

35 Transformer

36 Contactor (Qty. 1-2)

37 Fuse•

38 Fuse Holder

39 Terminal Block

40 Indicator Light, Blue

Electrical Drawing

R02.06.301.00

---

02.01.016.00

---

R02.15.003.00

---

HS1-3578

R02.06.452.00

R02.17.003.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003

---

HC1-1423

PARTS SPECIFIC TO MODEL 3CS-3B

415V

Three Phase

380V

Three Phase

240V

Three Phase

208V

Three Phase

380-415V CE

Three Phase

480V

Three Phase

ITEM DESCRIPTION

R02.06.300.00

02.01.016.00

---

R02.15.003.00

---

HS1-3578

R02.06.452.00

R02.17.003.00

02.01.149.00

R02.03.001.02

02.03.004.00

R02.15.035.00

02.19.157.00

HS1-4698

R02.06.303.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HS1-3579

R02.06.452.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HC1-1335

34 Heating Element (Qty. 3)

35 Transformer

36 Contactor (Qty. 1-2)

37 Fuse•

38 Fuse Holder

39 Terminal Block

40 Indicator Light, Blue

Electrical Drawing

R02.06.451.00

---

02.01.016.00

---

R02.15.003.00

---

HS1-3578

---

PARTS SPECIFIC TO MODEL 3CS-4B

415V

Three Phase

380V

Three Phase

240V

Three Phase

208V

Three Phase

380-415V CE

Three Phase

480V

Three Phase

ITEM DESCRIPTION

R02.06.450.00

02.01.016.00

---

R02.15.003.00

---

HS1-3578

---

R02.06.452.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HS1-3579

---

Shaded area reflects export models only.

• Fuses only sold in packs of (2).

Form No. 3CS-BRP-0601 4 Printed in U.S.A.

34 Heating Element (Qty. 3)

35 Transformer

36 Contactor (Qty. 1-2)

37 Fuse•

38 Fuse Holder

39 Terminal Block

40 Indicator Light, Blue

Electrical Drawing

R02.06.450.00

---

02.01.016.00

---

R02.15.003.00

---

HS1-3575

R02.06.303.00

R02.17.003.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HC1-1423

PARTS SPECIFIC TO MODEL 3CS-6B

415V

Three Phase

380V

Three Phase

240V

Three Phase

208V

Three Phase

380-415V CE

Three Phase

480V

Three Phase

ITEM DESCRIPTION

R02.06.301.00

02.01.016.00

---

R02.15.003.00

---

HS1-3574

R02.06.303.00

R02.17.003.00

02.01.149.00

R02.03.001.02

02.03.004.00

R02.15.035.00

02.19.157.00

HS1-4701

R02.06.603.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HS1-3576

R02.06.303.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HC1-1988

34 Heating Element (Qty. 3)

35 Transformer

36 Contactor (Qty. 1-2)

37 Fuse•

38 Fuse Holder

39 Terminal Block

40 Indicator Light, Blue

Electrical Drawing

R02.06.301.00

---

02.01.016.00

---

R02.15.003.00

---

HS1-3568

R02.06.452.00

R02.17.003.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HC1-1423

PARTS SPECIFIC TO MODEL 3CS-9B

415V

Three Phase

380V

Three Phase

240V

Three Phase

208V

Three Phase

380-415V CE

Three Phase

480V

Three Phase

ITEM DESCRIPTION

R02.06.300.00

02.01.016.00

---

R02.15.003.00

---

HS1-3568

R02.06.452.00

R02.17.003.00

02.01.149.00

R02.03.001.02

02.03.004.00

R02.15.035.00

02.19.157.00

HS1-4690

R02.06.303.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HS1-3569

R02.06.301.00

R02.17.002.00

02.01.016.00

R02.03.001.02

02.03.004.00

R02.15.003.00

---

HC1-1335

Shaded area reflects export models only.

• Fuses only sold in packs of (2).

Form No. 3CS-BRP-0601 5 Printed in U.S.A.

Form No. 3CS-BRP-0601 6 Printed in U.S.A.

NOTES

Form No. 3CS-BRP-0601 7 Printed in U.S.A.

NOTES

HATCO CORPORATION

P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.

(800) 558-0607 (414) 671-6350

Parts & Service Fax (800) 690-2966 Int’l. Fax (414) 671-3976

Web Site: www.hatcocorp.com

Printed in U.S.A.

Form No. 3CS-BRP-0601
