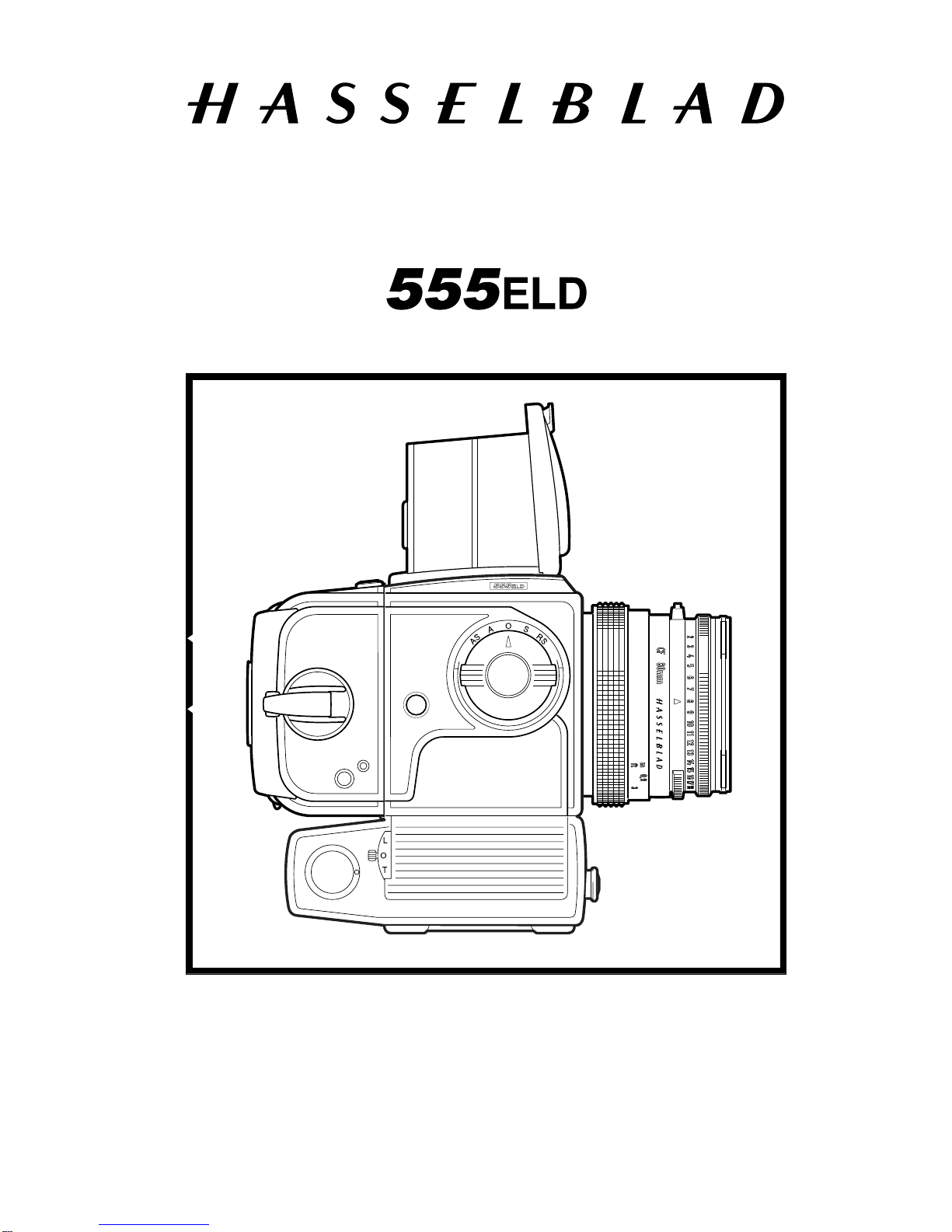

Hasselblad 555ELD Manual de usuario

Victor Hasselblad AB

Göteborg Sweden

Service Manual

555ELDOM.EPS

990215

ANDERS ENGSTRÖM, ILLUSTRATÖR

Östra vägen 46

430 91 HÖNÖ

tel/fax 031-96 84 64

[email protected]

May 1999

Contents list

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

Revision 0

Camera body 555ELD

May 1999

General

Tools

Disassembly

Reassembly

Adjustment, final assembly and calibration of the flash meter

Sub-assembly: Front bayonet plate and auxiliary shutter

Exploded view: Shell

Exploded view: Motor housing

Exploded view: Right hand wall & main components

Exploded view: Left hand wall & electronics

Exploded view: Rear plate & auxiliary shutter

Exploded view: Front bayonet plate, mirror assembly & screen frame

Exploded view: Motor drive gear box

Exploded view: Shell 553ELX/500ELX

Exploded view: Motor housing 553ELX

Exploded view: Motor housing 500ELX

Exploded view: Right hand wall & main components 553ELX/500ELX

Exploded view: Left hand wall & electronics 553ELX/500ELX

Exploded view: Rear plate & auxiliary shutter 553ELX/500ELX

Exploded view: Front bayonet plate & screen frame 553ELX/500500ELX

Exploded view: Motor & electrical connections 553ELX

Exploded view: Motor & electrical connections

Exploded view: Motor & electrical connections 500ELX

Contents list

24.

25.

Revision 0

Camera body 555ELD

May 1999

Exploded view: Motor drive gear box 553ELX/500ELX

Exploded view: IR Release unit

Related Service Infos

Revision 3 January 2001

555ELD - 553ELX - 500ELX

20/93 Redesigned flash metering circuit - 553ELX and 500ELX

23/95 New motor - 553ELX

01/97 Rechargeable batteries discontinued - 500ELX

06/97 New tripod foot - 553ELX

03/99 Battery compartment - 553ELX

04/99 Release and S-arm redesigned - 553ELX and 500ELX

05/99 Preliminary spare part catalogue - 555ELD

07/99 New Service Manual - 555ELD

09/99 Mounting plate in motor housing modified - 555ELD

14/99 Battery compartment for AA batteries - 500ELX

01/00 New CD-ROM - Version 1.2

09/00 New CD-ROM - Version 1.3

14/00 Discontinued parts - 500 series cameras

12/96 Tripod foot adapter/kits

01/93 New screw holding the side cover - 553ELX and 500ELX

17/93 Fitted with wrong spacers - 553ELX

01/01 Modified magazine hook - 555ELD

02/01 Modified motor unit - 555ELD

04/01 New CD-ROM - Version 2.0

May 1999

Camera body 555ELD General description

1:1

Revision 0

Camera type: Medium format single lens reflex camera with a built-in motor,

TTL/OTF flash metering and two release systems, one adapted

for conventional photography, the other one for digital

photography including integrated connections for digital

camerabacks.

Camera body: One-piece, cast aluminium alloy shell with permanently

attached motor housing in lightweight magnesium. Tripod

socket threads 1/4" and 3/8", and tripod plate for rapid

mounting.

Filmformatandfilm 6x6 cm and 6x4.5 cm with different film magazines; 120 and

types: 220 rollfilm, 70 mm perforated long rolls and Polaroid film.

Filmadvance: Automatic motorized film advance with simultaneous shutter

winding and mirror return; maximum speed 1.3 frames/s.

Remote shutter release via optional cord or IR control.

Lenses: All CF/CFi/CFE/CB lenses from 30 to 500 mm, Teleconverter

1.4XE, Converter 2XE, Converter 2XE, Teleconverter APO

1.4XE and PC-Mutar 1.4X Shift Converter.

Shutter: Lens leaf shutter. Speeds from 1 to 1/500 s and B. Time

exposure lever on camera body.

Shutter / Mirror modes: Five different shutter/mirror modes; single exposure with

normal mirror function, sequential exposures with normal

mirror function, pre-release of mirror for one single exposure,

repeated pre-release for single exposures and pre-release for

sequential exposures.

Flash control: TTL centre-weighted dedicated system with OTF metering.

Measured area Ø40 mm. Film speed range ISO 64 - 4000.

Controls a wide variety of flash units using appropriate adapters

(SCA-system).

Camera body 555ELD General description

1:2

Revision 0 May 1999

*Acute-Matte D designed by Minolta

Viewfinder and focusing Foldable focusing hood with 5x magnification, interchangeable

screen: with 90º or 45º prism viewfinders or magnifying hoods.

Bright Acute-Matte D* screen interchangeable for other types.

Full viewfinder image with all lenses and accessories.

Adaption to digital backs: Integrated databus connections interface directly to leading

digital backs. A unique release system with separate front

release port on camera activates the digital back.

Camera operation: Electronic front release. Alternatively, the camera can be

released remotely by optional cord or IR control. Selector dial

for shutter/mirror release modes. Film speed selector for

TTL/OTF flash metering. Battery check for alkaline batteries.

Battery/Capacity: Five standard 1.5 V AA size alkaline batteries (LR-6 or AM-3)

or rechargeable NiCd types. Up to 4000 exposures with

alkaline batteries, less than 2000 exposures with fully charged

NiCd.

Fuse: 5x20 mm 1.5 A medium slow-blow instrument fuse.

Dimensions: Length 120 mm (4.7"), width 100 mm (3.9"), height 150 mm

(5.9").

Weight: 1125 g (2 lb 8 oz).

IR Release unit: Unit for infrared remote release of the Hasselblad 555ELD.

Attaches to the front release ports of the camera and powered

by the camera batteries. Can be set for normal or digital

photography. Supplied with the Hasselblad IR Remote control

44113, which in normal conditions provides an operating range

of approx. 10 m (33').

Dimensions: Length 26 mm (1.0"), width 86 mm (3.4"), height 36 mm

(1.4"), weight approx. 70g (2.5oz).

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Tools

Camera body 555ELD

May 1999

Revision 0

Tool No. Description Used for

V-2211 Pin driver Fitting the locating pin in the front plate

and the front gear bracket

V-2229 Focal length gauge Adjustment of the focal length,

mirror 45ºangle and focusing screen

V-2236 Microscope Focusing screen adjustment

V-4151/52 Focusing tester Focusing screen adjustment

V-4705 Focusing screen adapter Focusing screen adjustment

V-5423 Riveting jig Replacement of aux. shutter flaps

902474 Test box ELX/CX Calibration of the TTL flash meter

902658 Key angle gauge Adjustment of the front key angle

(V-2075)

903202 Power supply adapter Running the camera without batteries

970600 Service Test System Calibration of the TTL flash meter

DIS01.EPS

990316

DIS03.EPS

990316

DIS02.EPS

990316

May 1999

Camera body 555ELD Disassembly

3:1

Revision 0

Motor Housing

Removethelens, film magazine, viewfinder and

focusingscreen.

Unlock the battery cover, operate the release button

and disconnect the battery cover at the exact moment

when the auxiliary shutter is closed and mirror is in

theupperposition.

Peel back the small palpas cover hiding the screw

(821033).Usetheshort screwdriver V-2245.

Removethe inner side cover(22709).

Removethecover(22928).

Fully wind the camera.

Remove the batteries and battery cover (30737

chromeor30742black).

Remove the socket cap (22470) from the side contact.

Removethetwo screws (820019) from the righthand

plastic grip (40202). Peel back the leather on the side

cover(chrome30424-1,black30631-1)and remove

thescrew (823017)underneath.The sidecoverand

the plastic grip can now be removed.

Removethecover(Chrome21292,black22117)

fromthemotorhousing.

Unplugthe releasebutton(46120)fromtherelease

socket

Fig. 1.

Removethefour screws, two(820042),two(823017)

and loosen the contact flex (22915) from the motor

unit and pull it clear of the motor housing. At this

pointthefuseassembly(815855,21305,22342and

13593) can also be removed. Finally, push out the

batterycompartment(50178).

Fig. 2.

Fig. 1

Fig. 2

22709

22928

30737, (30742)

821033

820019 40202

30424-1,

(30631-1) 823017

21292, (22117)

820042

823017

13593

22342

21305

815855

46120

22915

DIS05.EPS

990406

DIS04.EPS

990316

May 1999

Camera body 555ELD Disassembly

3:2

Revision 0

DIS06.EPS

990406

Remove the tripod foot (30763) by removing the six

screws(829790)andtherubbersupport(30778)held

by double-sided tape. When the tripod foot and the

rubbersupporthavebeenremoved,fourholes are

exposedallowingaccesstothefourscrews(823745)

holdingthe motor housing (30801) tothemain

camera body. Insert a screwdriver through the access

holes and remove all four screws. The motor housing

can now be removed from the main body of the

camera.

Fig. 3.

Motorunit

Remove the to long screws (823049) from the side

contact (13604). The contact will now pull clear but

will still be connected to the motor (22827) and the

wiring. If no further disassembly is to take place, then

care should be taken that this wiring is not broken.

Unsolder the brown, red, and blue wire from the

microswitch (13605). Remove the threescrews

(824205).

Fig. 4.

Removethescrew(821012)andthegear(13566).

Remove the two long screws (820048), that pass

throughthe outermountingplate, thenthroughthe

connectingterminal and into theinner mounting

plate. Remove the two short screws (820041 and

820042)located on both sides ofthe gear (13566) and

the two washers (810613). Gently remove the outer

mountingplate(21290).

Fig. 5.

Fig. 3

30801

823745

829790

30763

30778

Fig. 4

Fig. 5

823049

13604

22827

824205

Brown

Red

Blue

13605

13566

821012

820048

820042

820041

810613

21290

DIS20.EPS

990401

May 1999

Disassembly

3:3

Revision 0

Camera body 555ELD

DIS07.EPS

990316

DIS09.EPS

990316

DIS08.EPS

990316

To remove the parts from the outer and inner

mountingplatesproceedas follows (see the exploded

views 13 and 14):

Removethesmallnut(828001),eccentric(22352)

andbearingpin(14100).Removethescrew(821033)

andwasher(810532)andthemicroswitch(13605)

canbe separated from the outermountingplate.

Removethe link (22351),clip (817112) and stoparm

(13571).Disconnectthespring(814601),removeclip

(817115).Separatethemagnetarm(13561)andthe

clutcharm(14099)from the outer mounting plate.

Removethe twobearings(13528).

Removethethree plastic tubes (13606) from the

innermounting plate. Remove the fourscrews

(821033)anddisconnect thegreen,black,blueand

redwiresfromtheconnectingterminal(30435).

Fig. 6.

Removethe foampad(22823). Unsoldertheblue

wire from the sheet metal shield marked "+" of the

motor, the white wirer right opposite and the

capacitor(853549).Themotorcan now be separated

from the remainder of the motor unit.

Fig. 7.

Unloosenthescrew(820020)anddisconnecttheblue

wireconnectedtotheinner mounting plate (ground).

Lift carefully the PC board (22913) a bit and remove

thegears(13565,13563and13564).

Unsolder the red wire from the contact spring

(22646)andseparatethe PC boardfrominner

mountingplate.Unsolderthesolenoid(30421).

Camera shell

Removethecircularpiece of leather (13374) from the

centre of the mode selector and then remove the two

screws(823023)beneathit.Withdrawtheselector

knob(30429), thus exposing a furthertwo screws.

Removethesetwoscrews(820014) together with

theirwashers(810613)and(810607),andthen

withdrawthe symbol plate (30682),together with

thewasher(13541)andspring(816906).Removethe

circular piece of leather (13374) on the ISO selector

(22495)and remove the set screwbeneath it. When

withdrawing the selector care must be taken that the

springloadeddog(22533)doesnotspring

free.

Fig. 8.

Fig. 8

Fig. 6

Fig. 7

828001

22352

14100

810532

821033

13605

22351

817112

13571

814601

817115

14099

13561

13528

821033

30435

853549

White (-)

Blue (+)

Otros manuales para 555ELD

Otros manuales de Cámara digital de Hasselblad

Hasselblad

Hasselblad Stellar II Manual de usuario

Hasselblad

Hasselblad H3D-22 Manual de usuario

Hasselblad

Hasselblad H3D - Manual de usuario

Hasselblad

Hasselblad Stellar II Manual de instrucciones

Hasselblad

Hasselblad H1D Manual de usuario

Hasselblad

Hasselblad 503CWD Manual de usuario

Hasselblad

Hasselblad a5d Manual de usuario

Hasselblad

Hasselblad X2D 100C Manual de usuario

Hasselblad

Hasselblad 500 C Manual de usuario

Hasselblad

Hasselblad 500EL//M Manual de usuario

Hasselblad

Hasselblad H3DII-22 Guía de configuración

Hasselblad

Hasselblad H2 Manual de usuario

Hasselblad

Hasselblad 553ELX Manual de usuario

Hasselblad

Hasselblad Digital Camera Manual de usuario

Hasselblad

Hasselblad H4D-50 Manual de usuario

Hasselblad

Hasselblad X2D 100C Manual de usuario

Hasselblad

Hasselblad X1D Manual de usuario

Hasselblad

Hasselblad 1600 F Manual de usuario

Hasselblad

Hasselblad 907X Special Edition Manual de usuario

Hasselblad

Hasselblad E-mount Manual de usuario

Hasselblad

Hasselblad 500ELX Manual de usuario

Hasselblad

Hasselblad CFH-39 Manual de usuario

Hasselblad

Hasselblad 503CWD Manual de usuario

Hasselblad

Hasselblad H3D II39 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
