Harman JBL BOOMBOX3 Manual de usuario

APP APP

JBL ONE

CONNECT YOUR ANDROID™ OR IOS DEVICE TO THE WI-FI NETWORK AND FOLLOW

APP INSTRUCTIONS TO COMPLETE SPEAKER SETUP*.

*THE AVAILABILITY OF FEATURES WILL VARY BETWEEN COUNTRIES AND NOT ALL FEATURES MAY BE

AVAILABLE IN YOUR COUNTRY.

Wi-Fi

CHARGING

20%50%100%

TECH SPEC

BOOMBOX3

Wi-

QUICK

START

GUIDE

WHAT’S

IN THE

BOX

* POWER CORD QUANTITY AND PLUG TYPE VARY BY REGIONS.

POWER ON

STREAM MUSIC THROUGH JBL ONE APP OR SUPPORTED MUSIC SERVICES.

MUSIC STREAMING

BLUETOOTH PAIRING

Settings Bluetooth

Bluetooth

DEVICES

JBL Boombox 3 Wi-Fi

Now Discoverable

Connected

×1

PLAY

×2

×1

MOMENT

PRESS TO PLAY THE SET PLAYLIST AND SPEAKERS SETTING PRESET IN THE JBL ONE APP.

IP67

WATERPROOF

DUSTPROOF

IP67

30 MINS

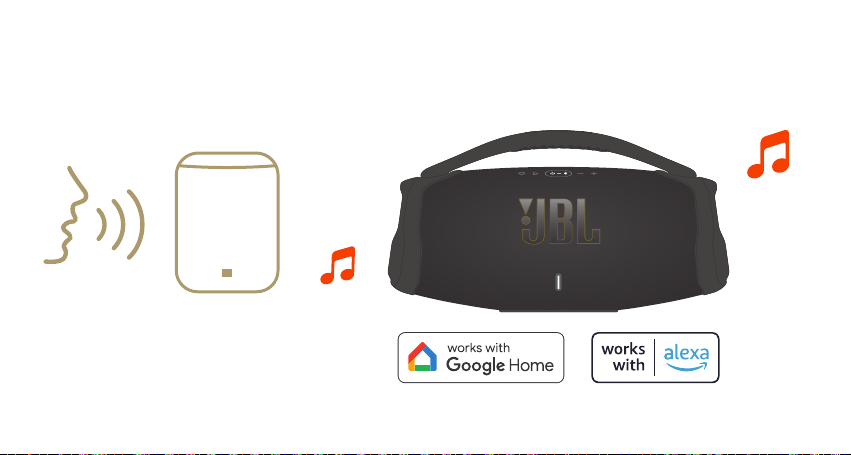

WORKS WITH SMART HOME

*SMART SPEAKER SOLD SEPARATELY

COMPLETE SETUP IN THE GOOGLE HOME OR AMAZON ALEXA APP.

Transducer: 189 x 114mm subwoofer, 2 x 80.9 x 80.9mm midrange/

2 x 2.75”, 2 x 20mm tweeter/2 x 0.75”

Output power: 1 x 80W RMS-subwoofer + 2 x 40W RMS-midrange +

2 x 20W RMS-tweeter (AC mode)

1 x 60W RMS-subwoofer + 2 x 30W RMS-midrange +

2 x 10W RMS-tweeter (Battery mode)

Power input: 100 – 240 Vac; 50/60 Hz;

Frequency response: 40Hz – 20kHz (-6dB)

Signal-to-noise ratio: >80dBrA (A-Weighted)

Battery type: Li-ion Battery 69.12Wh (equivalent to 7.2V/9600mAh)

Battery charge time: 4.5hours

Music play time: up to 24hours (dependent on volume level and audio

content)

Connection ports: AC-in, USB-A

Cable type: AC Power Cable

Cable length: 2000mm/78.7”

USB charge out: 5V/2A (maxmium)

Wireless network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

Bluetooth version: 5.3

Bluetooth proﬁle: A2DP 1.3, AVRCP 1.5

Bluetooth transmitter frequency

range: 2.4GHz – 2.4835GHz

Bluetooth transmitter power: <12dBm (EIRP)

Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK

5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz

5G Wi-Fi transmitter power: <23dBm

5G Wi-Fi modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)

5G Wi-Fi network compatibility: 802.11a/n/ac/ax

2.4G Wi-Fi transmitter frequency

range: 2.4GHz – 2.4835GHz

2.4G Wi-Fi transmitter power: <20dBm

2.4G Wi-Fi modulation: DSSS (DBPSK, DQPSK, CCK),

OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)

2.4G Wi-Fi network compatibility: 802.11b/g/n/ax

Product dimensions (W x H x D): 482.4 x 256.9 x 201mm/19.0 x 10.1 x 7.9”

Net weight: 6.79kg/15.0lbs

Packaging dimensions (W x H x D): 565 x 316 x 256.5mm/22.2 x 12.4 x 10.1”

Gross weight: 9.62kg/21.2lbs

Maximum operation temperature: 45°C

FACTORY RESET

>10S

PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1 2022/12/21 10:19:042022/12/21 10:19:04
