Harman Kardon AVR 235 Manual de usuario

Thank you for purchasing a Harman Kardon AVR 235. This Quick-Start

Guide will help you with a basic system installation. For detailed information

on any step, please refer to the Owner’s Manual pages referenced in this

guide. We strongly recommend that you read the Owner’s Manual for

complete details on how to install, configure and operate the AVR 235,

as well as for the important safety information it contains.

Figure 1 – Speaker Placement

The colors shown for each speaker correspond to

the matching output terminal connection on the

back of the AVR 235 (see page 7).

FRONT

LEFT

SPEAKER

(White)

SURROUND

BACK

LEFT

SPEAKER

(Brown)

SURROUND

BACK

RIGHT

SPEAKER

(Tan)

CENTER

SPEAKER

(Green)

SUBWOOFER

(Purple)

SURROUND

LEFT

SPEAKER

(Blue)

FRONT

RIGHT

SPEAKER

(Red)

SURROUND

RIGHT

SPEAKER

(Gray)

Step 1. Place your speakers in the listening room

(see page 16).

SPEAKER PLACEMENT

AVR 235 QUICK-START GUIDE

Connections Color Guide

Audio Connections Left Right

Front

Center

Surround

Subwoofer

Surround Back

Digital Audio Connections

Coax

Optical

Video Connections

Composite

S-Video

Match the colored jacks on the AVR 235 to the appropriate

jacks on your source equipment or speakers. The colors are

standardized, but not all equipment or connectors use them.

AVR 235 QUICK-START GUIDE

Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+) on receiver and black (–) to black (–)

(see page 14).

Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your subwoofer.

You may adjust the settings on the subwoofer later as needed (see page 14).

Figure 3 – How to Use the Binding-Post

Speaker Terminal

SURROUND BACK

RIGHT SPEAKER

SURROUND BACK

LEFT SPEAKER

FRONT RIGHT

SPEAKER

FRONT LEFT

SPEAKER

CENTER SPEAKER

SUBWOOFER

LINE IN/SUB/LFE +

SURROUND

RIGHT SPEAKER

SURROUND

LEFT SPEAKER

Figure 2 – Speaker Connections

SPEAKER AND AUDIO CONNECTIONS

CD PLAYERAM AntennaFM Antenna

AUDIO RECORDER

L R Optical Coax

REC/IN

PLAY/OUT

Step 4. Connect AM and FM antennas (Fig. 4) (see page 14).

Step 5. Connect source components, as shown in Figures 4 and 5, and the

Device Connection Options chart on the back of this guide (see

pages 14–15).

AUDIO connections: Right channel (red) on source to right (red)

on AVR, and left channel (white) on source to left (white) on AVR.

DIGITAL AUDIO connections, if available: Choose either coax

(orange) to coax (orange) OR optical to optical for each device.

The Coax 1 input defaults to the DVD player, but may be reassigned.

Assign the other digital inputs and outputs as appropriate for your

equipment (see Step 7).

VIDEO connections: Choose component (Y/Pb/Pr – green/blue/

red), composite (yellow) or S-Video (4-pin) for each video source.

Connect the component, composite and S-Video Monitor outputs to

your Video Monitor (TV). Switch your TV set’s input to match the type

of video used for the currently selected source.

Step 6. Plug all components into AC power outlets. The outlets on the back

of the AVR 235 should be used

only

for low-current products, such

as CD or DVD players, and the total should not exceed 100 watts.

Basic Receiver Configuration

Step 7. Select digital inputs: If your DVD is connected to Coax 1, no adjust-

ment is needed. For any other digital-device connections, use the

front-panel Digital Select button and the arrow buttons to select an

optical or coax digital input (see pages 18 and 28).

Step 8. Select a surround mode: Press the Surround Mode button on the

front panel to select Dolby®Pro Logic®II – Movie. (You may select

other modes later as you become familiar with the AVR 235; see

pages 18–20 and 26–28.)

Step 9. Configure speakers: No action is needed if you have five “small”

satellite-type speakers and a subwoofer. Otherwise, press the Speaker

button and then the Set and arrow buttons to select the correct

speaker choices for your system (see pages 20–22).

Step 10. Use to set output levels: Set the Balance to

12 o’clock, and the Volume to –10dB. Sit in the listening position

and hold the remote in front of you at shoulder level, pointing at

the AVR 235. Press the SPL button for 3 seconds, and release it

when the LED flashes amber. Press “5” or “7” to indicate the number

of speakers (not including the subwoofer). Hold the remote steady

until the process is completed (see page 22).

Step 11.

Your system is configured – sit back and enjoy!

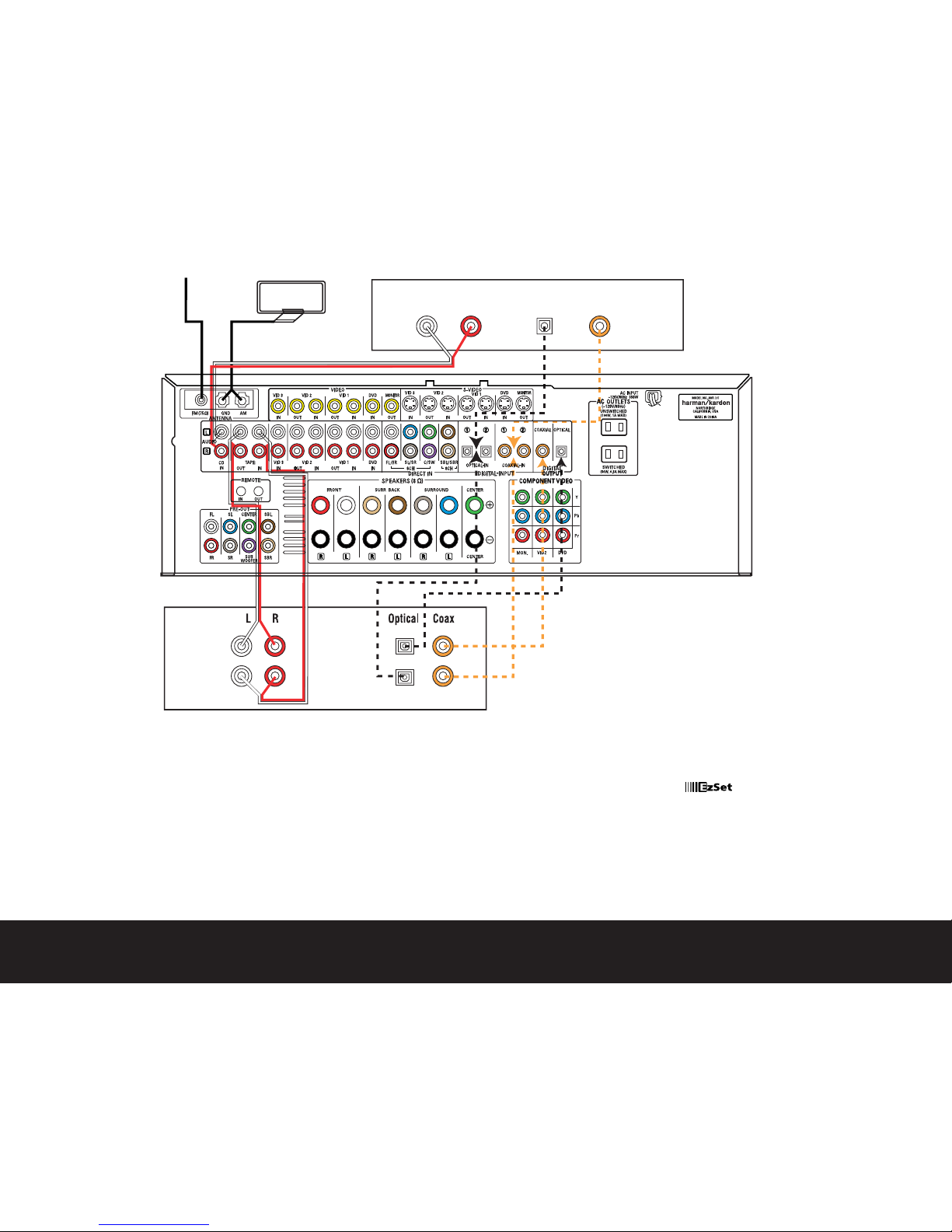

Figure 4 – Audio Connections

Dashed lines (––––) indicate coax and optical

digital audio connections. Choose either type

(but not both) for each digital audio source.

DVD PLAYER

VCR (Video 1) TV or Projector

In/Rec

Out/Play

L R VIDEO Video S-Video

Y Pb Pr

Component Video

Optical Coax

Cable Box or Satellite Receiver (Video 2)

OUT

L R Video S-Video

Optical Coax

L R Video S-Video

Component Video

Y Pb Pr

Component Video

VIDEO CONNECTIONS

Device Connection Options:Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 4, Coax 3 and Optical 3 inputs are on the front panel of the receiver.

Device Input Name Audio Input Connections Audio Output Connections Video Connections

CD Player CD CD L/R Inputs, Optical Digital 1 or 2, or Coaxial Digital 1 or 2Not required Not required

DVD Player DVD Coaxial Digital 1 or 2, Optical Digital 1 or 2, or DVD L/R Inputs Not required DVD Component, Composite or S-Video

VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output

Cable Box or Satellite Receiver Video 2 Video 2 L/R Inputs, Optical Digital 1, 2 or 3*, or Coaxial Digital 1, 2 or 3*Inputs Not required Video 2 Component, Composite or S-Video Input

Audio Recorder Tape Tape L/R Inputs, Optical Digital 1/2** or Coaxial Digital 1/2** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required

TV or Projector Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video

*Check with your cable company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not. ** Digital audio recorders only.

Power for the Digital Revolution.

Figure 5 – Video Connections

Dashed lines (––––) indicate coax and optical digital audio connections. Choose either type (but not both) for each

digital audio source.

Dotted lines (••••) indicate component, composite or S-Video connections. Component video is the preferred connection

when available, but you may use any of the three types (but not more than one). When component, composite and

S-Video sources are connected to the AVR you must also connect all outputs from the AVR to your TV.
