GRACE BAY CEILING FAN
Español p. 20
1
MODEL #BDB52BNK5L
BDB52OSB5L
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
PH18432
Safety Information ...............................................................................................................2
Package Contents ...............................................................................................................4
Hardware Contents
..........................................................................................................................
5
Preparation ..........................................................................................................................5
Initial Installation ..................................................................................................................6
Downrod-Style Fan Mounting ..............................................................................................8
Closemount-Style Fan Mounting .......................................................................................10
Wiring ................................................................................................................................
.
11
Final Installation ................................................................................................................
.
13
Operating Instructions .......................................................................................................16
Care and Maintenance ......................................................................................................17
Troubleshooting..................................................................................................................18
Limited Lifetime Warranty ..................................................................................................19
Replacement Parts List .....................................................................................................19
TABLE OF CONTENTS
2
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 20.72 lbs.
SAFETY INFORMATION
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.
L Canopy Mounting Screw 4
(preassembled)
M Pin (preassembled) 1
N Clip (preassembled) 1
O Star Washer 4
(preassembled)
P Light Kit Fitter Screw 3
(preassembled)
Q Light Kit Fitter 1
R Socket Ring 4
(preassembled)
IMPORTANT REMINDER: You must use
the parts provided with this fan for proper
installation and safety.
PACKAGE CONTENTS
4
A Downrod 1
B Canopy 1
C Mounting Bracket 1
(preassembled)
D Motor Housing 1
E Glass Shade 4
F Blade 5
G Blade Arm 5
H Balancing Kit 1
I Motor Screw 10
(preassembled) + 1 extra
J Bulb 4
K Lock Washer 10
(preassembled) + 1 extra
DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY
J
E
D
K
L
H
I
AM
Q
P
R
B
N
O
G
F
C
5
HARDWARE CONTENTS (shown actual size)
Fiber
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
AA BB CC
PREPARATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required forAssembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
DD
Pull Chain
Extension
Qty. 2
6
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
3.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
F
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
A
B
2
19° max.
Check to make sure blades (F) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
7 ft.
min.
30 in.
min.
3
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4b.
INITIAL INSTALLATION
7
5. Remove motor screws (I) and lock washers (K)
from underside of motor housing (D). [If there are
plastic motor blocks installed with the motor
screws (I) and lock washers (K), discard the
plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 on the following page. For
CLOSEMOUNT-STYLE FAN MOUNTING, skip to
page 10.
K
I
5
D
Plastic Motor Block
4a. Loosen canopy mounting screws (L) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (L) and star washers
(O). Save for later use.
Remove mounting bracket (C) from canopy (B).
B
L
O
4a C
Open End
4
C
C
ANGLE MOUNTSTANDARD
MOUNT
4b
2. Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through downrod
(A).
3.
A
N
M
DOWNROD-STYLE FAN MOUNTING
8
3
1.
Slip downrod (A) into yoke, align holes and
re-install pin (M) and clip (N). Tighten set screws in
yoke and then tighten nut and set screws.
Set Screw
and Nut
B
A
2
Remove pin (M) and clip (N) from downrod (A).
Partially loosen preassembled set screws and nut
in yoke at top of motor housing (D).
1
N
M
A
Yoke
Set Screw
and Nut
Sideview
D
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the ball on the
downrod (A) and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Ball
5.
Install ball end of downrod (A) into opening of
mounting bracket (C). Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may cause the fan to wobble or fall, which could
result in serious injury or death.
6.
Continue to WIRING on page 11.
C
DOWNROD-STYLE FAN MOUNTING
4
9
5
6
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat
Step 5 for black, blue (if applicable) and green
wires.
Slot
A
A
Tab
Remove preassembled canopy cover from bottom
of canopy (B). NOTE: It may be necessary to use
a screwdriver (not included) to remove the canopy
cover by tapping on the canopy cover from the
inside of the canopy (B).
NOTE: The downrod (A) and canopy cover are
not used in this type of installation.
1.
Remove every other preassembled screw and lock
washer from top of motor housing (D).
2.
3.

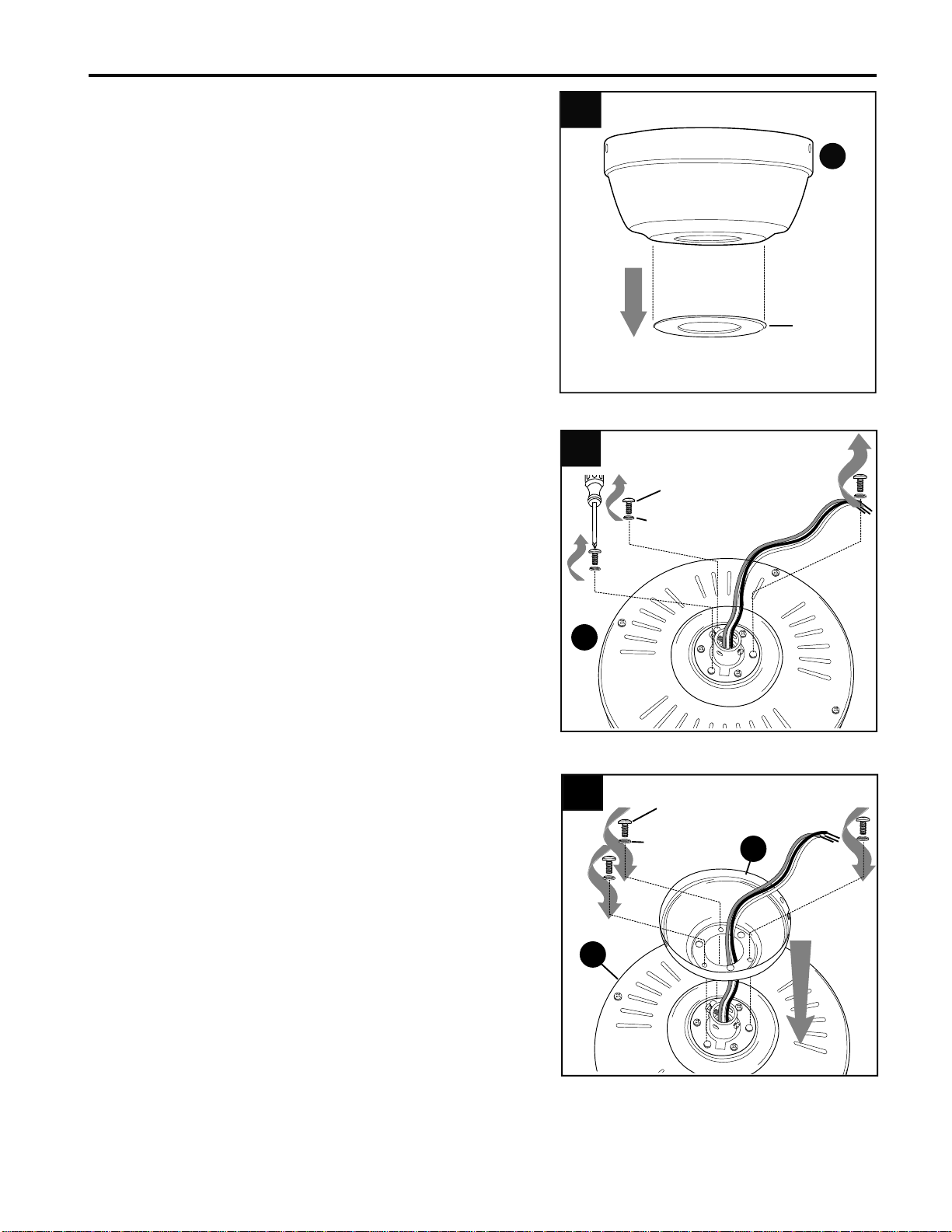

CLOSEMOUNT-STYLE FAN MOUNTNG
10
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
1
Canopy
Cover
B
2
D
Screw
Lock Washer
3
B
D
Screw
Lock
Washer
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Admirador de Harbor Breeze
Harbor Breeze
Harbor Breeze CE-JP13EB6RC Manual de usuario
Harbor Breeze
Harbor Breeze BARNSTAPLE BAY E-RLG52NWZ5C Manual de usuario
Harbor Breeze
Harbor Breeze FREEPORT LP8079LAZ Manual de usuario
Harbor Breeze
Harbor Breeze AERO CEILING FAN E-AER52BRZ5LKRCI Manual de usuario
Harbor Breeze
Harbor Breeze LP8210LAZ Manual de usuario
Harbor Breeze
Harbor Breeze CLASSIC STYLE BDB52LW5N Manual de usuario
Harbor Breeze
Harbor Breeze L1305 Manual de usuario
Harbor Breeze
Harbor Breeze 41169 Manual de usuario
Harbor Breeze
Harbor Breeze PRESTWICK 42868 Manual de usuario
Harbor Breeze
Harbor Breeze 872 Manual de usuario
Harbor Breeze
Harbor Breeze AFTONSHIRE Manual de usuario
Harbor Breeze
Harbor Breeze 40360 Manual de usuario
Harbor Breeze
Harbor Breeze 40410 Manual de usuario
Harbor Breeze
Harbor Breeze TEX52MBK5C1L Manual de usuario
Harbor Breeze
Harbor Breeze 856 Manual de usuario
Harbor Breeze
Harbor Breeze WELLSBORO 42072 Manual
Harbor Breeze
Harbor Breeze BELLEVUE E-BE44ABZ5C Manual de usuario
Harbor Breeze
Harbor Breeze BRISTLE AR13-44BLK AR13-44BN Manual de usuario
Harbor Breeze
Harbor Breeze Bath Ventilator with Light Manual de usuario
Harbor Breeze
Harbor Breeze 40314 Manual de usuario
