PNP-9200RH

NETWORK CAMERA

Quick Guide

2_ English

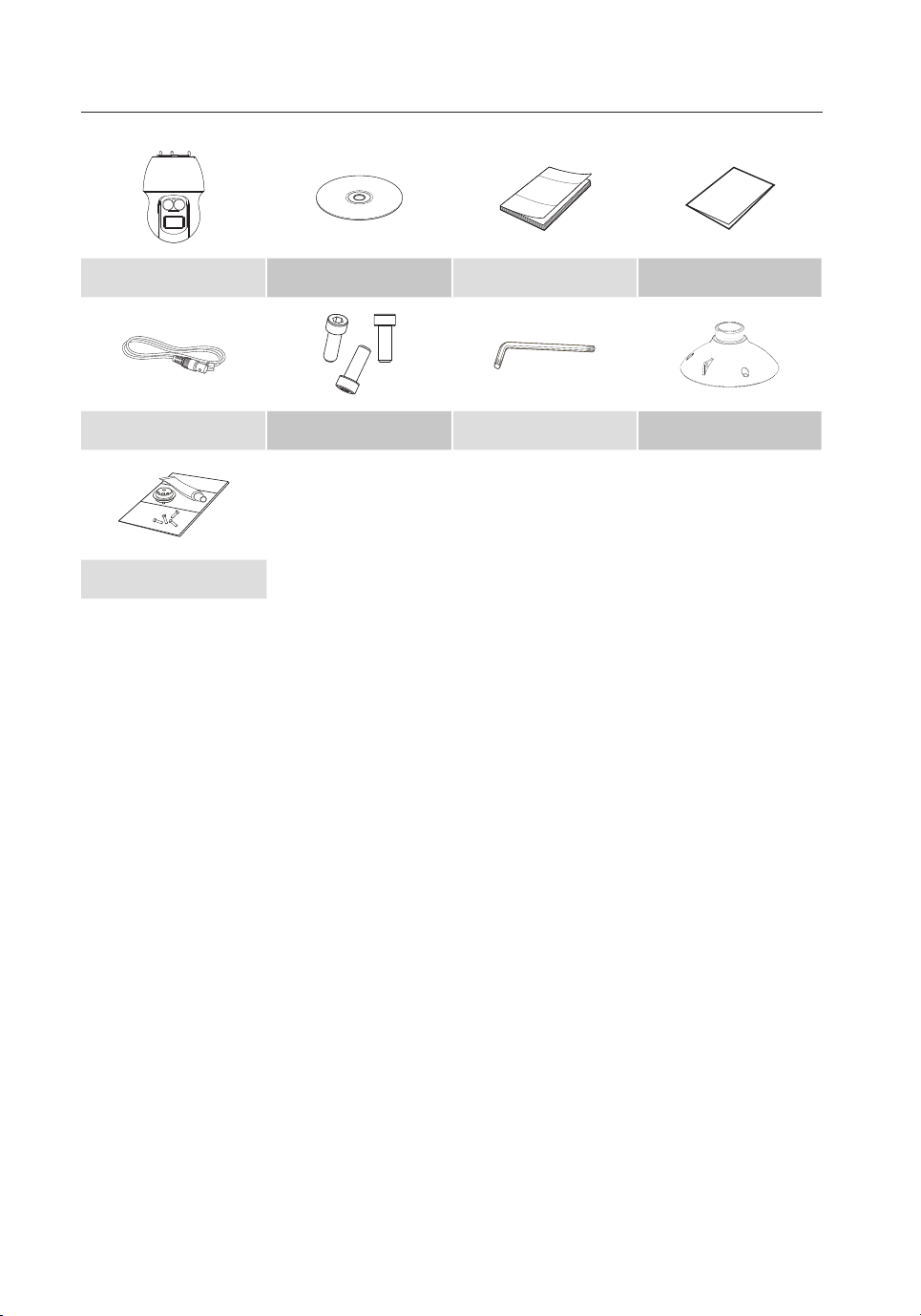

WHAT’S INCLUDED

Camera CD Quick Guide (Optional) Warranty card (Optional)

Cable for the testing monitor Hexagon screw L Wrench Installation base

Waterproofing accessory

English _3

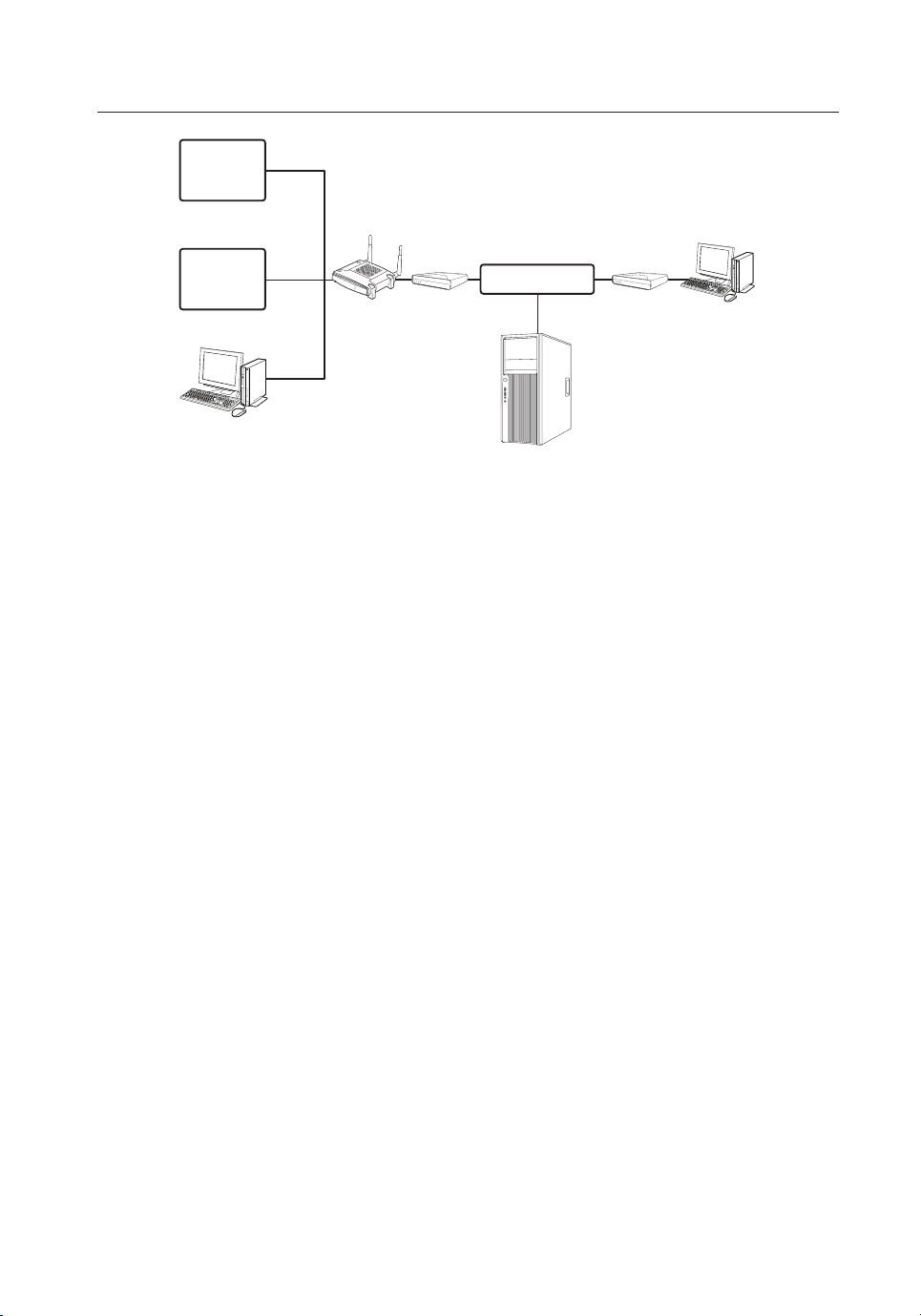

NETWORK WIRING DIAGRAM

Camera

Local PC

Broadband

Router

PPPoE or

Cable Modem

PPPoE or

Cable Modem External Remote

DDNS Server

(Data Center, KOREA)

INTERNET

4_ English

MANUAL NETWORK SETUP

Run <IP Installer_v2.XX.exe> to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

`For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this

function.

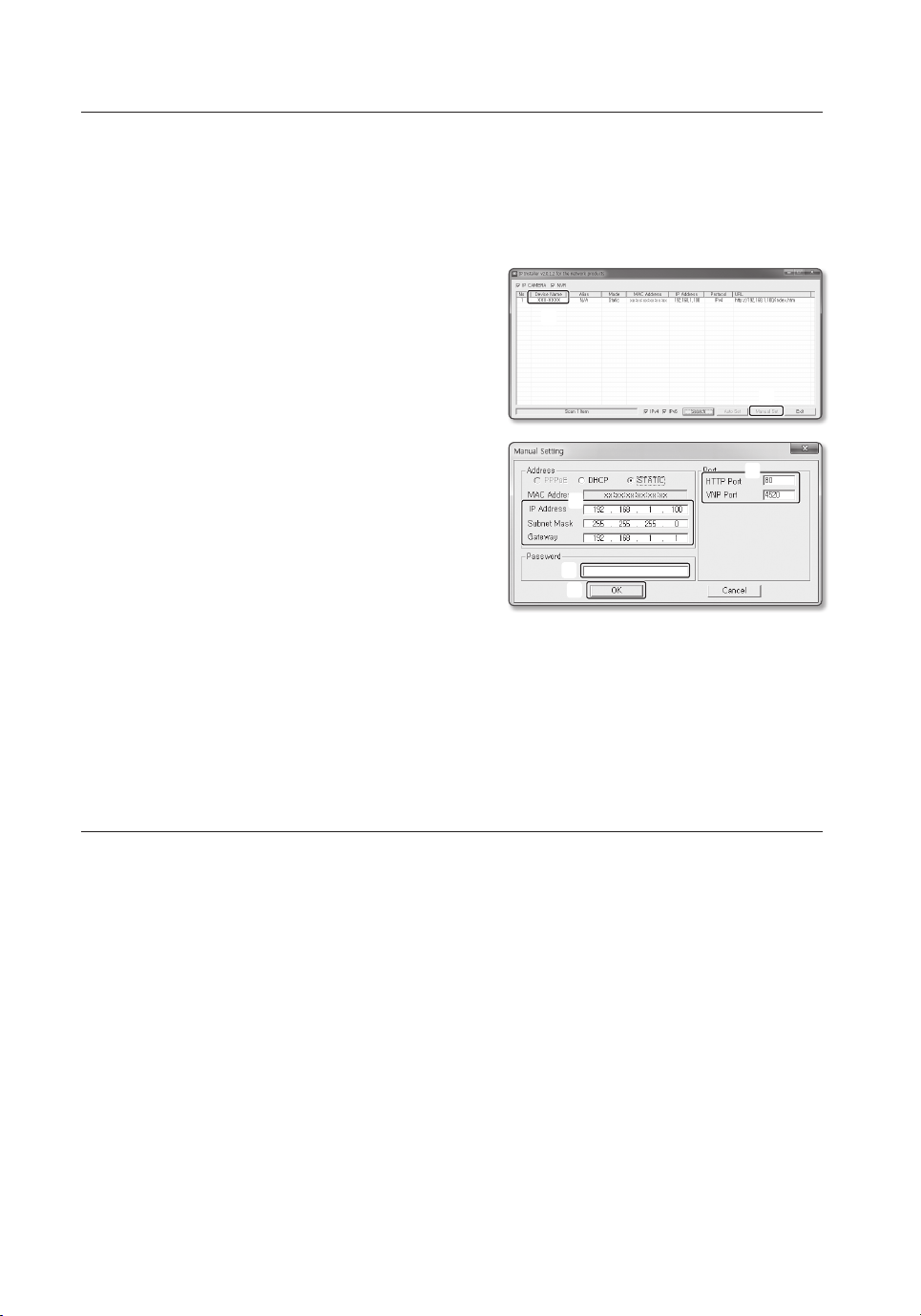

aSelect a camera in the search list.

bClick [Manual Set].

The Manual Setting dialog appears.

cIn the <Address> pane, provide the necessary

information.

dIn the <Port> pane, provide necessary

information.

• HTTP Port : Used to access the camera using

the Internet browser, defaulted to 80.

• VNP Port : Used to control the video signal

transfer, defaulted to 4520.

eEnter the password.

The default password is “4321”.

`In the IP installer, you can use the initial password,

“4321” to set IP Address, Subnet Mask, Gateway,

HTTP Port, VNP Port, IP type. After changing the network interface, for better security, access the web viewer and

change the password.

`If you want to set the password, refer to “Password setting”. (page 5)

fClick [OK].

Manual network setup will be completed.

CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC

1. Run the IP Installer.

It will scan for connected cameras and display them as a list.

2. Double-click a camera to access.

The Internet browser starts and connects to the camera.

`Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet

browser.

English _5

PASSWORD SETTING

When you access the product for the first time, you must

When the “Password change” window appears, enter the

new password.

`For a new password with 8 to 9 digits, you must use at

least 3 of the following: uppercase/lowercase letters,

numbers and special characters. For a password with

10 to 15 digits, you must use at least 2 types of those

mentioned.

-Special characters that are allowed. :

~`!@#$%^*()_-+=|{}[].?/

`For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for

your passwords.

`If you lost your password, you can press the [RESET] button to initialize the product. So, don’t lose your password

by using a memo pad or memorizing it.

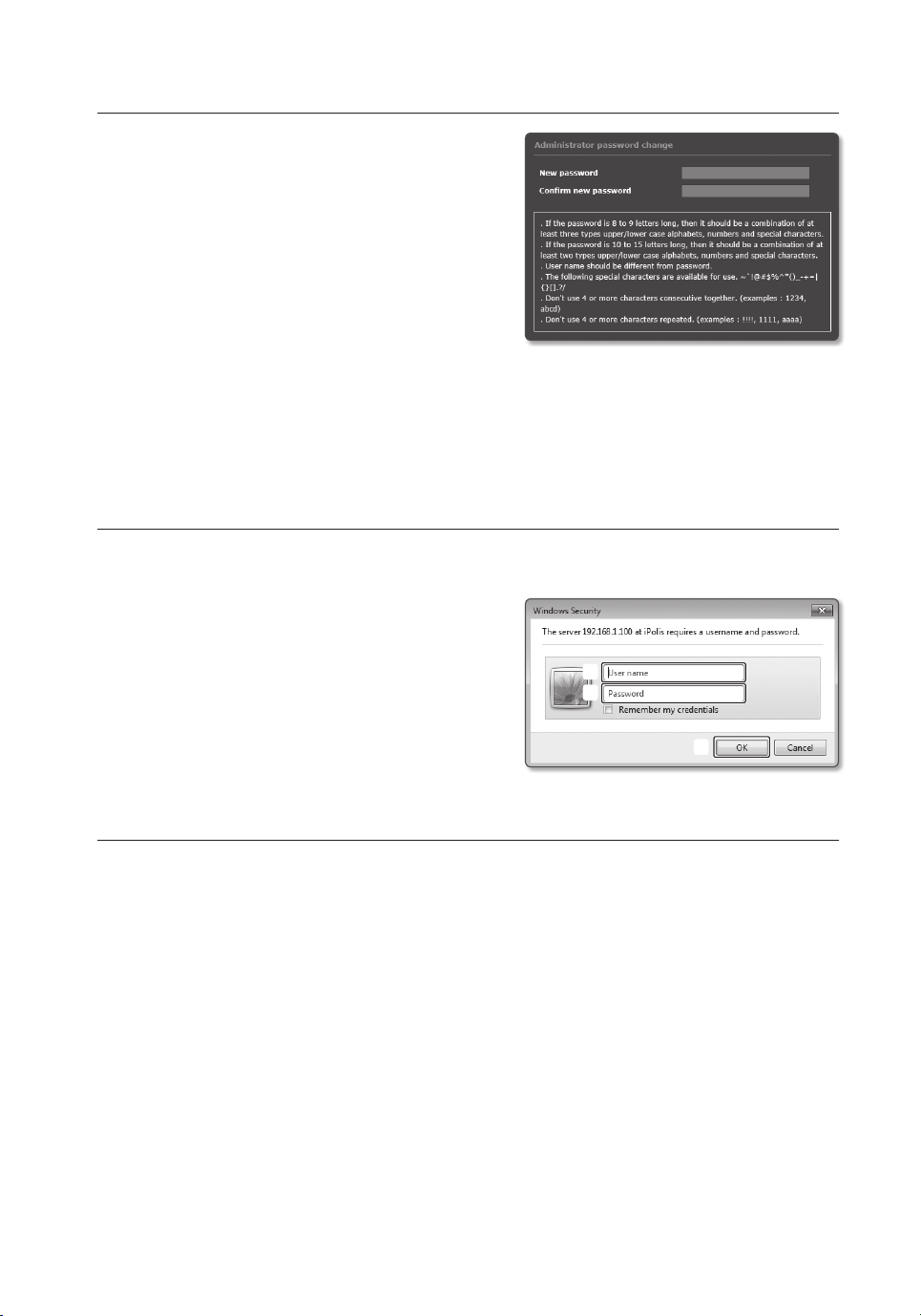

Whenever you access the camera, the login window appears.

Enter the User ID and password to access the camera.

aEnter “admin” in the <User Name> input box.

bEnter the password in the <Password> input field.

cClick [OK].

INSTALLING WEBVIEWER PLUGIN

To access to the plug-in webviewer and play a live video (H.264/H.265) or a recorded video, an installation

message will be prompted. At this time you need to install the webviewer plug-in to use the function

properly.

`If the plug-in installation file download status is suspended at 99% in the Internet Explorer browser, retry it after

selecting “Release SmartScreen filter” in “Tool SmartScreen filter”.

`In your internet explorer, if you need to move to the installation screen after installing the webviewer plugin,

check whether webviewer_activexplugin_lib.control in the “Tool Additional Function Management” menu is

“Activated”. If not, and if there is a persisting problem, then select “Tools Internet Options General” and

delete all the search records.

6_ English

CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE

INTERNET

Since using the IP Installer on a remote computer that is not in the Broadband Router’s network cluster is

not allowed, users can access cameras within a Broadband Router’s network by using the camera’s DDNS

URL.

Port Range Forward (Port Mapping) Setup

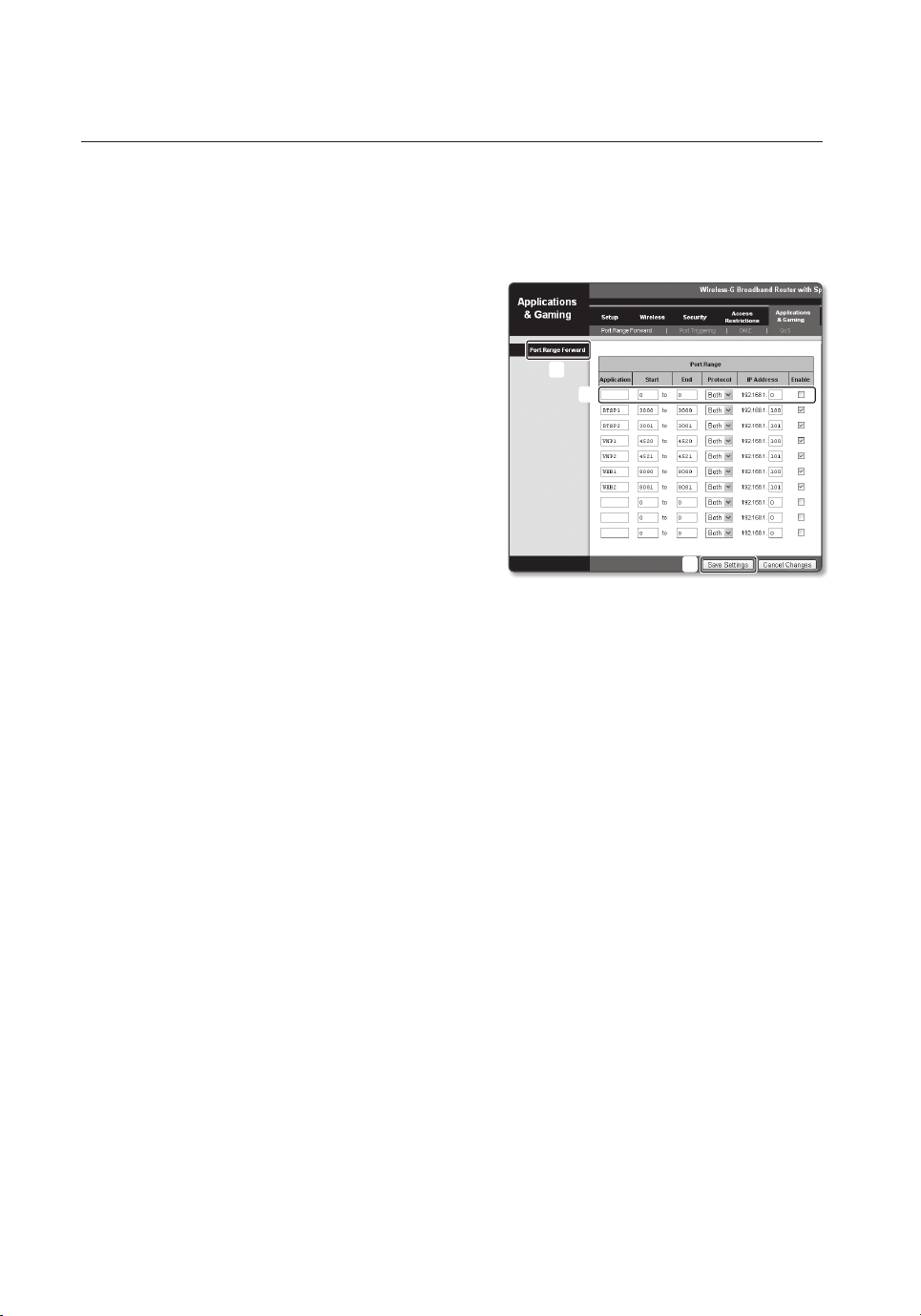

aFrom the Setup menu of the Broadband Router,

select <Applications & Gaming> - <Port Range

Forward>.

bSelect <TCP> and <UDP Port> for each

connected camera to the Broadband Router.

The number of each port to be configured to

the IP router should be set according to the port

number designated in <Setup> - <Basic> - <IP

& Port> on the camera web viewer.

cWhen done, click [Save Settings].

Your settings will be saved.

`Above sample instructions are based on the CISCO’s

Broadband Router.

`The settings may differ depending on the connected Broadband Router model.

For more information, refer to the user manual of the applicable router.

Registering with DDNS

1. Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and sign in with a registered

account.

2. From the top menu bar, select <MY DDNS>.

3. Click the [Register Product] tab.

4. Please enter the product ID and fill in the items displayed.

5. Click [Product Registration].

English _7

Connecting the camera to Wisenet DDNS

1. On the live screen, click the [Menu ( )] button.

2. On the menu list, click the [Setup ( )] tab.

3. Select <Network ( )>.

4. Click <DDNS>.

5. From the DDNS setup page, set <DDNS> to <Wisenet DDNS>.

6. Provide the <Product ID> that you registered product ID with the DDNS site.

7. Click [Apply].

Whe

n the connection is successfully made, you will see the message of <(Success)> on the

screen.
