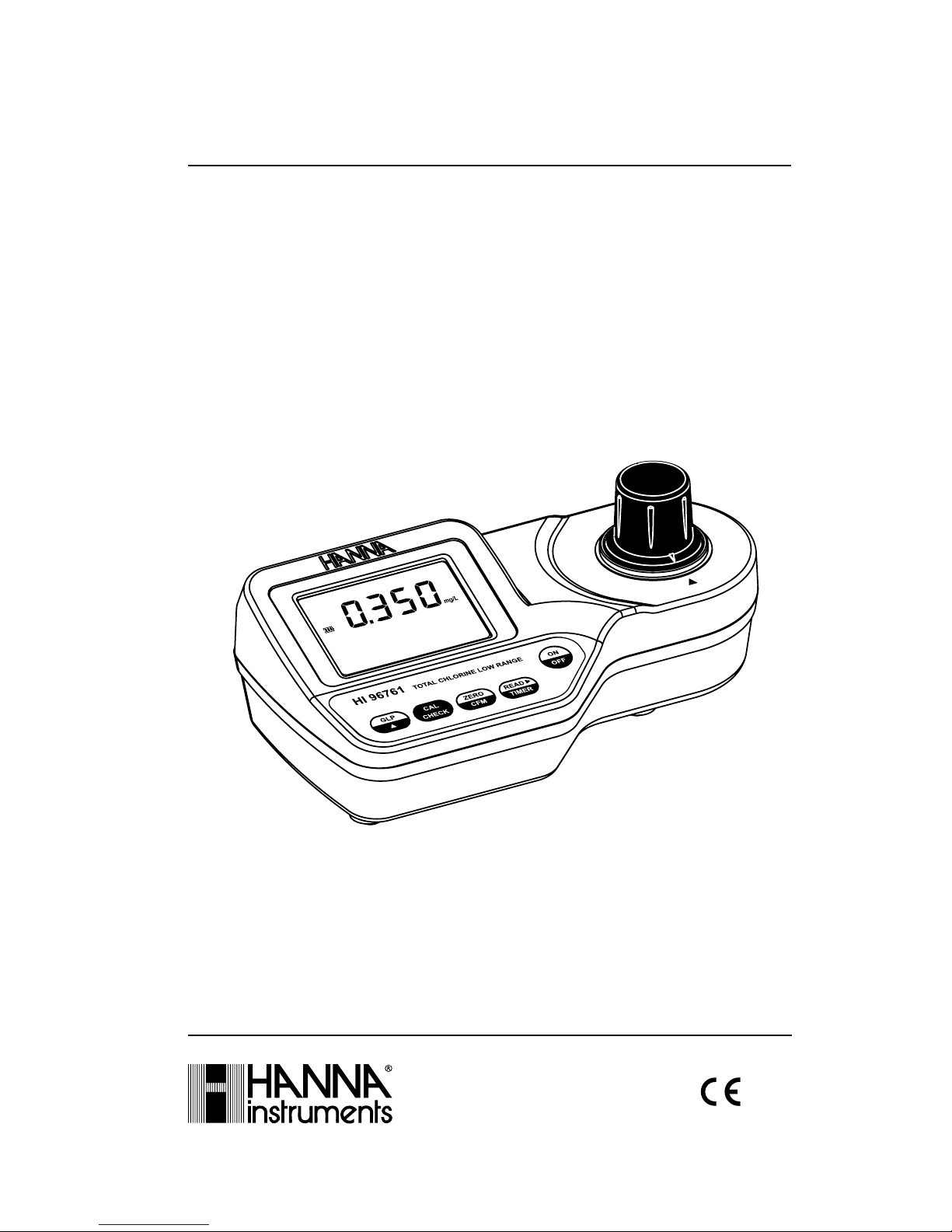

Hanna Instruments HI 96761C Manual de usuario

www.hannainst.com

This Instrument is in

Compliance with the CE Directives

Instruction Manual

HI 96761C

Total Chlorine Meter

for the analysis of

trace Total Chlorine concentrations

TABLE OF CONTENTS

PRELIMINARY EXAMINATION .............................................................................................. 3

GENERAL DESCRIPTION ...................................................................................................... 4

ABBREVIATIONS ................................................................................................................ 4

SPECIFICATIONS ................................................................................................................ 5

PRECISION AND ACCURACY ................................................................................................. 5

PRINCIPLE OF OPERATION .................................................................................................. 6

FUNCTIONAL DESCRIPTION ................................................................................................7

ERRORS AND WARNINGS ..................................................................................................9

GENERAL TIPS FOR AN ACCURATE MEASUREMENT ...........................................................11

STARTUP...................................................................................................................12

MEASUREMENT PROCEDURE ...........................................................................................13

VALIDATION PROCEDURE .................................................................................................15

CALIBRATION PROCEDURE ...............................................................................................17

GLP...........................................................................................................................20

BATTERY MANAGEMENT ..................................................................................................21

BATTERY REPLACEMENT ..................................................................................................22

ACCESSORIES .................................................................................................................22

WARRANTY .................................................................................................................23

Dear Customer,

Thank you for choosing a Hanna product. This manual will provide you with the necessary

information for the correct use of the instrument. Please read it carefully before using the meter. If

you need additional technical information, do not hesitate to e-mail us at [email protected].

This instrument is in compliance with directives.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner,

Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.

PRELIMINARY EXAMINATION

Please examine this product carefully. Make sure that the instrument is not damaged. If any

damage occurred during shipment, please notify your Dealer.

Each HI 96761 Ion Selective Meter is supplied complete with:

• Two Sample Cuvets and Caps

• 9V Battery

• Scissors

• Tissue for wiping cuvets

• Instrument quality certificate

• Instruction Manual

• Rigid carrying case

Note:Save all packing material until you are sure that the instrument works correctly. Any

defective item must be returned in its original packing.

GENERAL DESCRIPTION

ABBREVIATIONS

The HI 96761 is an auto diagnostic portable microprocessor meter that benefits from Hanna’s

years of experience as a manufacturer of analytical instruments. It has the advanced optical

system based on a special tungsten lamp and a narrow band interference filter that allows most

accurate and repeatable readings. All instruments are factory calibrated and the electronic and

optical design minimizes the need of frequent calibration.

With the powerful CAL CHECKTM validation function, you are able to validate good performance

of your instrument at any time. The validation procedure is extremely user friendly. Just use the

exclusive HANNA ready-made, NIST traceable standards to verify the performance of the

instrument and recalibrate if necessary.

All instruments are splash waterproof and the lamp and filter units are protected from dust or dirt

by a transparent cup. This makes the instruments fulfill field applications. Display messages aid

the user in routine operation. The meter has an auto-shut off feature that will turn off the

instrument after 10 minutes of non use in measurement mode or after 1 hour if left in

calibration mode.

The meter uses an exclusive positive-locking system to ensure that the cuvet is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvet with a

larger neck making it easier to add both sample and reagents. The cuvet is made from special

optical glass to obtain best results.

The HI 96761 meter measures the total chlorine (Cl2) content in water samples in the 0.000 to

0.500 mg/L (ppm) range. The method is an adaptation of the Standard Method 4500-Cl G for

drinking water.

The reagent is in powder form and is supplied in packets. The amount of reagent is precisely

dosed to ensure the maximum repeatability.

degree Celsius

United States Environmental Protection Agency

degree Fahrenheit

milligrams per liter. mg/L is equivalent to ppm (part per million)

milliliter

millivolts

°C:

USEPA:

°F:

mg/L:

mL:

mV:

SPECIFICATIONS

PRECISION AND ACCURACY

Range 0.000 to 0.500 mg/L

Resolution 0.001 mg/L

Precision ±0.004 mg/L @ 0.200 mg/L

Typical EMC Deviation ±0.001 mg/L

Light Source Tungsten lamp

Light Detector Silicon Photocell with narrow band interference filter @ 525 nm

Method Adaptation of the Standard Method 4500-Cl G. The reaction between

the chlorine and the DPD reagent causes a pink tint in the sample.

Environment 0 to 50°C (32 to 122°F); max 95% RH non-condensing

Battery Type 1 x 9 volt

Auto-Shut off After 10' of non-use in measurement mode;

after 1 hour of non-use in calibration mode;

with last reading reminder.

Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6")

Weight 290 g (10 oz.).

REQUIRED REAGENTS

Code Description Quantity/test

HI 95761-0 DPD Powder Reagent 1 packet

Precision is how closely repeated measurements

agree with each other. Precision is usually

expressed as standard deviation (SD).

Accuracy is defined as the nearness of a test

result to the true value.

Although good precision suggests good accuracy,

precise results can be inaccurate. The figure

explains these definitions.

In a laboratory using a standard solution of 0.200

mg/L chlorine and a representative lot of reagent,

an operator obtained with a single instrument a

standard deviation of 0.004 mg/L.

PRINCIPLE OF OPERATION

Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and

matter. When a light beam crosses a substance, some of the radiation may be absorbed by

atoms, molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length

through the matter and on the physical-chemical characteristics of the substance according to the

Lambert-Beer Law:

-log I/Io= ελc d

A = ελc d

Where:

-log I/Io= Absorbance (A)

Io= intensity of incident light beam

I= intensity of light beam after absorption

ελ= molar extinction coefficient at wavelength λ

c = molar concentration of the substance

d = optical path through the substance

Therefore, the concentration "c" can be calculated from the absorbance of the substance as the

other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound

from a specific chemical reaction between sample and reagents. Given that the absorption of a

compound strictly depends on the wavelength of the incident light beam, a narrow spectral

bandwidth should be selected as well as a proper central wavelength to optimize measurements.

The optical system of Hanna's HI 96 series colorimeters is based on special subminiature

tungsten lamps and narrow-band interference filters to guarantee both high performance and

reliable results.

HI 96 series block diagram (optical layout)

1) GLP/ key

2) CAL CHECK key

3) ZERO/CFM key

4) READ/ /TIMER key

5) ON/OFF key

6) Liquid Cristal Display (LCD)

7) Cuvet alignment indicator

8) Cuvet holder

FUNCTIONAL DESCRIPTION

A microprocessor controlled special tungsten lamp emits radiation which is first optically

conditioned and beamed to the sample contained in the cuvet. The optical path is fixed by the

diameter of the cuvet. Then the light is spectrally filtered to a narrow spectral bandwidth, to

obtain a light beam of intensity Ioor I.

The photoelectric cell collects the radiation Ithat is not absorbed by the sample and converts

it into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring

unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the

actual measurement is performed.

The cuvet has a very important role because it is an optical element and thus requires particular

attention. It is important that both, the measurement and the calibration (zeroing) cuvets, are

optically identical to provide the same measurement conditions. Whenever possible use the same

cuvet for both. It is necessary that the surface of the cuvet is clean and not scratched. This to

avoid measurement interference due to unwanted reflection and absorption of light. It is

recommended not to touch the cuvet walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measuring

phases, it is necessary to close the cuvet to prevent any contamination.

INSTRUMENT DESCRIPTION

KEYPAD DESCRIPTION

•ON/OFF: to turn the meter on and off.

•ZERO/CFM: to zero the meter prior to measurement, to confirm edited values or to confirm

factory calibration restore.

•READ/ /TIMER: this is a multi-functional key. In measurement mode, press to make a

measurement, or press and hold for three seconds to start a pre-programmed countdown prior

to measurement. In GLP mode press to view the next screen.

•CAL CHECK: this is a bi-functional key. Just press to perform the validation of the meter, or

press and hold for three seconds to enter calibration mode.

• GLP/: this is a bi-functional key. Just press to enter GLP mode. In calibration mode press

to edit the date and time.

OPERATING MODES

•Measurement mode: default operation mode, enables both validation and measurement.

•Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds (the

“CAL” tag appears), it enables calibration of the instrument.

•GLP mode may be entered by pressing GLP/(“GLP” appears), it enables consulting of

user calibration date or restore factory calibration.

DISPLAY ELEMENTS DESCRIPTION

1) The measuring scheme (lamp, cuvet, detector), appears during different phases of zero or

reading measurement

2) Error messages and warnings

3) The battery icon shows the charging level of the battery

4) The hourglass appears when an internal checking is in progress

5) Status messages

6) The chronometer appears when the reaction timer is running

7) The month, day and date icons appear when a date is displayed

8) Four digit main display

9) Measuring units

10) Four digit secondary display

ERRORS AND WARNINGS

The instrument shows clear messages when erroneous condition appears. Messages are also displayed

when the obtained values are outside expected range. The beeper is playing a beep on errors.

a) on zero reading

Light High: There is too much light to perform a measurement.

Please check the preparation of the zero cuvet.

Light Low: There is not enough light to perform a measurement.

Please check the preparation of the zero cuvet.

No Light:The instrument cannot adjust the light level. Please

check that the samples does not contain any debris.

Inverted cuvets: The sample and the zero cuvet are inverted.

Zero: A zero reading was not taken. Follow the instructions of

the measurement procedure for zeroing the meter.

b) on sample reading

Under range: A blinking “0.000” indicates that the sample

absorbs less light than the zero reference. Check the procedure

and make sure you use the same cuvet for reference (zero) and

measurement.

Over Range: A flashing value of the maximum concentration

indicates an over range condition. The concentration of the

sample is beyond the programmed range: dilute the sample and

re-run the test.

c) during calibration procedure

Standard Low: The standard reading is less than expected.

Standard High: The standard reading is higher than expected.

Cap error: Appears when external light enters in the analysis

cell. Assure that the cuvet cap is present.

Cooling lamp: The instrument waits for the lamp to cool down.

d) other errors and warnings

Otros manuales para HI 96761C

Tabla de contenidos

Otros manuales de Instrumento de medición de Hanna Instruments

Hanna Instruments

Hanna Instruments HI 95734C Manual de usuario

Hanna Instruments

Hanna Instruments HI 253 Manual de usuario

Hanna Instruments

Hanna Instruments HALO 2 HI9810362 Manual de usuario

Hanna Instruments

Hanna Instruments HI 99161 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96731 Manual de usuario

Hanna Instruments

Hanna Instruments HI 771 Manual de usuario

Hanna Instruments

Hanna Instruments HI9064 Manual de usuario

Hanna Instruments

Hanna Instruments HI781 Manual de usuario

Hanna Instruments

Hanna Instruments HI 8424NEW Manual de usuario

Hanna Instruments

Hanna Instruments HI 991401 Manual de usuario

Hanna Instruments

Hanna Instruments HI98169 Manual de usuario

Hanna Instruments

Hanna Instruments HI 718 Manual de usuario

Hanna Instruments

Hanna Instruments HI 9126 Manual de usuario

Hanna Instruments

Hanna Instruments HI 83742 Manual de usuario

Hanna Instruments

Hanna Instruments HI 99141 Manual de usuario

Hanna Instruments

Hanna Instruments HI 931101 Manual de usuario

Hanna Instruments

Hanna Instruments HI 84429 Manual de usuario

Hanna Instruments

Hanna Instruments HI764 Manual de usuario

Hanna Instruments

Hanna Instruments HI709 Manual de usuario

Hanna Instruments

Hanna Instruments HI 9811-5 Manual de usuario

Hanna Instruments

Hanna Instruments HI 84102 Manual de usuario

Hanna Instruments

Hanna Instruments HI 983302 Manual de usuario

Hanna Instruments

Hanna Instruments HI84531-02 Manual de usuario

Hanna Instruments

Hanna Instruments HI 5421 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
