INSTRUCTION MANUAL

HI96734C

Free and Total Chlorine High

Range ISM

Thank you for choosing a Hanna Instruments product.

Please read this instruction manual carefully before using the instrument.

This manual will provide you with the necessary information for correct use of

the instrument, as well as a precise idea of its versatility.

If you need additional technical information, do not hesitate to e‑mail us at

[email protected] or view our worldwide contact list at www.hannainst.com.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent

of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

Dear

Customer,

PRELIMINARY EXAMINATION ............................................................................................

GENERAL DESCRIPTION ....................................................................................................

ABBREVIATIONS ..............................................................................................................

SPECIFICATIONS ..............................................................................................................

PRECISION AND ACCURACY ..............................................................................................

PRINCIPLE OF OPERATION ...............................................................................................

FUNCTIONAL DESCRIPTION ...............................................................................................

ERRORS AND WARNINGS .................................................................................................

GENERAL TIPS FOR AN ACCURATE MEASUREMENT .............................................................

STARTUP ........................................................................................................................

RANGE SELECTION............................................................................................................

MEASUREMENT PROCEDURE ............................................................................................

VALIDATION PROCEDURE .................................................................................................

CALIBRATION PROCEDURE ...............................................................................................

GLP ................................................................................................................................

BATTERY MANAGEMENT ...................................................................................................

BATTERY REPLACEMENT ...................................................................................................

ACCESSORIES ..................................................................................................................

TABLE OF CONTENTS

Please examine this product carefully. Make sure that the instrument is not damaged. If any damage

occurred during shipment, please contact your local Hanna Instruments Office.

Each HI96734 Ion Selective Meter is supplied complete with:

• Sample Cuvettes and Caps (2 pcs.)

• CAL CheckTM Standard Cuvettes

• 9V Battery

• Scissors

• Cloth for wiping cuvettes

• Instruction Manual and Quick Reference Guide

• Instrument Quality Certificate

• Rigid carrying case

Note: Save all packing material until you are sure that the instrument works correctly. Any

defective item must be returned in its original packing.

PRELIMINARY EXAMINATION

heckTM

The HI96734 is an auto diagnostic portable microprocessor meter that benefits from Hanna

Instruments’ years of experience as a manufacturer of analytical instruments. It has the advanced

optical system based on a special tungsten lamp and a narrow band interference filter that allows

most accurate and repeatable readings. All instruments are factory calibrated and the electronic

and optical design minimizes the need of frequent calibration.

With the powerful CAL CheckTM validation function, you are able to validate good performance

of your instrument at any time. The validation procedure is extremely user friendly. Just use the

exclusive Hanna Instruments ready‑made, NIST traceable standards to verify the performance of

the instrument and recalibrate if necessary.

All instruments are splash proof and the lamp and filter units are protected from dust or dirt by

a transparent cup. This makes the instruments fulfill field applications. Display messages aid the

user in routine operation. The meter has an auto‑shut off feature that will turn off the instrument

after 10 minutes of non use in measurement mode or after 1 hour if left in calibration mode.

The meter uses an exclusive positive‑locking system to ensure that the cuvette is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvette with a

larger neck making it easier to add both sample and reagents. The cuvette is made from special

optical glass to obtain best results.

The HI96734 meter measures the free and total chlorine (Cl2) content in water samples in the

0.00 to 10.00 mg/L (ppm) range. The method is an adaptation of the USEPA Method 330.5 for

wastewater, and Standard Method 4500‑Cl G for drinking water.

The reagents are in powder and liquid form and are supplied in packets and bottles. The amount

of reagent is precisely dosed to ensure the maximum repeatability.

degree Celsius

US Environmental Protection Agency

degree Fahrenheit

milligrams per liter. mg/L is equivalent to ppm (parts per million)

milliliter

millivolt

°C:

EPA:

°F:

mg/L:

mL:

mV:

GENERAL DESCRIPTION ABBREVIATIONS

SPECIFICATIONS

Range Free Cl2 0.00 to 10.00 mg/L

Total Cl2 0.00 to 10.00 mg/L

Resolution 0.01 mg/L (0.00‑3.50 mg/L)

0.10 mg/L (above 3.50 mg/L)

Accuracy

@25 °C (77 °F) ±0.03 mg/L ±3% of reading

Light Source Tungsten lamp

Light Detector Silicon Photocell with narrow band interference filter @525nm

Method

Adaptation of the USEPA method 330.5 and Standard Method

4500‑Cl G. The reaction between chlorine and the DPD reagent causes

a pink tint in the sample.

Environment 0 to 50 °C (32 to 122 °F);

max 95% RH non‑condensing

Battery Type 9V (1 pc.)

Auto‑Shut off

After 10’ of non‑use in measurement mode;

after 1 hour of non‑use in calibration mode;

with last reading reminder.

Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7”)

Weight 320 g (11.3 oz.)

Required Reagents

Code Description Quantity/test

HI93701‑0 DPD Powder Reagent 1 packet

HI93734B‑0 Free and Total Chlorine Reagent 5 mL

HI93734C‑0 Total Chlorine Reagent 3 drops

Precision is how closely repeated measurements

agree with each other. Precision is usually expressed

as standard deviation (SD).

Accuracy is defined as the nearness of a test result

to the true value.

Although good precision suggests good accuracy,

precise results can be inaccurate. The figure explains

these definitions.

In a laboratory using a standard solution of

3.00 mg/L chlorine and a representative lot

of reagent, an operator obtained with a single

instrument a standard deviation of 0.06 mg/L.

PRECISION AND ACCURACY PRINCIPLE OF OPERATION

Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and

matter. When a light beam crosses a substance, some of the radiation may be absorbed by atoms,

molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length

through the matter and on the physical‑chemical characteristics of the substance according to the

Lambert‑Beer Law:

‑log I/Io= ελc d

A = ελc d

Where:

‑log I/Io = Absorbance (A)

Io = intensity of incident light beam

I = intensity of light beam after absorption

ε

λ= molar extinction coefficient at wavelength λ

c = molar concentration of the substance

d = optical path through the substance

Therefore, the concentration “c” can be calculated from the absorbance of the substance as the

other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound from a

specific chemical reaction between sample and reagents. Given that the absorption of a compound

strictly depends on the wavelength of the incident light beam, a narrow spectral bandwidth should

be selected as well as a proper central wavelength to optimize measurements.

The optical system of Hanna Instruments’ HI96 series colorimeters is based on special subminiature

tungsten lamps and narrow‑band interference filters to guarantee both high performance and

reliable results.

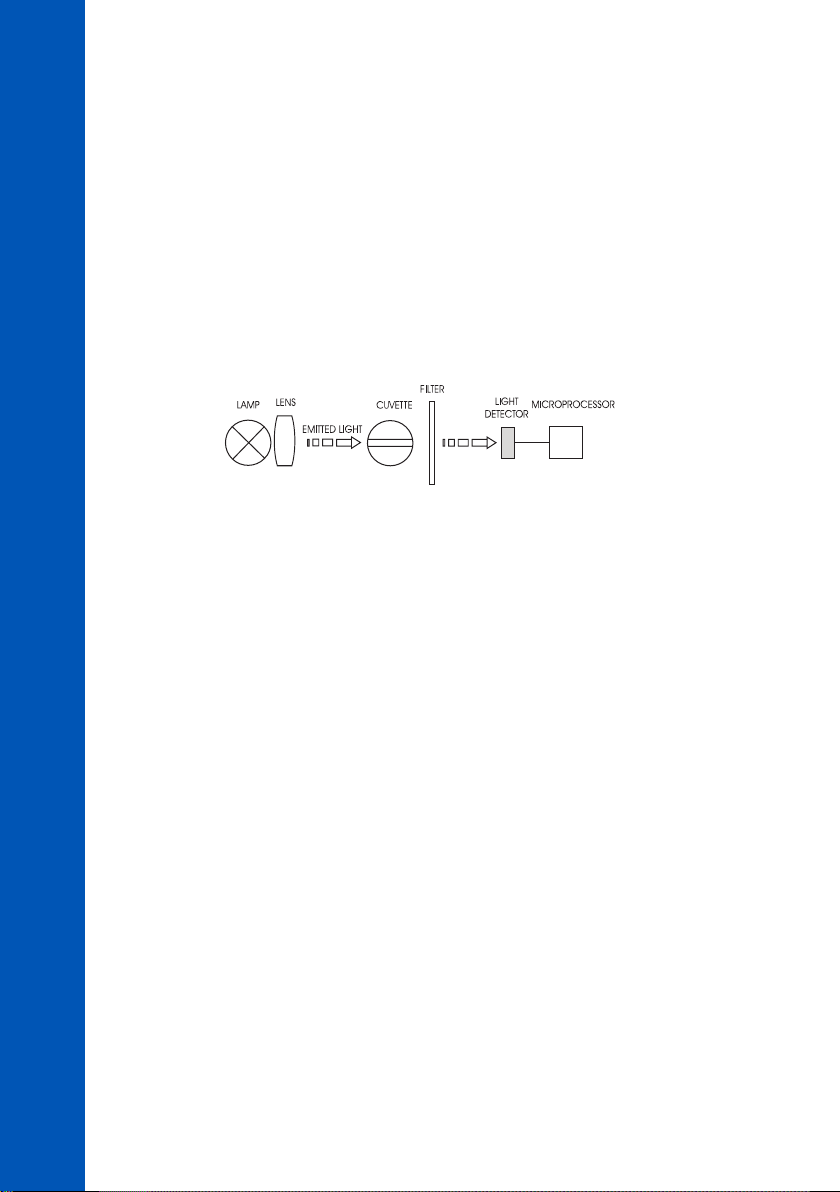

HI96 series block diagram (optical layout)

A microprocessor controlled special tungsten lamp emits radiation which is first optically conditioned

and beamed to the sample contained in the cuvette. The optical path is fixed by the diameter of

the cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light

beam of intensity Ioor I.The photoelectric cell collects the radiation Ithat is not absorbed by

the sample and converts it into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring

unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the actual

measurement is performed.

The cuvette has a very important role because it is an optical element and thus requires particular

attention. It is important that both, the measurement and the calibration (zeroing) cuvettes, are

optically identical to provide the same measurement conditions. Whenever possible use the same

cuvette for both. It is necessary that the surface of the cuvette is clean and not scratched. This to avoid

measurement interference due to unwanted reflection and absorption of light. It is recommended

not to touch the cuvette walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measuring phases,

it is necessary to close the cuvette to prevent any contamination.

PRINCIPLE OF OPERATION

INSTRUMENT DESCRIPTION

1) RANGE/GLP key

2) CAL CHECK key

3) ZERO/CFM key

4) READ /TIMER key

5) ON/OFF key

6) Liquid Crystal Display (LCD)

7) Cuvette alignment indicator

8) Cuvette holder

KEYPAD DESCRIPTION

• ON/OFF: to turn the meter on and off.

• ZERO/CFM: this is a bi‑functional key. Just press to zero the meter prior to measurement, or

confirm edited values. In calibration mode press to confirm factory calibration restore.

• READ /TIMER: this is a multi‑functional key. In measurement mode, press to make a

measurement, or press and hold for three seconds to start a pre‑programmed countdown prior

to measurement. In GLP mode press to view the next screen.

• CAL CHECK: this is a bi‑functional key. Just press to perform the validation of the meter, or

press and hold for three seconds to enter calibration mode.

•RANGE/GLP : this is a multi‑functional key. Just press to change the parameter. Press and

hold for three seconds to enter GLP mode. In calibration mode press to edit the date and time.

FUNCTIONAL DESCRIPTION

OPERATING MODES

• Measurement mode:default operation mode, enables both validation and measurement.

• Calibration mode: may be entered by keeping CAL CHECK pressed for three seconds

(the “CAL” tag appears), it enables calibration of the instrument.

• GLP mode may be entered by keeping RANGE/GLP pressed for three seconds (“GLP”

appears), it enables consulting of user calibration date or restore factory calibration.

FUNCTIONAL DESCRIPTION

1) The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or

reading measurement

2) Error messages and warnings

3) The battery icon indicates the charge state of the battery

4) The hourglass appears when an internal check is in progress

5) Status messages

6) The chronometer appears when the reaction timer is running

7) The month, day and date icons appear when a date is displayed

8) Four digit main display

9) Measuring units

10) Four digit secondary display

DISPLAY ELEMENTS DESCRIPTION

Otros manuales para HI 96734C

Tabla de contenidos

Otros manuales de Instrumento de medición de Hanna Instruments

Hanna Instruments

Hanna Instruments HI 83741 Manual de usuario

Hanna Instruments

Hanna Instruments C 215 Manual de usuario

Hanna Instruments

Hanna Instruments HI 95734C Manual de usuario

Hanna Instruments

Hanna Instruments HALO 2 HI9810392 Manual de usuario

Hanna Instruments

Hanna Instruments HI97745 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96728C Manual de usuario

Hanna Instruments

Hanna Instruments HI 96762 Manual de usuario

Hanna Instruments

Hanna Instruments HI762 Manual de usuario

Hanna Instruments

Hanna Instruments HI 8915 Manual de usuario

Hanna Instruments

Hanna Instruments WATER TEST Manual de usuario

Hanna Instruments

Hanna Instruments HI 96769C Manual de usuario

Hanna Instruments

Hanna Instruments HI 8733 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96735 Manual de usuario

Hanna Instruments

Hanna Instruments HI99151 Manual de usuario

Hanna Instruments

Hanna Instruments GroLine HI9814 Manual de usuario

Hanna Instruments

Hanna Instruments HI 8730 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96729C Manual de usuario

Hanna Instruments

Hanna Instruments HI 8010 Manual de usuario

Hanna Instruments

Hanna Instruments HI 93703 Manual de usuario

Hanna Instruments

Hanna Instruments HI 8733 Manual de usuario

Hanna Instruments

Hanna Instruments HI 250 Manual de usuario

Hanna Instruments

Hanna Instruments HI97769 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96814 Manual de usuario

Hanna Instruments

Hanna Instruments pHep 98107 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
