CS-653 Pneumatic Flat Press Machine
Operation Manual
is powered by
H&H Asia Group Limited
CS-653 operation manual
issue 1 14.02.19 P. 1 of 19
Table of Contents
Precautions with regard to Safety
Name Plate
Introduction
Specification
Features
Component Names
Front View
Preparation for Installation
Operation and Controls
Language
Main Page
Counter
Lock
Monitor
Offset
Preferences
Press Pressure Adjustment
Precaution when Using Mold
Cleaning and Maintenance
Cleaning the Thermo Plate
Daily Maintenance
Monthly Maintenance
Trouble Shooting
Appendix A Pneumatic Scheme
Appendix B Wiring Scheme
CS-653 operation manual
issue 1 14.02.19 P. 2 of 19
> Precautions with regard to Safety
Please observe these safety tips for safe, efficient, an injury-free operation of your equipment. By
strictly following all instruction contained in this manual you will certainly obtain an excellent
performance from the use of this equipment for years.
CS-653 operation manual
issue 1 14.02.19 P. 3 of 19

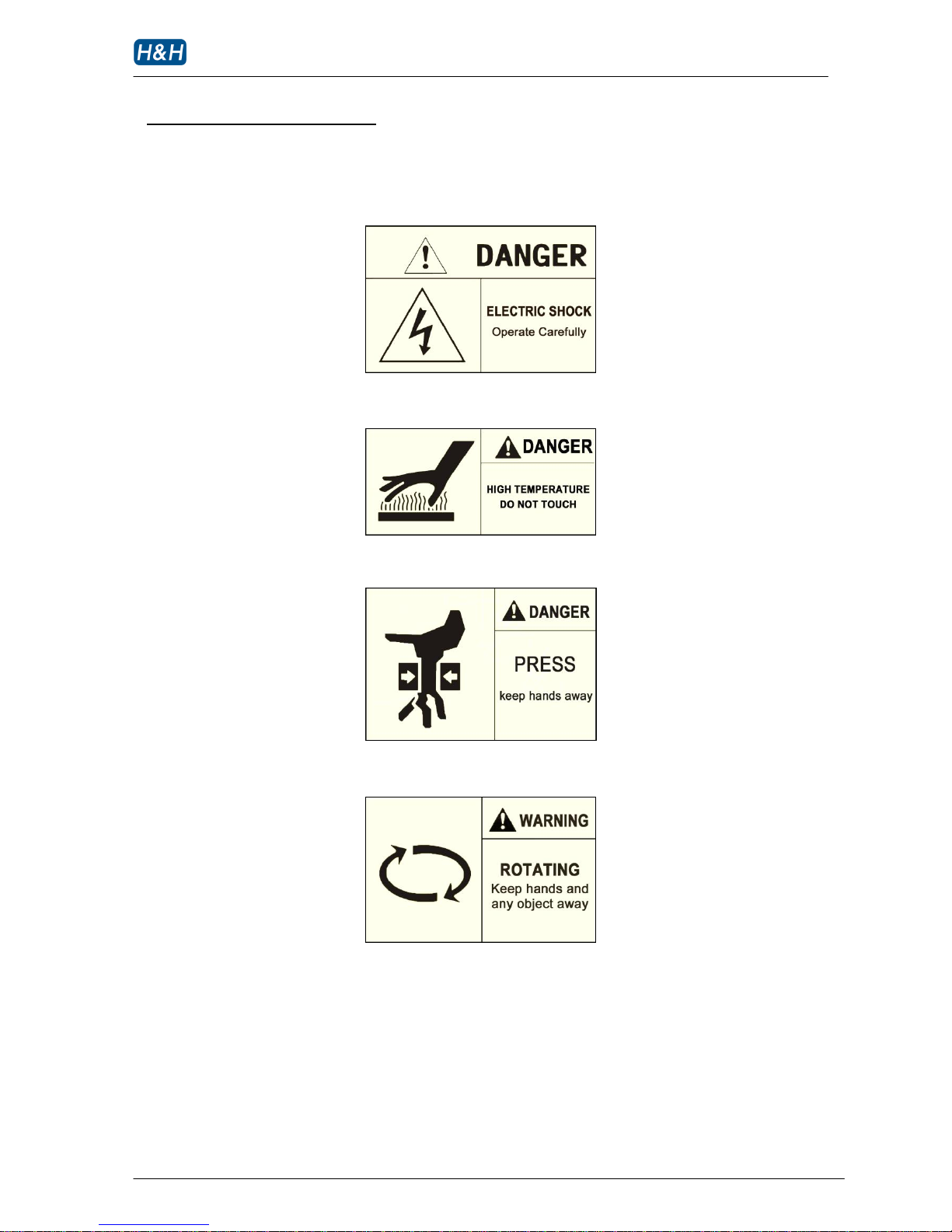

> Precautions with regard to Safety (cont.)
CS-653 operation manual
issue 1 14.02.19 P. 4 of 19
> Name Plate
CS-653 operation manual
issue 1 14.02.19 P. 5 of 19
> Introduction
Thank you for your choosing of CS-653 which is manufactured by H&H.
The pneumatic flat press machine described in this manual is one of the sophisticated machines for
processing the flat press products in the market today. Built on pure digital control platform and
designed for the professional users. Operators are recommended to have basic knowledge and skill
in heat press operation before using this machine.
This manual is aimed for the operators to understand the machine and avoid damage to the machine
or personnel. Please read this manual carefully and keep it well for daily reference usage.
CS-653 operation manual
issue 1 14.02.19 P. 6 of 19
> Specifications
Model : CS-653
Voltage : 220 V, single phase
Frequency : 50/60 Hz
Power Consumption : 1000 W
Compressed Air : >0.4 Mpa
Heat Temperature Range : 30~260OC
Press Duration : 1~999 second
Heat Press Size : 8”X 6”
Lower Platform Size : 8”X 6”, 6”X 2”, φ2.5”
Overall Dimensions : 560mm (L) x 450mm (W) x 910mm (H)
Overall Weight : 50 kg
Note : due to continuous improvement, specifications are subjected to change without prior notification
CS-653 operation manual
issue 1 14.02.19 P. 7 of 19
> Features
Control system –user friendly touch screen interface.
Safety protection –safety lever around the main working area. The machine will stop when this
lever frame is lifted. Both of the start buttons must press simultaneously
and keep pressing until the heat plate trigger the lower limit switch,
otherwise the heat plate downward motion will cancel and retract.
Individual heat temperature control.
Individual heat & cool cycle timing setting control
CS-653 operation manual
issue 1 14.02.19 P. 8 of 19
> Component Names

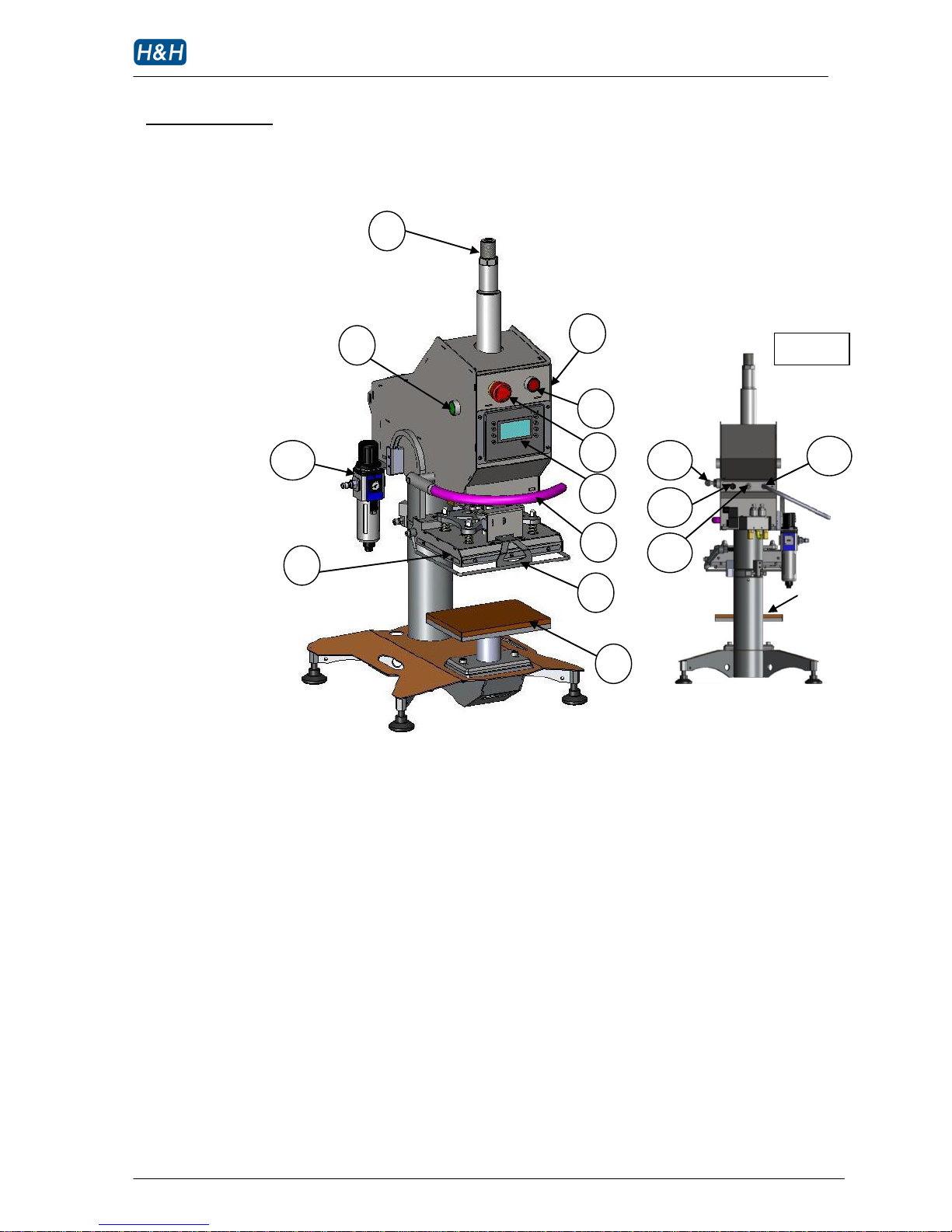

>> Front View
1. press cylinder work length adjusting knob (also can alter the pressure exerts on the work piece)
2. start buttons (in pair)
3. stop/cancel button
4. power on/off & emergency stop switch
5. touch screen control panel
6. manual control bar (push downward will trigger the downward motion of the press)
7. safety bars (will cancel the downward motion when hit once)
8. lower working table (platform)
9. upper heating plate
10. compress air filter & regulator
11. master key for locking the settings of the machine (e.g. timer, heat set point)
12. fuse
13. foot pedal (optional) connecting socket
14. power cord extension
10
7
2
8
1
9
后视图
3
2
4
5
6
14
13
12
11
CS-653 operation manual
issue 1 14.02.19 P. 9 of 19
> Preparation for Installation
Installation must be carried out by authorized personnel. Please act according to the following
steps :
1. Remove the package of the machine and placed it on the ground level, cleaning the machine
before operation.
2. Unleashing all packing cables which tie to the machine and allow it from free movement.
3. Connect air hose to the inlet of the air regulating filter at the back of the machine, make sure
the air pressure not lower than 0.4Mpa. Once connected, the heat plate will go up with face
down while the cool plate will face to front side. You can connect the foot pedal (optional)
power plug with the corresponding socket at the back #15.
4. Connect the power cord with a 220V, 10A power supply.
5. Turn on the main power switch of the machine and switch on the power switch.
6. The touch screen panel will on and showing the welcome note and program loading. After a while,
it will change to show the main control page.
