AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 1 of 40
Table of Content
Precautions Regarding to Safety
Name Plate
Introduction
Specifications
Features
Identification of Components
Front View
Rear View
Cutter Assembly
Heater Positioning Assembly
Main Air Filter Assembly & Compressed Air ON/OFF Switch
Pressure Adjustment Panel & Power ON/OFF Switch
Pressure Adjustment Panel & Power ON/OFF Switch
Principle of Seam Sealing
Preparation for Installation
Control Method
Touch Screen Control Panel
Foot Pedal Switch & Knee Switch
Control Menu Navigation
Pressure Adjustment
Start Up And Shut Down Procedures
Start Up Procedures
Shut Down Procedures
Basic Operation
Temperature, Sealing Speed & Pressure Adjustment
Heater Position Adjustment
Procedures of Seam Sealing
Tape Cutting
Tape Loading
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 2 of 40
Table of Content (cont.)
Advance Operation
Differential Speed
Parameter Setting
Digital Tensioner
Maintenance
Preventative
Procedures for Replacing Parts
Trouble Shooting
Appendix A Nozzle Air Flow Cross Reference Table
Appendix B Electrical Scheme
Appendix C Wiring Scheme
Appendix D Pneumatic Scheme
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 3 of 40
> Precautions Regarding to Safety
Please observe these safety tips for a safe, efficient, and injury free operation of your equipment. By
strictly following all instructions contained in this manual you will certainly obtain an excellent
performance from the use of this equipment for years.
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 4 of 40
> Precautions Regarding to Safety (cont.)
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 5 of 40

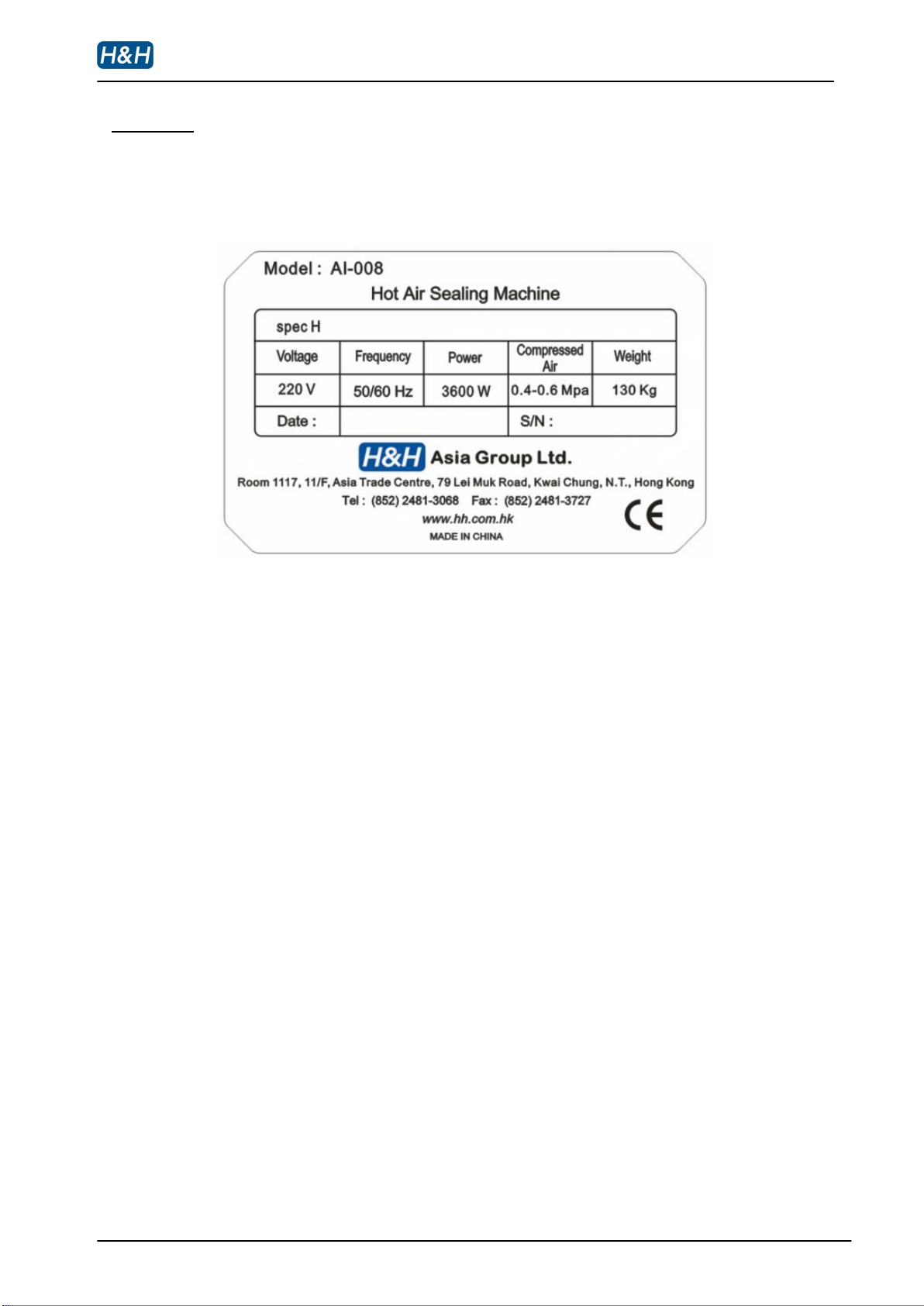

> Name Plate
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 6 of 40
> Introduction
Thank you for choosing AI-008 hot air sealing machine by H&H.
The hot air sealing machine described in this manual is one of the most sophisticated machines in the
market today. Built on pure digital platform and designed for the professional users, AI-007
incorporated many new features that makes seam sealing much easier than before. Operators are
recommended to have basic knowledge and skill in seam sealing operation before using this machine.
In order to fully understand how to use this machine properly, and avoid damage to both the machine
and operating personnel, please read this manual carefully and keep it safe for future reference.
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 7 of 40
> Specifications
Model : AI-008
Voltage : AC 220 V
Frequency : 50/ 60 Hz
Power Consumption : 3600 W max, 1500 W typical
Compressed Air : 0.4 - 0.6Mpa
Air Consumption : 100 L/min max
Sealing Speed : 1 - 60 ft/min
Nozzle Temperature : 50 –800C
Nozzle Unit : 22.0 mm standard, other optional
Upper Roller Width : 25.4 mm
Lower Roller Width : 31.0 mm
Overall Dimensions : 1200 mm (L) x 750 mm (W) x 1700 mm (H)
Overall Weight : 130 kg
Note : due to continuous improvement, specifications are subjected to change without prior notification
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 8 of 40
> Features
Differential speed for top and bottom rollers, ideal for reducing stretch fabric puckering.
Digital tape releaser for stable operation.
Large size color operator interface.
Twin foot pedals plus knee control combination for easy foot comprehensive control operation.
Multi-lingual support for touch screen display interface
AI-008 operation manual
Issue 1 13.10.28, HMI version 08, plc version 08 P. 9 of 40
> Identification of Components
>> Front View
1. heater body
2. lower pedestal
3. adjustable floor stand
4. left foot pedal
5. right foot pedal
6. main control box
7. combined power ON/OFF switch & emergency push button
8. touch screen control panel
5
6
3
7
4
1
8
2
