HAMPTON BAY Glendale Manual de usuario

Glendale

52 in Ceiling Fan

Owner’s Manual

Glendale

Ventilador de Techo de 1,32 m

Manual del Propietario

161 646

52” Glendale

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . .11

Operating Your Fan . . . . . . . . . . . . . . 12

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

Warranty Information . . . . . . . . . . . . 15

161-646

792145352884

11289

Safety Rules – Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT.”

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

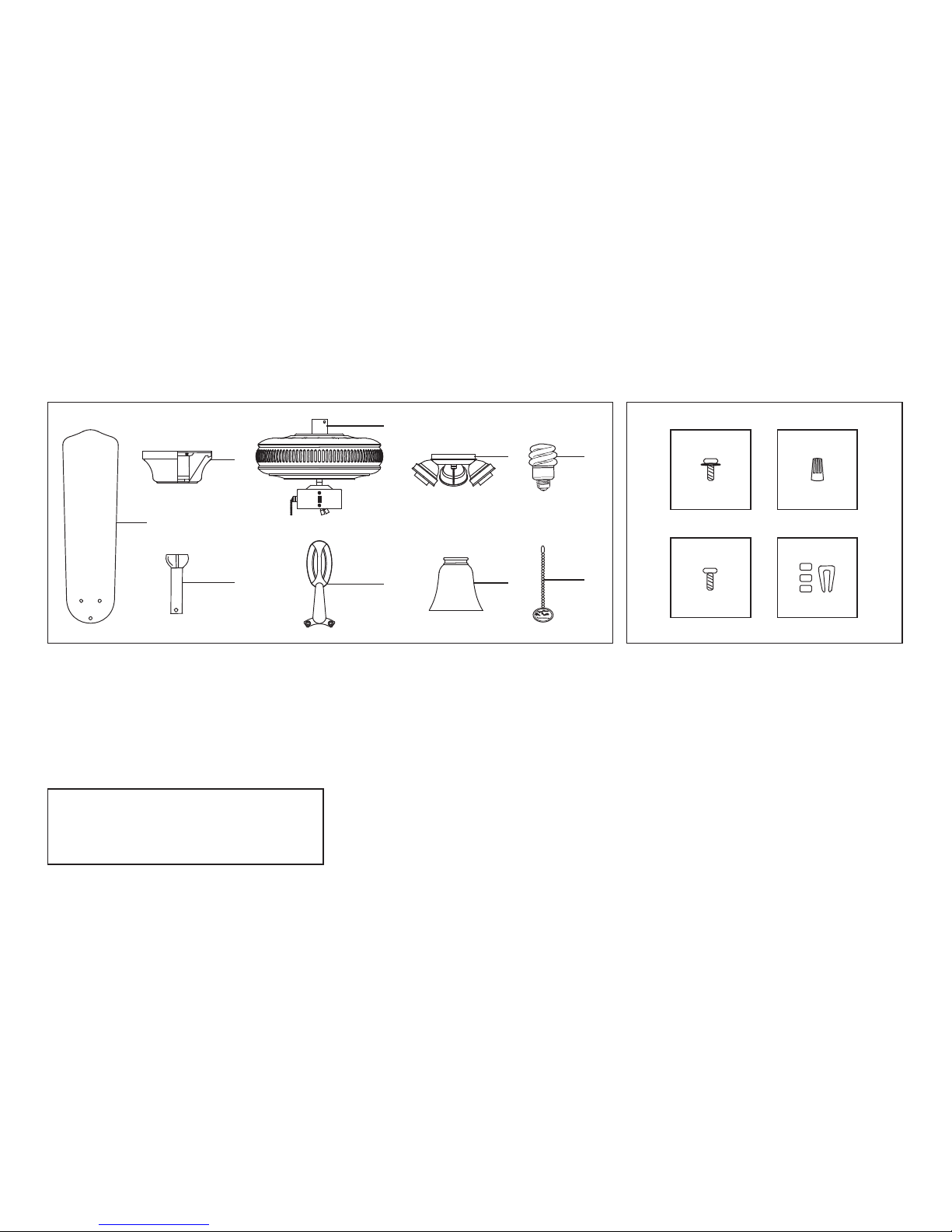

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

6 8

Set of blades (5)

Canopy assembly

Ball/downrod assembly

Fan motor assembly

Set of blade arms (5)

Light kit

Glass shades (3)

13 Watt compact fluorescent bulbs (3)

Pull chain and fobs (2)

Blade Attachment Hardware

(16 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Light Kit Hardware

(1 Screw)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot retailer).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two types

of hanging assemblies; the standard ceiling

installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting.

The "close-to-ceiling" mounting is recommended

in rooms with less than 8-foot ceilings or in areas

where additional space is desired from the floor to

the fan blades.

When using the standard downrod installation, the

distance from the ceiling to the bottom of the fan

blades will be approximately 12 inches. The

"close-to-ceiling" installation reduces the distance

from the ceiling to the bottom of the fan blades to

approximately 9 inches.

Once you have decided which ceiling installation

you will use, proceed with the following

instructions. Where necessary, each section of the

instructions will note the different procedures to

follow for the two types of installation.

Hanging the Fan

Option 1:

Standard Ceiling Mounting WARNING

FAILURE TO PROPERLY INSTALL CLEVIS PIN AS

NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Remove the

Canopy Ring

Figure 5

Loosen but

do not Remove Remove

Figure 6

Remove the canopy ring from the canopy.

(Figure 5).

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws (Figure 6).

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 7). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Tighten two set screws on top of the fan motor

firmly. (Figure 7)

Route wires exiting from the top of the fan

motor through the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly (Figure. 7).

Loosen, but do not remove the 2 set screws on

the collar on top of the motor housing.

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Ring

Pin in Locked

Positioon

Motor Collar

Cotter Pin

Clevis Pin

Tighten Screw

Firmly

Option 2:

Close-to-Ceiling Mounting

WARNING

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS IN STEP 7 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Figure 10

Motor

Collar Screw and Lock Washer

(3 of 6 Places)

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws (Figure 6).

Remove the decorative canopy bottom cover

from the canopy by turning the canopy bottom

cover counterclockwise (Figure 8).

Remove three of the six screws and lock

washers (every other one) securing the

reinforcing plate to the top of the fan motor

housing (Figure 9).

Place the rubber gasket over the remaining

three screws, route the wires exiting the top of

the fan motor through the canopy ring (make

sure the slot openings are on top). then proceed

to place the ceiling canopy over the collar at

the top of the motor. (Figure 10)

Align the mounting holes with the holes in the

motor and fasten using the screws and lock

washers removed in step 4 (Fig. 10).

Tighten the mounting screws security.

Collar

Canopy

Bottom

Cover

Remove

Figure 8

Figure 9

Ceiling

Canopy

Screw and

Lock Washer

(3 Places)

Canopy Ring

Installing Fan to

the Electrical Box

WARNING

THE TAB AS SHOWN IN FIGURE 12 IS ONLY TO

BALANCE THE FAN WHILE ATTACHING

WIRING. FAILURE TO HANG AS SHOWN IN

FIGURE 12 MAY RESULT IN TAB BREAKING

CAUSING THE FAN TO FALL. TAB MUST PASS

FROM INSIDE TO OUTSIDE OF CANOPY.

WARNING

WHEN USING THE STANDARD BALL/ DOWN-

ROD MOUNTING. THE TAB IN THE RING MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN

THE GROOVE COULD CAUSE DAMAGE TO

WIRING.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

UL Listed Outlet Box

Ceiling Mounting

Bracket Tab

120V

Wires

Mounting

Screws (Supplied

with Outlet Box)

Figure 11

Carefully lift the fan assembly up to the ceiling

mounting bracket and hang the fan on the tab

provided by utilizing one of the holes at the

outer rim of the ceiling canopy (Figure 12). If

use standard mounting, seat the hanger ball in

the mounting bracket socket. Make sure the tab

on the mounting bracket socket is properly

seated in the groove in the hanger ball (Figure

12).

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 11.

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box (Figure 11).

When using “close-to-ceiling” mounting, it is

important that the mounting bracket be level. If

necessary, use leveling washers (not included)

between the mounting bracket and the outlet

box. Note that the flat side of the mounting

bracket is toward the outlet box. (Figure 11)

Security tighten the two mounting screws.

Tab

Figure 12

Groove

Standard Mounting Close-to-Ceiling Mounting

Hook

Making the Electrical

Connections

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHELL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 13).

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

blue wire will be on the other side, and push

carefully up into the outlet box.

Connect the ground cnductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 13). When using

standard ceiling mounting, there are two green

grounding leads; one from the ceiling mount-

ing bracket and one from the ball/downrod

assembly. When using “Close-to-Ceiling”

mounting, there is only one green ground lead

from the ceiling mounting bracket since the

ball/downrod assembly is not used.

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

13)

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire connecting nuts

supplied with your fan. Secure the connectors with

electrical tape. Make sure there are no loose

strands or connections.

SUPPLY CIRCUIT

Figura 13

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

Finishing the Fan

Installation

Standard Ceiling Mounting

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING THE

CANOPY TO THE BRACKET BY TURNING THE

HOUSING UNTIL IT DROPS INTO PLACE.

WARNING

LOCKING SLOTS OF CEILING CANOPY ARE

PROVIDED ONLY AS AN AID TO MOUNTING.

DO NOT LEAVE FAN ASSEMBLY UNATTENDED

UNTIL ALL FOUR CANOPY SCREWS ARE

ENGAGED AND FIRMLY TIGHTENED.

Slide canopy up to the ceiling as shown in Figure

14. Make sure you place the wires safely into the

outlet box. Secure the canopy to the hanger

bracket with the four screws with your fan. Raise

up canopy ring and line up the 4 tabs with the 4

grooves on the canopy. Once lined up, slide the

canopy ring and secure it to the canopy until snug.

Remove the fan from the hook on the hanger

bracket. Secure the canopy to the hanger bracket

with four screws included with your fan. (Fig. 15)

Raise up canopy ring and line up the 4 tabs with

the 4 grooves on the canopy. Once lined up, slide

the canopy ring and secure it to the canopy until

snug.

Close-to-Ceiling Mounting

Groove

Figure 14

Canopy

Outlet Box

Hanger

Bracket Screws

Canopy

Ring

Canopy

Outlet Box

Hanger

Bracket Screws

Canopy

Ring

Figure 15

Otros manuales para Glendale

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de HAMPTON BAY

HAMPTON BAY

HAMPTON BAY WELLTON 60 AM588A-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY ABBEYWOOD Manual de usuario

HAMPTON BAY

HAMPTON BAY Minorca Manual de usuario

HAMPTON BAY

HAMPTON BAY PALMARIA EF200S(X)-52 Manual de usuario

HAMPTON BAY

HAMPTON BAY AC386LED-WB Manual de usuario

HAMPTON BAY

HAMPTON BAY GLENDALE II AG524PR-WH Manual de usuario

HAMPTON BAY

HAMPTON BAY NORTH POND 51716 Manual de usuario

HAMPTON BAY

HAMPTON BAY Hawthorne II Manual de usuario

HAMPTON BAY

HAMPTON BAY ROANOKE YG216-MWH Manual de usuario

HAMPTON BAY

HAMPTON BAY 64183 Manual de usuario

HAMPTON BAY

HAMPTON BAY 326-722 Manual de usuario

HAMPTON BAY

HAMPTON BAY SUSSEX Manual de usuario

HAMPTON BAY

HAMPTON BAY Miramar Manual de usuario

HAMPTON BAY

HAMPTON BAY Windward II 523 342 Manual de usuario

HAMPTON BAY

HAMPTON BAY 1002 275 335 Manual de usuario

HAMPTON BAY

HAMPTON BAY Carrison 499 461 Manual de usuario

HAMPTON BAY

HAMPTON BAY Andross Manual de usuario

HAMPTON BAY

HAMPTON BAY Copperhead Manual de usuario

HAMPTON BAY

HAMPTON BAY Home Depot SKU 110348 Manual de usuario

HAMPTON BAY

HAMPTON BAY Winfield Manual de usuario

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 Manual de usuario

HAMPTON BAY

HAMPTON BAY SOVANA 14412 Manual de usuario

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-TB-D Manual de usuario

HAMPTON BAY

HAMPTON BAY 51750 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
