HAMPTON BAY Noella Manual de usuario

Noella

52 in Ceiling Fan

Owner’s Manual

Noella

Ventilador de Techo de 1,32 m

Manual del Propietario

106 200

Model: AM311A-ORB

120 V~ 60 Hz 140 W

Read and follow all the instructions

before using this product.

VENTILADOR DE TECHO/CEILING FAN

Marca/Brand: SIN MARCA/UNBRANDED

Modelo/Model: 106200

120 V~ 60 Hz 140 W

Consumo de energía por unidad de tiempo en operación (Energy

Consumption): 110.230 Wh

Consumo energético/Energy consumption (Modo espera/Stand by): NA

Importador/Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.

Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.

66267 Tel./Phone: 01 800 004 6633

Lea y siga todas las instrucciones de seguridad y operación antes de usar este

aparato/ Read and follow all the instructions of security and operation before using

this product

CONT. 1 VENTILADOR/FAN Hecho en/Made in: China

Requiere ensamblaje/Assemby required

52” Noella

Ceiling Fan

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit . . . . . . . . . . . . 11

Operating Your Fan . . . . . . . . . . . . . 13

Care of Your Fan . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . 15

106-200

548810

792145359043

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off at the

circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this fan

with any solid-state fan speed control device. It will permanently damage the

electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and capable of

reliably supporting a minimum of 35 pounds, Use only NOM Listed outlet

boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the trailing

edge of the blades to the floor.

Avoid placing objects in the path of the blades.

To avoid personal injury or damage to the fan and other items, be cautious

when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be spread

apart with the grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on the other side of

the outlet box.

All set screws must be checked and retightened where necessary before

installation.

The appliance is not to be used by persons (including children) with reduced

physical, sensory or metal capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction.

10.

11.

12.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING

THE BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO

NOT INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN

SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

Unpacking Your Fan

Set of blades (5)

Canopy assembly

Ball/downrod assembly

Fan motor assembly

Blade arms (5)

Light kit

Glass shade

Pull chains and fobs (2)

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 01-800-681-9321.

Unpack your fan and check the contents. You should have the following items:

Blade Attachment Hardware

(16 Screws with Fiber Washers )

Electrical Hardware

(3 Plastic Wire Nuts)

Extra plastic plug

Thumb screw

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing NOM listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two types

of hanging assemblies; the standard ceiling

installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting.

The "close-to-ceiling" mounting is recommended

in rooms with less than 8-foot ceilings or in areas

where additional space is desired from the floor to

the fan blades.

When using the standard downrod installation, the

distance from the ceiling to the bottom of the fan

blades will be approximately 12 inches. The

"close-to-ceiling" installation reduces the distance

from the ceiling to the bottom of the fan blades to

approximately 9 inches.

Once you have decided which ceiling installation

you will use, proceed with the following

instructions. Where necessary, each section of the

instructions will note the different procedures to

follow for the two types of installation.

Hanging the Fan

Option 1:

Standard Ceiling Mounting WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Figure 5

Remove

Figure 6

Loosening the four screws on the top of the

canopy. (Figure. 5)

Remove the mounting bracket from the canopy

by remove the two non-slotted screws and

loosen the slotted screws (Figure 6).

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 7). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Tighten two set screws on top of the fan motor

firmly. (Figure 7)

Route the wires through the canopy and then

through the ball/downrod assembly (Figure. 7).

Loosen, but do not remove the 2 set screws on

the collar on top of the motor housing.

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Pin in Locked

Positioon

Motor Collar

Cotter Pin

Clevis Pin

Tighten Screw

Firmly

Loosen but

do not Remove

Remove three of the six screws and lock

washers (every other one) from the collar of

top motor (Figure 9).

Route the wires exiting the top of the fan motor

through the canopy, then proceed to place the

ceiling canopy over the collar at the top of the

motor. (Figure 10)

Align the mounting holes with the holes in the

motor and fasten using the screws and lock

washers removed in step 3 (Fig. 10).

Tighten the mounting screws security.

WARNING

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS IN STEP 5 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Motor

Collar Screw and Lock Washer

(3 of 6 Places)

Figure 9

Figure 10

Collar

Ceiling

Canopy

Screw and

Lock Washer

(3 Places)

Option 2:

Close-to-Ceiling Mounting

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws (Figure 5 and 6).

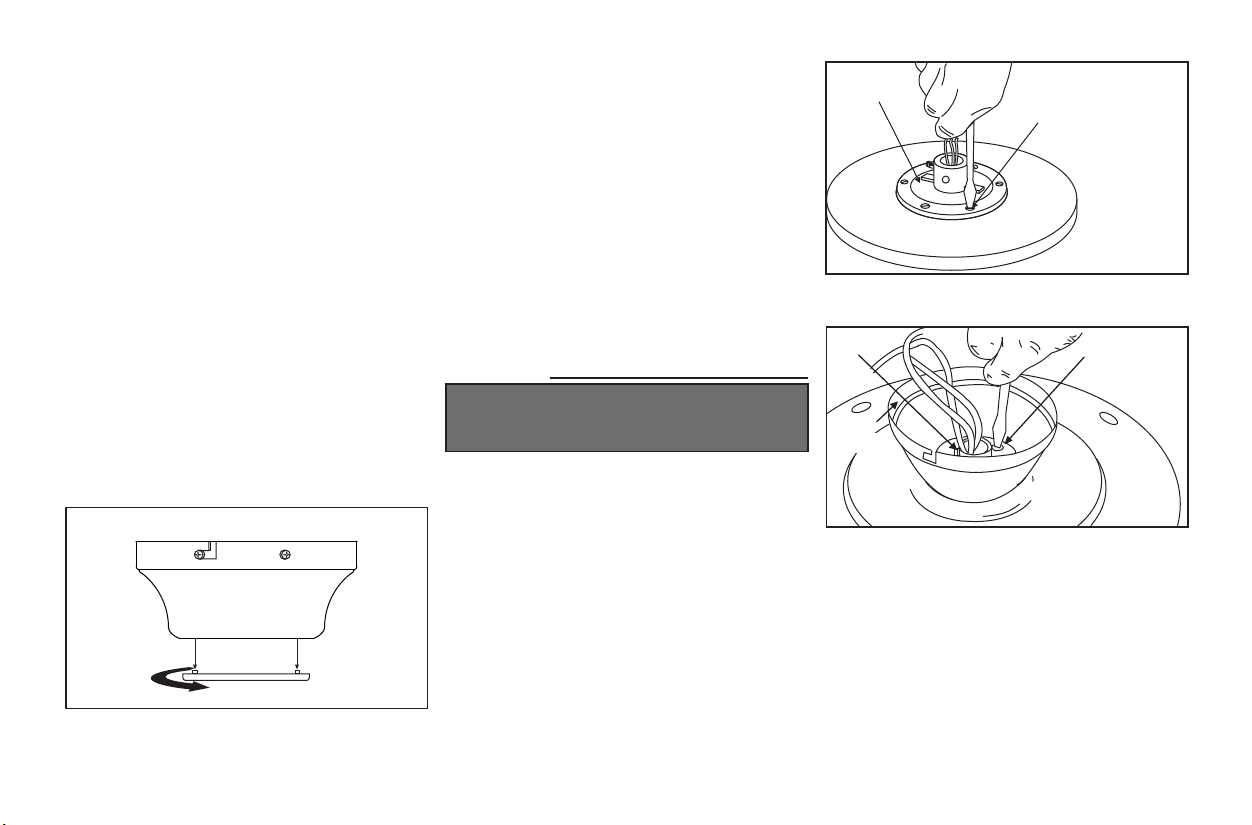

Remove the decorative canopy bottom cover

from the canopy by turning the canopy bottom

cover counterclockwise (Figure 8).

Canopy

Bottom

Cover

Remove

Figure 8

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them onto

the new longer downrod before proceeding step 3.

(The longer downrod is available at any Home

Depot store)

Installing Fan to

the Electrical Box

WARNING

THE TAB AS SHOWN IN FIGURE 12 IS ONLY TO

BALANCE THE FAN WHILE ATTACHING

WIRING. FAILURE TO HANG AS SHOWN IN

FIGURE 12 MAY RESULT IN TAB BREAKING

CAUSING THE FAN TO FALL. TAB MUST PASS

FROM INSIDE TO OUTSIDE OF CANOPY.

WARNING

WHEN USING THE STANDARD BALL/ DOWN-

ROD MOUNTING. THE TAB IN THE RING MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN

THE GROOVE COULD CAUSE DAMAGE TO

WIRING.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

NOM Listed Outlet Box

Ceiling Mounting

Bracket Tab

120V

Wires

Mounting

Screws (Supplied

with Outlet Box)

Figure 11

Carefully lift the fan assembly up to the ceiling

mounting bracket and hang the fan on the tab

provided by utilizing one of the holes at the outer

rim of the ceiling canopy. (Figure 12) If use

standard mounting, seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated in

the groove in the hanger ball. (Figure 12)

Pass the 120-volt supply wires through the

center hole in the mounting bracket. (Figure

11)

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box. (Figure 11)

When using “close-to-ceiling” mounting, it is

important that the mounting bracket be level. If

necessary, use leveling washers (not included)

between the mounting bracket and the outlet

box. Note that the flat side of the mounting

bracket is toward the outlet box. (Figure 11)

Security tighten the two mounting screws.

Figure 12

Groove

Standard Mounting Close-to-Ceiling Mounting

Tab

Making the Electrical

Connections

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHALL BE NOM LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut. (Figure 13)

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

blue wire will be on the other side, and push

carefully up into the outlet box.

Connect the ground conductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan. (Figure 13) When using

standard ceiling mounting, there are two green

grounding leads; one from the ceiling mount-

ing bracket and one from the ball/downrod

assembly. When using “Flushmount Installa-

tion” mounting, there is only one green ground

lead from the ceiling mounting bracket since

the ball/downrod assembly is not used.

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

13)

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

SUPPLY CIRCUIT

Figure 13

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de HAMPTON BAY

HAMPTON BAY

HAMPTON BAY Bercello Estates II Manual de usuario

HAMPTON BAY

HAMPTON BAY Largo Manual de usuario

HAMPTON BAY

HAMPTON BAY Glendale Manual de usuario

HAMPTON BAY

HAMPTON BAY Asbury Plus Manual de usuario

HAMPTON BAY

HAMPTON BAY HOLLY SPRINGS 57281 Manual de usuario

HAMPTON BAY

HAMPTON BAY HAVANA 48-HVA Manual de usuario

HAMPTON BAY

HAMPTON BAY VERANDA 499-493 Manual de usuario

HAMPTON BAY

HAMPTON BAY Trusseau Manual de usuario

HAMPTON BAY

HAMPTON BAY MENA 92404 Manual de usuario

HAMPTON BAY

HAMPTON BAY FS40-21MA Manual de usuario

HAMPTON BAY

HAMPTON BAY Andross Manual de usuario

HAMPTON BAY

HAMPTON BAY AM212INL-WH Manual de usuario

HAMPTON BAY

HAMPTON BAY 52-SKV Manual de usuario

HAMPTON BAY

HAMPTON BAY COSTA MESA Manual de usuario

HAMPTON BAY

HAMPTON BAY Carriage House-2 138 108 Manual de usuario

HAMPTON BAY

HAMPTON BAY 285-167 Manual de usuario

HAMPTON BAY

HAMPTON BAY TUDOR Manual de usuario

HAMPTON BAY

HAMPTON BAY Clarkston Manual de usuario

HAMPTON BAY

HAMPTON BAY ALTURA 52356 Manual de usuario

HAMPTON BAY

HAMPTON BAY Colonial Bamboo Manual de usuario

HAMPTON BAY

HAMPTON BAY FALLSBURG AK389-GA Manual de usuario

HAMPTON BAY

HAMPTON BAY GLENDALE AM212-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY 855975 Manual de usuario

HAMPTON BAY

HAMPTON BAY RIVERWALK Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
