HAMPTON BAY Everstar Manual de usuario

Everstar

44 in Ceiling Fan

Owner’s Manual

Everstar

Ventilador de Techo de 1,12 m

Manual del Propietario

227 395

Everstar by Hampton Bay

44” Everstar

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 9

Operating Your Fan . . . . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . 13

Warranty Information . . . . . . . . . . . . 14

219032

792145353829

227-395

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING

THE BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN.

DO NOT INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN

BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT

WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

ATTENTION

FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE DEPARTMENT

OF ENERGY 2009 REGULATION. LAMPING THIS PRODUCT OVER 190W

WILL CAUSE THIS FAN TO NOT LIGHT. PLEASE USE BULBS WITH A

TOTAL WATTAGE UNDER THE 190W REGULATION.

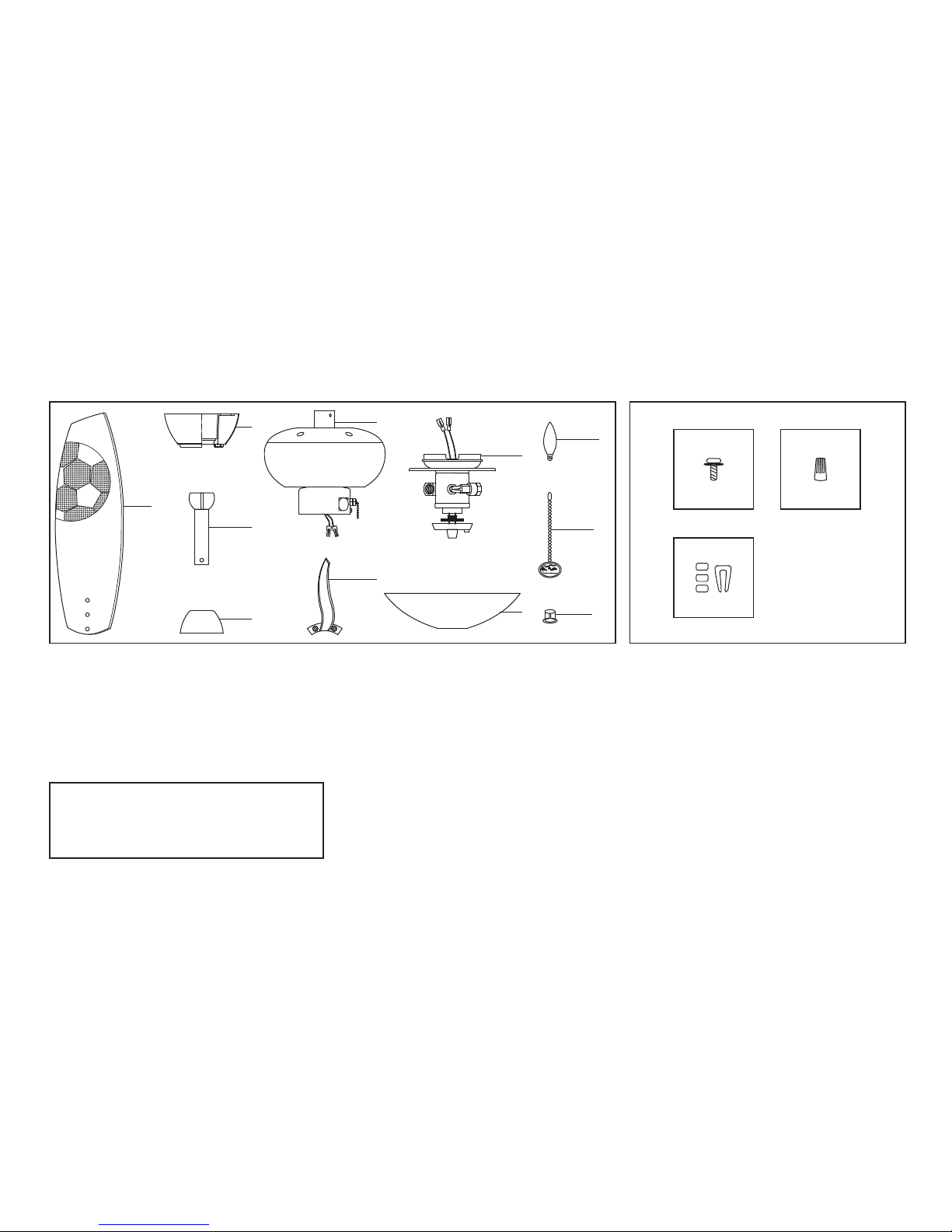

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (4)

Canopy assembly

Ball/downrod assembly

Coupling cover

Fan motor assembly

Blade arms (4)

Light kit assembly

Glass shade

40Watt candelabra bulbs (3)

Pull chains and fobs (2)

Extra plastic plug

10.

11.

Blade Attachment Hardware

(13 Screws with Fiber Washers)

Electrical Hardware

(3 Plastic Wire Nuts)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan

WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Tighten two set screws at top of the fan motor

collar firmly and evenly. (Fig. 6)

Remove the decorative canopy bottom cover

from the canopy by turning the cover counter

clockwise. (Figure 5)

Remove the mounting bracket from the canopy

by removing the 1 of 2 screws from the bottom

of the mounting bracket and loosening the

other one a half turn from the screw head.

Next, turn the canopy counter clockwise to

removing the mounting bracket from the

canopy. (Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them

onto the new longer downrod before

proceeding step 4. (The longer downrod is

available at any Home Depot store.)

Route wires exiting from the top of the fan

motor through the coupling cover, canopy

cover, canopy and then through the ball/

downrod. (Figure 6)

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 6). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

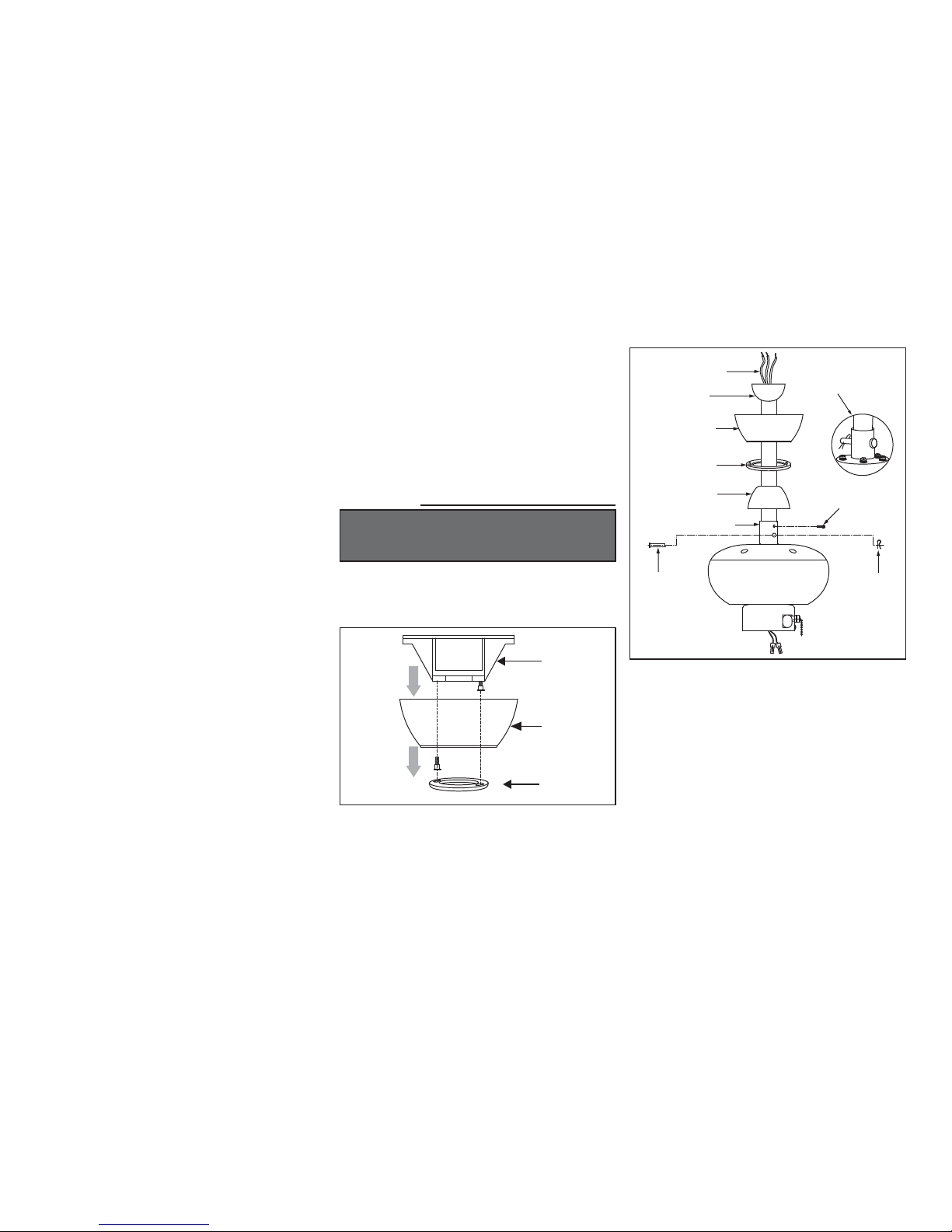

Figure 6

Pin in Locked

Positioon

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Bottom

Cover

Motor Collar

Coupling Cover Tighten Screw

Firmly

Cotter PinClevis Pin

Figure 5

Ceiling

Mounting

Bracket

Ceiling Canopy

Canopy Bottom

Cover

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY. MOUNT

FAN ONLY TO AN OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN

SUPPORT AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 7.

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box (Figure 7).

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated

in the groove in the hanger ball (Figure 8). This

will help to balance the ceiling fan.

Figure 7

UL Listed Outlet Box

Ceiling Mounting

Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 8

Groove

Tab

Making the Electrical

Connections

Connect the fan supply (black) wire and light

supply (blue) wire to the black household

supply wire as shown in Fig. 9.

Connect the neutral fan (white) wire to the

white neutral household wire.

Connect the fan ground wire (green) to the

household ground wire.

After connecting the wires, spread them apart

so that the green and white wires are on one

side of the outlet box and the black and the blue

wires are on the other side.

Turn the connecting nuts upward and push the

wiring into the outlet box.

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHALL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

SUPPLY CIRCUIT

Figure 9

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to mounting bracket and

place the key hole on the canopy over the

screw on the mounting bracket, turn canopy

until it locks in place at the narrow section of

the key holes. (Fig. 10)

Align the circular hole on canopy with the

remaining hole on the mounting bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until the

canopy and canopy cover are snug.

Finishing the Fan

Installation

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING THE

CANOPY TO THE BRACKET BY TURNING THE

HOUSING UNTIL IT DROPS INTO PLACE.

Figure 10

Outlet Box

Ceiling

Mounting

Bracket

Screw

Canopy

Bottom Cover

Attaching the Fan Blades

Tighten each screw securely starting with the

center screw. Make sure the blade is straight.

Repeat steps for the remaining blades.

Fasten the blade assemblies to the motor

housing by lining up the slots of the blade arms

with the tabs on the motor housing, then

tighten the two screws and washers already

installed in the blade arms (Figure 13).

Attach blades to blade arm using the screws

with fiber washers provided (Fig. 12). Start a

screw into the blade arm, do not tighten.

Repeat for the 2 remaining screws and

washers.

CAUTION

MOTOR IS SHIPPED WITH RUBBER PACKING

MOUNTS TO PREVENT MOVEMENT DURING

TRANSPORTATION. REMOVE THE RUBBER

PACKING MOUNTS FROM FAN MOTOR

ASSEMBLY AND DISCARD PRIOR TO ATTACH-

ING BLADE ARMS. (FIG. 11)

Figure 11

Rubber Packing

Mounts

Screws

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de HAMPTON BAY

HAMPTON BAY

HAMPTON BAY Spoleto II Spoleto II Manual de usuario

HAMPTON BAY

HAMPTON BAY Springview Manual de usuario

HAMPTON BAY

HAMPTON BAY Colonial Bamboo Manual de usuario

HAMPTON BAY

HAMPTON BAY ZANDRA 92380 Manual de usuario

HAMPTON BAY

HAMPTON BAY 670-787 Manual de usuario

HAMPTON BAY

HAMPTON BAY SOUTHWIND 52371 Manual de usuario

HAMPTON BAY

HAMPTON BAY 286-780 Manual de usuario

HAMPTON BAY

HAMPTON BAY PORTSMOUTH 51355 Manual de usuario

HAMPTON BAY

HAMPTON BAY 654 451 Manual de usuario

HAMPTON BAY

HAMPTON BAY LK-GZL Manual de usuario

HAMPTON BAY

HAMPTON BAY 32711 Manual de usuario

HAMPTON BAY

HAMPTON BAY MARLSTON N375-MWH Manual de usuario

HAMPTON BAY

HAMPTON BAY EASTVALE Manual de usuario

HAMPTON BAY

HAMPTON BAY SOUTHWIND II 52-RMGII Manual de usuario

HAMPTON BAY

HAMPTON BAY Minuet III AG806C-EB Manual de usuario

HAMPTON BAY

HAMPTON BAY Cassaro Manual de usuario

HAMPTON BAY

HAMPTON BAY RENWICK 656 416 Manual de usuario

HAMPTON BAY

HAMPTON BAY 434-972 Manual de usuario

HAMPTON BAY

HAMPTON BAY SUSSEX Manual de usuario

HAMPTON BAY

HAMPTON BAY 786-756 Manual de usuario

HAMPTON BAY

HAMPTON BAY DANETREE N243A-BN Manual de usuario

HAMPTON BAY

HAMPTON BAY GLENDALE III AK488-MBK Manual de usuario

HAMPTON BAY

HAMPTON BAY MENA 92404 Manual de usuario

HAMPTON BAY

HAMPTON BAY 284-485 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
