Hamilton Beach 4160 Manual de usuario

Air Purifier

840071100

Air Purifier Safety.......................... 2

Know Your Air Purifier .................. 5

How to Assemble and Use............ 6

How to Clean................................ 12

Troubleshooting Guide.............. 17

Customer Service ........................ 18

In USA: 1-800-851-8900

In Canada: 1-800-267-2826

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS!

Air Purifier Safety

1. Read all instructions before using this

air purifier. Save these instructions for

reference.

2. Direct ultraviolet light exposure to the

eyes can cause temporary or chronic

adverse effect to your eyesight.

3. Do not immerse this product in water or

splash water on it. An electrical short

may result in shock or fire.

4. Do not handle the plug with wet hands;

electrical shock may occur, resulting in

injury or death.

5. Never attempt to disassemble or alter

the product in any way not instructed by

this manual. Shock, fire, or bodily injury

may occur. Contact Hamilton Beach

at 1-800-851-8900 for assistance.

6. Do not place your face directly on the

outlet grille or look into the ultraviolet light.

7. Do not operate this product in any

greasy environment such as in the

kitchen. This product is not intended to

filter oil or grease from the air.

8. Do not operate this product near an open

fire. It may ignite and cause fire, resulting

in bodily injury or property damage.

9. Do not operate this product in a garage

or other area with oil or chemicals such

as solvents or insecticides.

10. Always unplug the power cord from the

receptacle when the air purifier is not in

use, before cleaning, replacing parts, or

before moving to another location.

11. Do not insert foreign objects into the

product for any reason. Bodily injury

or property damage may occur.

12. Do not use this product outdoors. It is

intended for indoor use only.

13. Do not operate this appliance without

the outlet grille in place or if the outlet

grille is broken or damaged.

14. This air purifier is equipped with safety

interlock switches that turn the unit off

if the intake or outlet grilles are removed.

DO NOT attempt to defeat or override

this safety feature.

15. WARNING: To reduce the risk of fire or

electric shock, do not use this purifier

with any solid-state speed control

device.

READ AND SAVE THESE INSTRUCTIONS.

In order to prevent the risk of fire, electric shock, personal injury or damage to property,

follow these instructions carefully. When using electric appliances, basic safety

precautions should be followed, including the following:

Consumer Safety Information

This appliance is intended for

household use only.

This appliance is equipped with a

polarized plug. This type of plug has one

blade wider than the other. The plug will

fit into an electrical outlet only one way.

This is a safety feature intended to help

reduce the risk of electrical shock. If you

are unable to insert the plug into the

outlet, try reversing the plug. If the plug

should still fail to fit, contact a qualified

electrician to replace the obsolete outlet.

Do not attempt to defeat the safety

purpose of the polarized plug by

modifying the plug in any way.

If a longer cord is necessary, an

approved extension cord may be used.

The electrical rating of the extension

cord must be equal to or greater than

the rating of the air purifier. Care must

be taken to arrange the extension cord so

that it will not drape over the countertop

or tabletop where it can be pulled on by

children or accidentally tripped over.

Route the electrical or extension cord

clear of furniture to prevent damage

from pinching.

wWARNING

Germicidal Light Radiation Hazard

• Never operate with damaged, broken or missing outlet grille louvers

or without the outlet grille.

• Never operate with damaged, broken or cracked housing.

• Always unplug unit before cleaning, servicing or replacing the UV bulb.

• Never look directly at UV bulb or place face directly on outlet grille.

• Use only Hamilton Beach replacement UV bulb: Part No. 04810.

• Read all instructions before using.

Failure to follow these instructions can result in direct exposure to

germicidal light, which can cause temporary or chronic damage to

your eyesight, or even blindness.

Purifier Control Room Size* Carbon HEPA UV Bulb Starter Type

Model Type (sq. ft.) Pre-Filter Filter FS-5 or FS -22

04160 Manual 200 ft204922 04912 04810 904004100

04161 AirSmart™200 ft204922 04912 04810 904004100

04162 Manual 350 ft204923 04913 04810 904004100

04163 AirSmart™350 ft204923 04913 04810 904004100

About Your Air Purifier

The air purifier functions as an

air cleaner by helping to disinfect

airborne bacteria and removing

particulates from the air.

The air is cleaned in three stages:

1. A fan draws air through the intake

grille on the front of the air purifier.

Then it passes through the carbon

pre-filter which traps large dust

particles and reduces odors.

2. The white HEPA filter then removes

particles as small as 0.3 microns

from the air at 99.97% effectiveness.

3. The clean air is then exposed to

germicidal-grade ultraviolet light to

reduce the level of airborne bacteria,

molds, and viruses. The purified air is

then released through the outlet grille

on the top of the unit.

* Each air purifier is designed to filter the room five times per hour at high

speed. Factors such as room shape and ceiling height can affect this rate.

It is normal that the air flow will be reduced as the filters become clogged.

See “Checking the Filters” on page 13 for more information.

To Order Replacement Parts

Replacement bulbs may be available where the air purifier was purchased or

can be obtained directly from Hamilton Beach.

Know Your Air Purifier

Parts and Features

1. Outlet Grille

2. Ultraviolet (UV) Bulb

3. Control Panel

4. AirSmart™Sensor*

5. UV Starter

6. UV Bulb Check Window

(not shown – see page 8 for location)

7. Filter Check Gauge

8. Air Sensor Cleaner*

9. HEPA Filter

10. Carbon Pre-Filter

11. Intake Grille

* Available on AirSmart™models only.

Manual control models do not include

these features.

How to Assemble and Use

IMPORTANT: Your Hamilton Beach air purifier is designed for easy use and

maintenance. Make sure that the UV bulb, HEPA filter, and carbon pre-filter are

properly installed before use.

Selecting the Proper Location

To prevent the risk of personal injury or damage to the air purifier and provide

the best possible performance of your air purifier, follow the placement

guidelines below:

DO NOT:

• Do not stand, sit, or place any

objects

on the air

purifier. It is

not designed

to support

additional

weight.

• Do not block the air intake and

outlet grilles with drapes, curtains,

or blinds. This may cause reduced

performance.

• Do not use in a kitchen, garage, or

area with grease, oil or chemicals

such as solvents or insecticides.

• Do not place on or near heat

sources such as stoves, radiators,

or heaters, or in direct sunlight.

• To reduce electrical noise and

interference, do not place on or near,

or plug into the same outlet as TVs,

baby monitors, or cordless phones.

DO:

• Place the air purifier on a flat, stable

surface.

• Place the air purifier near an electrical

outlet where it is out of the way.

Make sure that the air purifier and

the cord do not present tripping

hazards.

• Select a central location with

adequate air circulation.

• Turn off and unplug the air purifier

before moving or servicing it, or if it

will not be used for several days.

• Route the electrical cord clear of

furniture to prevent damage from

pinching.

Before First Use

Be sure to remove all packing materials.

The filters and UV bulb are packed in

plastic bags inside the air purifier for

shipping.

Refer to pages 7 to 9 for unpacking

and installation instructions.

NOTE: The carbon pre-filter should be

replaced approximately every three

months.

Remove the intake grille by carefully

pulling the upper two side tabs away

from the body of the air purifier and

lifting up.

Unfold and flatten out the black

carbon pre-filter. Attach the four

corners of the carbon pre-filter

to the four hook fasteners on the

HEPA filter.

Locate the black carbon pre-filter.

It will be folded inside a plastic bag.

Remove and discard the plastic bag.

Installing the Carbon Pre-Filter

Insert the two tabs on the bottom of

the intake grille into the holes on the

bottom ledge of the air purifier.

Pivot the intake grille into place and

lightly press on the upper corners of

the grille to snap it into place.

NOTE: The air purifier has a safety

switch that prevents operation if the

intake grille is not properly installed.

DO NOT attempt to override or

disable this safety switch.

Installing the UV Bulb

Open and remove the outlet grille

by pulling up on the handle on the

upper back of the air purifier.

Remove the packaged UV bulb from

inside the air purifier. Be careful not to

touch the glass part of bulb. Handle

by metal ends only. Oil from fingertips

on the glass bulb will shorten the life of

the bulb. Carefully unpack the bulb and

discard the packaging.

NOTE: Make sure no loose packing

material remains inside the air purifier.

Make sure the unit is unplugged.

Starting with one end of the bulb, then

the other, gently insert the metal pins

on the bulb into the white slotted socket

one pin at a time.

NOTE: Only one pin will fit in the socket

at a time. DO NOT force the pins into

the socket—you could break the bulb.

Once the ends of the bulb are

completely inserted into the socket,

rotate the bulb a quarter turn until it

locks into place.

Insert the two center tabs on the front

of the outlet grille into the middle slots

on the front of the opening. Pivot the

grille down toward the back of the air

purifier.

Press lightly down on the back

corners of the outlet grille to snap

it into place.

NOTE: The air purifier has a safety

switch that prevents operation when

the top outlet grille is not properly

installed. DO NOT attempt to override

or disable this safety switch. See the

Germicidal Light Hazard Warning on

page 3.

Installing the UV Bulb (continued)

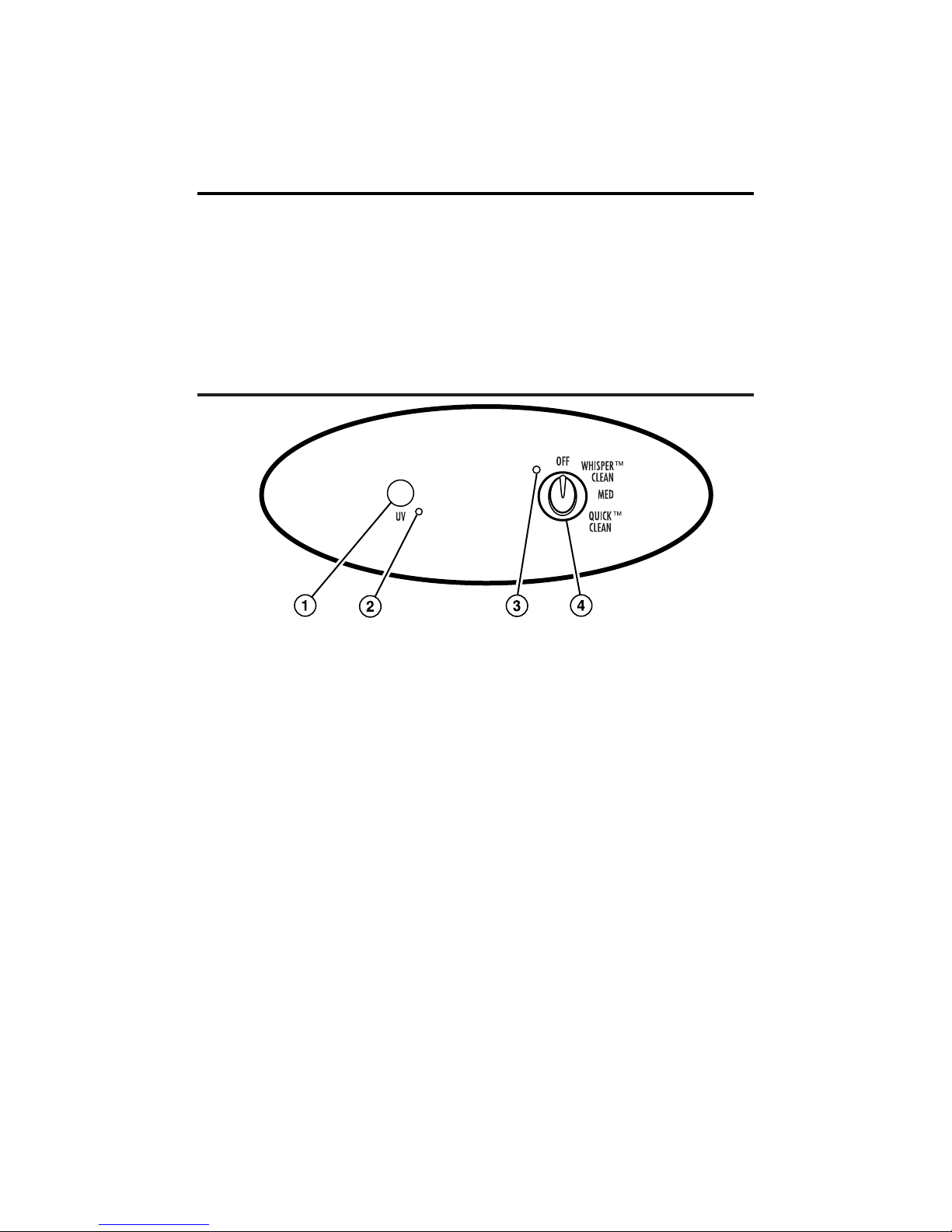

Setting the Controls –

Manual Control Models

1. Germicidal UV Button – Turns on

the germicidal UV lamp to reduce

harmful bacteria from the filtered air.

When this button is on, a bluish glow

should be visible through the UV

bulb check window on the top of

the unit.

NOTE: The light will not come on if

the fan is turned off.

2. UV “On” Indicator – Lights when

the germicidal UV lamp is on.

3. Power On Indicator – Lights when

unit is on.

Plugging in the Air Purifier

WARNING: To reduce the risk of

electrical shock, never plug in the air

purifier while your hands are wet.

Always unplug the air purifier before

moving or servicing the unit.

NOTE: The polarized plug will only

fit in one direction—DO NOT try

to force the plug. If you are unable to

insert the plug into the outlet, try

reversing the plug. If the plug still does

not fit, contact a qualified electrician to

replace the obsolete outlet.

4. Fan Speed Knob – Turn the fan

speed knob to the desired setting.

There are four settings:

• Off

• WhisperClean™– Use for quiet,

nighttime operation or for constant

low-speed filtration.

• Medium – Provides a higher fan

speed; use for quickly filtering

dust, pollen, smoke, etc. from a

room.

• QuickClean™– Provides cleaning

during acute needs.

Otros manuales para 4160

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Purificador de aire de Hamilton Beach

Hamilton Beach

Hamilton Beach TrueAir Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840086600 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir HEPA Manual de usuario

Hamilton Beach

Hamilton Beach 4152 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840120700 Manual de usuario

Hamilton Beach

Hamilton Beach 840115900 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840117900 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04493P Manual de usuario

Hamilton Beach

Hamilton Beach 840144100 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04481 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04493 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840123100 Manual de usuario

Hamilton Beach

Hamilton Beach 840121000 Manual de usuario

Hamilton Beach

Hamilton Beach 4383 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04384 Manual de usuario

Hamilton Beach

Hamilton Beach 4160 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04255 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840089500 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 04536 Manual de usuario

Hamilton Beach

Hamilton Beach 840148400 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir 840088700 Manual de usuario

Hamilton Beach

Hamilton Beach TrueAir Instrucciones de funcionamiento

Manuales populares de Purificador de aire de otras marcas

IKEA

IKEA UPPÅTVIND Manual de usuario

Nash

Nash AP-1 PureSmart Manual de usuario

LG PH-U450 Series Manual de usuario

DeLonghi

DeLonghi DDSX 220WFA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manual de usuario

Sharp

Sharp FU-40SE Manual de usuario

Philips

Philips AC2721 Manual de usuario

Hitachi

Hitachi EP-A3000 Manual de usuario

TruSens

TruSens Z-2000 Manual de usuario

Motorola

Motorola MBP87SN Manual de usuario

Beko

Beko ATP 7100I Manual de usuario

Carrier

Carrier INFINITY 1620 Manual de usuario

AtmosAir

AtmosAir P2002 Manual de usuario

Winix

Winix NK300 Manual de usuario

Friedrich

Friedrich C-90A Instrucciones de funcionamiento e instalación

Surgically Clean Air

Surgically Clean Air JADE2.0 Manual de usuario

Base aire

Base aire 555 Pro Manual de usuario

Champion

Champion CP25 Manual de usuario
