Desoldering / Rework/Desoldering tool
•
Vacuum pump type desoldering tool with excellent thermal recovery
•
Digital display ensures easy and reliable temperature control
•
Sleep function that works with iron holder curbs the oxidation of nozzles
•
Supports the N
2
system.
Model No. FM204
Power consumption 120W
Temperature range 200-450ºC
Temperature stability
±5ºC at idle temperature
・Station
Output voltage 24V
Vacuum generator
Double cylinder type
Vacuum pressure
80kPa (600mmHg)
Suction flow 15L/min.
Dimensions 160(W)×120(H)×225(D)mm
Weight 3.7kg
・Soldering Iron
Power consumption 70W (24V)
Temperature range 350-450ºC
Nozzle to ground resistance
<2Ω
Tip to ground potential <2mV
Total length 180mm (with Φ1.0mm nozzle)
Weight 65g (with Φ1.0mm nozzle)
Cord 1.2m
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
Model No. Packing List
FM-204
1. Main unit (HAKKO FM-204 station)
2. Iron holder (No. FH200-05; with tip cleaner)
3. Ceramic paper filter (10pcs.) (for replacement)
4. Cleaning drill (for heating element)
5. Filter pipe assemblies (2pcs.) (originally
equipped to the unit and one for spare*5)
6. Control card
7. Desoldering tool (Model FM-2024)
8. Connecting cable
9. Nozzle remover
10. Handle (for gun configuration)
*11. Power cord
*12. Instruction manual
*13 Tip tray
*No photos are shown for parts *5,*11, *12 and
*13.
* This product does not include a nozzle. When purchasing this product, be sure
to order a nozzle suitable for the work.
Even easier-to-use FM Series Desoldering Tool
Vacuum pump type desoldering tool
Excellent thermal recovery
·The integrated nozzle containing both heating element and sensor provides
higher thermal recovery than conventional tips.
Soldering work is possible by replacing the handpiece.
Connectible handpieces:
- Desoldering handpiece (HAKKO FM-2024)
- Soldering iron (HAKKO FM-2027)
- N
2
soldering iron (HAKKO FM-2026)
Selectable grip
Two-way use of gun type and straight type is available.
Gun configuration Straight configuration
Easy maintenance
Filter pipe replacement:
- Disposable paper filter pipe
- Easy to dispose of paper and solder separately
Nozzle replacement:
- Safe to replace with nozzle remover
- Replaceable even before the end of nozzle has cooled down
(1) Detach the nozzle
remover
(2) Firmly attach the
nozzle remover to the
nozzle cartridge as shown
in the picture.
(3) Pull the nozzle
remover with the nozzle
cartridge in one stroke.
Power save function
Sleep function:
When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the
sleep function operates and decreases the unused tip temperature up to
approximately 200°C , preventing the tip from being oxidized.
In addition, this function can relieve the loads applied to the tip due to the high-
temperature settings required for lead-free soldering
* The connecting cable enables the iron holder and temperature controller to be
activated.
Auto power shut-off function:
By connecting the iron holder (HAKKO FH-200) to the connecting cable, the
auto power shut-off function is activated in the same manner as the sleep
function.
- Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation
upon error and when reaching the setting temperature can be selected. ON/OFF-
settable buzzer sound
Hegytípusok N3
N3-06 Nozzle N3-08 Nozzle N3-10 Nozzle N3-13 Nozzle
Size Φ0.6 Size Φ0.8 Size Φ1.0 Size Φ1.3
N3-16 Nozzle N3-20 Nozzle N3-23 Nozzle
Size Φ1.6 Size Φ2.0 Size Φ2.3

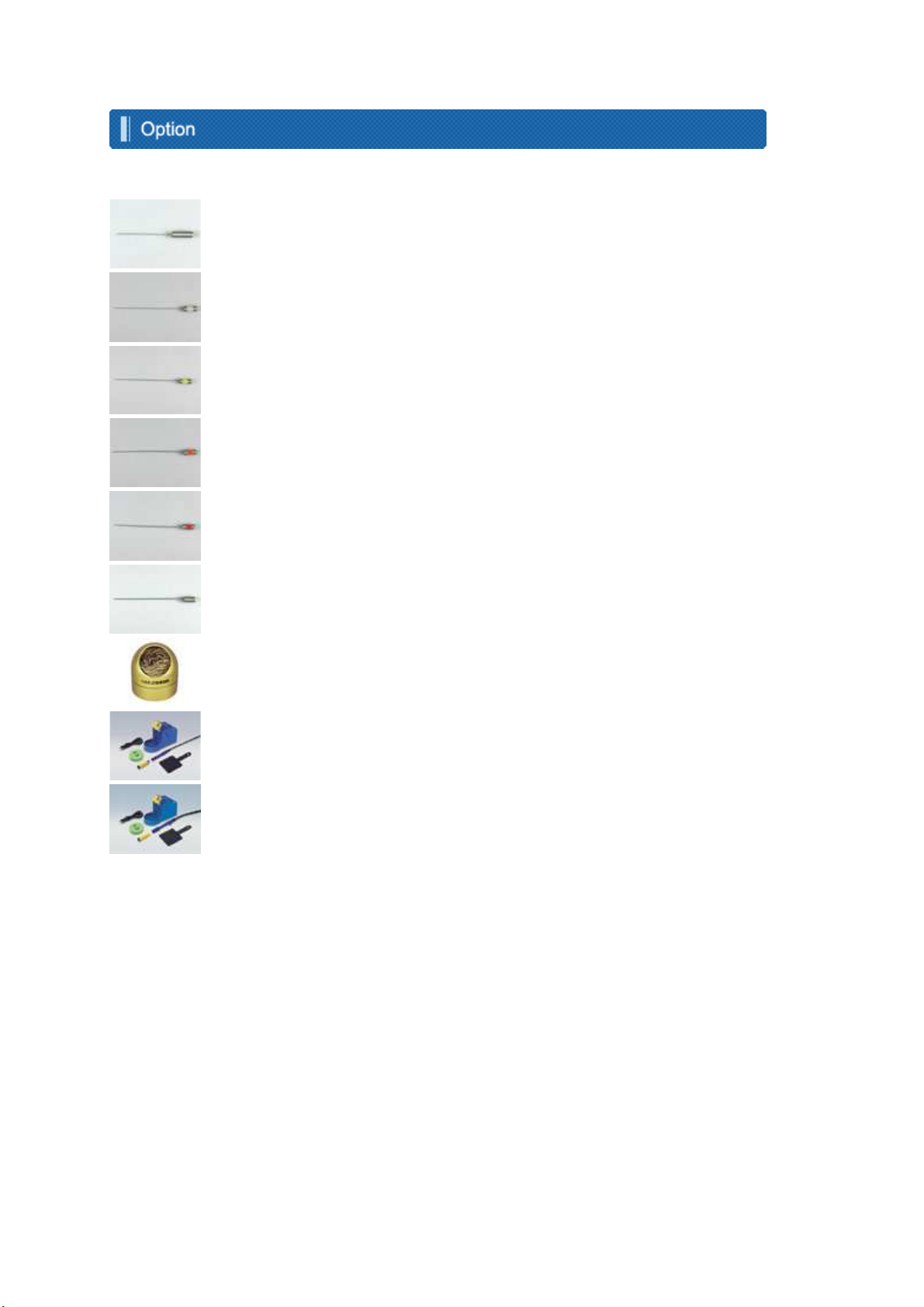

Part No. Name Specifications
B2972 Control card
B2876 Nozzle remover
FH200-05 Iron holder w/ power-save function
A1514 Ceramic paper filter set of 10
A1511 Filter pipe assembly set of 10
B3253 Connecting cable
FM2024-02
Desoldering tool FM-2024
70W (24V)
B2873 Cleaning drill heating element
B2872 Handle for gun configuration
A1512 Front holder
A1536 Cleaning sponge green
Part No. Name Specifications
B2874 Cleaning pin nozzle Φ0.6mm
B1086 Cleaning pin nozzle Φ0.8mm
B1087 Cleaning pin nozzle Φ1.0mm
B1088 Cleaning pin nozzle Φ1.3mm
B1089 Cleaning pin nozzle Φ1.6mm
B2875 Cleaning pin nozzle Φ2.0mm / 2.3mm
599B-01 HAKKO 599B tip cleaner
FM2027-04
HAKKO FM-2027 conversion kit
70W (24V)
FM2026-05
HAKKO FM-2026 conversion kit
70W (24V)
