Haier XQS70-98 Manual de usuario

Please read this manual carefully

before using.

Retain it for future reference.

Double-drive Automatic Washing Machine

This manual is for

XQS70-98

User's manual

Contents

Names of the parts..............

Safety precautions............................................... 2

Installation and adjustment................................

Install the water inlet hose.................................. ..6

Preparation before washing................................

Put in the laundries..............................................

Use of the detergent...........................................

Use the operation buttons.................................

Close the top lid................................................ 14

Finish washing.................................................. 14

Disposal after washing...................................... 15

Trouble shooting answer to question................ 16

Packing list Specification

.....................................1

....

.......4

....

......8

.....9

.......10

.......

.....................................17

Water inlet valve

Water absorption

cushion

Power cord

Handle

Top lid components

Inner cover components

Detergent box

Control panel seat

Outer tub cover

Balance ring

Attachment block 3 pieces

Inner tub

Lint filter

Pulsator

Control panel coating

Cabinet

Liquid blenching filler

Adjustable leg

Rear faceplate

The figure in this manual being sketch map and with the improvement of our products, the machine you buy

is like to be different from the figure indicated in the manual .Please understand.

Back cover

Draining hose

hanging hole

Drain hose

Names of the parts

Meaning and description of the symbols

Contents marked with that symbol are actions forbidden to perform.

Performing of those actions may result in damage of the machine

or influence the personal safety of the users.

Contents marked with that symbol are related to the safety of the product

and the personal safety of the users. Please operate in strict conformity to

the contents, otherwiseit may result in damage of the machine or influence

the personal safety of the users.

Warning sign

Forbidden sign

Safety precautions

Earth

The ventilation

holes at the bottom

Soft object

Do not let the machine share one receptacle with other

electric appliances. If the plugging into the receptacle

is loose, do not use the plug any more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Please plugthe powerplug onspecial

receptacle. Be sure to use three-pins

power receptacle. Ensurethat the earthing

prong of the power receptacle is earthed

reliably. Useleakage protector ifpossible.

Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.

Keep the pin of the power plug clean,if the power plug is polluted with dust,please wipe with

dry cloth carefully.

If the power cord or the power plug is bad, to avoid risk it is

required to have it replaced by the technicians of our

special shop or the after-sale service department.

Do not put the machine at damp place like

the bathroom. Never wash it with water. Do

not put wet laundries on the control panel.

Do not use water hotter than 50

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

The washing machine must be positioned

so that the plug isaccessible. Be sure topull the

plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine. Do not plug

or pull the power plug with wet hand.

Do not stretch hands into the working machine.

It is dangerous even if the rotation is slow.

Take special care of the children.

Do not decompose, repair or alter the machine

by yourself.

Do not put any hot or heavy items (such as the kettle

with hot water) on the washing machine

Do not wash laundries with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The lint filter shall be kept in good condition, and

installed to proper position. If the lint filter is lost

or damaged, please contact the local after-sales

service department of our company.

To prevent your laundries and washing machine from

damages, be sure to take out all of the foreign materials

from your pocket, such as coins, buttons, sandor hair

pins etc.

Before washing, please check if the water tap is open,

and if the water inlet pipe is connected properly.

It is suggested to use low-foaming washing powder.

The appliance is not instruct for use of

young children of infirm persons without

supervision.Young children should be

supervised to ensure that they do not

play with the appliance.

Benzene

Dismantle

Install

Dismantle

Install

The cover of lint filter

lint filter

The back coverof lint filter

lint filter

Inner cover shaft

Outer tub cover

shaft groove

Outer tub cover

Inner cover

Install the bottom plate

After opening the package, please lean

the washing machine gently down on

soft items (liketowel cloth, blanket,etc.).

Install the bottom plate to the bottom

of the machine with eight screws by a

cross screwdriver, then lift the

machine up gently. See to the figure:

Adjust the Installation position

The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will result in

unstable running or stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal

Hang the plumb to confirm it's

horizontal

Adjust the adjustable foot

(1) To twist theadjustable foot atthe right frontof

the cabinet (frontthe sight offront), please first

lift up theside of thefoot slightly,loosen the

adjustable nut, andtwist the foot.

(2) Fasten thenut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Install the inner cover components

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover, aiming

the inner cover shaft to the installation hole of the corresponding

outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of Iside into the correspon

-ding outer tub cover shaft groove, then push the another inner

cover shaft into the corresponding outer tub cover shaft groove.

Please install to designated position to guarantee there are no

dropping or abnormal sound in opening and closing of the inner

cover, and the operation shall be smooth. Do not dismount the

inner cover component after washing.

Soft items

Back

Screw

Front

Bottom plate

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

Usage of the drain hose

The drain hoseshall drain smoothly

5.If the extrahose is toolong, cut it

either atA orat B point.

How to change the direction of the drain hose

1.Lean the machine downgently with the front

surface facing the ground. Loosen the eight

screws by a crossscrewdriver.

3.Extend the drain hose from the right side. Push the

drain hose into the groove with hands.

4.Install the bottom plate (as per indicated before),

then lift the machine up gently.

2.Pull out the drain hose from the groove at the left side.

Back

Front

Bottom plate

Soft item

Use groove at

this side after

direction changing

Page 4

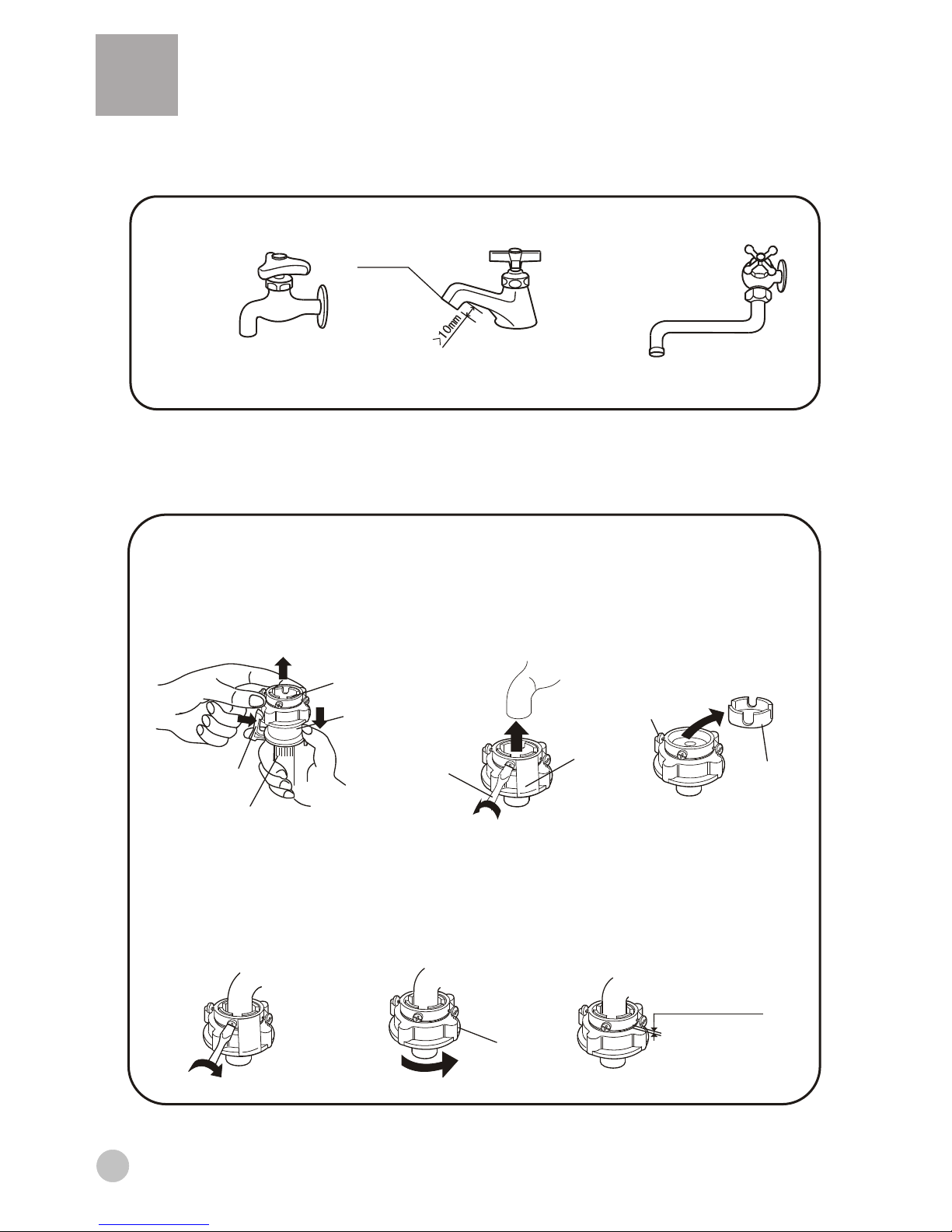

The exit end face of the faucet

Connection between the water inlet hose jointerand the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth, otherwise

it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

about 4mm after twisting

Remark: .Before twisting the fastening nut, the threading is 4mm above the upper

surface of the nut. After twisting, the threading is less than 2mm above the upper

surface of the nut. See to Figure 6

About above 2mm after twisting

water inlet hose jointerwater inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Confirm the water faucet

Install the water inlet hose

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click sound is heard.

Locking level

Slider

water absorption cushion.

nut of the water inlethose

the jointer of the water inlet hose

Slider

Locking level

jointer of the water inletvalve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet hose.

If the machine is used frequently, the jointer of the water inlet hose can be kept

on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

Remarks: use the newhose sets suppliedwith the washer.

Any otherold hose setsshould not beused.

1 Preparation before washing

Pay attention to followings before washing the laundries

Preparation before washing

1.Connect the water inlet hose. Open the water faucet.

2.Confirm that the washing machine is earthed reliably.

Then insert the power plug into the receptacle. The

earth terminal shall not link to gas pipeline and

faucet water pipeline.

3.Put down the drain hose.

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check ifthe laundries are applicable for washing with machine.

b. Divide thelaundries that are not colorfast from other laundries.

c. Put thoselaundries difficult to absorb water into water with hand.

d. For thoselaundries with heavy soil, pleasefirst remove the dirt like mudor dust.

For the partswith heavy soil, please apply detergent on them in advance, which

can make iteasier to remove the soil.

e. For thoselaundries that may get lint ball and thosewith long fur, turn itover before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Pay attention to following before washing

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier HW80-BP12636S Manual de usuario

Haier

Haier GWT950AW Instrucciones de montaje

Haier

Haier HW85-B1486NZP Manual de usuario

Haier

Haier HWM60-918NZP Manual de usuario

Haier

Haier HW-C1460TVE ME-U Manual de usuario

Haier

Haier HW70-1202D Manual de usuario

Haier

Haier HWM25-0623S Manual de usuario

Haier

Haier HLP21N Manual de usuario

Haier

Haier HW100-BD14979U1 Manual de usuario

Haier

Haier HWM110-0713S Manual de usuario

Haier

Haier HWM138VA Manual de usuario

Haier

Haier RR36 Manual de usuario

Haier

Haier HM600T Manual de usuario

Haier

Haier HBF1000 Manual de usuario

Haier

Haier XQJ100-96 Manual de usuario

Haier

Haier HLP20E - Pulsator Washer Manual de usuario

Haier

Haier HW90-B14CIN Manual de usuario

Haier

Haier HBF601 Guía del usuario

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manual de usuario

Haier

Haier HW-C1270TVEME Manual de usuario

Haier

Haier XQBM20-E Manual de usuario

Haier

Haier HNS1002A Guía de inicio rápido

Haier

Haier HWM30-0701 Manual

Haier

Haier XPB80-0626S Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
