Haier HWM50-0701 Manual de usuario

Mini Washing Machine

User's manual

Model:HWM50-0701

Please read this manual carefully before using.

Retain it for future reference. 0030509006

Contents

Names of the parts................................................................................................1

Safety precautions .............................................................................................2

Installation and adjustment ...................................................................................4

Preparation before washing .................................................................................5

The musts in washing ..............................................................................................6

Usage of the detergent.........................................................................................6

Process washing...................................................................................................7

Disposal after washing .......................................................................................8

Trouble shooting .............................................................9

Packing list *Specification.....................................................................................10

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing condition

before using to guarantee your safety.

Names of the parts

Base frame

Cabinet

Panel support

Pulsator

Back cover

Top lid

Control panel

Water inlet

Timer knob

Drain hose

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle. The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

The ventilation holes

at the bottom

Carpet

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

Installation and adjustment

When washing, the drain hose must be hung up, if you want to drain,

please refer to the below mention.

The drainage shall be smooth with the drain hose.

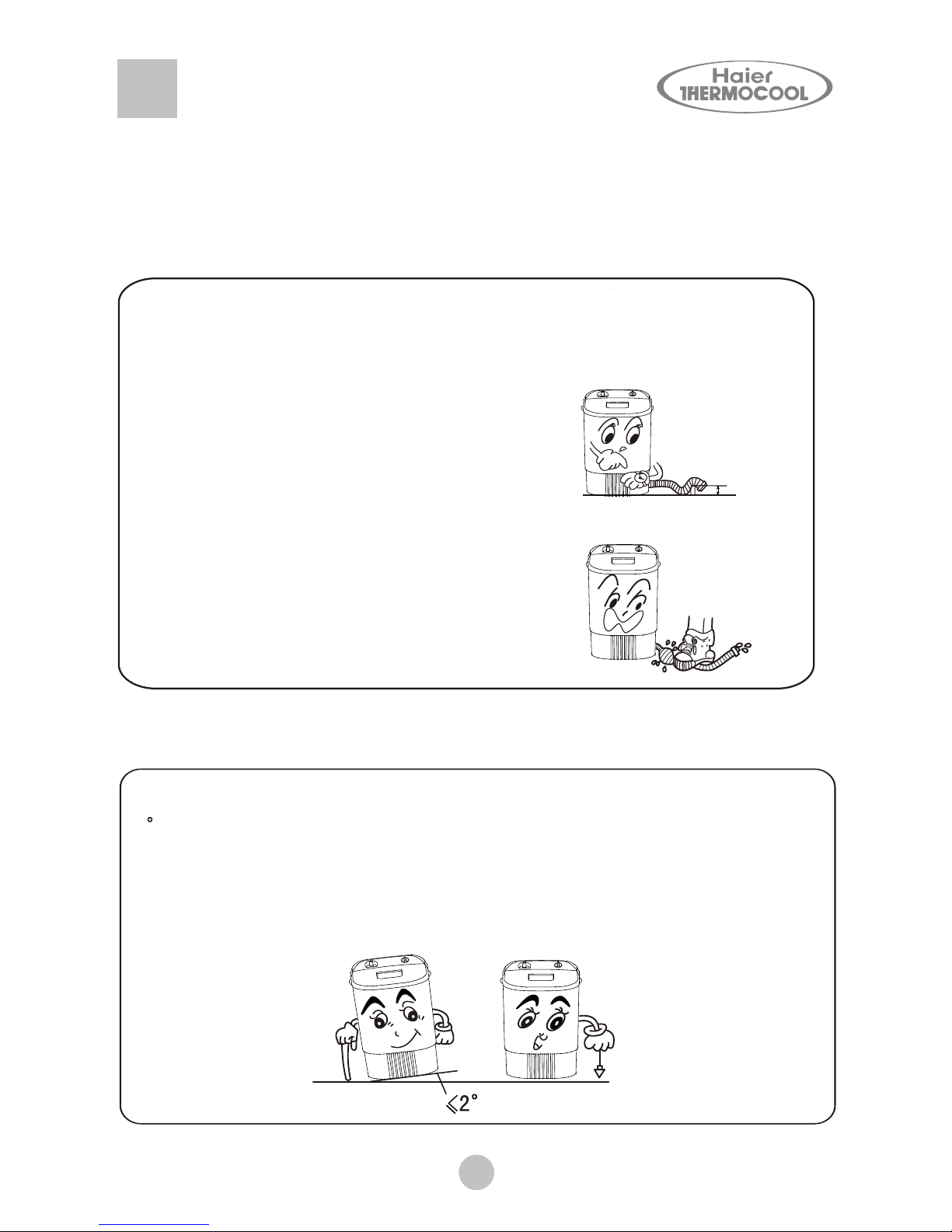

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not step on or press the drain hose.

3.Suggest do not lengthen or shorten the drain

hose.

<10cm

Adjust the installation position

The largest permitted slope of the bearing surface of the washing machine is

2 . Slanting or uneven ground will cause unstable operation of the machine.

Please check withfollowing methods:

¡¤Hang a becket with weight to confirm if the washing machine is horizontal.

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a.Please check if the laundries are applicable for washing.

b.Please mend seedyclothes before washing.

c.Separate those not colorfast from other laundries.

d.For laundries not water absorbing, please put them into water with hands.

e.For laundries with much soil, lease remove the soil first. You can add detergent

on the part with serious soil directly. It is much easier to remove the soil by that

mean.

f.For laundries likely to get lint ball or with long fiber, please first turn the inside out

before putting them into the water.

g.Do not put the laundries polluted with chemicals directly into the washing

machine.

Reference weight of the laundries:

shirt Socks

underpants undershirt

pajamas

cotton, about

300g

blending, about

50g

cotton, about

70g cotton, about

180g

about 200g

The capacity of washing of the machine refers to the

largest weight of the standard laundries under dry

condition that can be washed in one time. Laundries

quantity in one washing cycle shall be lower than

the rated capacity.

The thickness ,size , type of the cloth will influence the

actual washing capacity. It is suitable to put in reasonable

amount of laundries and the laundries can be turned round

in washing for one time washing.

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into

the washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to

lose color.

The whitener shall not touch the laundries directly.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener,please dissolve it before using.

Usage of the detergent

The musts in washing

How to use the washing powder

Direct dissolved in the machine

1.Fill water to "1" water level.

2.Add the power. Run for 30 seconds to dissolve it completely.

3.Put in the laundries. Select suitable water level.

The instant dissolvingof the washingpowder:

1.Prepare warm water of 30?and a container.

2.Add the powderwhile stirring tofully dissolve it.

Put in theproper quantities detergentaccording to thewater level andthe

laundries quantities .

It is suggestednot to usehigh sudsing detergent.

Washing powder with poor quality or long time storage maybe caked.

Process washing

1.Put into thelaundry and detergent, then fillthe

water needed.

Install the water inlet hose

Insert the water inlet hose into the water-filling

entrance on the control panel.

The appliance is to be connected to the water

mains using new hose-set and old hose-set

should not be reused.

Water inlet hose

Water-filling

entrance

2.Close the toplid

3.Connect the powerline

Confirm that the washing machine is

earthed reliably. Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

1.Confirm that the drain hose is properly

hanged before fill water, or the water will

flow through the drain hose.

2.Inside the washing machine tubbiness, It be

marker reference water line"1"£¬"2"£¬"3"and

the top water line"MAX".Not to a certainty

over the mark"MAX".

NOTE

About ~36

About7~8

About8~10

About2 4~

4.Washing duration reference

Select washing duration depending on the laundry

Laundry Washing Duration(min)

Silk fabric(thin laundry)

Knitted fabric/chemical fabric

Bed sheet

Cotton, blending or linen fabrics

Very dirty or heavy laundry About10~15

5.Finish washing

The tumbler stops revolving. Level the draining hose

down to let the waste water out.

If the cabinetis dirty, wipe itwith

wet cloth

Do not flushit directly with water.

Wipe it withneutral detergent.

Do not wipeit with thinner, petrol,

alcohol etc.

Disposal after washing

After washing, close the water faucet. ( If needed,

you can dismantle the water inlet hose).

Hang up the power cord and drain hose.

Be sure to pull off the power plug before maintenance.

Do not store water in the washing machine for a long

period. Drain the water completely after each using.

Wipe off the water drops on the surface of the

machine and inside the tub. Open the top lid for

some time (about 1 hour), then close the top lid.

Thinner

Alcohol

Petrol

(To set to below 2 minute,

first set to 6 minute then

turn it back. it can increase

the service life of the timer).

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo Manual de usuario

Haier

Haier HMS1260TVE Manual de usuario

Haier

Haier HW80-B14266A-EC Manual de usuario

Haier

Haier AWT-75LI Manual de usuario

Haier

Haier HW-E1060TVE Manual de usuario

Haier

Haier B628TX Instrucciones de montaje

Haier

Haier JW-G42A Manual de usuario

Haier

Haier HWM130-113S Manual de usuario

Haier

Haier HW120-B14686 Series Manual de usuario

Haier

Haier HWM75-1279 Manual de usuario

Haier

Haier SWM1000EC Manual de usuario

Haier

Haier XPB50-22S Manual de usuario

Haier

Haier Thermocool HWM110-287S Manual de usuario

Haier

Haier HWM72-27S Manual de usuario

Haier

Haier HU-HA501 Guía del usuario

Haier

Haier HWM105-M186 Manual de usuario

Haier

Haier HWM70-A Manual de usuario

Haier

Haier 650 Manual de usuario

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manual de usuario

Haier

Haier JW-K33A Manual de usuario

Haier

Haier HWM65-0566 Manual de usuario

Haier

Haier HW-B1460 Guía de inicio rápido

Haier

Haier HWM90-0577 Manual de usuario

Haier

Haier HW90-B14636 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
