Haier GDZ5-1 Manual de usuario

HAIER

COMPACT DRYER

GDZ5-1

Training Presentation

HAIER

COMPACT DRYER

GDZ5-1

11 lbs. Electric Dryer

Stackable – Built in – Free Standing

4.13cu ft Stainless Steel Drum

Dual Temperature Operation

Dry Time Selector

“Clean Filter” Indicator Lamp

208-220v

Outdoor Venting Required

HAIER

COMPACT DRYER

GDZ5-1

WARRANTY

1st year – all parts and labor

2nd year – all parts

3rd –5

th year – drive motor, timer and

drum rust through

3rd –10

th year – cabinet rust through

HAIER

COMPACT DRYER

GDZ5-1

Stacked on top of

XQG50-QF800

Front Loading Washer

The dryer is mounted with a

locking frame attached using

the leveling legs.

Push the dryer back then lift

up to ‘unlock’ it from the

washer

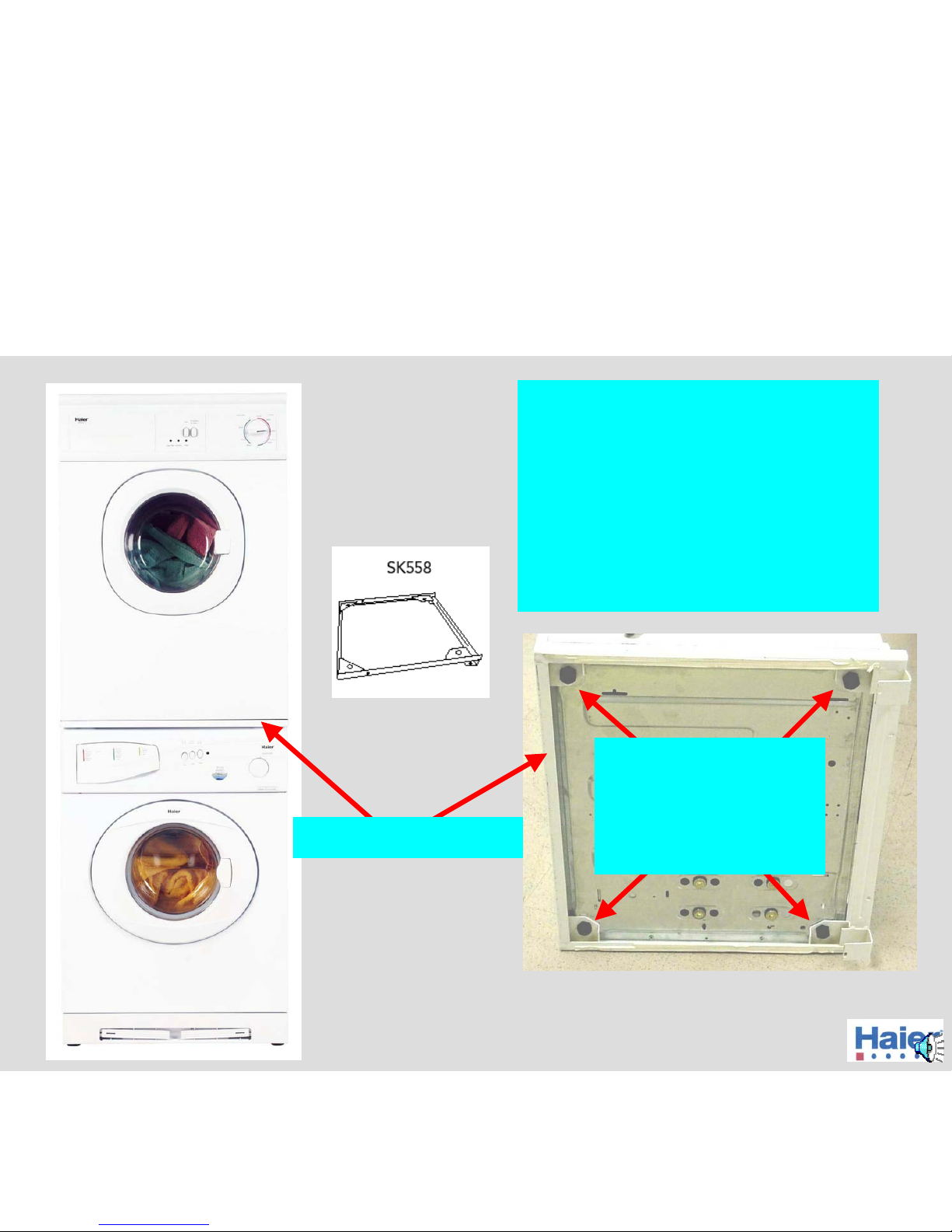

Stacking Kit

Leveling Legs

are used to

mount the

stacking kit

The dryer is mounted with a

“Stacking Kit” attached using

the original leveling legs

Push the dryer back then lift

up to ‘unlock’ it from the

washer

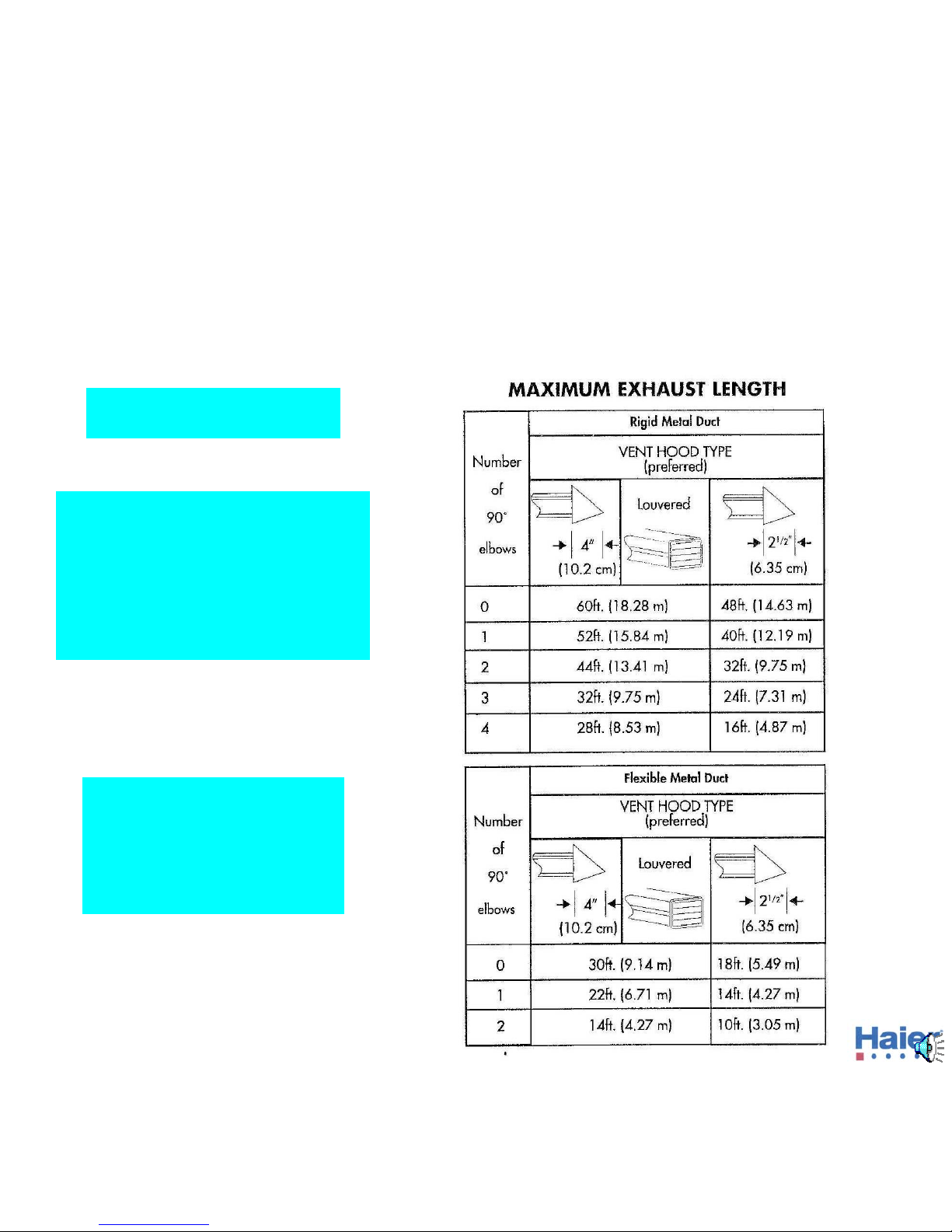

DUCTING

Use only 4” diameter

rigid or flexible metal

duct and approved vent

hood which has a swing

out damper.

This chart shows the

maximum duct

length when elbows

are used.

CONTROL PANEL

Timed Dry Only

with a cool down period

on all settings

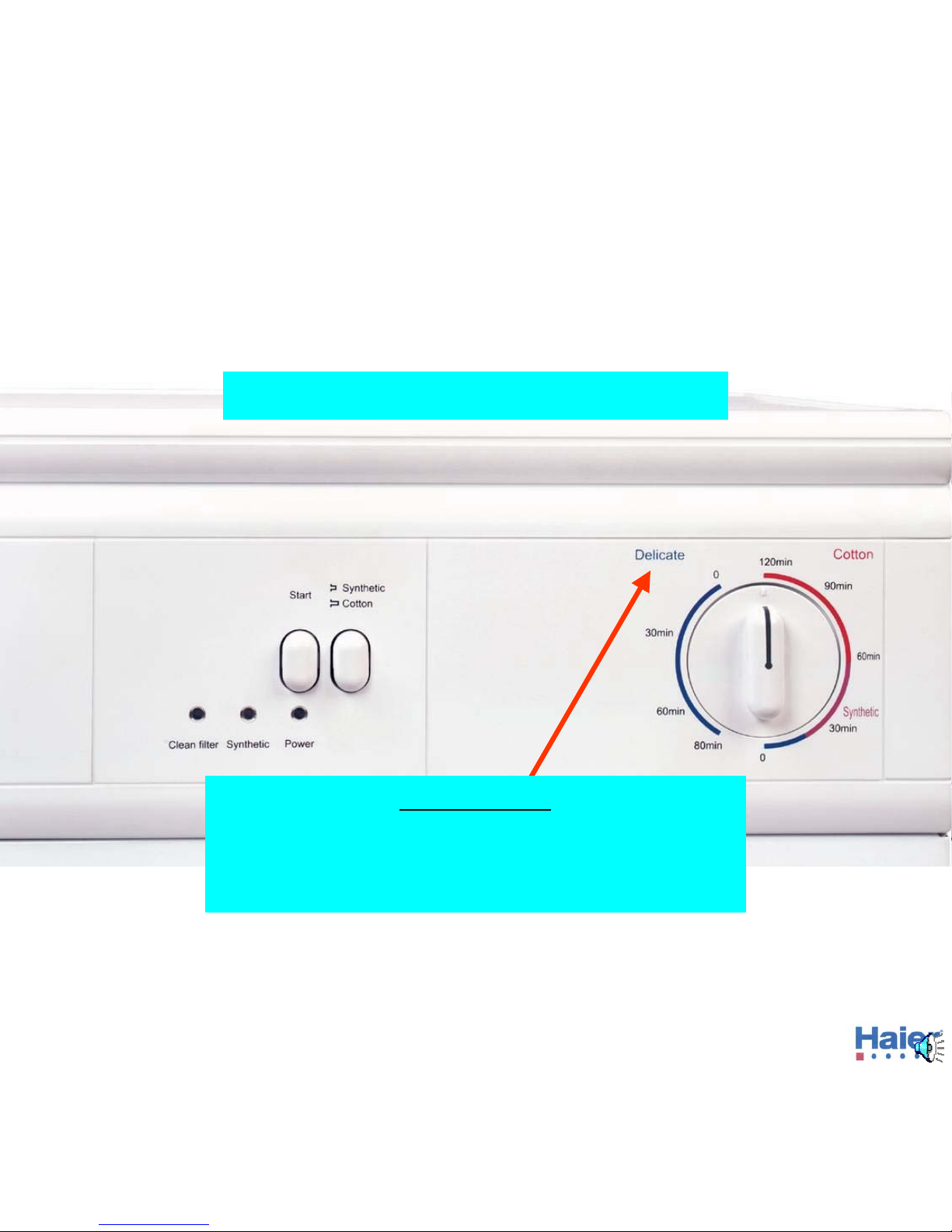

CONTROL PANEL

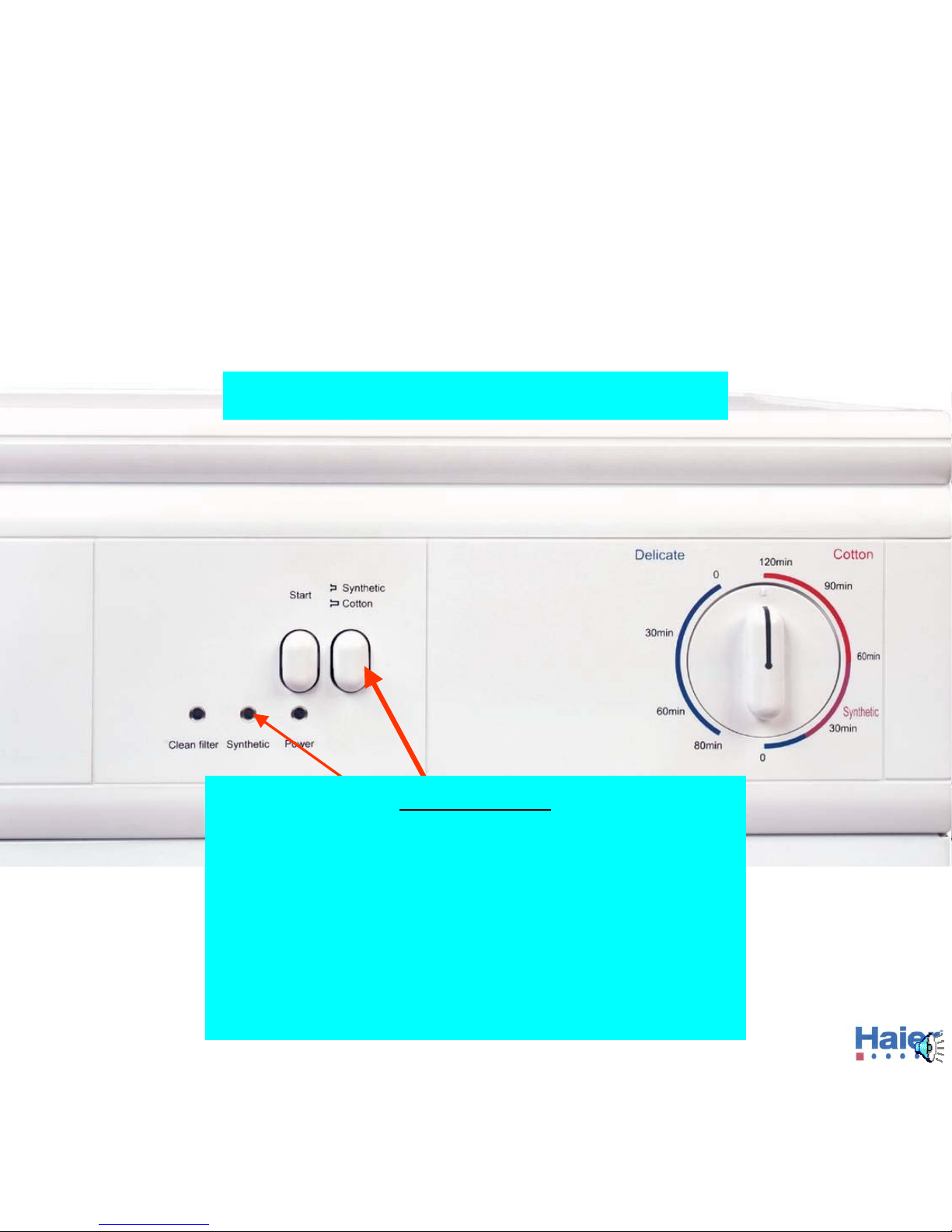

Temperature

is selected using the

Synthetic / Cotton switch

Cotton – High Heat – Button Out

Synthetic – Low Heat – Button In

The Synthetic Light will be lit when the

button is in the Synthetic setting

CONTROL PANEL

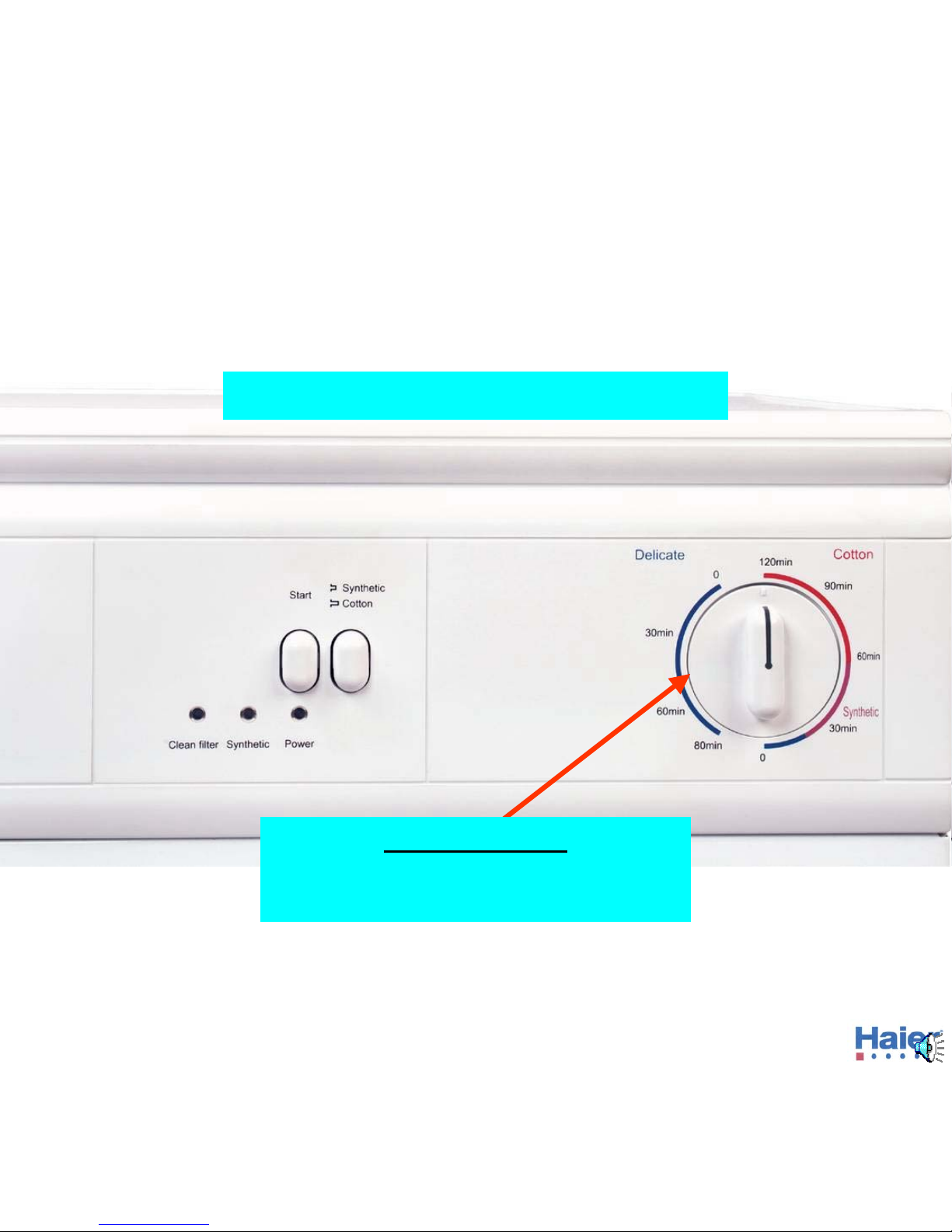

Temperature

Low Heat is automatically selected when the

Delicate setting is selected on the timer

CONTROL PANEL

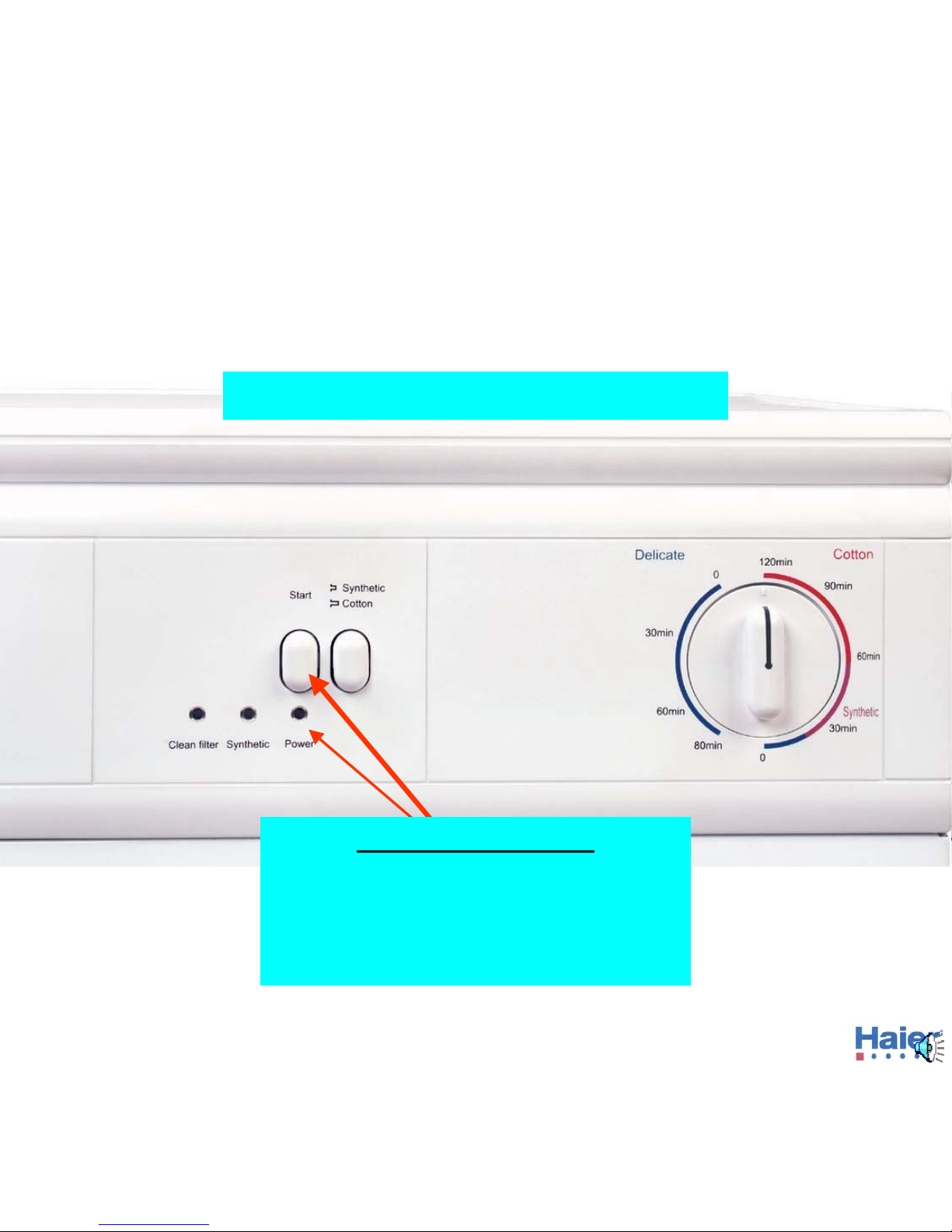

Push to Start Switch

Select timer setting then

push to start the cycle

Power light will be lit
