FULLY AUTOMATIC

DISHWASHER

SERVICE MANUAL

PART # DW-8888-04

HAIER AMERICA TRADING, LLC

www.haieramerica.com

HDP18PA

Dishwasher

Service Manual

Models:

BKD45W

BFD45W

 Features

 computer control



Three layer spew pour, advance lotion rate

 Stainless steel inside conrage ,nylon ground

Haier Group

Manual code: 0120501663 Edition:2003.01.01

Contents

1. Product Code illumination and Series introduction …………………….………...3

2. Features………………………………………………… ……………………………….4

3. Specifications…………………………………………… ………………………………4-6

4. Safety Precaution………………………………………… ………………………….…7-8

5. Warning and Cautions………………………………… ……………………………….9-10

6. Net Dimension……………………………………………………………………………11

7. Installation and Accessory Parts…………………… ………………………………….11-12

8. Parts and Functions………………………………… ………….. ………………...…...13-17

9. Function Schedule………………………………………………………………………..18

10. Program Diagram…………………………………………………………………………19

11. Maintenances Service and Trouble Shooting……… ………………………………20-25

12. Circuit Diagram……………………………… ………………………………….….….26

Product Code illumination and Series

Introduction

1.Product Code Illumination and Series Introduction

Model Identification

□□□□ ─□□□□

A BC D E F G H

A: Abbreviation of dishwasher

B: Automatic/semi-automatic

C: Type of washing

D: Code name of Nominal capacity

E: Series of factory design

F: Freestanding/built –in/semi-built-in

G: Mechanical/Electronic

H: The second series of factory design code name described/outer side material

Examples:

WQP12-BFE

It represents automatic spraying electronic freestanding dishwasher, the cavity capacity is 12

standard sets.

WQP12-BFE SS

It represents automatic spraying electronic freestanding dishwasher, the cavity capacity is 12

standard sets, with stainless steel outer side.

WQP12-HFE

It represents automatic spraying electronic freestanding dishwasher, the cavity capacity is 12

standard sets, with stainless steel outer side.

WQP12-HFE ME

It represents automatic spraying electronic freestanding dishwasher, the cavity capacity is 12

standard sets, with stainless steel outer side.

Features

2.Feature

2.1 computer control

2.2Three layer spew pour, advance lotion rate

2.3Stainless steel inside conrage ,nylon ground

Specifications

3.Speciafications

DISHWASHER Free

Last update 2002-12-31

Supplier Type N°. HDP18PA

Suppliers bar code N°. EAN

Sales Brand / Model GXCH

Sales bar code N°. EAN

Key-features

Energy efficiency Class -

Washing efficiency Class -

Drying efficiency Class -

Noise level power / pressure dB(A) 60/-

Energy consumption* kWh / year 450

kWh/24h

Water consumption* Gallon 3.1

Duration of programme (Based on 65° normal prog.) mins.

Place settings (international standard) 6

Programs (incl. additional programme functions) n° 4

Programme selection single dial / electronic - /

Washing temperatures °F 104,149

Spray levels n°. 2

Certification's (ETL/CSA/UL/EEV/ISO9001) ETL/DOE/EEV/ ISO 9001

Technical equipment

Work top / -removable - /

Decor frame / optional /

Water heating element hidden / open - /

Refill spy-lamps salt / rinse aid - /

Program progress indicator LED / visual /-

Inner door S= stainless steel / P= plastic S

Interior S= stainless steel / P= plastic S

Dispenser system Detergent / Rinse aid /

Water softening system / n°. of water hardness levels -

Electronically controlled water hardness -

Easy clean filter system / self cleaning micro filter /-

Height adjustable top basket 

Cuttlery slidingtray/removablebasket /

Plates sizes bottom basket / uper basket cm --

Water inlet hose cold water / hot water /

Water drain hose / -hose support

Drying system Condenser / Turbo vented Natural

Height adjustable feet n°. / max. mm 4/20

Delay timer (from - to) h

1-9

Safety systems

Child resistant door lock CDL

Anti flood system AFS 

Waterproof anti leak system ALS 

Water return protection WRP 

Acqua Stop kit

Programs

Pots & Pans Wash °F

Heavy Dry °F 149

Normal Wash °F 131

Light Wash °F 113

Glassware Wash °F

Rinse & Hold Wash °F Cold Water

Additional program settings (optional function keys)

Half load Wash °F 

Hi-Temp Wash °F -

Heated Dry °F -

Technical data

Voltage/frequency V/Hz AC115V/60Hz

Nominal power(W) W 1450

Main fuse (intensity)(A) A 15

Product dimensions

Unitdimensions (HxWxD) In.

Depth with open door In.

Net weight lbs

Built-In

Requested measures of niche (H x W x D) In.

Dimensions of door panel (H x W) In.

Packing

Dimensionsofpacking (HxWxD) In.

Weight of packing (all materials) lbs.

Informations for importer

14,5 m (84 CBM.) Truck load capacity pcs

Jumbo (120 CBM.) Truck load capacity pcs

40' Container load capacity pcs

40' HC load capacity pcs

Max. failure rate (12 Months after sales to end customer) pc/%

Packing materials / Recycling symbols RS

Carton (weight) lbs

Polistyren (weight) lbs

Polyetylene foil (weight) lbs

Otherpackingmaterials (weight) lbs

Wood (weight) kg

Delivery Time of First Batch

Safety Precaution

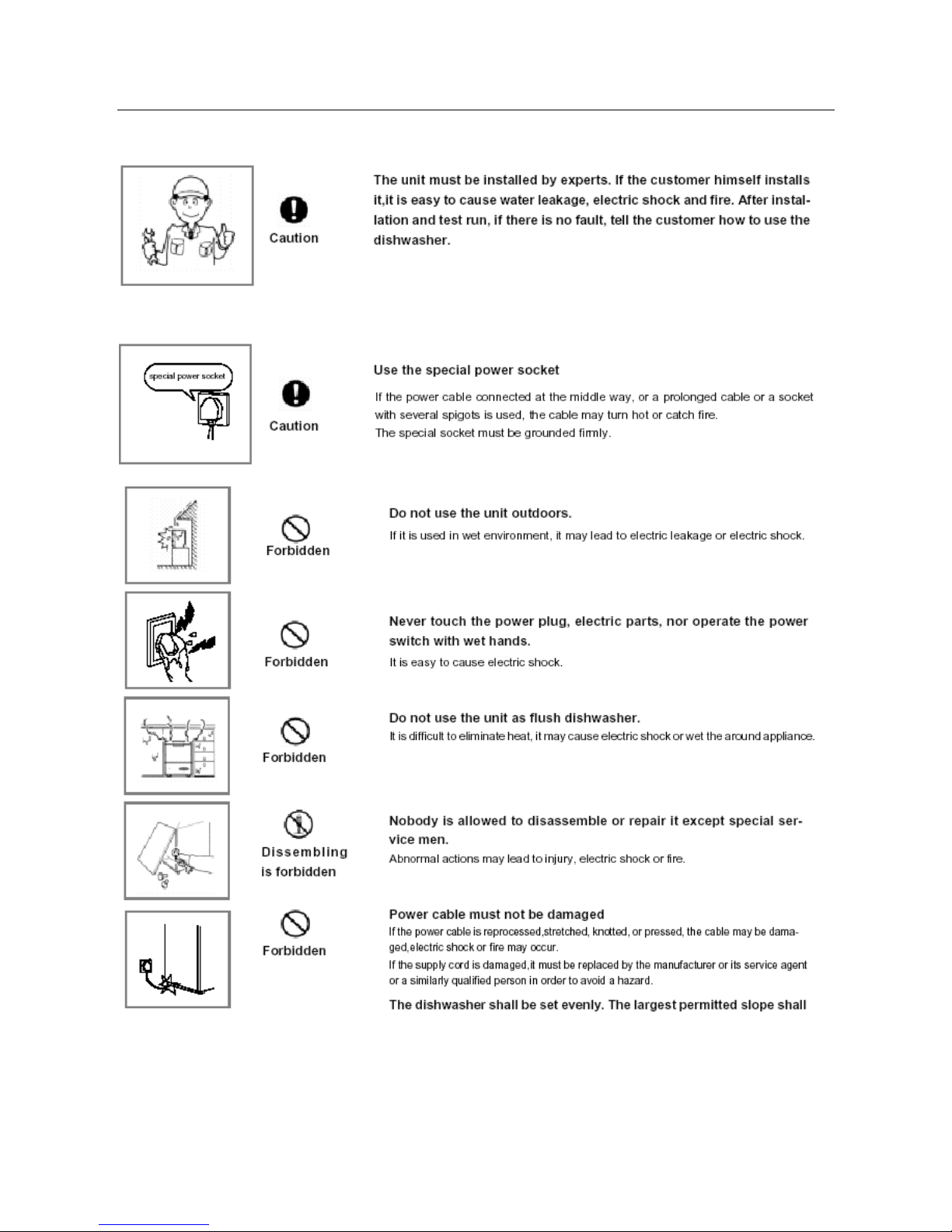

4. Safety Precaution

Safety Precuation
