Hager 16AX Manual de usuario

www.hager.com

Safety instructions

Electrical equipment must only be installed and assembled by a qualied

electrician in accordance with the relevant installation standards, regulations,

directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to

the device, re or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

- For the ush-mounted installation in standard wall boxes

(recommended wall box depth ≥ 35 mm).

- Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm²

Distance of xing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

16AX switches 1way/2way

10AX intermediate switch

Hager Dream

Installation manual

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and

cover all live parts in the area!

Preparing the device for installation

(for example “16AX 2gang 1way switch”)

1Cover

Notches

Carefully loosen the cover on the notches with a at-blade screwdriver (1).

Remove the cover.

Connecting the device

CL1

NN LL

2A 1way switch

General

circuit diagram 1gang 1way

switch 2gang 1way

switch

1way

L2 L2

L1 L1

CL1

2way switch

General circuit diagram

1gang 2way

switch 2gang 2way

switch

1gang 2way

switch

2way 2way

CL1

L1 1 1

L2 L2

Intermediate switch

General circuit diagram

Intermediate

switch

1gang 2way

switch 1gang 2way

switch

2way 2way

Intermediate

Strip connection cables approx. 10 ... 12 mm.

Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example “16AX 2gang 1way switch”)

After wiring, x the device with the two screws attached into the wall box (3).

Assembling the cover

(for example “16AX 2gang 1way switch”)

Cover

Snap the cover onto the device (4).

2-5gang frames are available for multiple combinations.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de hager

hager

hager EG170 Instrucciones de instalación

hager

hager EGN100AU Manual de usuario

hager

hager TX 025 Manual de usuario

hager

hager EE 200 Manual de usuario

hager

hager HI460 Manual de usuario

hager

hager EE200 Manual de usuario

hager

hager HXE030H Manual de usuario

hager

hager HXA031H Manual de usuario

hager

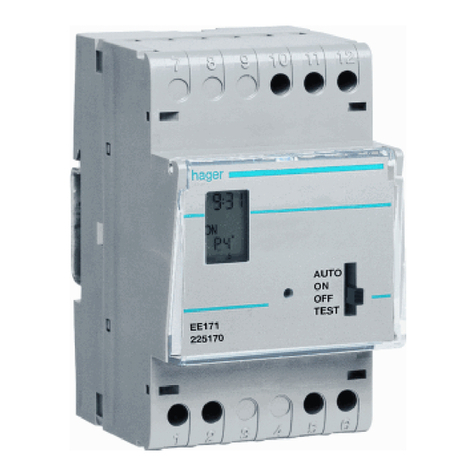

hager EE171 Manual de usuario
