H3C RA200 Manual de usuario
H3C RA200 Router
Interface Moudle Guide
New H3C Technologies Co., Ltd.
http://www.h3c.com.hk
Document version: 6W102-20170510
Copyright © 2014-2017, New H3C Technologies Co., Ltd. and its licensors
All rights reserved
No part of this manu al may be reprod uced or transmitted in any form or by a ny means without prior written
consent of New H3C Technologies Co., Ltd.
Trademarks
H3C, , H3CS, H3CIE, H3CNE, Aolynk, , H3Care, , IRF, NetPilot, Netflow, SecEngine,
SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of New H3C Technologies
Co., Ltd.
All other trademarks that may be mentioned in this manual are the property of their respective owners
Notice
The information in this document is subject to chan ge without notice. Every ef fort has been made in the
preparation of this do cument to en sure accuracy of the co ntents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Preface
This document provides information about RIC modules supported by the RA200 route r, including
module appearance, LEDs, port specifications, and connection methods.
This preface includes the following topics about the documentation:
•Audience
•Conventions
•Obtaining documentation
•Technical support
•Documentation feedback
Audience
This documentation is intended for:
•Network planners.
•Field technical support and servicing engineers.
•Network administrators working with the the RA200 router.
Conventions
The following information describes the conventions used in the documentation.
Command conventions
Convention Description
Boldface Bold text represents commands and keywords that you enter literally as shown.
Italic Italic text represents arguments that you replace with actual values.
[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.
{ x | y | ... }
Braces enclose a set of required syntax choices separated by vertical bars, from which
you select one.
[ x | y | ... ]
Square brackets enclose a set of optional syntax choices separated by vertical bars,
from which you select one or none.
{ x | y | ... } *
Asterisk marked braces enclose a set of required syntax choices separated by vertical
bars, from which you select a minimum of one.
[ x | y | ... ] *
Asterisk marked square brackets enclose optional syntax choices separated by vertical
bars, from which you select one choice, multiple choices, or none.
&<1-n> The argument or keyword and argument combination before the ampersand (&) sign
can be entered 1 to n times.
# A line that starts with a pound (#) sign is comments.
GUI conventions
Convention Description
Boldface Window names, button names, field names, and menu items are in Boldface. For
example, the New User window opens; click OK.
Convention Description
> Multi-level menus are separated by angle brackets. For example, File > Create >
Folder.
Symbols
Convention Description
WARNING! An alert that calls attention to important information that if not understood or followed
can result in personal injury.
CAUTION: An alert that calls attention to important information that if not understood or followed
can result in data loss, data corruption, or damage to hardware or software.
IMPORTANT: An alert that calls attention to essential information.
NOTE: An alert that contains additional or supplementary information.
TIP: An alert that provides helpful information.
Network topology icons
Convention Description
Represents a generic network device, such as a router, switch, or firewall.
Represents a routing-capable device, such as a router or Layer 3 switch.
Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that
supports Layer 2 forwarding and other Layer 2 features.
Represents an access controller, a unified wired-WLAN module, or the access
controller engine on a unified wired-WLAN switch.
Represents an access point.
Wireless terminator unit.
Wireless terminator.
Represents a mesh access point.
Represents omnidirectional signals.
Represents directional signals.
Represents a security product, such as a firewall, UTM, multiservice security
gateway, or load balancing device.
Represents a security module, such as a firewall, load balancing, NetStream, SSL
VPN, IPS, or ACG module.
T
T
T
T
Examples provided in this document
Examples in this document might use devices that differ from your devi ce in hardware model,
configuration, or software version. It is norm al that the port nu mbers, sample output, screenshots,
and other information in the examples differ from what you have on your device.
Obtaining documentation
To access the most up-to-date H3C product documentation, go to the H3C website at
http://www.h3c.com.hk
To obtain information about installation, configuration, and maintenance, click
http://www.h3c.com.hk/Technical_Documents
To obtain software version information such as release notes, click
http://www.h3c.com.hk/Software_Download
Technical support
service@h3c.com
http://www.h3c.com.hk
Documentation feedback
You can e-mail your comments about product documentation to [email protected].
We appreciate your comments.
i
Contents
RIC ·······························································································1
Specifications····························································································································1
RIC-4GEE/RIC-8GEE ··········································································································1
RIC-4GEF/RIC-8GEF···········································································································2
RIC-1XGEF························································································································3
Connecting an interface module to the network ················································································4
Connecting an Ethernet cable ································································································4
Connecting an optical fiber ····································································································5
Index ·····························································································9
1
RIC
RIC interface modules are 0.5 U high interface modules designed for RA series routers. The RIC
modules include the following models:
•RT-RIC-4GEE
•RT-RIC-8GEE
•RT-RIC-4GEF
•RT-RIC-8GEF
•RT-RIC-1XGEF
Unless otherwise specified, RT-RIC-XXX interface modules are referred to as RIC-XXXX interface
modules in this document.
Specifications
RIC-4GEE/RIC-8GEE
Port specifications
Table 1 Port specifications
Item RIC-4GEE RIC-8GEE
Connector type RJ-45
Ports 4 8
Interface type MDI/MDIX
Standard 802.3/802.3u/802.3ab
Transmission medium Straight-through and crossover Ethernet cables
Maximum transmission distance 100 m (328.08 ft) over category-5 twisted pair cables
Operating mode 10/100/1000 Mbps autosensing
Full duplex/half duplex autonegotiation
Compatible device models and slots
•RIC-4GEE: RA200 (Slot 2 to Slot 4, Slot 6, Slot 7)
•RIC-8GEE: RA200 (Slot 2, Slot 3, Slot 6, Slot 7)
LEDs
Figure 1 RIC-4GEE panel
Figure 2 RIC-8GEE panel
2
Table 2 LED description
LED Status Description
RUN
Steady green The interface module is operating correctly.
Flashing green (8 Hz) The interface module is being initialized.
Flashing green (1 Hz) The interface has been identified.
Off The interface module does not have power input or is faulty.
GE
Steady green A 1000 Mbps link is present.
Flashing green The port is sending or receiving data at 1000 Mbps.
Steady yellow A 10/100 Mbps link is present.
Flashing yellow The port is sending or receiving data at 10/100 Mbps.
Off No link is present.
Connection methods
See "Connecting an Ethernet cable."

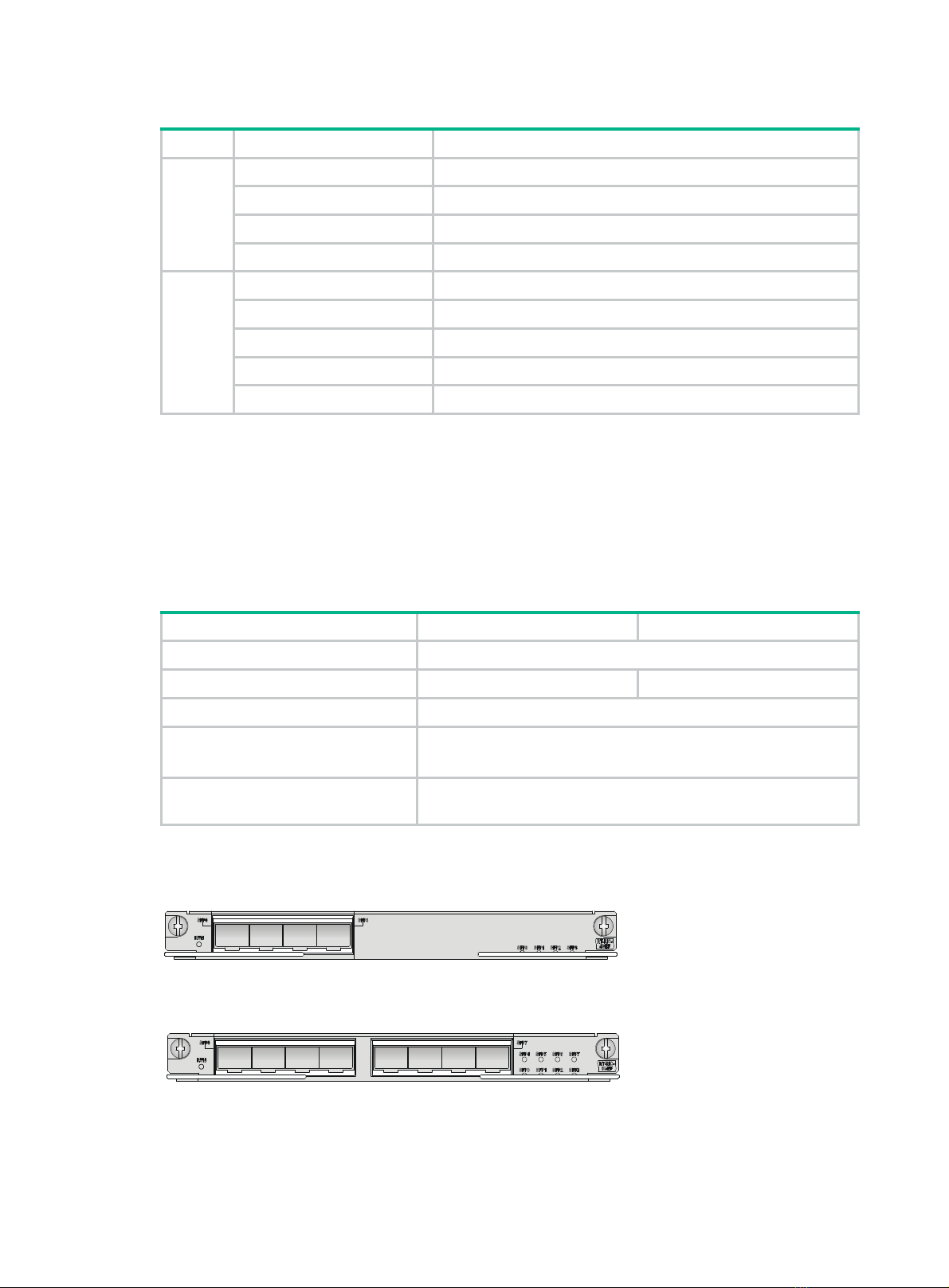

RIC-4GEF/RIC-8GEF
Port specifications
Table 3 Port specifications
Item RIC-4GEF RIC-8GEF
Connector type SFP/LC
Ports 4 8
Standard 802.3/802.3u/802.3ab
Operating mode 1000 Mbps
Full duplex
Compatible device models and slots
•RIC-4GEF: RA200 (Slot 2 to Slot 4, Slot 6, Slot 7)
•RIC-8GEF: RA200 (Slot 2, Slot 3, Slot 6, Slot 7)
LEDs
Figure 3 RIC-4GEF panel
Figure 4 RIC-8GEF panel
3
Table 4 LED description
LED Status Description
RUN
Steady green The interface module is operating correctly.
Flashing green (8 Hz) The interface module is being initialized.
Flashing green (1 Hz) The interface has been identified.
Off The interface module does not have power input or is faulty.
SFP
Steady green A 1000 Mbps link is present.
Flashing green The port is sending or receiving data at 1000 Mbps.
Steady yellow A 100 Mbps link is present.
Flashing yellow The port is sending or receiving data at 100 Mbps.
Off No link is present.
Connection methods
For more information about supported transceiver modules and connection methods, see
"Connecting an optical fiber."
RIC-1XGEF
Port specifications
Table 5 Port specifications
Item RIC-4GEF
Connector type SFP+/LC
Ports 1
Standard 802.3ae
Operating mode 10000 Mbps
Full duplex
Compatible device models and slots RA200 (Slot 2 to Slot 5)
LEDs
Figure 5 RIC-1XGEF panel
Table 6 LED description
LED Status Description
RUN
Steady green The interface module is operating correctly.
Flashing green (8 Hz) The interface module is being initialized.
Flashing green (1 Hz) The interface has been identified.
Off The interface module does not have power input or is faulty.
4
LED Status Description
LINK/ACT
Steady green A 10000 Mbps link is present.
Flashing green The port is sending or receiving data at 10000 Mbps.
Steady yellow The link is faulty.
Off No link is present.
Connection methods
For more information about supported transceiver modules and connection methods, see
"Connecting an optical fiber."
Connecting an interface module to the network
Connecting an Ethernet cable
Overview
You can connect a RIC-4GEE or a RIC-8GEE to the network through Ethernet cables as shown in
the following figure.
Figure 6 Ethernet cable
10/100 Mbps Ethernet uses category-5 twisted pair cables, and 1000 Mbps Ethernet uses
category-5 enhanced or category-6 twisted pair cables. Twisted pair cables include straight-through
cables and crossover cables.
Table 7 Ethernet cables
Cable type Feature Transmission
frequency Applicable
scenario
Category-5 Common Ethernet cables 100 MHz 100Base-T and
10Base-T networks
Category-5e
•Low attenuation and crosstalk
•Higher attenuation to crosstalk ratio (ACR)
•Less delay error and higher performance
100 MHz 1000 Mbps Ethernet
networks
Category-6
•Improved performance on crosstalk and
return loss
•Sufficient power sum ACR (PS-ACR) when
working at 200 MHz
•Bandwidth twice than that of Cat-5e cables
1 MHz to 250
MHz
Applications
requiring a
transmission speed
of more than 1 Gbps
The 10/100 Mbps Ethernet uses two pairs of cables, orange/white, orange, green/white and green
cables, to transmit and receive data, while the 1000 Mbps Ethernet uses four pairs of cables to
transmit and receive data.
For the pinouts of common twisted pair cables, see the following tables. (A and B represent the two
ends of a cable, respectively.)
Otros manuales para RA200
1
Tabla de contenidos
Otros manuales de Enrutador de red de H3C
H3C
H3C S7500 Series Instrucciones de instalación
H3C
H3C CR16000-M Manual de operación y mantenimiento
H3C
H3C MSR 900 Series Manual de usuario
H3C
H3C MSR 20 Series Manual de usuario
H3C
H3C S1016 Manual de usuario
H3C
H3C AR 18-3XE Series Manual de usuario
H3C
H3C S3610 Series Manual de usuario
H3C
H3C S3100-52P Manual de usuario
H3C
H3C CR19000-16 Manual de usuario
H3C
H3C SR6600 SPE-FWM Manual de usuario
H3C
H3C SR6604 Manual de usuario
H3C
H3C SR8800-X Manual de operación y mantenimiento
H3C
H3C S3100-52P Manual de usuario
H3C
H3C S9500 Series Manual de usuario
H3C
H3C LS-5100-16P-SI-OVS-H3 Guía rápida
H3C
H3C s5800 series Manual de usuario
H3C
H3C MSR 5660 Manual de uso y cuidado
H3C
H3C AR19 Series Manual de usuario
H3C
H3C MSR5620 Manual de usuario
H3C
H3C SR6602-X Manual de usuario
Manuales populares de Enrutador de red de otras marcas
NETGEAR
NETGEAR FS526T - Switch Manual de usuario
Korenix
Korenix JetNet 5710G Series Manual de usuario
Automated Logic
Automated Logic ZN551 Manual del propietario
Cisco
Cisco ASR 1000 Series Manual del operador
EnGenius
EnGenius ESR-9710 Manual de usuario
Cisco
Cisco 805 Series Instrucciones de funcionamiento y seguridad
