1
INSTRUCTION
MANUAL
PRODUCTS NAME: BLENDER HSB-0621FS 3 IN 1
Products Applied: 535.43.277
English
2

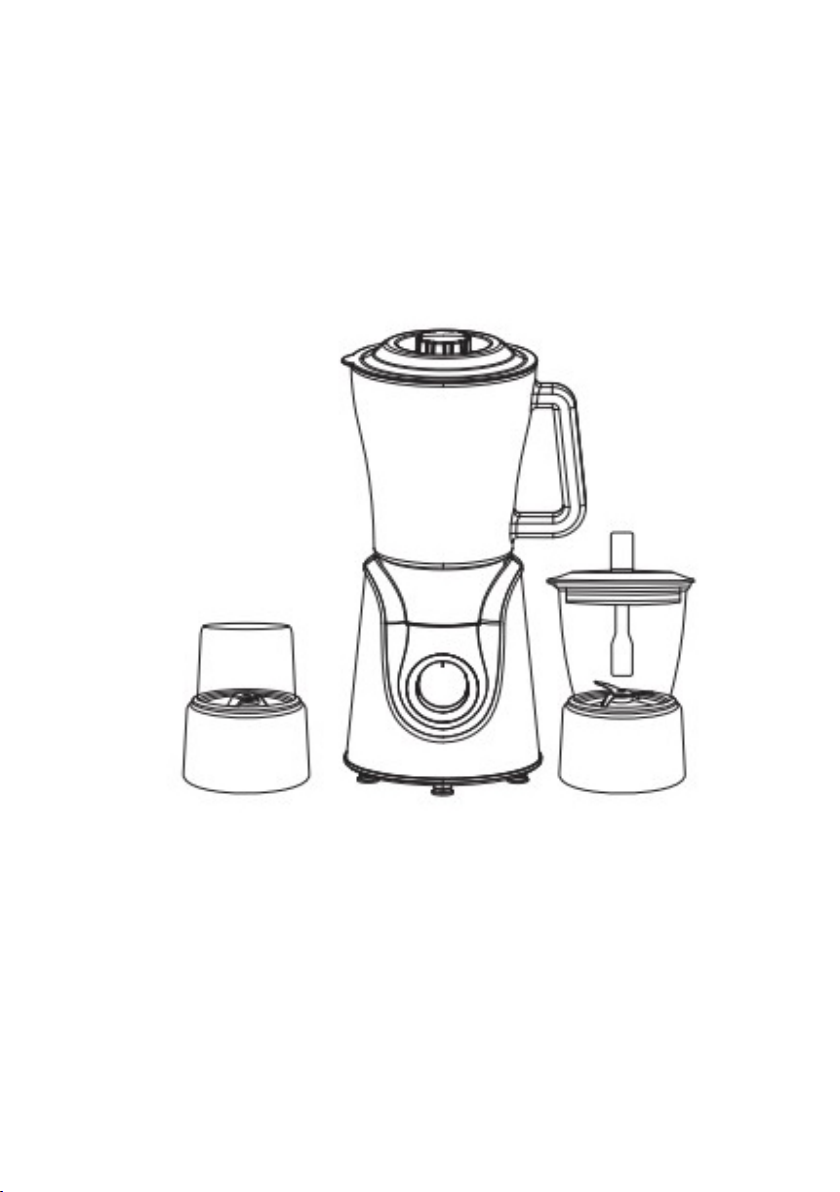

BLENDER HSB-0621FS 3 IN 1
Please read all instructions carefully before using
3
Key parts name and location
Mixer Grinder
1
2
3
4
5
6
7
8
9
5
10
11
12
13
14
15
Meat grinder
4
7
9
7
8
9
1、Top cover
2、Mixing cup cover
3、Mixing cup
4、Sealing ring
5、Mixing blade
6、Mixing blade holder
7、Rotor
8、Main machine
9、Position switch
10、Scraper
11、Mincing cup cover
12、Mincing cup
13、Mincing cutter seat
14、Grinding cup
15、Grinding cutter seat
8
4
FEATURES
READ BEFORE USE
WORK TIME
1.The machine is for all your blending and grinding needs.
2.Simple and refined design, beautiful, integrated structure, easy to operate and
easy to clean
3.High rotating speed electrical machinery with overheat protection, high
efficiency, time and energy saving, increase service life for electrical machinery.
4.Safety lock device ensures safe and reliable operation
1.The machine has safety protection device. The electrical machine does not
work when fastener does not closely fasten top cover or knife stand is not
screwed tightly to ensure safe use.
2.Please check if power supply is in line with rated voltage before use to avoid
damage.
3.Clean all dismountable parts (refer to “maintenance and clean”)
4.Please read carefully “Key parts name and location” picture for assembling.
5.Please read carefully the “instruction”before use.
The machine has O position, I position, II position and P button switch(O is stop,
I weak, II strong, P point mobility ). Select point mobility and strong position for
meat blending, mincing, and grinding. Process for 10 seconds and then stop
for 5 seconds, turn on the machine after 1 minute rest when processing for one
minute. Select point mobility or strong position for blending vegetable, fruit and
soybean milk. Select weak position for mixing eggs. Please stop for 15 minutes
when the above jobs are done three times consecutively. Turn on the machine
again after cooling of electrical machinery. In this way we can prolong the service
life of the machine.
5
1.Screw meat stirring cup into blade stand (rotate
clockwise)
2.Get rid of bone, skin, and tendon of the meat to be
processed and then clean the meat. Cut the meat into 2
cm dice. Put the meat of 200 g every time into stirring cup.
Cover the cup lid and put the cup into main machine. Screw
it clockwise with your hand holding tightly stirring cup. Turn
on button, and then processing begins.
3.Put appropriate edible oil and flavor when stirring meat
for better flavor effect.
MEAT BLENDING
GRINDING
1.Grinding cup is suitable for grinding dry food into
powder. Put 150g into grinding cup every time, cover
grinding blade base and screw it tightly clockwise. Then
put into main machine as shown in the picture. Screw it
tightly with your hand holding grinding cup. Turn on the
switch and then grinding begins
2.When grinding oily materials like sesame, putting one
spoon of white sugar into the cup will have better effect
-
BLENDING
1.Firstly check if position switch is off (if switch is restored
to origin position )
2.Put sealing ring into knife base slot, and then screw the
stirring cup tightly with knife stand. (Lock tightly clockwise
and loose anti clockwise) Cover stirring cup and feeding
lid.
3.Hold knife stand and screw it clockwise into main
machine. Don’t hold vessel to dismantle it, otherwise
vessel will disconnect with knife stand and food in the cup
will exude.
NOTE:
If the machine is running idle, that is, the blade does not touch food, please
turn down the machine and cut off power supply. Loose the food and then
turn on the machine to continue grinding
NOTE:
If rotating speed slows down abruptly due to too much meat quantity or
tendon entangling blade, please turn down the machine, cut off power
supply, and adjust meat quantity or remove tendon.
6
STIRRING EGG
Put egg into stirring cup and appropriate boiled water. Then add some flour.
Cover the cup lid tightly. Press weak position switch for about one minute.
STIRRING VEGETABLE AND FRUIT
Peel fruit and vegetable and tip seed firstly, cut into dice. Add 250g-350g of
it and appropriate boiled water. Assemble according to assembling and use
instruction, then turn on the machine.
IMPORTANT
1.Keep out of the reach of children.
2.Put the machine in the stable surface and operate as per the above procedure.
3.Make sure that screen is locked with rotating stand before operation. The blade
does not hard contact with transparent cover. Cover transparent lid, fasten the
fastener then turn on the machine.
4.Do not wash main motor and power plug with water or other liquid. Only wipe
them with damp cloth.
5.Please check fruit grounds or juice in middle holder or grounds cup is too full.
Turn off the power supply and clear it if it is too full.
6.Don't remove cup lid during operation. Don't put hand or other vessel into stirring
cup and feeding hole when power is still on. Otherwise accident or damage will happen.
7.This product must not be idle nor exceed the requirement in processed amount
(normally, less than 60 percent would be best). Otherwise, bearings of motor and
blade will overheat.
8.Blades are very sharp. In order to avoid injury, when washing blades, please put
them under water tap to wash. Do not wash them with hand.
9.Please don't leave when the machine is working. Don't let children operate
the machine.
66
MEAT BLENDING
IMPORTANT
10.It is prohibited to run idle or overload when stirring, meat stirring and grinding.
11.Remove power plug and then pour out the food after every operation.
12.Do not put any parts into high temperature sterilizer to sterilize or boiler to steam
and boil for sterilization.
13.The machine is not recommended for other usage.
14.In order to prolong useful life of the machine, there is overheat protecting unit on
motor. When motor runs too long or with too heavy load, the temperature reaches
warning value, motor will stop automatically. After motor stops, pull out power supply
plug. Wait for motor to cool (about 20 to 30 minutes), then use again.
15.If power supply flexible cord is damaged, to avoid danger, do ask factory, its
service department or other special person to replace.
16.If you have any problem with this machine, do not disassemble by yourself,
contact the service department or after-sale service department of this Company.
1.It is recommended to use the machine often to keep electric machinery dry.
2.Please put the machine in a dry place to avoid electric machinery getting wet
and moldy.
3.Don't flush the main machine with water. Wipe it with wet cloth. Other parts can be
washed with water like fruit pushing bar, top cover, middle holder, grounds cup, etc.
4.It is recommended to dismantle blade in stirring cup, meat blending cup.
Then drop edible oil to blade shaft and bearing for lubrication.
5.Add appropriate warm water and detergent when cleaning stirring cup which
is loaded into main machine. Cover the cup lid and press switch. Water it with
fresh water after stirring for 30 seconds.
MAINTENANCE AND CLEANING
7
7
8
HƯỚNG DẪN
SỬ DỤNG
PRODUCT NAME - SERIES NO.:
TÊN SẢN PHÂM: MÁY XAY SINH TỐ HSB-0621FS 3 TRONG 1
Mã sản phẩm áp dụng: 535.43.277
Vietnamese
MÁY XAY SINH TỐ HSB-0621FS 3 TRONG 1
Vui lòng đọc kỹ tất cả các hướng dẫn trước khi sử dụng
9
1. Núm đậy
2. Nắp cối xay sinh tố
3. Cối xay sinh tố
4. Gioăng đệm
5. Dao cối xay sinh tố
6. Đế Dao cối xay sinh tố
7. Động cơ
8. Thân máy chính
9. Núm điều khiển
10. Dao nạo
11. Nắp cối xay thịt
12. Cối xay thịt
13. Đế dao cối xay thịt
14. Cối xay hạt
15. Đế dao cối xay hạt
10
CÁC BỘ PHẬN CHÍNH VÀ VỊ TRÍ
Máy xay sinh tố Máy xay khô
1
2
3
4
5
6
7
8
9
5
10
11
12
13
14
15
Máy xay thịt
4
7
9 9
7
88
