300W Oscillating Tool
Original Instruction Manual
Important - Please read these instructions fully before operating or maintaining your Guild High
Frequency Oscillating Tool
These instructions contain important information that will help you get the best from your Guild
Oscillating Tool, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
PMF300GH.1
UK/Ireland 0333 3201989
Help@guildpowertools.co.uk
Customer Helpline 0333 3201989
2
Contents
Safety Information....................................................................................................3
In The Box.................................................................................................................7
Accessories ..............................................................................................................7
Operating Instructions..............................................................................................8
Troubleshooting......................................................................................................12
Maintenance ........................................................................................................... 12
Technical Data ........................................................................................................ 13
Environmental Protection.......................................................................................14
Guarantee...............................................................................................................15
Plug Replacement (Uk & Ireland Only) ...................................................................15
Customer Helpline 0333 3201989
3
Safety Information
Important - Please read these instructions fully before starting assembly
Warning Symbols
The following warning symbols appear throughout this assembly manual and
indicate the appropriate safety measures you should take when assembling and
operating the multi function tool.
To reduce the risk of injury, user must read instruction manual
Wear eye protection
Wear ear protection
Wear dust mask
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice..
Customer Helpline 0333 3201989
4
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
WARNING Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result
in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
Original Instructions
Customer Helpline 0333 3201989
5
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe injury
within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Customer Helpline 0333 3201989
6
Safety Information
Important - Please read these instructions fully before starting assembly
Safety instruction for cutting
1. Hold power tool by insulated gripping surfaces, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory
contacting a "live" wire may make exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Additional safety rules:
1) Always wear eye protection.
2) Always wear ear protection during extended periods of operation.
3) Always inspect and remove all nails and screws etc before sanding.
4) Always check walls and ceilings to avoid hidden power cables and pipes. A metal
detector can be obtained from any good DIY store for this purpose.
5) Use the original accessories and the tool provided, no others.
6) Only use accessories in good condition. Do not use torn or worn accessories.
7) Do not turn the machine on whilst any of the accessories are resting on or inserted into
the work piece or material that you want to work with. Wait until the machine is up to
full speed before proceeding with your task.
8) Keep your hands away from cutting area. Do not reach under the material being cut.
9) The operating instructions and the enclosed safety information should be kept carefully
for later use and enclosed with the machine, should it be passed on or sold.
Safety warning for LED lamp
WARNING: The LED lamp equipped with power tool is in excess of the Exempt Group.
In order to avoid the viewer-related risk, operator shall be more careful and read all
safety warnings and all instructions. Failure to follow the warnings and instructions
may result in optical injuries.
Customer Helpline 0333 3201989
7
In The Box

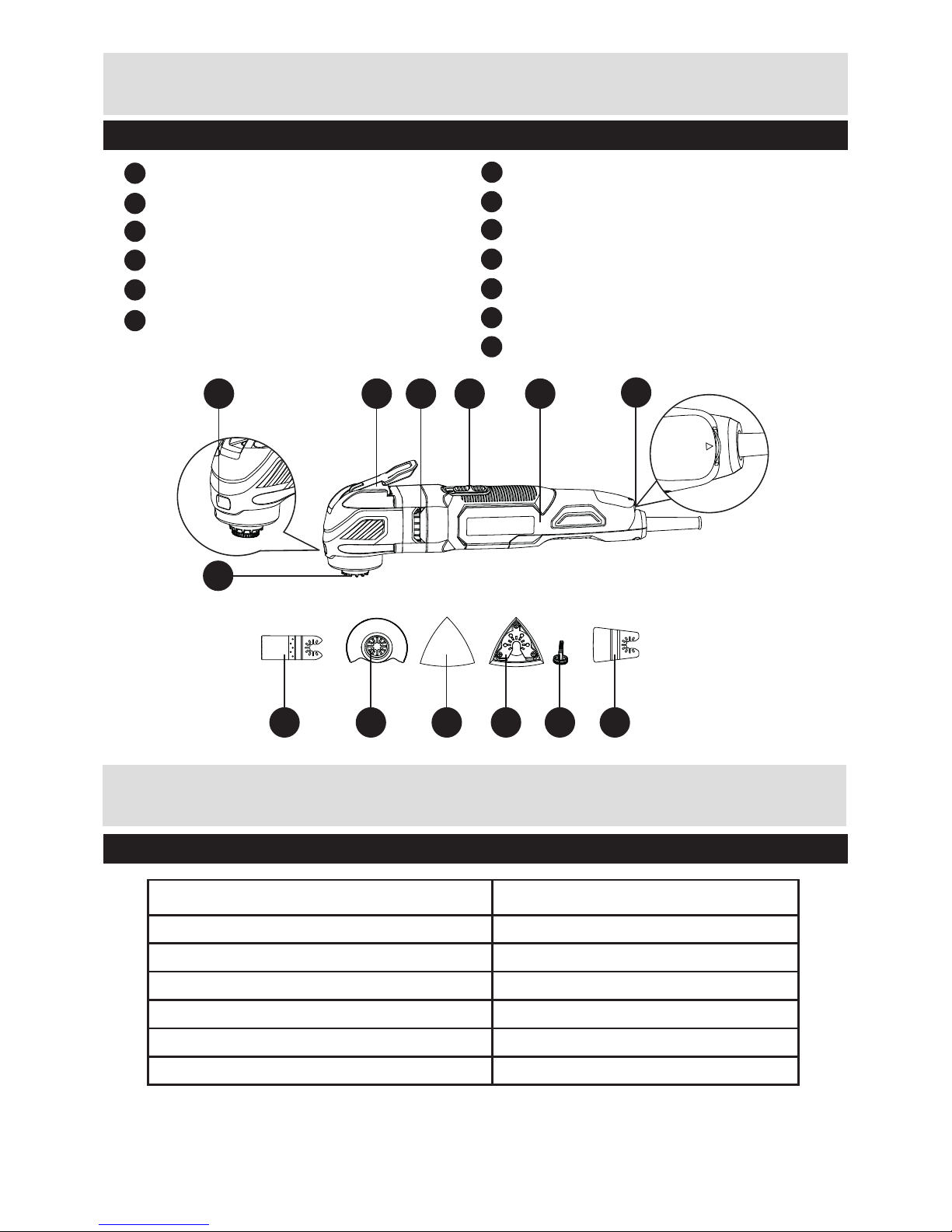

Parts
Flange
LED
Straight cutter
Mesh sanding sheet
Segment saw blade
Sanding pad
Scraping
Tool-free blade change lever
On/Off switch
Variable speed
Handing area
Venting slots
Blade Interface
1
2
39
4
5
6
7
8
10
11
12
13
Accessories
PMF300GH.1
Sanding sheet (80/100/120grit) 15
Sanding pad 1
3-1/8" Circular segment saw blade 1
Scraper 1
1-1/8" Standard straight cutter 1
1-3/8" Standard straight cutter 1
8
6
1
9 11 10 12 7
25 4 3
13
Customer Helpline 0333 3201989
8
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The power tool is intended for sawing and remodelling wooden materials, plastic, plaster, non-ferrous
metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry
grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.
1. ASSEMBLE ACCESSORIES
CAUTION: For all work or when assembling accessories, always wear protective
gloves. Avoid risk of injury from the sharp edges of the accessories. Accessories
can become very hot while working, presenting danger of burns! Make sure the tool is
unplugged prior to assembling accessories.
WARNING: To reduce the risk of injury, do not let the sharp side of the accessory
face back toward the user’s hand.
Flip the tool- free blade change lever
(
1
)
forward to the open position and take off the
flange(6) from the machine. (SEE FIG. A)
Insert the accessory onto the blade interface
(
6
)
, Make sure/ ensure the accessory is on the
right position of the blade interface
(
6
)
. ( SEE EXAMPLE FIG. B1 B2 )
Operating Instructions
B1 B2
A
Operation instructions
Customer Helpline 0333 3201989
9
Re-insert the flange
(
7
)
, press the flange
(
7
)
to keep the blade or other accessory
temporarily secure. Flip the tool- free blade change lever
(
1
)
back to original position to
secure the accessory. (SEE FIG. C1 C2)
ASSEMBLING / CHANGING THE SANDING SHEET (SEE FIG. D, E)
(1) please follow the same steps for assembling / changing as above instruction.
(2) Place the mesh sanding sheet directly onto the base plate and press the sheet onto the pad.
Firmly press the oscillating tool with the installed sanding sheet against a flat surface and
briefly switch the power tool on. This provides for good adhesion and prevents premature wear.
If one point has become worn after use, pull off the sanding sheet, turn it 120°, and re-install.
2. OPERATING THE ON/OFF SWITCH (SEE FIG. F)
——Switching the power tool ON:
Slide switch forward.
——Switching the power tool OFF:
Slide switch backward.
Operating Instructions
C1 C2
D E
Operation instructions
Customer Helpline 0333 3201989
10
Operating Instructions
3. USING THE VARIABLE SPEED DIAL (SEE FIG. G)
Select oscillation frequency (speed) while the motor is running.
The Variable Speed Dial can be used to set the optimum oscillating frequency according to
the accessories used and the respective application.
High oscillation frequency:
Sanding, sawing, rasping and polishing stone and metal.
Low oscillation frequency:
Scraping, polishing varnishes.
4. LED (SEE FIG. H)
The LED allows you to keep a clear view under less illuminated circumstances. To turn on
the light, simply press the on/off switch. When you release the on/off switch, the light will
turned off.
5. ELECTRONIC FEEDBACK
Your tool is equipped with an internal electronic feedback system which helps to keep the
preselected speed virtually constant between no-load and load conditions.
GH
F
Operation instructions
Tabla de contenidos
Otros manuales de Herramientas eléctricas de Guild
Guild
Guild PMF250G Manual de usuario
Guild
Guild PSJ700G Manual de usuario
Guild
Guild PSJ550GL Manual de usuario
Guild
Guild CAP110D-12 Manual de usuario
Guild
Guild PRT210GH Manual de usuario
Guild
Guild PHG200GL Guía del usuario
Guild
Guild PSJ750GH Manual de usuario
Guild
Guild PRT150G Manual de usuario
Guild
Guild PPL900GH Manual de usuario
