Service instructions

BMP 0.2 - 1.2 S

BMP 0.3 - 2.1 NS

1 / 10

96611955 1005 GB 10

Table of contents

1. Type identification........................................................................................................................... 2

1.1 Nameplate ..........................................................................................................................................................2

1.2 Type key..............................................................................................................................................................2

2. Torques and lubricants................................................................................................................... 3

3. Service tools .................................................................................................................................... 4

3.1 Special tools ........................................................................................................................................................4

3.2 Standard tools......................................................................................................................................................4

3.3 Torque tools.........................................................................................................................................................4

4. Dismantling and assembly ............................................................................................................. 5

4.1 General................................................................................................................................................................5

4.2 Dismantling..........................................................................................................................................................5

4.3 Assembly.............................................................................................................................................................6

4.4 Checking the wear parts......................................................................................................................................7

4.5 Fault finding.........................................................................................................................................................8

5. Checking of motor and cable ......................................................................................................... 9

5.1 Exploded view....................................................................................................................................................10

2 / 10

1. Type identification

This section shows the type key, the nameplate and the codes that can appear in the variant code.

Note: As codes can be combined, a code position may contain more than one code (letter).

1.1 Nameplate

1.2 Type key

TM029357 2404

Fig. 1 Nameplate

Pos. Description Pos. Description

1 Type designation 6 Pressure

2 Model 7 Liquid temperature

3Rated flow rate [m3/h] 8 Weight

4 Head 9 Country of origin

5 Speed

Example BMP 10,2 R- A- P- G- BBVP

Pump range

BMP = With standard motor

BMPE= With external frequency

converter

Maximum flow rate [m3/h]

Blank =All components in contact with

the pumped liquid are made of

stainless steel EN/DIN 1.4301 and PEEK

N = Designed for demineralised water.

All components in contact with

the pumped liquid are made of

stainless steel EN/DIN 1.4301 and PEEK

R = All components in contact with

the pumped liquid are made of

stainless steel 1.4410 and PEEK

Code for pump version

A = First generation

Code for pipe connection

O = External thread

G = Victaulic/PJE

Code for materials

I = Stainless steel (1.4301)

G = Stainless steel (1.4401)

Code for shaft seal

B = Bellows (rubber)

B = Carbon

V=Al

2O3

P=NBR

Type: BMP 10.2 R - A - P - G - BBVP

Model: A96126108 - 0424

Q: 10.2

H: 816.0

n min /max: 700 1800

P min /max: 10 80

T min /max:

Weight: 272

Made in DK

96126190

m 2677

m/h 2.32

3US GPM

Feet

min-1

PSI

3/ 50 C 37/122 F

bar

3 / 10

2. Torques and lubricants

This section shows the screws and nuts that must be tightened to a certain torque and the lubricants to be used.

Gardolube L 6034, part no. SV9995 (1 l).

Rocol 22, part no. RM2924 (1 kg).

Pos. Description Number Torque [Nm] Lubricant

Hexagon socket head screw

27±1

Gardolube L 603418 4 22 ± 1

38 1 10 ± 1

O-ring

1 Rocol 22

20 1 Soapy water

21 1

34 1 Rocol 22

4 / 10

3. Service tools

The following drawings and tables show special, standard and torque tools for pump service.

3.1 Special tools

3.2 Standard tools

3.3 Torque tools

ABCD

EFGH

Pos. Description For pos. Suppl. information Part no.

A Torpedo 8 Included in the shaft seal tool kit 96577087

BPressring 15

Pos. Description For pos. Suppl. information Part no.

C Hexagon key 17, 18, 38

D Ring/open-end spanner

E Screwdriver Straight slot

F Puller SV0335

Pos. Description For pos. Suppl. information Part no.

G Torque wrench 17, 18, 38 4 - 20 [Nm] SV0292

20 - 100 [Nm] SV0269

H Ratchet insert tool F SV0295

I Hexagon socket driver

J Hexagon socket

5 / 10

4. Dismantling and assembly

4.1 General

If it is necessary to dismantle the pump, either because it is choked or damaged, please follow the instructions in the

following sections.

Position numbers of parts (digits) refer to drawings and parts lists; position numbers of tools (letters) refer to section.

Before dismantling the pump:

• Disconnect the electricity supply to the motor.

• Close the isolating valves, if fitted, to avoid draining the system.

• Remove the electric cable in accordance with local regulations.

• Note the centre of gravity of the pump to prevent it from overturning. This is especially important in the case of long

pumps.

Before assembly:

• Clean and check all parts.

• Replace defective parts by new parts.

• Order the necessary service kits.

• Replace gaskets and O-rings when the pump is overhauled.

During assembly:

• Lubricate and tighten screws and nuts to correct torque as stated in section.

4.2 Dismantling

Note: The pump must only be dismantled in absolutely clean environment.

4.2.1 Removing the coupling

1. Remove the screws and the washers of the coupling.

2. Pull the pump off the motor.

3. Remove the coupling insert.

4. Remove the screws of the coupling guard and remove the guard.

5. Slacken the set screw.

6. Remove the coupling half with a puller.

4.2.2 Removing the shaft seal

1. Remove the key (pos. 30) and the screws (pos. 17).

2. Remove the guide/lid (pos. 16).

3. Remove the O-ring (pos. 34), and press the stationary shaft seal part (pos. 15) out of the guide/lid.

4. Moisten the rotating shaft seal part (pos. 15) with soapy water, and remove it by means of two screwdrivers.

Note: The rotating part consists of washer, spring and gasket.

4.2.3 Removing the pistons and valve plate

1. Remove the O-rings (pos. 35).

2. Place the pump with the shaft downwards.

3. Remove the screws (pos. 18).

4. Remove the pump housing (pos. 1).

Fig. 2 Stationary shaft seal part Fig. 3 Rotating shaft seal part

6 / 10

5. Remove the retainer plate (pos. 4) with the pistons (pos. 22).

6. BMP 0,3: Remove the spring guide (pos. 26) and spring (pos. 7)

BMP 0,6 - 2,1: Remove the retainer guide (pos. 5), spring guide (pos. 26) and spring (pos. 7).

7. Remove the pin (pos. 3) and O-ring (pos. 13).

8. Lift the cylinder barrel (pos. 8) with valve plate (pos. 9) out of the port flange (pos. 14).

9. Remove the port plate (pos. 10) and the pins (pos. 11 and 12).

10.Place the cylinder barrel (pos. 8) with valve plate (pos. 9) on the table and twist them apart with a screwdriver.

11.Remove the backup and O-rings (pos. 20 and 21) of the valve plate (pos. 9).

4.3 Assembly

4.3.1 Checking

Check all wear parts before assembling the pump, see 4.4 Checking the wear parts.

4.3.2 Fitting the pistons and valve plate

1. Fit the O-ring (pos. 13) and the pins (pos. 3, 11 and 12) on the port flange (pos. 14).

2. Fit the port plate (pos. 10).

3. Fit the backup rings (pos. 20) and O-rings (pos. 21) on the valve plate (pos.9); one pair per piston. Moisten

them with soapy water, see fig. 4.

4. Fit the valve plate (pos. 9) on the cylinder barrel (pos. 8). Press the parts together using your hands, see

fig. 5. There must be a gap of 1.5 to 2.5 mm.

5. Put the cylinder barrel with valve plate together with the port part.

6. BMP 0,3: Fit the spring guide (pos. 26) and spring (pos. 7)

BMP 0,6 - 2,1: Fit the spring guide (pos. 26), spring (pos. 7) and retainer guide (pos. 5).

7. Fit the retainer plate (pos. 4) with the chamfered end against the barrel, and insert the pistons (pos. 22).

8. Fit the pump housing (pos. 1). Note the position of the pin (pos. 3).

9. Turn the pump and press it together using your hand.

10.Lubricate the screws (pos. 18) with Gardolube and tighten them with 22 ± 1 [Nm].

4.3.3 Fitting the shaft seal

1. Place the guide/lid (pos. 16) on the table with the turned down end upwards.

2. Fit the stationary shaft seal part (pos. 15) with the rubber gasket downwards using the punch (B).

3. Fit the O-ring (pos. 34) on the guide/lid (pos. 16) and lubricate it with Rocol 22.

4. Fit the thread bush (A) on the shaft and moisten it with soapy water.

5. Fit the rotating shaft seal part (pos. 15) with the seal face upwards using the punch (B).

6. Fit the guide/lid (pos. 16) on the pump.

7. Lubricate the screws (pos. 17) with Gardolube and tighten them with 7 ± 1 [Nm].

8. Check that the shaft can be pressed 0.5 to 1 mm with your hand.

4.3.4 Fitting the coupling

1. Fit the coupling half.

2. Tighten the set screw.

3. Fit the coupling insert on the coupling half.

4. Fit the coupling guard and screws.

5. Mount the pump on the motor.

6. Tighten the pump to the motor with the screws and washers.

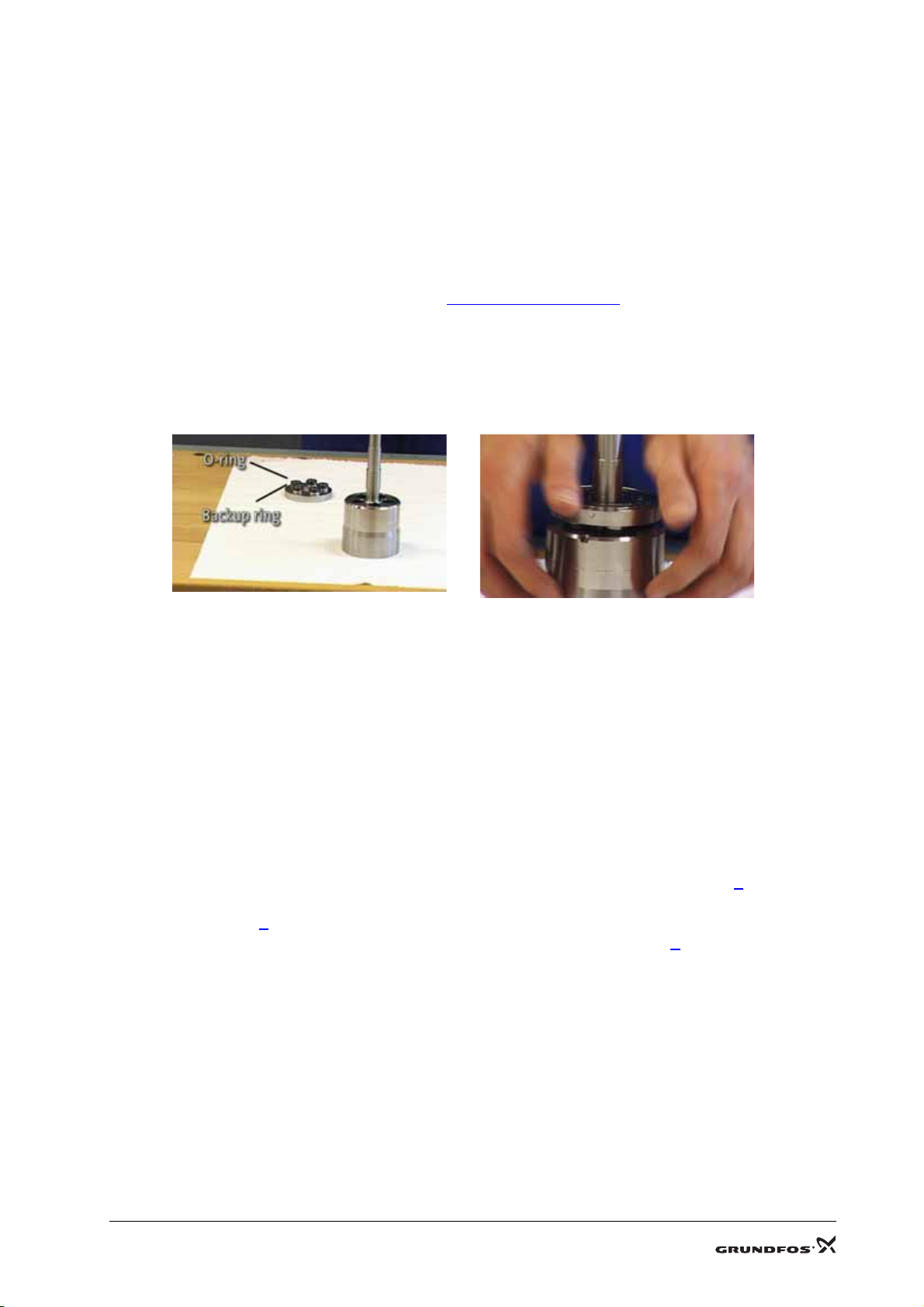

Fig. 4 Backup rings and O-rings Fig. 5 Fitting the valve plate

7 / 10

4.4 Checking the wear parts

If there are any steel wear particles, caused by plastic, which is worn of, then scrap the pump!

Port plate and thrust plate:

There must be no wear on whether port plate or thrust plate. This can be

checked by laying a (hair) ruler upon the surface controlling the tightening

land against the light.

Pistons:

Play in ball- and -socket joint must not exceed 0.1 mm.

Thickness of slippers collar must not be below :

BMP 0.3-1.0NS and BMP 0.2-0.6S >2.85 mm.

BMP 1.7-2.1NS and BMP 1.0-1.2S >4.1 mm.

The surface of the slippers must be plane and smooth (can be checked by

hair ruler). If pistons are with wear layer (black colour), partial wear of this is

acceptable.

Cylinder barrel:

The outer bearing surface must be without any bigger wear grooves

(not critical).

There must be no seizures and bigger scratches in the bushings, - and

ensure that the pistons move freely in them!

Housing with swash plate and bearing:

The surface on the swash plate must be smooth without any bigger

scratches. More than 0.1 mm wear in depth will reject the pump.

The bearing must be without any bigger wear grooves (not critical).

>2.85 mm.

>4.1 mm.

8 / 10

4.5 Fault finding

Before starting work on the pump, make sure that the electricity supply has been switched off and that it cannot be

accidentally switched on.

Fault Possible cause Remedy

The pump stops

during operation.

No water supply.

Low-pressure switch has cut out.

The level switch has cut out.

Check that the low-pressure switch functions normally and is

adjusted correctly.

Check that the minimum inlet pressure is correct. If not, check the

feed pump.

Check the water level in the water tank.

The fuses are blown. Check and replace the main fuses and/or fuses for control circuit,

if necessary.

The motor starter overload unit has tripped out. Reset the starter overload.

The magnetic coil in the motor starter/contactor is

defective (not cutting in). Replace the coil. Check the coil voltage.

The control circuit has cut out or is defective. Check the control circuit and the contacts in the monitoring

devices (low-pressure switch, level switch, etc.).

The motor/supply cable is defective. Check motor and cable

Thepump runs,but

gives no water or

develops any

pressure.

No or insufficient water supply at the pump suction

port. Check that the inlet pressure is at least 0 bar.

The piping system or pump is choked up. Check the piping system and pump.

The prefilter is clogged. Clean the prefilter.

The pump is worn. Replace wear parts. Contact Grundfos Service.

Wrong direction of rotation. Interchange two phases in the motor main connection.

The pump runs at

reduced capacity.

The pump is partly blocked by impurities. Dismantle, clean and check the pump.

Replace defective parts. Contact Grundfos Service.

The pump is defective. Replace defective parts. Contact Grundfos Service.

The prefilter is clogged. Clean the prefilter.

The motor speed is too low. Check the electricity supply.

Contact the electricity supply authorities, if necessary.

If a frequency converter is used, adjust the speed.

9 / 10

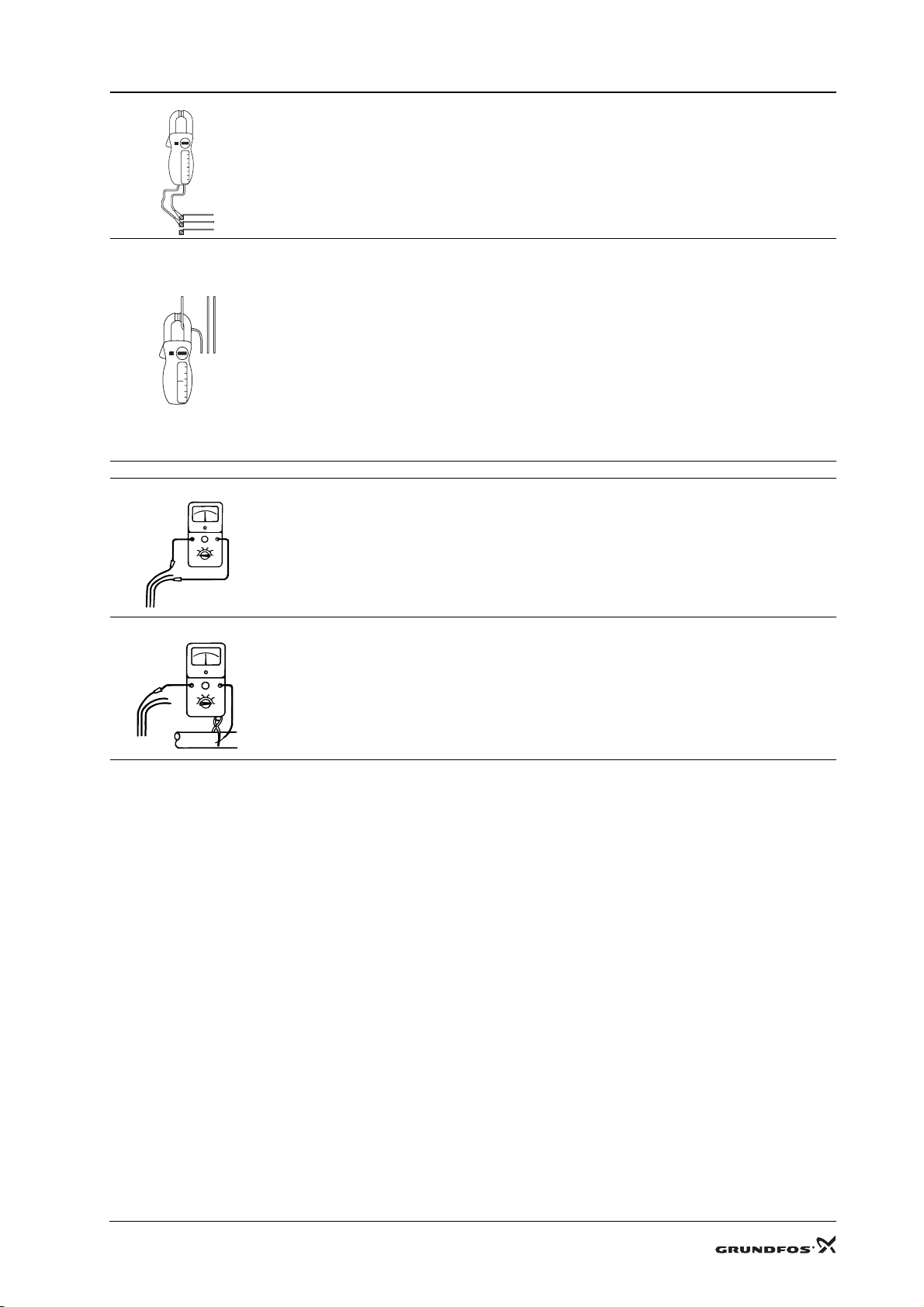

5. Checking of motor and cable

1. Supply voltage

TM00 1371 3597

Measure the voltage between the phases by

means of a voltmeter.

Connect the voltmeter to the terminals at the

mains connection.

The voltage should, when the motor is loaded, be within ±5% of

the rated voltage. The motor may burn if there are larger variations

in voltage.

If the voltage is constantly too high or too low, the motor must be

replaced by one corresponding to the supply voltage.

Large variations in voltage indicate poor electricity supply, and the

pump should be stopped until the defect has been found.

Resetting of the motor starter may be necessary.

2. Current consumption

TM00 1372 3597

Measure the current of each phase while the

pump is operating at a constant discharge

pressure (if possible atthe capacity where the

motor is most heavily loaded).

The motor full-load current appears on the

motor nameplate.

The difference between the current of the phase with the highest

amp consumption and the one with the lowest amp consumption

must not exceed 10% of the lowest amp consumption.

If so, or if the current exceeds the full-load current, check the

following possible faults:

• Too high operating pressure which may overload the motor.

• Too high speed which may overload the motor.

• Damaged pump which may overload the motor.

• The motor windings are short-circuited or partly disjointed.

• Too high or too low supply voltage.

• Poor connection in leads. Weak cables.

Points 3 and 4: Measurement not needed if supply voltage and current consumption are normal.

3. Winding resistance

TM00 1373 3597

Disconnect the phase leads in the terminal

box.

Measure the winding resistance as shown on

the drawing.

The highest value must not exceed the lowest value by more than

5%.

If the deviation is higher, and the supply cable is OK, the motor

should be overhauled.

4. Insulation resistance

TM00 1374 3597

Disconnect the phase leads in the terminal

box.

Measure the insulation resistance from each

phase to earth (frame).

(Make sure that the earth connection is made

carefully.)

The insulation resistance for a new, cleaned or repaired motor

must be approx. 10 MΩ measured to earth.

For a given motor the critical insulation resistance (Rcrit) can be

calculated as follows:

Rcrit = UN[kV] x 0.5 [MΩ/ kV].

If the measured insulation resistance is lower than Rcrit, the motor

must be overhauled.

10 / 10

5.1 Exploded view

TM029435 4605

Otros manuales para BMP Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de agua de Grundfos

Grundfos

Grundfos DDI 222 Series Manual de usuario

Grundfos

Grundfos 5SQ-90 Manual de usuario

Grundfos

Grundfos SL1.50 Manual de usuario

Grundfos

Grundfos Sololift2 WC-3 Manual de usuario

Grundfos

Grundfos PS.W.04 Manual de usuario

Grundfos

Grundfos PHP A-1 4.0 Manual de usuario

Grundfos

Grundfos UP 15 series Manual de usuario

Grundfos

Grundfos PS.R Series Manual de usuario

Grundfos

Grundfos SPO Manual de usuario

Grundfos

Grundfos SRG 60 Hz Manual de usuario

Grundfos

Grundfos Geo-Flo MAGNA3 Manual de usuario

Grundfos

Grundfos CU 300 Manual de usuario

Grundfos

Grundfos CRK Series Manual de usuario

Grundfos

Grundfos FireSAFE Series Manual de usuario

Grundfos

Grundfos SE1 50 Manual de usuario

Grundfos

Grundfos Unilift AP Manual de usuario

Grundfos

Grundfos SE60 cable Ex Manual de usuario

Grundfos

Grundfos CR 32 Instrucciones de funcionamiento

Grundfos

Grundfos SE 12-42 hp Instrucciones de funcionamiento

Grundfos

Grundfos BMP 5.1 RS Instrucciones de funcionamiento

Grundfos

Grundfos NBS Instrucciones de funcionamiento

Grundfos

Grundfos CR 32 Instrucciones de funcionamiento

Grundfos

Grundfos MP1 Manual de usuario

Grundfos

Grundfos MAGNA3 25-100 (N) Manual de usuario

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario
