Grizzly G0638 Guía de inicio rápido

-50- G0637/G0638 Cyclone Dust Collector





 

















 



 





















 



 



 













 





 











 































 































































 



















































 

  















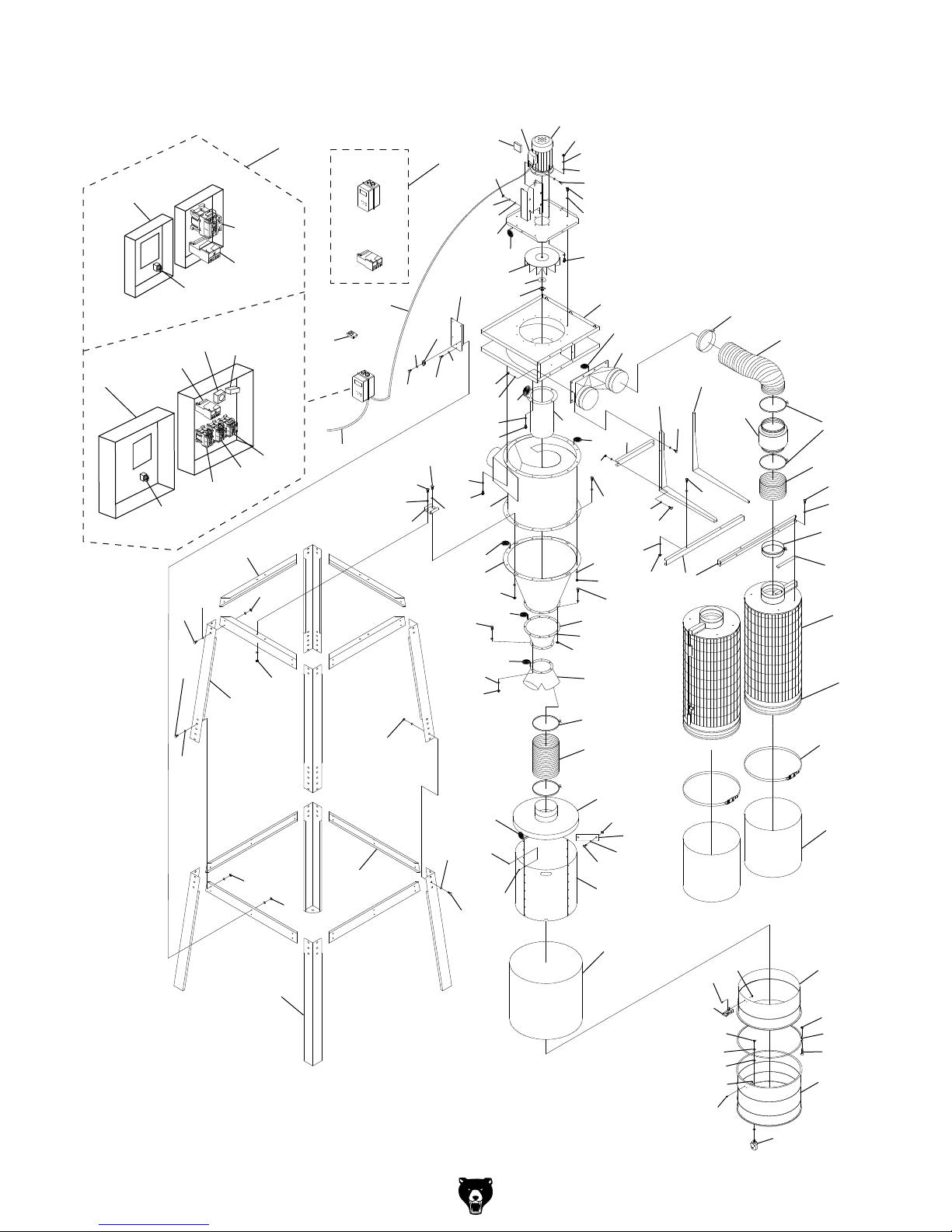

Parts Breakdown

G0637/G0638 Cyclone Dust Collector -51-

Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0637001

MOTOR 7.5HP 220V/3-PHASE

(G0637)

25 PW07 FLAT WASHER 5/16

1 P0638001

MOTOR 10HP 220V/3-PHASE

(G0638)

26 PN02 HEX NUT 5/16-18

1-1 P0637001-1 MOTOR JUNCTION BOX 27 P0637027 FILTER L-BRACE RIGHT

1-2 P0637001-2 MOTOR JUNCTION BLOCK 28 P0637028 FILTER L-BRACE LEFT

2 P0637002 MOTOR CORD 10AWG (G0637) 29 P0637029 FILTER BRACE SUPPORT SHORT

2 P0638002 MOTOR CORD 12AWG (G0638) 30 PB21 FLAT WASHER 3/8

3 P0637003 CONTROL BOX 220V (G0637) 31 PW02 HEX BOLT 3/8-16 X 3/4

3 P0638003 CONTROL BOX 220V (G0638) 32 PN08 HEX NUT 3/8-16

3-1 P0637003-1

CONTROL BOX CABINET W/IC

BOARD 220V (G0637)

33 P0637033 FILTER BRACE SUPPORT LONG

3-1 P0638003-1

CONTROL BOX CABINET W/IC

BOARD (G0638)

34 PB21 HEX BOLT 3/8-16 X 3/4

3-2 P0637003-2 POWER SWITCH (G0637) 35 PW02 FLAT WASHER 3/8

3-2 P0638003-2 POWER SWITCH (G0638) 36 PN08 HEX NUT 3/8-16

3-3 P0637003-3 CONTACTOR 220V (G0637) 37 P0637037 HOSE CLAMP 8"

3-3 P0638003-3

START TIMER OMRON H3BG 0-12

SEC (G0638)

38 P0637038 FLEXIBLE DUCT 8 X 31-1/2"

3-4 P0637003-4 OVERLOAD RELAY 220V (G0637) 39 P0637039 NOISE MUFFLER 8"

3-4 P0638003-4

OVERLOAD RELAY 220V SHIHLIN

TH-P20 28-38A (G0638)

40 P0637040 FLEXIBLE DUCT 8 X 4-3/4"

3-5 P0638003-5 TRANSFORMER (G0638) 41 P0637041

CANISTER FILTER 510 X 1200MM

(G0637)

3-6 P0638003-6

CONTACTOR SHIHLIN S-P21

(G0638)

41 P0638041

CANISTER FILTER 510 X 1500MM

(G0638)

3-7 P0638003-7

CONTACTOR SHIHLIN S-P21

(G0638)

41-1 P0637041-1 GASKET 25 X 3 X 1300MM

3-8 P0638003-8

CONTACTOR SHIHLIN S-P16

(G0638)

42 P0637042 RUBBER BRACE GASKET

4 P0637004 REMOTE CONTROLLER (G0637) 43 PW07 FENDER WASHER 5/16

4 P0638004 REMOTE CONTROLLER (G0638) 44 PB07 HEX BOLT 5/16-18 X 3/4

5 P0637005 POWER CORD 10AWG (G0637) 45 P0637045 FILTER BAG CLAMP 510MM

6 P0637006 MOTOR BASE 46 P0637046 COLLECTION BAG 510 X 600MM

7 PB16 HEX BOLT 3/8-16 X 1-1/2 47 P0637047 INTAKE CYLINDER

8 PW02 FLAT WASHER 3/8 48 P0637048 GASKET 3 X 6 X 1800MM

9 PLW04 LOCK WASHER 3/8 49 PB07 HEX BOLT 5/16-18 X 3/4

10 PN08 HEX NUT 3/8-16 50 PW07 FLAT WASHER 5/16

11 PB55 HEX BOLT 1/2-13 X 1-1/2 51 P0637051 INTAKE BARREL

12 PW01 FLAT WASHER 1/2 52 P0637052 CYCLONE FUNNEL LARGE

13 PLW07 LOCK WASHER 1/2 53 P0637053 GASKET 3 X 6 X 2500MM

14 PN13 HEX NUT 1/2-13 54 PB07 HEX BOLT 5/16-18 X 3/4

15 P0637015 IMPELLER 18" (G0637) 55 PW07 FLAT WASHER 5/16

15 P0638015 IMPELLER 18-1/2" (G0638) 56 P0637056 GASKET 3 X 6 X 2500MM

16 PW13 FLAT WASHER 3/4 (G0637) 57 PB12 HEX BOLT 5/16-18 X 1-1/4

16 P0638016 FLAT WASHER 1-1/6 (G0638) 58 PW07 FLAT WASHER 5/16

17 P0637017 HEX NUT 3/4-10 (LH) (G0637) 59 PN02 HEX NUT 5/16-18

17 P0638017 HEX NUT 1-1/16-8 (LH) (G0638) 60 P0637060 GASKET 3 X 6 X 2200MM

18 P0637018 GASKET 3 X 6 X 1700MM 61 P0637061 CYCLONE FUNNEL SMALL

19 P0637019 BLOWER 62 PB12 HEX BOLT 5/16-18 X 1-1/4

20 PW07 FLAT WASHER 5/16 63 PW07 FLAT WASHER 5/16

21 PB07 HEX BOLT 5/16-18 X 3/4 64 PN02 HEX NUT 5/16-18

22 P0637022 OUTLET PORT 65 P0637065 GASKET 3 X 6 X 735MM

23 P0637023 GASKET 3 X 6 X 1100MM 66 P0637066 FUNNEL PORT

24 PB03 HEX BOLT 5/16-18 X 1 67 PB12 HEX BOLT 5/16-18 X 1-1/4

-52- G0637/G0638 Cyclone Dust Collector

Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

68 PW07 FLAT WASHER 5/16 95 PLN01 LOCK NUT 3/8-16

69 PN02 HEX NUT 5/16-18 96 P0637096 UPPER STAND BRACE

70 P0637070 HOSE CLAMP 9" 97 P0637097 UPPER STAND LEG

71 P0637071 FLEXIBLE DUCT 9 x 25-1/2" 98 PB21 HEX BOLT 3/8-16 x 3/4

72 P0637072 COLLECTION DRUM LID 99 PW02 FLAT WASHER 3/8

73 P0637073 GASKET 10 X 50 X 2000MM 100 PLN01 LOCK NUT 3/8-16

74 P0637074 BAG HOLDER 101 PB21 HEX BOLT 3/8-16 X 3/4

74-1 P0637074-1 RUBBER HANDLE 102 PW02 FLAT WASHER 3/8

74-2 PB02 HEX BOLT 1/4-20 X 5/8 103 PLN01 LOCK NUT 3/8-16

74-3 PW06 FLAT WASHER 1/4 104 P0637104 LOWER STAND BRACE

74-4 PN05 HEX NUT 1/4-20 105 P0637105 LOWER STAND LEG

75 PS06 PHLP HD SCR 10-24 X 3/8 106 PB21 HEX BOLT 3/8-16 X 3/4

76 PN07 HEX NUT 10-24 107 PW02 FLAT WASHER 3/8

77 P0637077 COLLECTION BAG 640 X 1200MM 108 PLN01 LOCK NUT 3/8-16

78 P0637078 COLLECTION DRUM UPPER 109 PB21 HEX BOLT 3/8-16 X 3/4

79 P0637079 COLLECTION DRUM LOWER 110 PW02 FLAT WASHER 3/8

80 P0637080 COLLECTION DRUM CLAMP 111 PLN01 LOCK NUT 3/8-16

81 PB04 HEX BOLT 5/16-18 X 3 112 P0637112 CONTROL BOX BRACKET (G0637)

82 PN02 HEX NUT 5/16-18 112 P0638112 CONTROL BOX BRACKET (G0638)

83 P0637083 COLLECTION DRUM LID LATCH 113 PB21 HEX BOLT 3/8-16 X 3/4

84 PS06 PHLP HD SCR 10-24 X 3/8 114 PW02 FLAT WASHER 3/8

85 PN07 HEX NUT 10-24 115 PN08 HEX NUT 3/8-16

86 PS06 PHLP HD SCR 10-24 X 3/8 116 PS06 PHLP HD SCR 10-24 X 3/8 (G037)

87 PN07 HEX NUT 10-24 116 PS11M PHLP HD SCR M6-1 X 16 (G0638)

88 P0637088 CASTER 2" 117 PW03 FLAT WASHER #10 (G0637)

89 PW02 FLAT WASHER 3/8 117 PW03M FLAT WASHER 6MM (G0638)

90 PLW04 LOCK WASHER 3/8 118 PN07 HEX NUT 10-24 (G0637)

91 PN08 HEX NUT 3/8-16 118 PN01M HEX NUT M6-1 (G0638)

92 P0637092 CYCLONE MOUNTING BRACKET 119 P0637119 440V CONVERSION KIT (G0637)

93 PB24 HEX BOLT 3/8-16 X 1-1/4 119 P0638119 440V CONVERSION KIT (G0638)

94 PW02 FLAT WASHER 3/8

G0637/G0638 Cyclone Dust Collector -53-

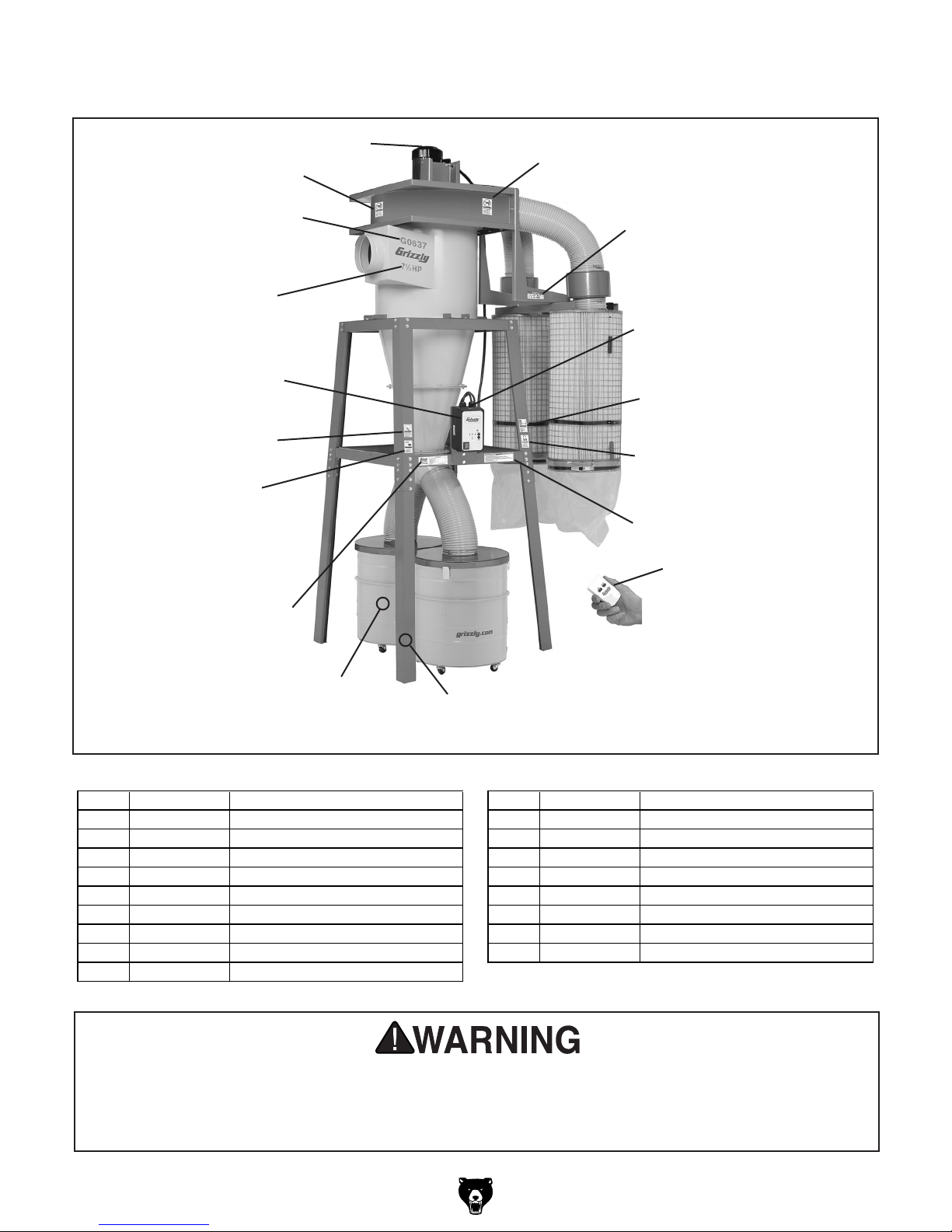

Label Placement

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine

MUST maintain the original location and readability of the labels on the machine. If any label is

removed or becomes unreadable, REPLACE that label before using the machine again. Contact

Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.

REF PART # DESCRIPTION REF PART # DESCRIPTION

120 P0637120 MACHINE ID LABEL G0637) 129 P0637129 MODEL NUMBER LABEL (G0637)

120 P0638120 MACHINE ID LABEL (G0638) 129 P0638129 MODEL NUMBER LABEL (G0638)

121 P0637121 GENERAL WARNINGS LABEL 130 P0637130 HORSEPOWER LABEL (G0637)

122 P0637122 RED HANDLE NOTICE LABEL 130 P0638130 HORSEPOWER LABEL (G0638)

123 PLABEL-14 ELECTRICITY LABEL 131 P0637131 CONTROL PANEL LABEL (G0637)

124 P0637124 DISCONNECT POWER LABEL 131 P0638131 CONTROL PANEL LABEL (G0638)

125 PLABEL-12 READ MANUAL LABEL 132 P0637132 REMOTE CONTROL LABEL

126 P0637126 HANDS/OUTLET LABEL 133 PPAINT-1 GRIZZLY GREEN TOUCHUP PAINT

127 P0637127 EYE/LUNG LABEL 134 PPAINT-11 GRIZZLY PUTTY TOUCHUP PAINT

128 PLABEL-15 HEARING HAZARD LABEL

120

121

122

123

124

128

125

127

126

129

130

131

132

134

133
