GREMSY MIO Manual de usuario
REVISION HISTORY
LEGEND
WARNING
NOTE
DATEREVISION DESCRIPTION
Notes are used to highlight special operating conditions or steps of a
procedure.
Warnings are used to highlight procedures which, if not strictly
observed, may result in personal injury or loss of life.
Tips.
TIPS
1.0 April 16, 2021 User Manual
Revision History 2
Legend 2
GETTING STARTED 6
Introduction 7
Features 8
HDMI Hyper Quick Release
Universal
Heated & Temperature Controlled IMU
High Performance Gimbal Controller
Clean Design - Internal Wiring
Built for Aerial Work
7TIGMƤGEXMSRW 10
MIO I/O Connectors 11
Hyper Quick Release Connectors & Pinouts
MTX HUB CONNECTORS & PINOUTS
Tilt Connectors & Pinouts
What’s In The Box 15
Hyper Quick Release 16
Mounting Hyper Quick Release
Connect
Disconnect
Powering Up The MIO 18
Step 1
Step 2
Step 3
Status LED Indicator 19
Operation Modes 20
MIO Has 2 Operation Modes
MIO Supports
CONTENTS
Working Operation 21
Swithing Between Modes 22
INSTALLING SOFWARE 23
Steps To Connect 24
BALANCING 25
Mounting The Camera 26
Tilt Axis Front-Back Balance 27
Tilt Axis Vertical Balance 28
Roll Axis Balance 29
Pan Axis balance 30
SOFTWARE - TUNING 31
Stiffness Tuning 32
General Method
Step 01 - Tilt Stiffness
Step 02 - Roll Stiffness
Step 03 - Pan Stiffness
Filter 34
Gypro Filter
Output Filter
Gyro Filter
Expert / Advanced Settings 35
Hold Strength
Gain
Default Settings
4VIHIƤRIH4VSƤPIW 37
Follow Mode Settings 38
Speed
Smooth
Window
Tilt Lock
Rotation Limit
Up Limit
Down Limit
Window
IMU SENSOR 40
Gypro Calibration 41
Accelerometter Calibration 42
REMOTE CONTROL 43
SBUS/PPM Settings 44
Receiver Connection
Channel Setting
UPGRADING FIRMWARE 46
How To Upgrade 47
TROUBLESHOOTING 48
GETTING STARTED
7
GETTING STARTED
USER
MANUAL
MIO is an ultra lightweight 3-axis gimbal that is specially designed for a wide
variety of small cameras, features Hyper quick release with integrated HDMI, a
variety of I/O interfaces and ability to start up in 2 seconds.
INTRODUCTION
8
GETTING STARTED
USER
MANUAL
FEATURES

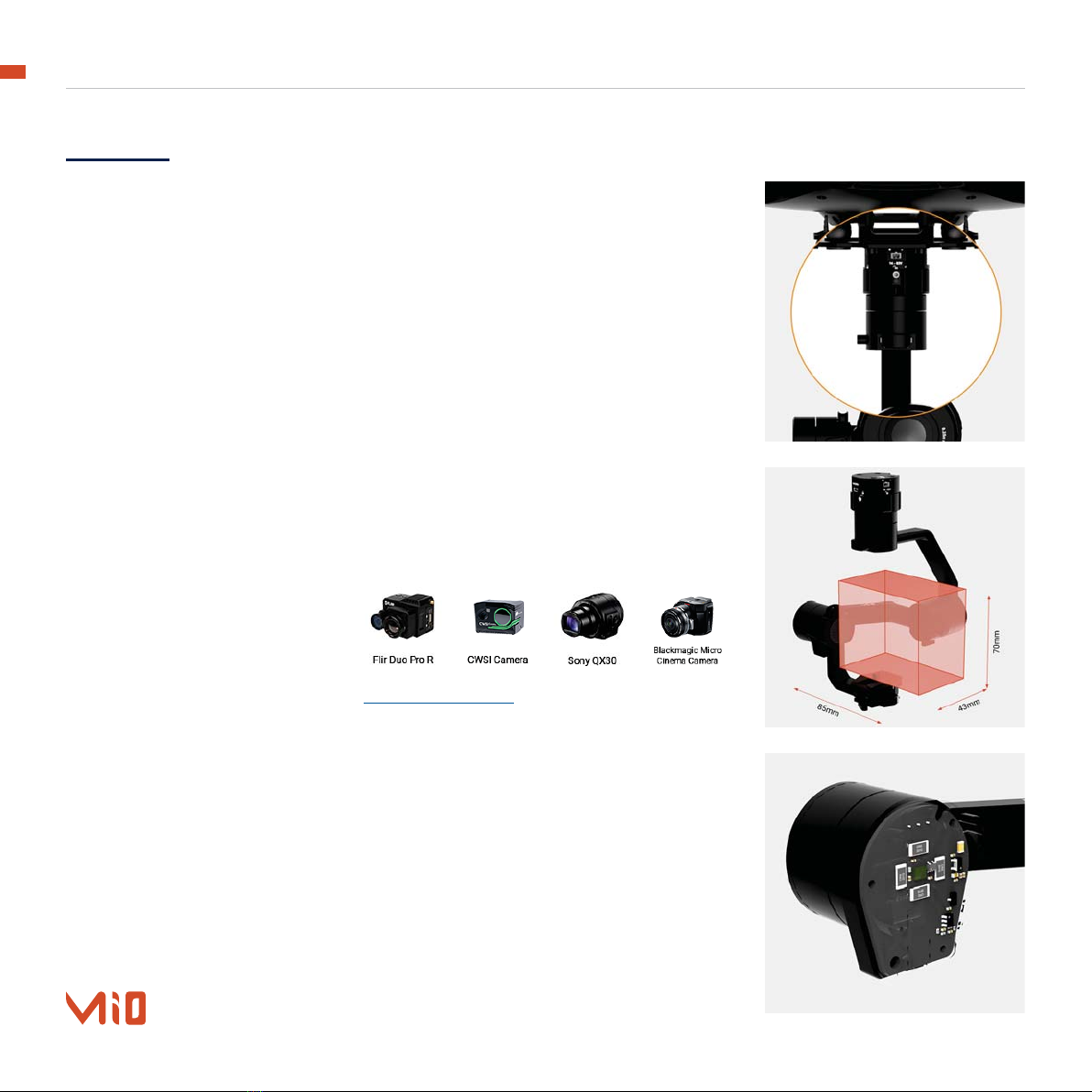

HDMI HYPER QUICK RELEASE
UNIVERSAL
New mechanical and electrical integration
quick release features high-speed
connectors allow for HDMI transmission and
other I/O interface. A variety of ports on QR
allow quick interface with multiple devices
WYGLEWVHTEVX]ƥMKLXGSRXVSPPIVWVIQSXI
control, and auxiliary I/O.
Ability to adjust balancing in 3 axis allows
MIO to mount a wide range of cameras such
as FLIR DUO PRO R, FLIR VUE PRO R, SONY
QX30, SONY UMC-R10C...
View More Cameras >>
HEATED & TEMPERATURE
CONTROLLED IMU
Heated and temperature controlled IMU
sensor allowing reliable performance even in
extreme weather. Temperature is maintained
within 0.2 degrees Celsius accuracy.
9
GETTING STARTED
USER
MANUAL
HIGH PERFORMANCE
GIMBAL CONTROLLER
Advanced gimbal controller designed and
made by Gremsy based on a 32 bit high
performance ARM microprocessor providing
fast response and accurate calculation.
Sensor data and motors correction are
updated as fast as 2000 times per second to
enable incredibly smooth footage.
CLEAN DESIGN - INTERNAL
WIRING
No exterior wires, more solid. This clean
design helps the MIO overcome wind
resistance with ease to bring out the best
video quality while staying agile.
BUILT FOR AERIAL WORK Super light-weight and very small form
factor, MIO could be mounted to various
ƥ]MRKTPEXJSVQWERHIREFPIPSRKIVƥMKLX
time.
10
GETTING STARTED
USER
MANUAL
SPECIFICATIONS Product Name
System Type
Weight
Maximum Payload
Construction
Input Voltage UBEC
Input Voltage Gimbal
Working Current
Connection
OS Platform Supported
Single Operator
Dual Operator
Pan Range
Tilt Range
Roll Range
Mio
3-Axis Digital Gyro-Stabilized
0.53 lbs / 240 g
0.88 lbs / 400 g
All Aluminum
14 – 52V
12V / 5A
Static Current 400mA @12V
Dynamic Current 800mA @12V
Locked Motor Current Max 3.5A @12V
USB, CAN, UART, HDMI
Windows / Mac
Follow Mode / LB2
SBUS / PPM / LB2
+/- 320 degree
-200 degree / +135 degree
-265 degree / +75 degree
