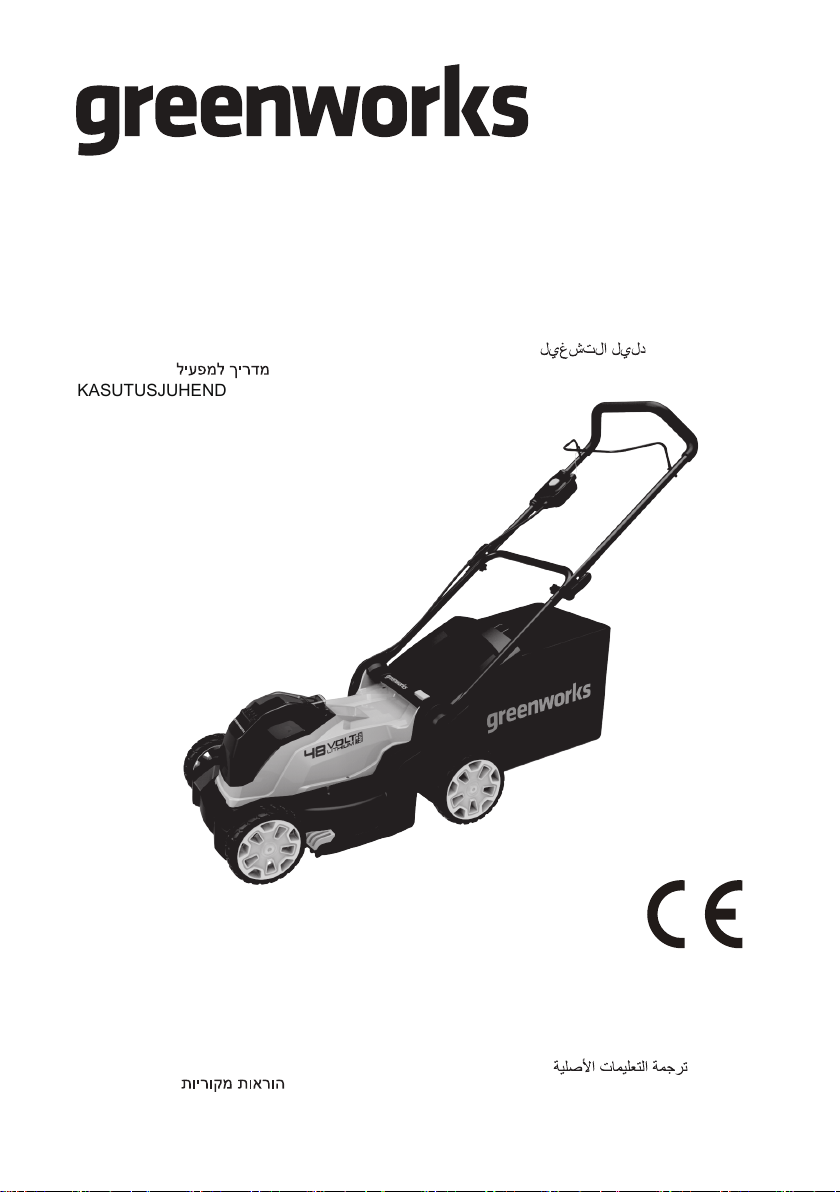

GreenWorks LME364 Manual de usuario

LME364

G48LM41

OriginalInstructions / Übersetzung derOriginalanweisungen/ Traduccióndelasinstruccionesoriginales/ Traduzionedelleistruzionioriginali/ Traduction des

instructionsd'origine/ Traduzidoa partirdasinstruçõesoriginais/ Vertalingvandeoriginelegebruiksaanwijzing/ Переводоригинальныхинструкций/

Alkuperäistenohjeidenkäännös/ Översättningavoriginalinstruktionerna/ Produsentensinstruksjoner/ Oversættelseafdeoriginalevejledninger/ Tłumaczenie

oryginalnejinstrukcji/ Překladoriginálníhonávodu/ Prekladoriginálnehonávodu/ Prevodoriginalnihnavodil/ Prijevodizvornihuputa/ Azeredetiutasítás

fordítása/ Traducerea instrucțiunilororiginale/ Преводнаоригиналнитеинструкции/ Αυθεντικέςοδηγίες/ / Orijinal

Talimatların Tercümesi/ / Originaliųinstrukcijųvertimas/ Instrukcijutulkojumsnooriģinālvalodas/ Originaalkasutusjuhenditõlge

OPERATOR MANUAL / BEDIENUNGSHANDBUCH / MANUAL DEL OPERARIO /

MANUALE DELL’OPERATORE / MANUEL OPÉRATEUR / MANUAL DE UTILIZAÇÃO /

GEBRUIKSAANWIJZING / РУКОВОДСТВО ОПЕРАТОРА / KÄYTTÖOPAS /

ANVÄNDARHANDBOK / BRUKERVEILEDNING / BRUGSVEJLEDNING / INSTRUKCJA

UŻYTKOWNIKA / NÁVOD K OBSLUZE / NÁVOD NA OBSLUHU / Uporabniški priročnik /

PRIRUČNIK ZA RUKOVANJE / HASZNÁLATI ÚTMUTATÓ / MANUAL DE UTILIZARE /

РЪКОВОДСТВО НА ОПЕРАТОРА / ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ / / KULLANIM

KILAVUZU / / OPERATORIAU VADOVAS / LIETOTĀJA ROKASGRĀMATA /

KASUTUSJUHEND

1 Description.................................... 4

1.1 Purpose......................................................4

1.2 Overview.................................................... 4

2 Safety............................................ 4

3 Installation..................................... 4

3.1 Unpack the machine...................................4

3.2 Unfold and adjust the lower handle............4

3.3 Install the upper handle .............................4

3.4 Install the grass catcher............................. 4

3.5 Install the mulch plug..................................5

3.6 Set the blade height................................... 5

3.7 Install the battery pack............................... 5

3.8 Remove the battery pack........................... 5

4 Operation.......................................5

4.1 Start the machine....................................... 5

4.2 Stop the machine....................................... 5

4.3 Empty the grass catcher.............................5

4.4 Operate on slopes......................................5

4.5 Operation tips.............................................6

5 Maintenance..................................6

5.1 General maintenance.................................6

5.2 Lubrication..................................................6

5.3 Replace the blade...................................... 6

5.4 Store the machine...................................... 6

6 Troubleshooting.............................7

7 Technical data...............................7

8 Warranty........................................7

9 EC Declaration of conformity.........8

English EN

1 DESCRIPTION

1.1 PURPOSE

This machine is used for domestic lawn mowing. The

cutting blade must be approximately parallel to the

ground. All four wheels must touch the ground while you

mow.

1.2 OVERVIEW

Figure 1-10.

1Quick-release lever

2Lower handle

3Upper handle

4Knob

5Cam lock

6Grass catcher

7Rear discharge door

8Mulch plug

9Height adjustment button

10 Battery door

11 Battery pack

12 Safety key

13 Start button

14 Bail switch

15 Front wheel

16 Rear wheel

17 Slot

18 Mounting screw

19 Spacer

20 Blade

2 SAFETY

WARNING

Make sure that you do/obey all safety instructions.

Refer to Safety Manual.

3 INSTALLATION

WARNING

Do not change or make accessories that are not

recommended by the manufacturer.

WARNING

Do not put in the safety key or the battery pack until

you assemble all the parts.

3.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine

before use.

WARNING

• If the parts are damaged, do not use the machine.

• If you do not have all the parts, do not operate the

machine.

• If the parts are damaged or missing, speak to the

service center.

1. Open the package.

2. Read the documentation in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and package in compliance with

local regulations.

3.2 UNFOLD AND ADJUST THE

LOWER HANDLE

Figure 2.

1. Pull up and back the upper handle to lift the handle

into operation position. Make sure that the handles

click into position correctly.

2. Tighten the lower handle with the quick-release

levers on the two sides.

NOTE

Make sure that the two handles are in the same

position.

WARNING

Do not make damage to the cables when you fold or

unfold the handle.

3.3 INSTALL THE UPPER HANDLE

Figure 3.

1. Align the holes in the upper handle and the lower

handle.

2. Put the cam locks through the holes.

3. Tighten the knobs onto the cam locks.

4. Do the same operation on the other side.

3.4 INSTALL THE GRASS CATCHER

Figure 4.

1. Remove the mulch plug.

2. Open the rear discharge door and hold it.

English

3. Hold the the grass catcher by its handle and put the

hooks over the slots.

4. Close the rear discharge door.

3.5 INSTALL THE MULCH PLUG

Figure 5.

1. Remove the grass catcher.

2. Open the rear discharge door and hold it.

3. Hold the mulch plug by its handle and fit it in the

discharge chute.

4. Close the rear discharge door.

3.6 SET THE BLADE HEIGHT

The machine can be set to different blade heights.

Figure 6.

1. Push the height adjustment button, move the height

adjust gear to a higher position to increase the blade

height.

2. Push the height adjustment button, move the height

adjust gear to a lower position to decrease the blade

height.

3.7 INSTALL THE BATTERY PACK

Figure 7.

WARNING

• If the battery pack or charger is damaged, replace

the battery pack or the charger.

• Stop the machine and wait until the engine stops

before you install or remove the battery pack.

• Read, know, and follow the instructions in the

battery and charger manual.

1. Open the battery door.

2. Align the lift ribs on the battery pack with the

grooves in the battery compartment.

3. Push the battery pack into the battery compartment

until the battery pack locks into place.

4. When you hear a click, the battery pack is installed.

5. Close the battery door.

NOTE

The engine starts only when you put in the safety key.

3.8 REMOVE THE BATTERY PACK

Figure 7.

1. Open the battery door.

2. Remove the safety key.

3. Push and hold the battery release button.

4. Remove the battery pack from the machine.

4 OPERATION

WARNING

Wear eye protection during operation.

4.1 START THE MACHINE

Figure 8.

1. Put in the safety key.

2. Push and hold the start button.

3. While you hold the start button, pull the bail switch in

the direction of the handle bar.

4. Release the start button to start the machine.

4.2 STOP THE MACHINE

Figure 8.

1. Release the bail switch to stop the machine.

WARNING

Wait until the blades fully stop before you start the

machine again. Do not quickly turn the machine off

and on.

WARNING

Always remove the safety key and battery pack after

you complete the work.

4.3 EMPTY THE GRASS CATCHER

Figure 9.

1. Stop the machine.

2. Remove the safety key.

3. Remove the battery pack.

4. Open the rear discharge door and hold it.

5. Hold the grass catcher by its handle and unhook it

from the slots.

6. Close the rear discharge door.

7. Empty the grass catcher.

4.4 OPERATE ON SLOPES

WARNING

Do not mow on the slopes with incline more than 15°.

If you are not comfortable, do not mow on a slope.

• Do not go up and down on a slope, mow across the

face of the slope. Be careful when you change the

direction on a slope.

• Monitor the holes, ruts, rocks, and other hidden

objects that can cause you to fall. Remove all

obstacles such as rocks and tree limbs.

English EN

• Make sure that your footing is stable. If you are out

of balance, release the bail switch immediately.

• Do not mow near drop-offs, ditches, or

embankments.

4.5 OPERATION TIPS

• Do not try to override the operation of the start

button or bail switch.

• Do not tilt the machine when you start it.

• Do not put hands or feet near or below the turning

parts.

• Keep the discharge chute clean.

• Do not cut wet grass.

• Higher blade height is necessary for new or thick

grass.

• Clean the bottom of the mower deck after each use.

Remove grass clippings, leaves, dirt, and other

debris.

5 MAINTENANCE

WARNING

Remove the safety key and battery pack from the

machine before maintenance.

WARNING

Keep the motor and battery pack free from grass,

leaves or too much grease.

CAUTION

Use only approved replacement parts.

CAUTION

Do not let brake fluids, gasoline, petroleum-based

materials touch the plastic parts. Chemicals can cause

damage to the plastic, and make the plastic

unserviceable.

CAUTION

Do not use strong solvents or detergents on the plastic

housing or components.

NOTE

Recommended tightening torque (blade): 33-37 Nm.

5.1 GENERAL MAINTENANCE

• Before each use, examine the machine for

damaged, missing, or loose parts such as screws,

nuts, bolts and caps.

• Tighten correctly all the fasteners and caps.

• Clean the machine with a dry cloth. Do not use

water.

5.2 LUBRICATION

Apply sufficient quantity of high grade lubricant to all

bearings. No more bearing lubrication is necessary in

usual operation conditions.

WARNING

Do not lubricate the wheel components. Lubrication

can cause damage to the wheel components during

operation.

5.3 REPLACE THE BLADE

Figure

WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade

when you touch the blade.

1. Stop the machine.

2. Make sure that the blades fully stop.

3. Remove the safety key and battery pack.

4. Turn the machine to its side.

5. Use a piece of wood to prevent the movement of the

blade.

6. Remove the mounting screw and spacers with a

wrench or socket.

7. Remove the blade.

8. Install the new blade. Make sure that the raised

points engage the holes in the blade.

9. Put in the mounting screw and spacers and tighten

them.

5.4 STORE THE MACHINE

• Clean the machine before storage.

• Make sure the engine is not hot when you store the

machine.

• Make sure that the machine does not have loose or

damaged parts. If it is necessary, do these steps/

instructions:

• Replace the damaged parts.

• Tighten the bolts.

• Speak to a person of an approved service

center.

• Store the machine in a dry area.

• Make sure that children cannot come near the

machine.

English

6 TROUBLESHOOTING

Problem Possible cause Solution

The handle is

not in position. The bolts are not

engaged correct-

ly.

Adjust the height

of the handle

and make sure

that the knobs

and bolts are

aligned correctly.

The machine

does not start. The battery ca-

pacity is low. Charge the bat-

tery pack.

The bail switch is

defective. Replace the bail

switch.

The battery key

is not put in. Put in the battery

key.

The machine

cuts grass un-

evenly.

The lawn is

rough. Examine the

mowing area.

The blade height

is not set cor-

rectly.

Move the wheels

to a higher posi-

tion.

The machine

does not mulch

correctly.

Wet grass clip-

pings attach to

the deck.

Wait until the

grass dries be-

fore mowing.

The mulch plug

is missing. Install the mulch

plug.

The machine is

hard to push. The grass is too

tall, or the blade

height is too low.

Increase the

blade height.

The grass catch-

er and the blade

drags in thick

grass.

Empty the grass

clippings from

the grass catch-

er.

There is a high

vibration in the

machine.

The blade is un-

balanced and

worn.

Replace the

blade.

The engine shaft

is bent. 1. Stop the en-

gine.

2. Remove the

safety key

and battery

pack.

3. Disconnect

the power

source.

4. Inspect for

damage.

5. Repair the

machine be-

fore you start

it again.

Problem Possible cause Solution

The machine

stops during

mowing.

The blade height

is too low. Increase the

blade height.

The battery pack

is out of power. Charge the bat-

tery pack.

The grass clip-

pings attach to

the deck or the

blade.

Remove the bat-

tery pack and

check the deck.

Operation tem-

perature of the

machine is too

high.

Cool the ma-

chine.

* If you cannot find the solution to these problems, go to

the service center.

7 TECHNICAL DATA

Voltage 48 V

No load speed 3600 / min

Cut width 410 mm

Cut height 25 - 80 mm

Grass catcher capacity 50 L

Weight (without battery

pack) 41.4 lbs 18,8 kg

Measured sound pressure

level LPA = 68 dB(A) , K = 2.7

dB(A)

Guaranteed sound power

level LWA.d = 91 dB(A)

Vibration ＜ 2.5 m/s2 , K = 1.5 m/s2

Battery model G4824B4 and other BAM

series

Charger model G4824C4 and other CAM

series

Double-insulated con-

struction

IPX IPX4

8 WARRANTY

(The full warranty terms and conditions can be found on

Greenworks webpage)

The Greenworks warranty is 3 years on the product,

and 2 years on batteries (consumer/private usage) from

the date of purchase. This warranty covers

manufacturing faults. A faulty product under warranty

might be either repaired or replaced. A unit that has

been misused or used in other ways then described in

English EN

the owner’s manual might be rejected for warranty.

Normal wear, and wear parts are not considered as

warranty. The original manufacturer warranty is not

affected by any additional warranty offered by a dealer

or retailer.

A faulty product must be returned to the point of

purchase in order to claim for warranty, together with

the proof of purchase (receipt).

9 EC DECLARATION OF

CONFORMITY

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Propellergatan 1, 211 15 Malmö, Sweden

Name and address of the person authorised to compile

the technical file:

Name: Peter Söderström

Address: Propellergatan 1, 211 15 Malmö, Sweden

Herewith we declare that the product

Category: Lawn Mower

Model: 2506413 (LME364)

Serial number: See product rating label

Year of Construc-

tion: See product rating label

• is in conformity with the relevant provisions of the

Machinery Directive 2006/42/EC.

• is in conformity with the provisions of the following

other EC-Directives:

• 2014/30/EU

• 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU)2015/863

Furthermore, we declare that the following parts,

clauses of harmonised standards have been used:

• EN 60335-1, EN 60335-2-77, EN 62233, EN ISO

3744, EN 55014-1, EN 55014-2, ISO 11094, IEC

62321-3-1, IEC 62321-4, IEC 62321-5, IEC

62321-6, IEC 62321-7-1, IEC 62321-7-2. IEC

62321-8

Conformity assessment method to Annex VI Directive

2000/14/EC.

Measured sound power level LWA: 88 dB(A)

Guaranteed sound power level LWA.d : 91 dB(A)

Place, date: Malmö,

07.08.2019 Signature: Ted Qu, Quality Di-

rector

English

1 Beschreibung.............................. 10

1.1 Verwendungszweck................................. 10

1.2 Überblick.................................................. 10

2 Sicherheit.................................... 10

3 Montage...................................... 10

3.1 Maschine auspacken................................10

3.2 Unteren Griff ausklappen und einstellen.. 10

3.3 Oberen Griff montieren ............................10

3.4 Grasfangvorrichtung montieren................11

3.5 Mulcher montieren....................................11

3.6 Messerhöhe einstellen............................. 11

3.7 Akkupack einsetzen................................. 11

3.8 Akkupack entfernen..................................11

4 Bedienung................................... 11

4.1 Maschine starten......................................11

4.2 Maschine anhalten................................... 11

4.3 Grasfangvorrichtung entleeren.................11

4.4 Betrieb an Hängen................................... 12

4.5 Tipps zur Bedienung................................ 12

5 Wartung und Instandhaltung....... 12

5.1 Allgemeine Wartung.................................12

5.2 Schmierung.............................................. 12

5.3 Messer ersetzen.......................................12

5.4 Lagern Sie die Maschine..........................13

6 Fehlerbehebung.......................... 13

7 Technische Daten....................... 14

8 Garantie.......................................14

9 EG-Konformitätserklärung...........14

Deutsch

1 BESCHREIBUNG

1.1 VERWENDUNGSZWECK

Diese Maschine wird für das Rasenmähen im Haushalt

eingesetzt. Das Schneidmesser muss etwa parallel zum

Boden liegen. Alle vier Räder müssen beim Mähen den

Boden berühren.

1.2 ÜBERBLICK

Abbildung 1-10.

1Schnellspannhebel

2Unterer Griff

3Oberer Griff

4Handgriff

5Nockenverriegelung

6Grasfangvorrichtung

7Heckauswurfklappe

8Mulcher

9Höhenverstellungstaste

10 Akkufachklappe

11 Akkupack

12 Sicherheitsschlüssel

13 Start-Taste

14 Bügelschalter

15 Vorderrad

16 Hinterrad

17 Aussparung

18 Befestigungsschraube

19 Abstandhalter

20 Messer

2 SICHERHEIT

WARNUNG

Stellen Sie sicher, dass Sie alle Sicherheitshinweise

befolgen.

Siehe Sicherheitshandbuch.

3 MONTAGE

WARNUNG

Nur Zubehör verwenden, das vom Hersteller

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
