1 Description.................................4

1.1 Purpose................................................... 4

1.2 Overview..................................................4

2 Safety..........................................4

3 Installation................................. 4

3.1 Unpack the machine................................ 4

3.2 Install the upper handle .......................... 4

3.3 Unfold the lower handle........................... 4

3.4 Install the grass catcher...........................5

3.5 Install the mulch plug............................... 5

3.6 Install the side discharge chute............... 5

3.7 Set the blade/cutting height..................... 5

3.8 Install the battery pack.............................5

3.9 Remove the battery pack.........................5

4 Operation................................... 5

4.1 Start the product...................................... 5

4.2 Stop the machine.....................................6

4.3 Operate the self-propel drive system.......6

4.4 LED Headlights........................................6

4.5 Empty the grass catcher.......................... 6

4.6 Operate on slopes................................... 6

4.7 Operation tips.......................................... 6

5 Maintenance...............................7

5.1 General maintenance.............................. 7

5.2 Replace the blade....................................7

5.3 Store the machine....................................7

6 Troubleshooting........................ 8

7 Technical data............................8

8 Warranty.....................................8

9 EC Declaration of

conformity..................................9

English EN

1 DESCRIPTION

1.1 PURPOSE

This machine is used for domestic lawn mowing. The

cutting blade must be approximately parallel to the

ground. All four wheels must touch the ground while you

mow.

1.2 OVERVIEW

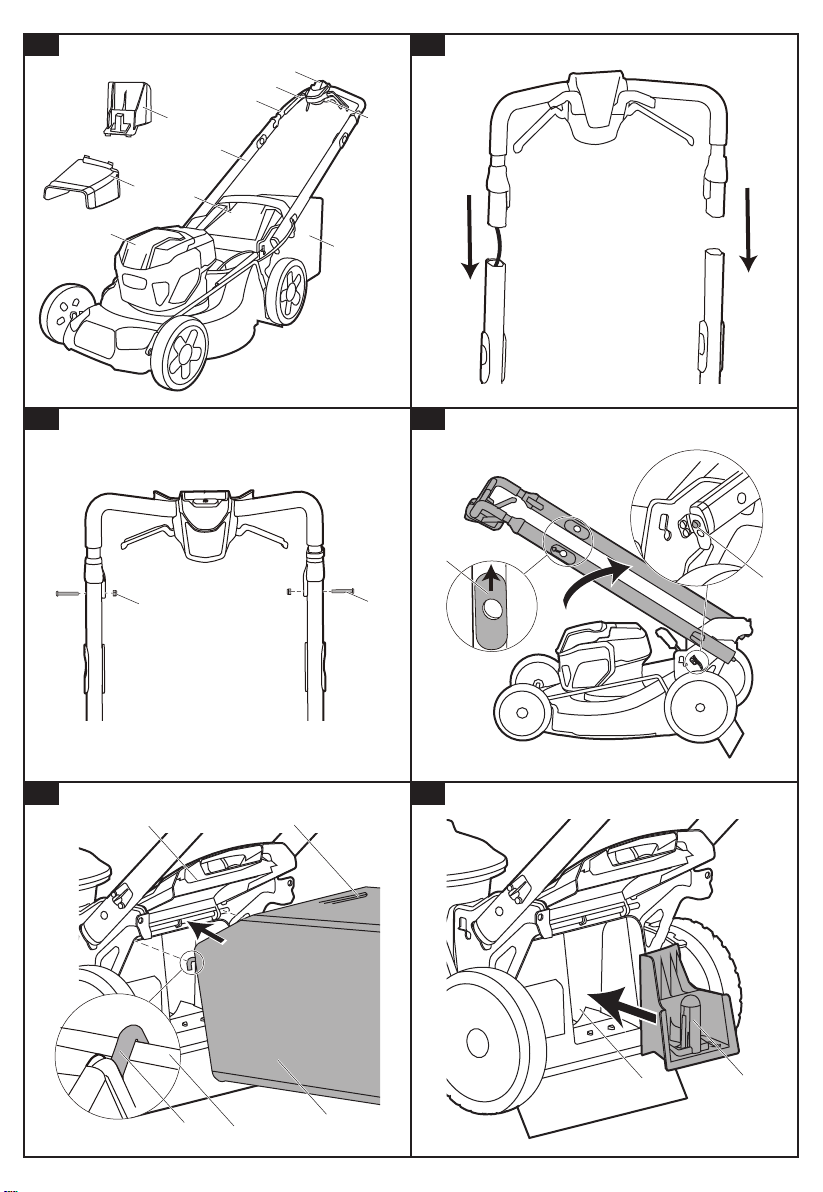

Figure 1-12.

1Start button

2Start handle

3Upper handle

4Lower handle

5Rear discharge door

6Battery door

7Grass catcher

8Self-propel lever

9Mulch plug

10 Side discharge chute

11 Bolt

12 Handle knob

13 Handlebar latches

14 Pinch

15 Grass catcher handle

16 Hook

17 Door rod

18 Mulch plug handle

19 Discharge chute

20 Side discharge door

21 Pivot

22 Recesses

23 Height adjustment lever

24 Battery compartment

25 Safety key

26 Battery release button

27 LED Headlight

28 Turbo button

29 Speed control button

30 Fan

31 Blade

32 Spacer

33 Mounting screw

2 SAFETY

WARNING

Make sure that you follow all safety instructions.

Refer to Safety Manual.

3 INSTALLATION

WARNING

Do not use accessories that are not recommended by

the manufacturer.

WARNING

Do not put in the safety key or the battery pack until

you finalised the assembly of all the parts.

3.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine

before use.

WARNING

• If parts of the machine are damaged, do not use

the machine.

• If you do not have all the parts, do not operate the

machine.

• If the parts are damaged or missing, contact the

service center.

1. Open the package.

2. Read the documentation provided in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and packing material in compliance

with local regulations.

3.2 INSTALL THE UPPER HANDLE

Figure 2-3

1. Align the holes in the upper handle and the lower

handle.

2. Put the bolts through the holes.

3. Tighten the knobs onto the bolts.

4. Do the same operation on the other side.

3.3 UNFOLD THE LOWER HANDLE

Figure 4

1. Pull up on the handle holes to release the lower

handles.

2. Fold the lower handle up until the handle pins lock

into position.

NOTE

Make sure that the two handle pins are in the same

position.

English

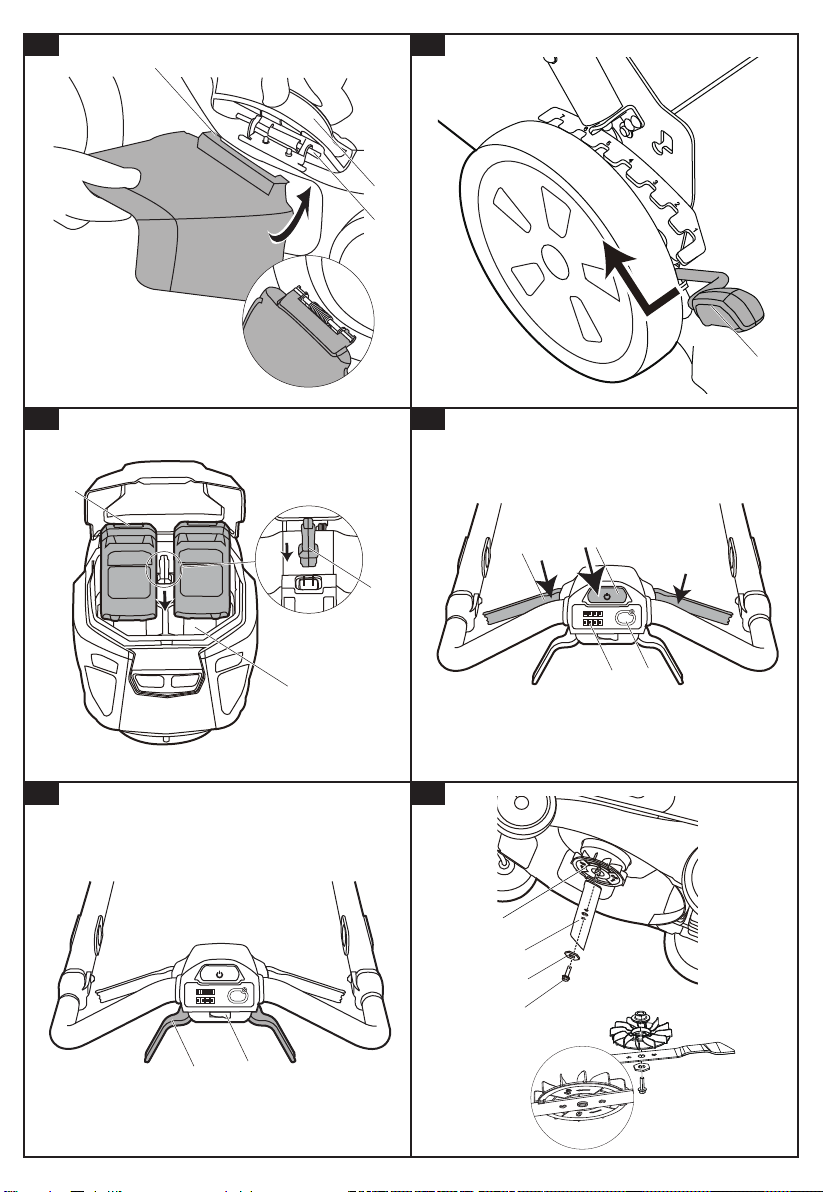

3.4 INSTALL THE GRASS CATCHER

Figure 5

1. Remove the mulch plug.

2. Remove the side discharge chute.

3. Open the rear discharge flap and hold it.

4. Hold the grass catcher by its handle and engage the

hooks on the rear flap rod.

5. Close the rear discharge flap.

3.5 INSTALL THE MULCH PLUG

Figure 6

1. Remove the grass catcher.

2. Open the rear discharge flap and hold it.

3. Hold the mulch plug by its handle and fit it in the

discharge chute.

4. Close the rear discharge flap.

3.6 INSTALL THE SIDE DISCHARGE

CHUTE

Figure 7

CAUTION

When you use the side discharge chute,

• Do not install the grass catcher.

• Keep the mulch plug installed.

1. Open the side discharge flap and hold it.

2. Line up the recesses of the side discharge chute

below the pivot.

3. Close the side discharge flap.

3.7 SET THE BLADE/CUTTING

HEIGHT

The machine can be set to different blade/cutting

heights.

Figure 8

1. Pull the height adjustment lever rearward to

increase the blade/cutting height.

2. Push the height adjustment lever forward to

decrease the blade/cutting height.

3.8 INSTALL THE BATTERY PACK

Figure 9.

WARNING

• If the battery pack or charger is damaged, replace

the battery pack or the charger.

• Stop the machine and wait until the engine stops

before you install or remove the battery pack.

• Read, know, and do the instructions in the battery

and charger manual.

NOTE

The machine has an automatic switch function that

lets the other battery work when the first cannot

operate.

1. Open the battery compartment flap.

2. Align the lift ribs on the battery pack with the

grooves in the battery compartment.

3. Push the battery pack into the battery compartment

until the battery pack locks into place.

4. When you hear a click, the battery pack is installed.

5. Close the battery compartment.

NOTE

The engine starts only when you put in the safety key.

3.9 REMOVE THE BATTERY PACK

Figure 9

1. Open the battery compartment flap

2. Remove the safety key.

3. Push and hold the battery release button.

4. Remove the battery pack from the machine.

4 OPERATION

WARNING

Wear eye protection during operation.

4.1 START THE PRODUCT

Figure 10.

1. Press and hold the power button.

2. Grasp either of the blade activation levers towards

the handle bar to engage the blades.

Note: Complete the two consecutive actions within

5 seconds.

3. Once the product has started, you can release the

power button.

English EN

4.1.1 BATTERY CAPACITY INDICATOR

Lights Capacity

4 Green

Lights

The battery is above 80% capacity.

3 Green

Lights

The battery is between 80% and 60% ca-

pacity.

2 Green

Lights

The battery is at between 60% and 40% ca-

pacity.

1 Green

Light

The battery is between 40% and 20% ca-

pacity .

Lights

go out

The battery is less than 20% capacity and

requires charging immediately.

4.2 STOP THE MACHINE

Figure 10

1. Release the handle switch to stop the machine.

WARNING

Wait until the blade fully stops before you start the

machine again. Do not quickly turn the machine off

and on.

WARNING

Always remove the safety key and battery pack after

you complete the work.

4.3 OPERATE THE SELF-PROPEL

DRIVE SYSTEM

Figure 11

1. Start the machine.

2. While you hold the start handles, grab either of the

drive levers and pull towards the handle bar.

3. Hold the start handles and the drive levers at the

same time.

4. Release either set of start handle and drive lever

from the same side.

5. Adjust the speed control with your free hand.

• Slide the speed control button in the direction of

the Rabbit Symbol to increase the speed.

• Pull the speed control button in the direction of

the Turtle Symbol to decrease the speed.

6. Release the drive levers to close the self-propel

system.

To engage the self-propel drive system while the

mower is not running:

• Press and hold the start button, then pull up on the

drive lever.

• Pull up on the drive lever, then press the start

button.

4.4 LED HEADLIGHTS

Figure 10-11

1. When the mower is ready to start, you may grab the

start handle or the self-propel lever to turn on the

LED headlights.

2. Release the start handles and self-propel levers to

turn off the headlights.

4.5 EMPTY THE GRASS CATCHER

1. Stop the machine.

2. Remove the safety key.

3. Remove the battery pack.

4. Open the rear discharge flap and hold it.

5. Hold the grass catcher by its handle and unhook it

from the rear flap rod.

6. Close the rear discharge flap.

7. Empty the grass catcher.

4.6 OPERATE ON SLOPES

WARNING

Do not mow on the slopes with incline more than 15°.

If you are not comfortable, do not mow on a slope.

WARNING

Please keep a low self-propelled speed when you

mow on a slope.

• Do not go up and down on a slope, mow across the

face of the slope. Be careful when you change the

direction on a slope.

• Monitor the holes, ruts, rocks, and other hidden

objects that can cause you to fall. Remove all

obstacles such as rocks and tree limbs.

• Make sure that your footing is stable. If you are out

of balance, release the start handle immediately.

• Do not mow near drop-offs, ditches, or

embankments.

4.7 OPERATION TIPS

• Do not try to override the operation of the start

button or handle switch.

• Do not tilt the machine when you start it.

• Do not put hands or feet near or below the turning

parts.

• Keep the discharge chute clean.

• Do not cut wet grass.

• Higher blade height is necessary for new or thick

grass.

English

• Clean the bottom of the mower deck after each

use. Remove grass clippings, leaves, dirt, and other

debris.

5 MAINTENANCE

WARNING

Remove the safety key and battery pack from the

machine before maintenance.

WARNING

Keep the motor and battery pack free from grass,

leaves or too much grease.

CAUTION

Use only approved replacement parts.

CAUTION

Do not let brake fluids, gasoline, petroleum-based

materials touch the plastic parts. Chemicals can

cause damage to the plastic, and make the plastic

unserviceable.

CAUTION

Do not use strong solvents or detergents on the plastic

housing or components.

NOTE

Recommended tightening torque (blade): 33-37 Nm.

5.1 GENERAL MAINTENANCE

• Before each use, examine the machine for

damaged, missing, or loose parts such as screws,

nuts, bolts and caps.

• Tighten correctly all the fasteners and caps.

• Clean the machine with a dry cloth. Do not use

water.

5.2 REPLACE THE BLADE

Figure 12

WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade

when you touch the blade.

1. Stop the machine.

2. Make sure that the blades fully stop.

3. Remove the battery pack.

4. Turn the machine to its side.

5. Use a piece of wood to prevent the movement of the

blade.

6. Remove the mounting screw and spacer with a 5/8

Inch (15mm) wrench or socket.

7. Remove the blade.

8. Install the new blade. Make sure that the arrows

engage the holes in the blade.

9. Put in the mounting screw and spacer and tighten

them.

5.3 STORE THE MACHINE

• Clean the machine before storage.

• Make sure the motor is not hot when you store the

machine.

• Make sure that the machine does not have loose

or damaged parts. If it is necessary, do these steps/

instructions:

• Replace the damaged parts.

• Tighten the bolts.

• Speak to a person at an approved service

center.

• Store the machine in a dry area.

• Make sure that children cannot come near the

machine.

English EN

Otros manuales para LME456

Tabla de contenidos

Idiomas:

Otros manuales de Cortacésped de GreenWorks

GreenWorks

GreenWorks LMF421 Manual de usuario

GreenWorks

GreenWorks G24LM33 Manual de usuario

GreenWorks

GreenWorks LMF462 Manual de usuario

GreenWorks

GreenWorks MO48B01 Manual de usuario

GreenWorks

GreenWorks GRL110 Manual de usuario

GreenWorks

GreenWorks LMF465 Manual de usuario

GreenWorks

GreenWorks G24LM33 Manual de usuario

GreenWorks

GreenWorks MO40B00 Manual de usuario

GreenWorks

GreenWorks MO09B01 Manual de usuario

GreenWorks

GreenWorks GD24LM33 Manual de usuario

GreenWorks

GreenWorks LMC410 Manual de usuario

GreenWorks

GreenWorks GLM801601 Manual de usuario

GreenWorks

GreenWorks LMF320 Manual de usuario

GreenWorks

GreenWorks MO48L4213 Manual de usuario

GreenWorks

GreenWorks MO80L08 Manual de usuario

GreenWorks

GreenWorks MO48L4422 Manual de usuario

GreenWorks

GreenWorks 2502902BT Manual de usuario

GreenWorks

GreenWorks 2502902 Manual de usuario

GreenWorks

GreenWorks MO40L04 Manual de usuario

GreenWorks

GreenWorks MO13B00 Manual de usuario

GreenWorks

GreenWorks GD40LM45 Manual de usuario

GreenWorks

GreenWorks GD60LM51SP Manual de usuario

GreenWorks

GreenWorks Elite M-210-SP-T Manual de usuario

GreenWorks

GreenWorks 25262 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
