GLRR-1984

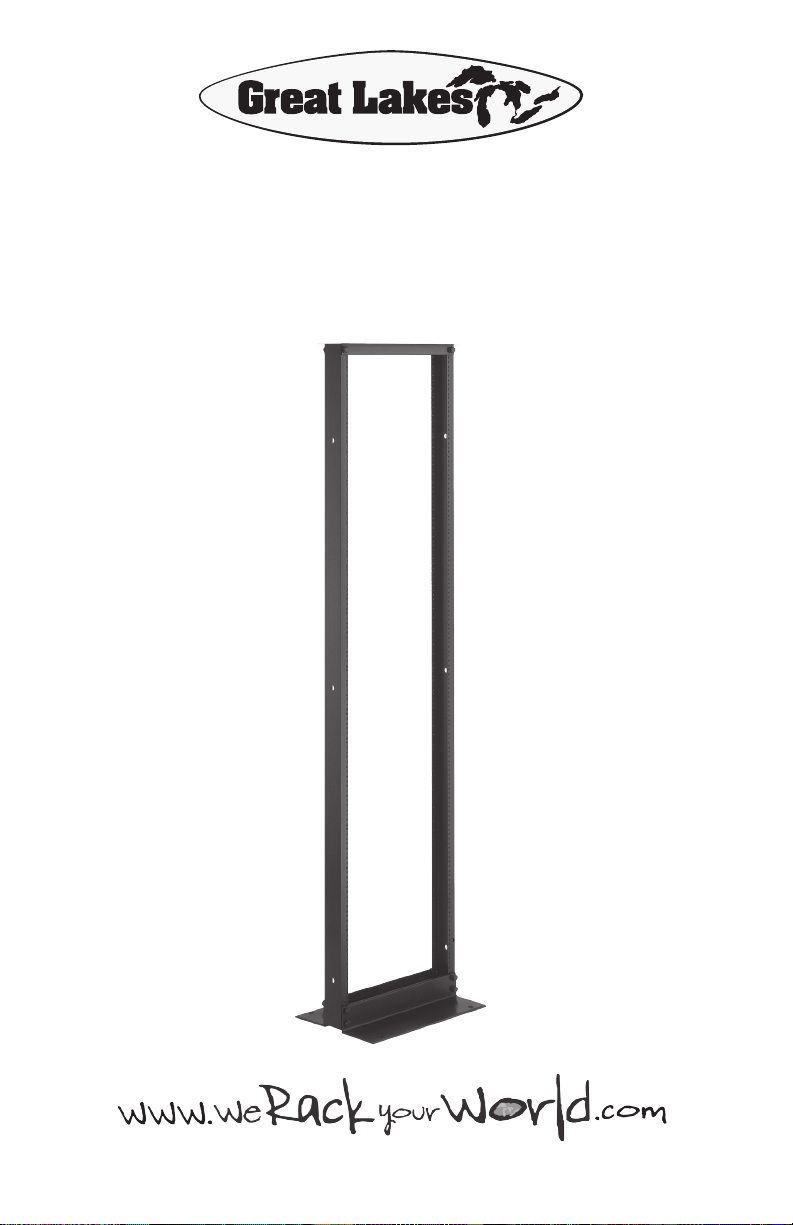

19" Two Post Relay Rack
Installation Instructions

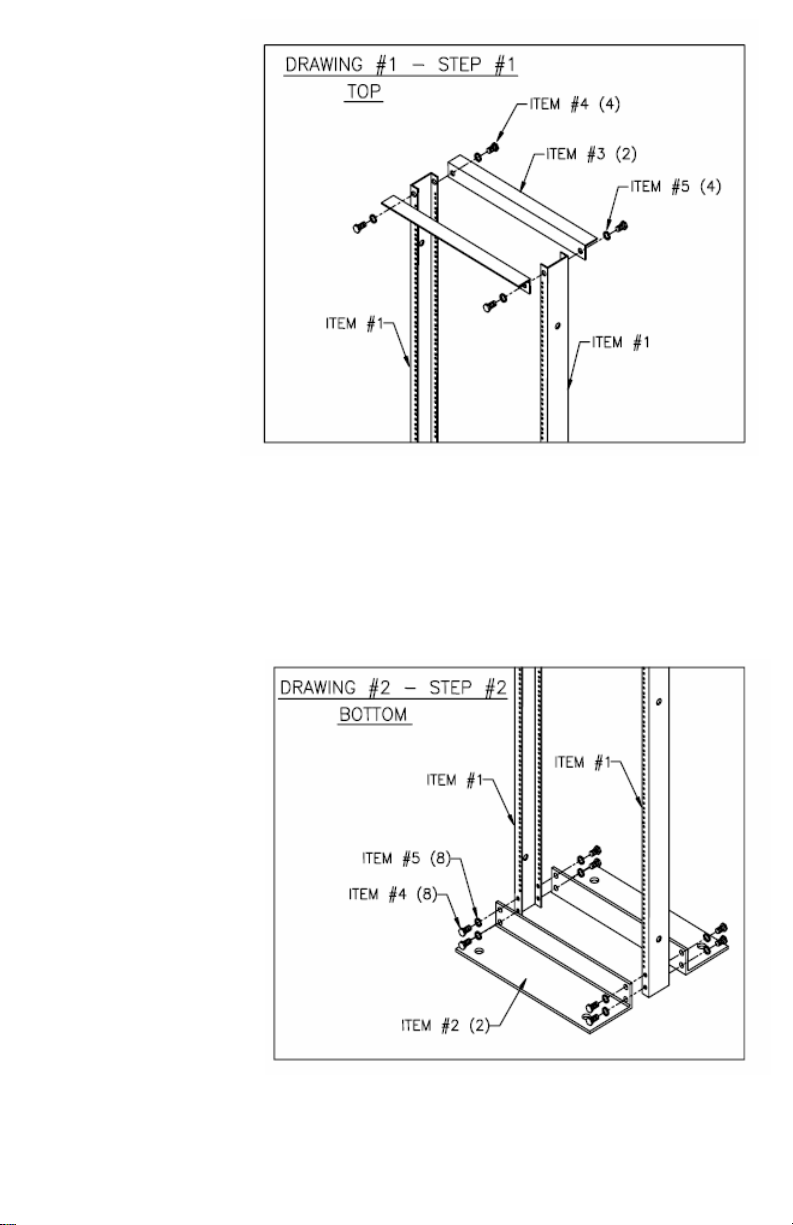

STEP #1:
Install top angles
to vertical upright
channels.
A. Lay vertical
upright channels
on edge so
tapped holes face
you and the oor.
Be sure open
sides of upright
channels face
each other.
B. Align holes
in top angle with
corresponding holes in vertical uprights. Formed leg of top angle
should be facing toward you.
C. Install 2 hex head bolts and lock washers. Finger tighten only.
D. Turn vertical upright assembly over (rotate 180 degrees) and
repeat steps B and C. Finger tighten only.
STEP #2:
Install base angles
to vertical upright
channels.
A. Leaving vertical
upright channels
on edge, align
holes in base with
corresponding holes
in each upright
channel. Long leg
of base should be
facing you.
B. Install 4 hex
head bolts and lock
washers. Finger tighten only.
C. Turn vertical upright assembly over (rotate 180 degrees) and
repeat steps A and B. Finger tighten only.
PARTS LIST: #GLRR-1984
ITEM NO. COMPONENT QTY.
1 Vertical Upright Channel 2
2 Base Angle 2
3 Top Angle 2
4 ½"- 13 x 1 Hex Bolt 12
5 ½" Lock Washer 12
6 #12-24 x ½"lg. Screws 50
TOOLS REQUIRED: ¾" Socket or Wrench and a level or carpenter square

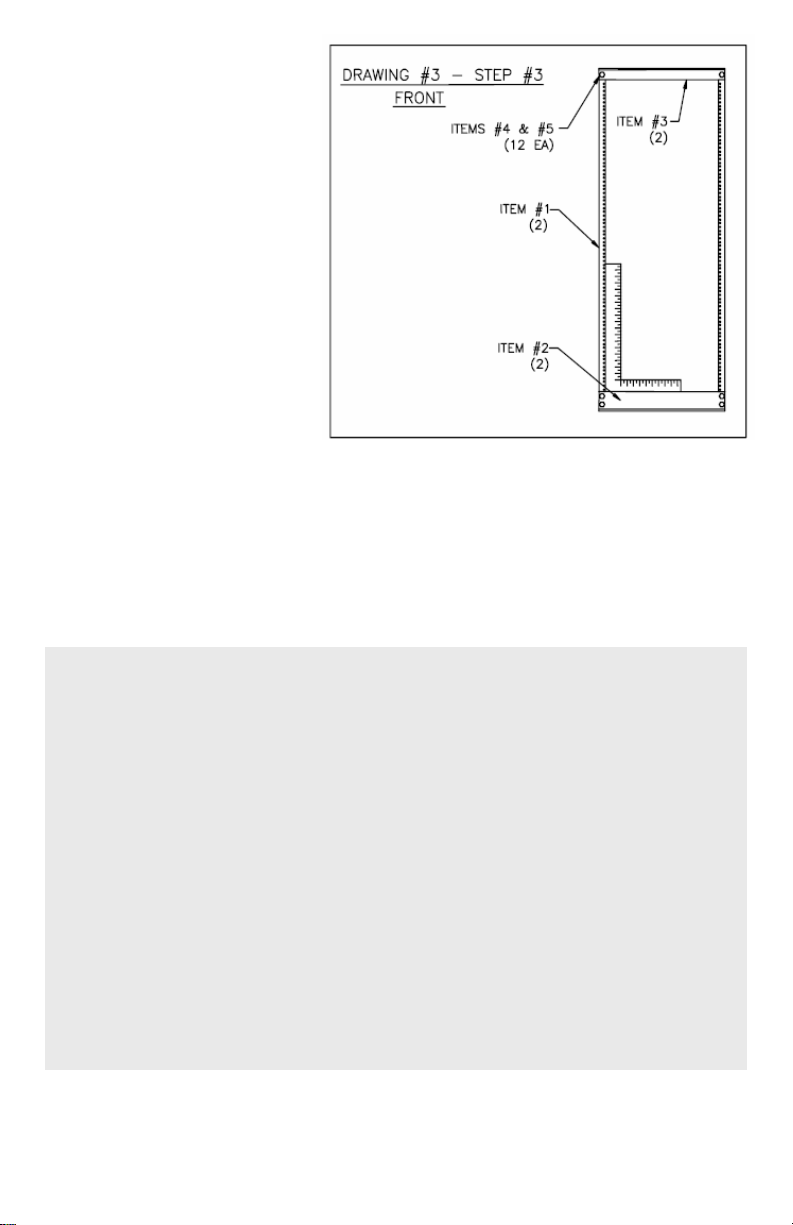

STEP #3:
Final tightening.
A. Stand rack upright.
B. Square unit using a
level or carpenter square.
C. Tighten all bolts using
socket or wrench.
STEP #4:
Secure rack to oor.
A. All racks should be
bolted to the oor, or to
an equally stabilizing
and secure surface, after
desired location is determined.
STEP #5: Equipment installation.
A. Your rack is now ready for installation of equipment and panels.
© 2009 Great Lakes Case & Cabinet Co., Inc., All right reserved. All trade names are registered
trademarks of respective manufacturers listed.
GLRR-1984 INSTRUCTIONS MS-5.02-11; REV 0
