Graupner MC-19

Turn off the transmitter!

Turn upside down

Unlock the lock

Open rear covering

DUPLEX TU module fits this transmitter well, for mounting .4 GHz use G19 assembly kit.

If needed the antenna can be placed to the free position for switcher to avoid using G19

assembly kit. Transmitter must be switched off during manipulating. Put the transmitter on

a soft pad to avoid damage.

Graupner MC-19

Disconnect connector from

FM module

Unscrew 4 screws

Unscrew the FM module

from antena

Remove the FM module

TU module is calculated to be placed to the original place of FM module. This is why the

FM module must be removed. Disconnect four-core cable that goes to the FM module.

Unscrew 4 screws and raise up the module. Unscrew the antenna from the FM module

and remove the module.

Graupner MC-19

Unscrew 4 screws

Remove antenna module

Unscrew the screws that

hold the joint

If the .4 Ghz antenna is installed to the place of original antenna, it is necessary to

remove metal joint. Unscrew 4 screws that hold antenna plastic part in the transmitter and

remove it. Metal joint is held by 3 screws. Unscrew all of them.

Graupner MC-19

Drill one 6mm hole

Drill three 3mm holes

Cut out the plastic part

Mount antenna connector

to the hole in the plastic

part

.4GHz antenna will be held by plastic part from G19 assembly kit. It is necessary to drill

6mm hole for mounting the antenna connector and three 3mm holes for mounting this part

to the antenna module. Cut out the part to the required shape, see picture. Unscrew the

nut and washer from the antenna connector. Put the antenna connector out from the inside

of the transmitter through the hole in the plastic part. Insert the washer and screw the nut.

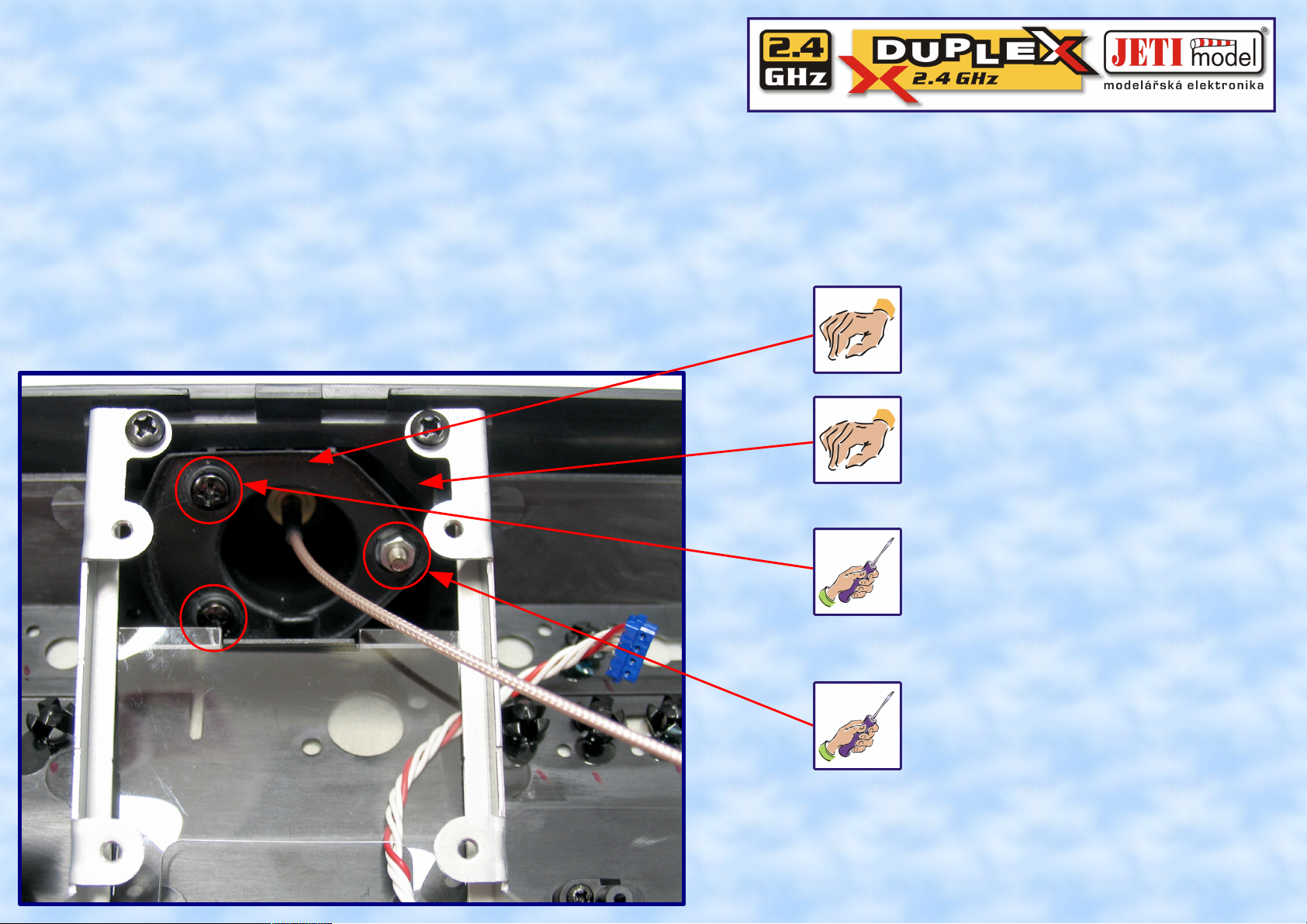

Graupner MC-19

Put plastic part to the

transmitter

Insert antenna part

Screw parts with original

screws

M3 nut is in G19 assembly

kit

You can now put plastic part and antenna module together. Because of lack of space, put

in plastic part firstly to the transmitter then insert antenna module, pres both parts together

and screw with screws and 1 nut. The nut (M3) is contained in G19 assembly kit.

Graupner MC-19

Screw TU module

Fix cables with enclosed

tape

Mount TU module to the place of original FM module with two screws and connect cable to

the input connector (IN) Be carefull of antenna cabel in order not to block mechanical parts

of transmitter or not to get broken because of excessive bend. Mount electric conductors

with tape contained in assembly kit.

Graupner MC-19

Incase the transmitter with reverse procedure see page 1. Screw enclosed antenna.

Installation is completed. Before using it is necessary to pair off new receiver and

transmitter, see receiver manual.

Mount rear casing

Screw .4 GHz antenna
