GRAUPNER S8405 Manual de usuario

Manual

7” (178 mm) LCD High Resolution Monitor with 5,8 GHz receiver

No. S8405

2 - 12 S8405_jh_V1

Index

3- 12

S8405_jh_V1

Introduction ...........................................................................4

Service Centre.......................................................................4

Intended use ........................................................................5

Package content ...................................................................5

Technical data .......................................................................5

Symbols explication...............................................................6

Safety notes ..........................................................................6

Connections ..........................................................................7

Charge the integrated LiPo battery ........................................7

Screen shroud and tripod thread ...........................................8

Commissioning......................................................................8

Keys function.........................................................................8

Screen symbols / Setting menu .............................................9

Declaration of conformity .......................................................9

Notes on environmental protection ......................................10

Care and maintenance ........................................................10

Warranty..............................................................................10

4 - 12 S8405_jh_V1

Introduction

Thank you very much for purchasing the Graupner 7” Receiver

Monitor. This Graupner 7” Receiver Monitor is extremely versatile.

Read this manual carefully to achieve the best results with your

Graupner 7” Receiver Monitor and first of all to safely control your

models. If you experience any trouble during operation, take the

instructions to help or ask your dealer or Graupner Service Cen-

tre.

Due to technical changes, the information may be changed in

this manual without prior notice. Be always updated by check-

ing periodically on our website, www.graupner.de to be always

uptodate with the products and firmwares.

This product complies with national and European legal require-

ments.

To maintain this condition and to ensure safe operation, you must

read and follow this user manual and the safety notes before using

the product!

NOTICE

This manual is part of that product. It contains important infor-

mation concerning operation and handling. Keep these instruc-

tions for future reference and give it to third person in case you

gave the product.

Service Centre

Graupner Central Service

Graupner/SJ GmbH

Henriettenstrasse 96

D-73230 Kirchheim / Teck

Servicehotline

(+49) (0)7021/722-130

Monday - Thursday

9:15 am - 5:00 pm

Friday

9:15 am - 1:00 pm

Graupner USA

OPENHHBBY LLC

3245 University Ave

Suite 1520

San Diego, CA 92104

Website: www.graupnerusa.com

Phone: +1 855-572-4746

Email:[email protected]

For the service centers outside Germany please refer to our web

site www.graupner.de.

Battery warranty

The warranty on batteries is limited to 6 months

For this time we will only ensure that the battery fulfils its func-

tion, only batteries which can not be more charged and dis-

charged any more can be replaced on warranty. This does not

apply to batteries in which the charge and discharge notes were

not observed.

Graupner in Internet

5- 12

S8405_jh_V1

Intended use

The Graupner 7“ Receiver Monitor is suitable to reproduce images

from FPV cameras signal or to playback videos or images from

external sources. The integrated 5,8 GHz receiver receives the

video signal sent by the FPV transmitters installed in the model.

For any improper use no warranty or liability is accepted.

Read through this entire manual before you attempt to install or

use the Graupner 7“ Receiver Monitor.

Graupner/SJ constantly works on the development of all prod-

ucts; we reserve the right to change the item, its technology and

equipment.

Target group

The product is not a toy. It is not suitable for children under 14

years. The operation of the Graupner 7“ Receiver Monitor must be

performed by experienced users. If you do not have sufficient

knowledge about dealing with radio-controlled models, please

contact an experienced users or a dealer.

Package content

Graupner 7“ Diversity Monitor incl. LiIo battery

Screen shroud

2x 5.8GHz receiver antennas

12V DC cable with BEC plug

2x AV out cable

Technical Data

Screen dimensions: 7“ (inches) / 178 mm

Dimensions: 180 x 120 x 50 mm

Resolution: 800 x 480 Pixel

Screen type: TFT LCD Monitor, LED backlight

Luminosity: 450 cd/m2

Holder: tripod thread / sliding insert

Frequency: ISM 5.8 GHz

Operating voltage: DC-IN 7- 12 V

Battery: 2450mAH LiPo battery

Weight: ca. 420g

Operating temperature: 10° C ~ 65° C

6 - 12

S8405_jh_V1

Symbols explication

Always follow the information marked with the CAUTION or WARN-

ING symbol. The signal word WARNING indicates the potential for

serious injury, the signal word CAUTION indicates possibility of

lighter injuries.

The signal words note and caution indicate potential damages to

objects.

Safety notes

General

These safety instructions are intended not only to protect the

product, but also for your own and other people’s safety. There-

fore please read this section very carefully before using the prod-

uct!

Do not carelessly leave the packaging material lying around,

since it might become a dangerous toy for children.

Persons, including children, with reduced physical, sensory

or mental capabilities, or lack of experience or knowledge,

or not capable to use safely the Graupner 7“ Receiver Monitor

must not use the Graupner 7“ Receiver Monitor without super-

vision or instruction by a responsible person.

Changes and modification on the module are not allowed

because of safety and conformity (CE) reasons.

Make sure that the monitor is not exposed to rough mechan-

ical stress and avoid the influence of extreme temperatures,

direct sunlight and intense vibration (e.g. in vehicles).

Treat the monitor at all times carefully. It can even be dam-

aged by vibration, pressure, blows or falls from a low height.

The monitor must not come into contact with moisture, (e.g.

use when it rains). This can damage the monitor and it may

lead to risk of short circuit, fire, injury (electric shock, burns).

Keep the monitor out of the reach of children. It is not a toy.

Never leave the packing materials around! Plastic wrap or

bags, polystyrene parts, etc. can be a dangerous toy for chil-

dren! Risk of suffocation!

Repair work may only be carried out by Graupner Service

Centre or a specialized workshop.

For all questions that are not answered in this manual, please

contact our Customer Service.

7- 12

S8405_jh_V1

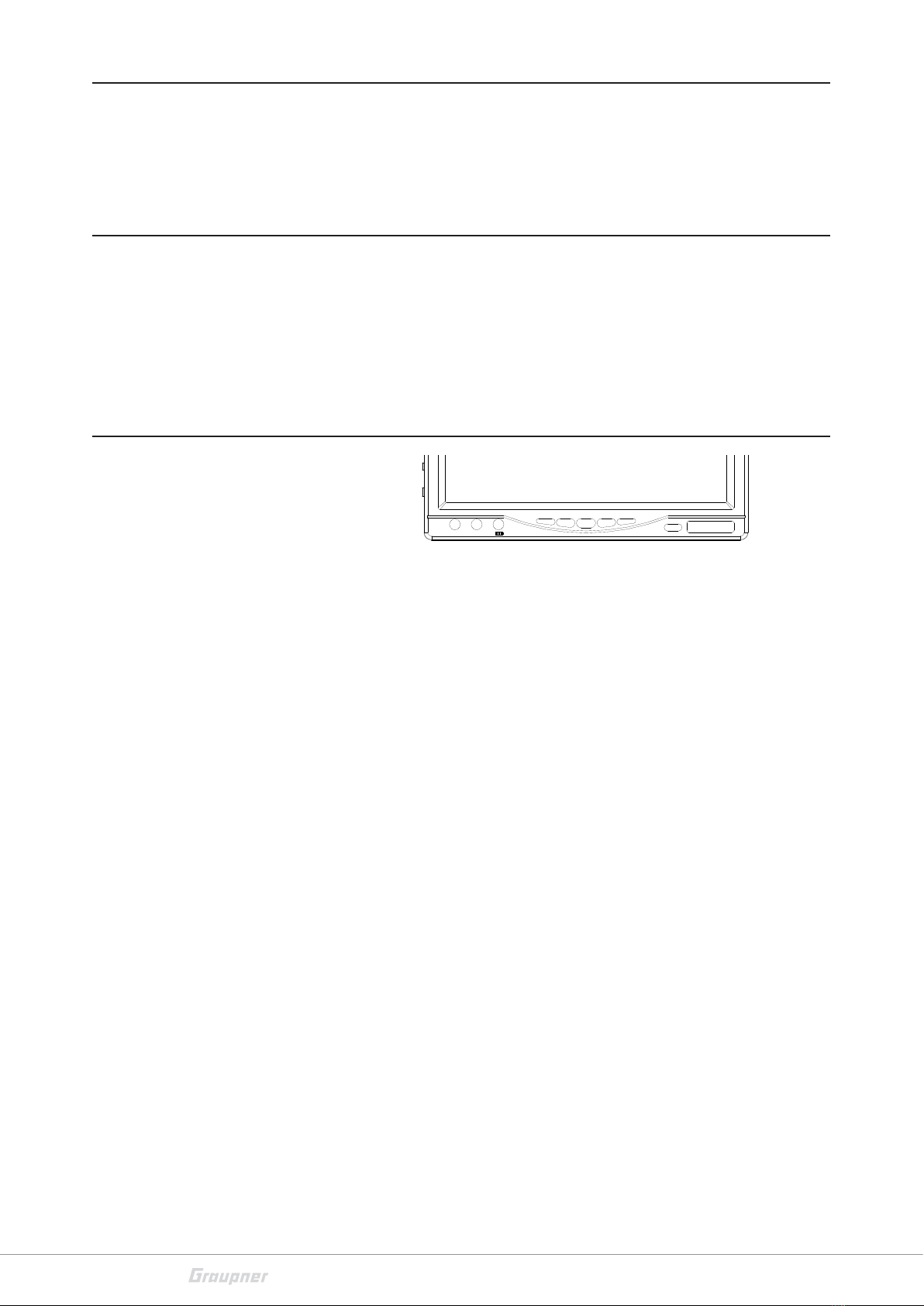

RF ARF B

G RO U P /+ C H ANN E L /- ME UN SEA RCH S O URCE

P OWER

Interfaces

1 Video Out receiver A

2 Video Out receiver B

3 Video Out receiver A + B

4 Video In

5 Current source port

Charge the integrated LiPo battery

CAUTION

General notes on safety and handling LiPo batteries

• Never leave a LiPo battery unattended when in charge.

Charge the batteries only in rooms where a smoke detector

is installed.

• Always control the battery and the charger during the entire

charge process.

• Always charge the LiPo batteries on a non-flammable sur-

face.

• Always keep an extinguisher suitable for Lithium “Class type

D” when charging LiIo batteries.

• Never charge the LiPo battery with a charger which does not

detect the full charge state of the battery.

• Always interrupt the charge or discharge process of a LiPo

battery if you detect smoke or if the battery slowly inflates.

Let the battery stay for at least 30 minutes in a fire-safe

place. Do not use the battery any more and dispose it as

indicated.

• Charge

• To charge the internal 2450 mAh LiPo battery, you need a

suitable 7 - 12 V DC net adapter (not included in the pack-

age content).

• Plug the net adapter in a suitable net socket, then connect

the plug in the “DC IN” port of the monitor.

• During charge the charge status LED (on the left near the

buttons) lights on red. When the charge process has fin-

ished, the LED lights on blue.

8 - 12 S8405_jh_V1

Screen shroud and tripod thread

• To be able to use optimally the monitor even when sun

shines, use the screen shroud. It can be easily fixed on the

monitor.

• The thread for tripod or other monitor holders is on the bot-

tom of the monitor. So it is easier to use.

Commissioning

• Screw the included 5,8GHz antennas on the two connectors

placed on the top back of the monitor.

• The power is supplied by the integrated LiPo battery, pay

attention to charge the battery before use. Alternatively the

device can be powered by an external net adapter.

• To use the monitor, push the On/Off button (power) right for

1 second. The LED lights on blue.

Keys function

GROUP/+

Switch the receiver band A, B, C, D, function + key in the dis-

play menu

CHANNEL/-

Switch the receiver channel 1 - 8, function - key in the display

LCD display parameter settings, with + or - change the settings,

with MENU switch the settings

By pushing this key the automatic search will start or stop.

SOURCE

Select the input source,

RF A - receive only from receiver A

RF B - receive only from receiver B

AV IN - external AV signal from Video In

POWER

Push briefly to switch on and off the monitor

RF ARF B

G RO UP /+ C HA NNE L /- ME UN SEA R CH S O URCE

P OWER

9- 12

S8405_jh_V1

Screen symbols / Setting menu

Changes of the frequency band or of the channel will be shown

in the upper part of the screen. Charge the battery when the

indicator shows empty battery.

Setting menu

Push the “MENU” button to access the selection menu.

Pushing the “MENU” button you can scroll through the menu

setting points. To change the value of one of the menu item,

push the “plus/minus” buttons. The menu automatically disap-

pears after about 5 seconds if you do not push any button.

• Brightness, contrast, colour, volume: set by pushing the “plus /

minus” keys

• Rotation: Image rotation in two positions

• Language: English, Chinese

• Reset: Sets all settings to factory value

• Exit: Aborts the menu

Declaration of conformity

S8405, 7“ Monitor

Graupner/SJ declares that the product is conform to EU norms.

EMV 1999/5/EC

EN 301 489-1 V1.9.2 (2011-09); EN 301 489-17 V2.1.1 (2009-

05); EN 300 440-2 V1.4.1(2010-08)

1. Signal power

2. Band/Channel

3. Battery status

1 2 3

10 - 12 S8405_jh_V1

Notes on environmental protection

Disposal notes

This symbol on the product, user manual or packaging indicates

that this product must not be disposed of with other household

waste at the end of its life. It must be handed over to the appli-

cable collection point for the recycling of electrical and electronic

equipment.

The materials are recyclable as marked. By recycling, material

reusing or other forms of scrap usage you are making an import-

ant contribution to environmental protection.

Batteries and accumulators must be removed from the device

and disposed of at an appropriate collection point. Please inquire

if necessary from the local authority for the appropriate disposal

site.

Care and maintenance

Notes on care

The product does not need any maintenance, it works so as it

is without any special care. In your own interests protect it from

dust, dirt and moisture.

Clean the product only with a dry cloth (do not use detergent!)

lightly rub.

Warranty certificate

The Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck

grants from the date of purchase of this product for a period of

24 months. The warranty applies only to the material or opera-

tional defects already existing when you purchased the item.

Damage due to wear, overloading, incorrect accessories or

improper handling are excluded from the guarantee. The legal

rights and claims are not affected by this guarantee. Please

check exactly defects before a claim or send the product,

because we have to ask you to pay shipping costs if the item is

free from defects.

The present construction or user manual is for informational pur-

poses only and may be changed without prior notice. The cur-

rent version can be found on the Internet at www.graupner.de on

the relevant product page. In addition, the company Graupner

has no responsibility or liability for any errors or inaccuracies that

may appear in construction or operation manuals.

No liability can be accepted for printing errors.

Tabla de contenidos

Otros manuales de Receptor de GRAUPNER

GRAUPNER

GRAUPNER Falcon 12 plus Manual de usuario

GRAUPNER

GRAUPNER GR-12 Manual de usuario

GRAUPNER

GRAUPNER mz-24 HOTT Manual de usuario

GRAUPNER

GRAUPNER Falcon 12 Manual de usuario

GRAUPNER

GRAUPNER GR-12SC+ Manual de usuario

GRAUPNER

GRAUPNER Falcon 12 Manual de usuario

GRAUPNER

GRAUPNER GR-12S Manual de usuario

GRAUPNER

GRAUPNER GR-10C Manual de usuario

GRAUPNER

GRAUPNER 23608 Manual de usuario

GRAUPNER

GRAUPNER GR-4 HoTT Manual de usuario

GRAUPNER

GRAUPNER mz-24 HOTT Manual de usuario

GRAUPNER

GRAUPNER GR-12SH+ Manual de usuario

GRAUPNER

GRAUPNER 33575 Manual de usuario

GRAUPNER

GRAUPNER GR-12L HoTT Manual de usuario

GRAUPNER

GRAUPNER HoTT GR-18 Manual de usuario

GRAUPNER

GRAUPNER HOTT GR-32 Manual de usuario

GRAUPNER

GRAUPNER GR-12L HoTT Manual de usuario

GRAUPNER

GRAUPNER 33575 Manual de usuario

GRAUPNER

GRAUPNER GR-18 Series Manual de usuario

GRAUPNER

GRAUPNER GR-12L SUMD+T Manual de usuario

GRAUPNER

GRAUPNER GR-12L HoTT Manual de usuario

GRAUPNER

GRAUPNER GR-24PRO Manual de usuario

GRAUPNER

GRAUPNER GR-16 HoTT Manual de usuario

GRAUPNER

GRAUPNER XR -12DXT IFS Guía de configuración

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
