GRAUPNER S8351 Manual de usuario

S8351 External Bluetooth module

for mz series transmitter

No. S8351

OPERATING INSTRUCTION

Prior to use, please read this manual thoroughly.

Keep this manual in a convenient place for quick and easy reference.

Contents

• BEFORE USE

• SUPPORT AND SERVICE

- Customer support

- Online Support

- A/S Support

- Warranty information

• OPENHOBBY A/S CENTER

1. Product Description

2. External Bluetooth module Installation

3. Android Application

4. Graupner HoTT Meter Viewer

5. Voice Setup

5-1. Warning

5-2. Receiver

5-3. General

5-4. Electric

5-5. Vario

5-6. GPS

5-7. Air ESC

6. Display Setup

6-1. Data unit

6-2. RPM

6-3. Voltage

6-4. Current

6-5. Capacity

7. Monitoring

- Receiver

- General Air Module

- Electric Air Module

- Vario Sensor Module

- GPS Sensor Module

- ESC

- Warning Popup

- Warning List

8. Safety Approval

9. Environmental protection notesa

5~6P

7~8P

9~10P

10P

11P

12P

13P

13~14P

14P

15P

16~17P

17P

Thank you for your purchasing Graupner S8351 External Bluetooth module. This

product could be used for Graupner HoTT 2.4GHz mz series Transmitter. And it is

NOT compatible with the other branded 2.4GHz Transmitter. Prior to use this product,

please read this manual for correct use and operation. Otherwise, this product would

be damaged and inuenced in lifespan. Thank you customers, we will do our best for

RC products quality and R&D.

3245 University Ave, Suite 1520, San Diego, CA 92104, United States of America

Phone: +1 855-5-RCisHoTT ( +1 855-572-4746) Fax: +1 855-546-0350

E-mail: service@openhobby.com

permission of SJ Inc. 4386066

•

BEFORE USE

•

SUPPORT AND SERVICE

•

OPENHOBBY A/S CENTER

•

Customer support

We are happy to assist you with any question by e-mail or phone. Customer service

hours are from 9 am to 5 pm PST (Pacic Standard Time) during the workweek, Mon-

day through Friday. E-mailed questions will be answered as soon as possible

• Online Support

Please visit us at www.openhobbby.com, to stay up to date with the latest software,

rmware and product information.

• A/S Support

During the warranty period, we can repair this product at no cost in the event that it

has become faulty under normal operating conditions.

For non-functional products that are past the expiration date of the warranty or have

been improperly used, we would be happy to repair this product for an appropriate

amount of cost to the consumer.

• Warranty information

Refer to the WARRANTY CARD in the Package

▲ mz-18, mz-24▲ mz-10, mz-12

basic

sett.

fail

safe

train

info.

disp.

BLUETOOTH

▲

Voice volume 3

Beep volume 5

Jack select EAR

DATA sele.

Sensor Units Metric

1. Product Description

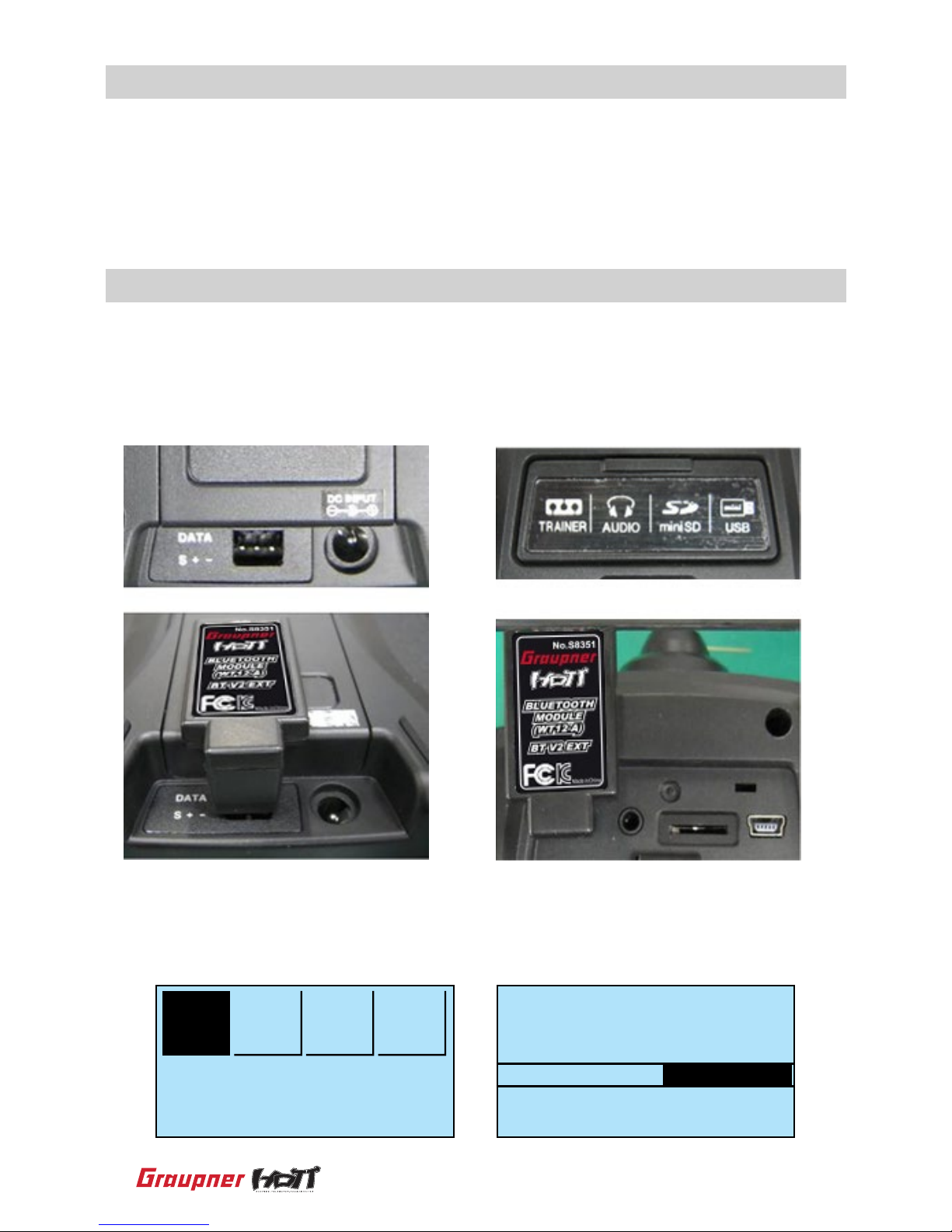

2. External Bluetooth module Installation

This Graupner S8351 External Bluetooth module is used in connecting with Graupner

HoTT mz series Transmitter. And the communication could be with Android smart

phone by Bluetooth. Therefore, various telemetry data could be transferred to the

smart phone from the TX in real-time. These real-time telemetry data could be supplied

in voice and graphic and also could be edited by the user for the required data.

Regarding the Graupner HoTT mz-10, mz-12, mz-18 and mz-24 Transmitters, the

S8351 External Bluetooth module could be connected at the data input as the below

photo. Regarding the Graupner HoTT mz-10, mz-18 and mz-24 could be used without

any additional conguration.

As for the mz-12, you could congure the related function on the TX program. At the

DATA sele item of Basic sett function, please change Telemetry to BLUETOOTH.

▲

3. Android Application

4. Graupner HoTT Meter Viewer

The formal name of Graupner Android Application is “Graupner HoTT Meter Viewer”.

At the play store of smart phone, please search Graupner and download the Graupner

HoTT Meter Viewer.

https://play.google.com/store/apps/details?id=com.sj.GraupnerSJ_HoTT_Viewer

To make the Bluetooth module activated, please tap the Bluetooth on and there will be

Bluetooth connecting message. Please tap “connect” and it will be activated. Please

tap “Bluetooth Device Search” and there will be Bluetooth device list after 10 – 15

seconds. And please designate “Graupner HoTT BT2” and tap “Connect”. For the

initial connection, there will be required for the PIN number. Then, press “0000” or

“1234”. After conguration, tap “Setup Finish” and the screen will be move to the main

Manu page.

When you download the application, the initial screen will be presented. Please tap the

Bluetooth Setup button and the screen will be moved to the setting mode.

▲

5. Voice Setup

5-1. Warning

Voice Setup is for the editing of voice guide function. At the main page, please tap

“Voice Setup” for the conguration.

The rst conguration is for Warning Display Enable. Please check this item for

activation.

5-2. Receiver

5-3. General

5-4. Electric

This is for editing function of Receiver Telemetry Voice guide. There is an entire clear

function and each item could be picked - the each RF Strength, Temperature, Voltage,

Low Volte, etc. Please tap “Receiver” from the top side and it could be moved to the

conguration page. Please check the items for the activation.

This is for editing function of General Air module Voice guide. There is an entire clear

function and each item could be picked - Cell 01~Cell 06, Sensor1 Volt, Sensor2

Volt, Sensor1 Temp, Sensor2 Temp, Altitude, Current, Input Volt, Capacity, RPM, etc.

Please tap “General” from the top side and it could be moved to the conguration

page. Please check the items for the activation.

This is for editing function of Electric Air module Voice guide. There is an entire clear

function and each item could be picked - Cell 01~Cell 14, Sensor1 Volt, Sensor2 Volt,

Sensor1 Temp, Sensor2 Temp, Altitude, Current, Input Volt, Capacity, etc. Please tap

“Electric” from the top side and it could be moved to the conguration page. Please

check the items for the activation.

5-5. Vario

5-6. GPS

This is for editing function of Vario module Voice guide. There is an entire clear func-

tion and each item could be picked - Altitude, Max Altitude, Min Altitude, etc.

Please tap “Vario” from the top side and it could be moved to the conguration page.

Please check the items for the activation.

This is for editing function of GPS module Voice guide. There is an entire clear function

and each item could be picked - Speed, Altitude, Distance, Direction, etc.

Please tap “GPS” from the top side and it could be moved to the conguration page.

Please check the items for the activation.

5-7. Air ESC

6. Display Setup

6-1. Data unit

6-2. RPM

This is for editing function of “Brushless Control +T” ESC Voice guide. There is an

entire clear function and each item could be picked - RPM, Current, Voltage, Capacity,

etc. Please tap “Air ESC” from the top side and it could be moved to the conguration

page. Please check the items for the activation.

This is for editing function of standard units of Graupner HoTT Meter Viewer Data.

At the main page, tap “Display Setup” and the screen will be moved to the congura-

tion page for the rst function of Data unit. This is for unit conguration of Graupner

HoTT Meter Viewer - Metric

(℃

, m, km) or English(

℉

, ft, mile).

This is for RPM unit conguration for the related module - 0~10,000, 0~20,000,

0~50,000 and 0~100,000. Please tap “RPM” from the top side and it could be moved

to the conguration page.

6-3. Voltage

6-4. Current

This is for Voltage unit conguration for the related module - 0~20V, 0~40V and

0~80V. Please tap “Voltage” from the top side and it could be moved to the congura-

tion page.

This is for Current unit conguration for the related module - 0~10A, 0~25A, 0~50A,

0~100A, 0~200A and 0~300A. Please tap “Current” from the top side and it could be

moved to the conguration page.
