Grasslin Talento 812 Manual de usuario

1. Contents Page

2. Safety instructions 3

3. Assembly, putting into operation, connection 4

4. Control elements 5

5. Display 6

6. General 7

7. Factory setting 8

7.1 Changing the settings 10

7.2 Selecting the operating mode 11

7.2.1 AU = Automatic switchover 11

7.2.2 cHA = Weekday-related switchover 12

7.2.3 no = No switchover 13

8. Switching commands 14

9. Date 16

9.1 Single date without/with year 17

9.2 Date range without/with year 18

10. Priority 20

11. Pulse switching commands 21

12. Cycle switching commands 23

13. Read – Change – Delete – Reset 26

14. Manual switch 30

15. DCF77 radio mode 30

16. Technical data 31

http://waterheatertimer.org/Intermatic-timers-and-manuals.html#talento-800

2. Safety information 3

Installation must be carried out and inspected by a specialist or

under his supervision.

For assembly:

• Suitable for use in ambient conditions with normal

contamination levels

• Use the appropriate Grässlin accessories for wall

surface-mounting.

If correctly installed in accordance with VDE 0100, Part 40,

the parts with which contact is still possible can be regarded

as double-insulated (protection class II).

For operation:

• We place high demands on the EMC interference resistance of

the electronics when developing our products. The interference

immunity achieved significantly exceeds the currently valid

requirements of the appropriate EN standards.

• In individual cases, check whether additional protection

measures are still necessary, e.g. the installation of appropriate

components (varistor, suppresser diode, RC element).

• In extreme cases, it is recommended to install another module,

e.g. isolating relay or switching contacter, mains interference

suppresser filter.

For operation:

• No metallic pointed objects (e.g. needles) may be used on keys

pressed with a tool.

Important:

• Only safety extra-low voltage may be connected for operating

the clock with safety extra-low voltage.

• When operating the clock with function extra-low voltage, either

the mains voltage (230 V AC) or function extra-low voltage may

be connected. In these cases, it is not permissible to connect

safety extra-low voltage.

3. Assembly, putting into operation, connection 4

3.1 Assembly

Fit the time switch

• on a DIN rail

• Wall surface-mounting is

optional

Surface-mounting set for 6 modular

spacings Article No.

03.59.0046.2

3.2 Putting into operation

The time and date have been set at

the factory.

The time switch is in power-save mode.

Only the colon flashes.

Press any key:

• The time switch is active

• It shows the time (day of the week)

3.3 Connection

See information on the unit.

Press any key:

• The time switch is active

•

It shows the date, time and day of the week

Note:

The time switch is

automatically active after

approx. 1–2 minutes

4. Control elements 5

Hand switch

Select days of the week

1 = Monday

2 = Tuesday

3 = …

Summer time/winter time switchover

Select pulse

Reset

Select cycle

Current date, time settings

Begin program input

Send/receive IR

Priority

Delete

up to, for date range

Calendar day

Calendar month

Years

Hours

Minutes

Select minutes/seconds

for cycle/pulse functions

set

5. Display 6

Day (US month)

Pulse (minutes)

Cycle (minutes)

Channel 1

Continuous operation

Manual operation

Automatic operation

Switching state

Channel 2

Channel 3

Channel 4

Hours

Year number

1234567 = Day of the week

Month (US day)

Pulse (seconds)

Cycle (seconds)

Automatic operation

Cycle

Pulse

DCF 77

Radio reception

Year number

Block number

Priority

Summer time/

winter time

switchover

12 h/24 h displayMinute

6. General 7

6.1 Block numbers

Block numbers are automatically issued during programming.

There are block numbers from 00 ....... 99 (note block principle).

All switching commands without date assignment always receive

the block number 00. (Priority 0 is always assigned to the

block number 00 – it cannot be changed).

All switching commands with date assignment receive the block

numbers from 01 ..... 99.

These are issued in ascending order.

6.2 Priority

Switching commands with a date assignment can be occupied

with different priorities.

If you start with a date when entering the program, a new block

number and priority 2 are always offered.

The priority can be changed between 1 and 9,

(see Section 10).

The switching command with a higher priority is

executed first.

6.3 Saving the switching program

In the current operating state (colon flashing), the time switch

offers the possibility of using the entered switching program

with the function:

•Back Up – can be saved in “background“

•Restore – restores to the foreground

•Change – 2 switching program alternately

6. General 8

Back Up

with the key Prog and 1(Day key)

The switching program in the

foreground is preserved and can be

changed as required.

If necessary, call up the original

switching program again with the

Restore function.

Restore

with the key Prog and 7(Day key)

The switching program in the

foreground can be changed as required.

The saved and the current switching

programs can be used alternately

with the Change function.

Change

with the key Prog and 4(Day key)

Both switching programs can be used,

changed and saved independently

of each other.

Program saved

current program

Program saved

current program

Program saved

current program

6. General 9

6.4 Programming at the desk

The control section can be

removed and programming

can be conveniently

performed at the desk.

6.5

Programming with the talento taxxi (manual programming unit)

The talento taxxi offers the most convenient method for

transferring the switching programs.

6.5.1

From time switch to time switch (from control section to control

section – without mains voltage!). The switching programs

are read out from one time switch and are transferred to

the next one – see the talento taxxi operating instructions.

Note: If the data is not correctly transferred, the error

message Er 02 appears in the display of the

time switch.

• Check the time switch type

A switching program can only be transferred

to a time switch of the same type.

• Transfer the program again.

There may be a read/wire error.

talento taxxi

6. General 10

6.5.2 Compile your switching programs on a PC with the

software talento dialog. They are then transferred to

the taxxi via the PC interface.

With the taxxi, the switching programs are now

transferred to the relevant time switch (control section)

via the infrared interface. Refer to the talento dialog

manual.

Note: Software and accessories can be ordered separately:

•talento taxxi set Art.No.: 07.01.0029.1

consisting of:

• Software talento dialog, including manual

• talento taxxi (manual programming unit)

• Cable 1:1 for the serial interface

• talento taxxi Art.No.: 07.01.0030.1

talento taxxi

6. General 11

6.6

Service

6.6.1 Error messages

The time switch signals malfunctions:

•Er 04 – in the event of incorrect access to

the EEProm. This error message can appear in

individual cases. Press any key and the time

switch will continue to run normally.

If this error message appears often, we recommend

that the time switch be replaced.

Consult your dealer.

•Er 02 – in the event of incorrect transfer via the

IR interface.

Transfer the program again.

There may be read/write errors.

•Er 01 – If the battery voltage is too low.

6.6.2 Lithium battery (service life, type: see Technical data)

If the battery voltage falls to below a value which

does not guarantee functioning of the time switch

(error message Er 01) , replace the battery.

Order the battery from your dealer with the

article number 09.02.0007.8.

Replacing the battery:

• Remove the control section, see 6.4

• Remove the battery casing

• Carefully remove the connector

• Insert a new battery

• Carefully insert the connector

• Replace the battery casing

Tabla de contenidos

Otros manuales de Minutero de Grasslin

Grasslin

Grasslin MIL 72 D120 Manual de usuario

Grasslin

Grasslin FM/1 digi 20 Manual de usuario

Grasslin

Grasslin tasu 472 1 plus Manual de usuario

Grasslin

Grasslin GM40AVE Series Instrucciones de instalación

Grasslin

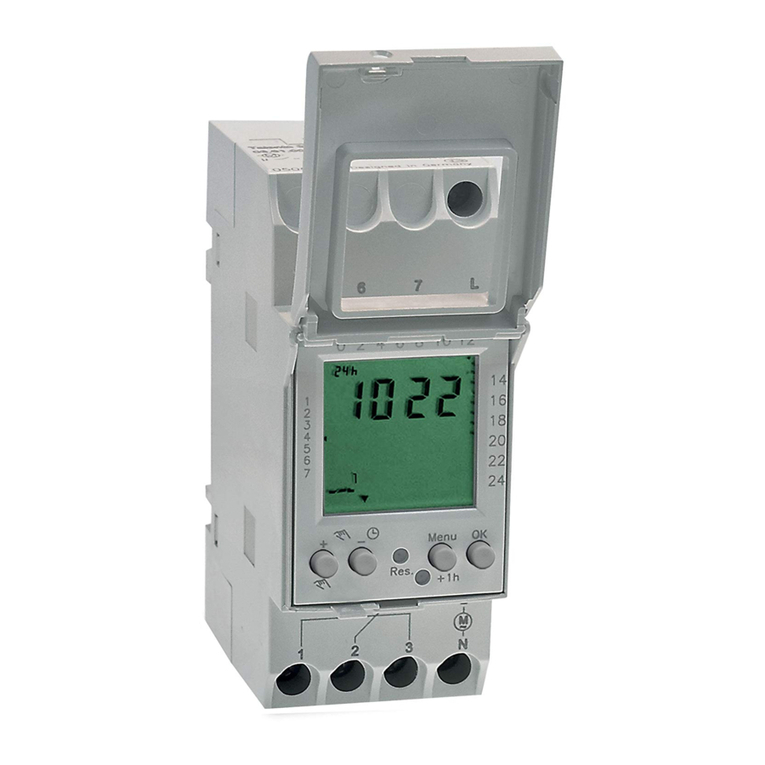

Grasslin talento 371 Manual de usuario
