Grandstream Networks, Inc.
GXV3240 IP Multimedia Phone
GUI Customization Guide
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 1 of 11
GXV3240 GUI Customization Guide
Index
INTRODUCTION ........................................................................................3
OVERVIEW............................................................................................................................................3
HOW TO CUSTOMIZE GXV3240 LCD GUI..........................................................................................3
CONFIGURATION GUIDE..........................................................................4
APP SETTING .......................................................................................................................................4
ADD THIRD PARTYAPPLICATIONS.............................................................................................5
LAYOUT SETTING ................................................................................................................................6
CONTACTS SETTINGS ........................................................................................................................7
SCREENSAVER SETTINGS.................................................................................................................8
LANGUAGE AND KEYBOARD SETTING.............................................................................................9
SCREEN SETTINGS...........................................................................................................................10
OTHER SETTINGS ............................................................................................................................. 11
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 2 of 11
Table of Figures
GXV3240 GUI Customization Guide
Figure 1: App Setting Interface......................................................................................................................4
Figure 2: Add a Third Part Application ..........................................................................................................5
Figure 3: Layout Settings..............................................................................................................................6
Figure 4: Contacts Interface..........................................................................................................................7
Figure 5: Screensaver Settings.....................................................................................................................8
Figure 6: Language and Keyboard Settings .................................................................................................9
Figure 7: Screen Settings............................................................................................................................10
Figure 8: Other Settings.............................................................................................................................. 11
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 3 of 11
INTRODUCTION
OVERVIEW
Grandstream GXV3240 IP Multimedia Phone allows users to customize the GUI desktop layout as well as
GUI configurations on the phone, offering users with flexibility and control. The GUI configuration includes
display/hide certain applications, configure parameters on the phone with specific configuration items,
control the display appearance and enable/disable some applications and much more.
This document describes how to use the Grandstream Graphical GUI Customization Tool to customize the
GXV3240 GUI settings and applications. This tool allows users to do the following on applications running
on GXV3240:
Turn on/off applications
Set up parameters
Personalize phone display
Turn on/off certain functions on applications
The Grandstream Graphical GUI Customization Tool is available for download from the following link:
http://www.grandstream.com/support/tools
HOW TO CUSTOMIZE GXV3240 LCD GUI
1. Unzip the tool package. Double click on “gui_config_tool.exe” to start up the tool. Single click on
GXV3240 picture to get into the GXV3240 GUI customization interface.
2. Set up the parameters and application configurations.
3. Generate the GXV3240 custom file “gxv3240cust” by clicking on “File” “Save As”. The tool also
allows users to read and edit the existing custom files.
4. Put the generated custom file “gxv3240cust” on your HTTP/TFTP/HTTPS server.
5. Point the phone's configuration file path to the directory on the server where the custom file
locates.
6. Reboot the phone to trigger the upgrade.
7. After booting up, GXV3240 LCD shall display the customized GUI.
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 4 of 11
CONFIGURATION GUIDE
APP SETTING
The following figure shows the "App Setting" section on the Config Tool.
Figure 1: App Setting Interface
In this section, users could configure the following:
Edit menu layout structure
Enable or disable specific application
Edit options to be displayed on GUI interface for a specific application, which includes icon and
text for description purpose.(Default settings will be applied if there is no change made)
Add submenu or link by right-clicking on the left panel list
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 5 of 11
Note:
On the left panel, “Settings”, “call history”and “phonebook”are mandatory.
ADD THIRD PARTY APPLICATIONS
To add a third party application, with the cursor located within the left panel, right-click the mouse, a
drop-down menu will appear, with two options “add submenu” and “add3rdApp”.

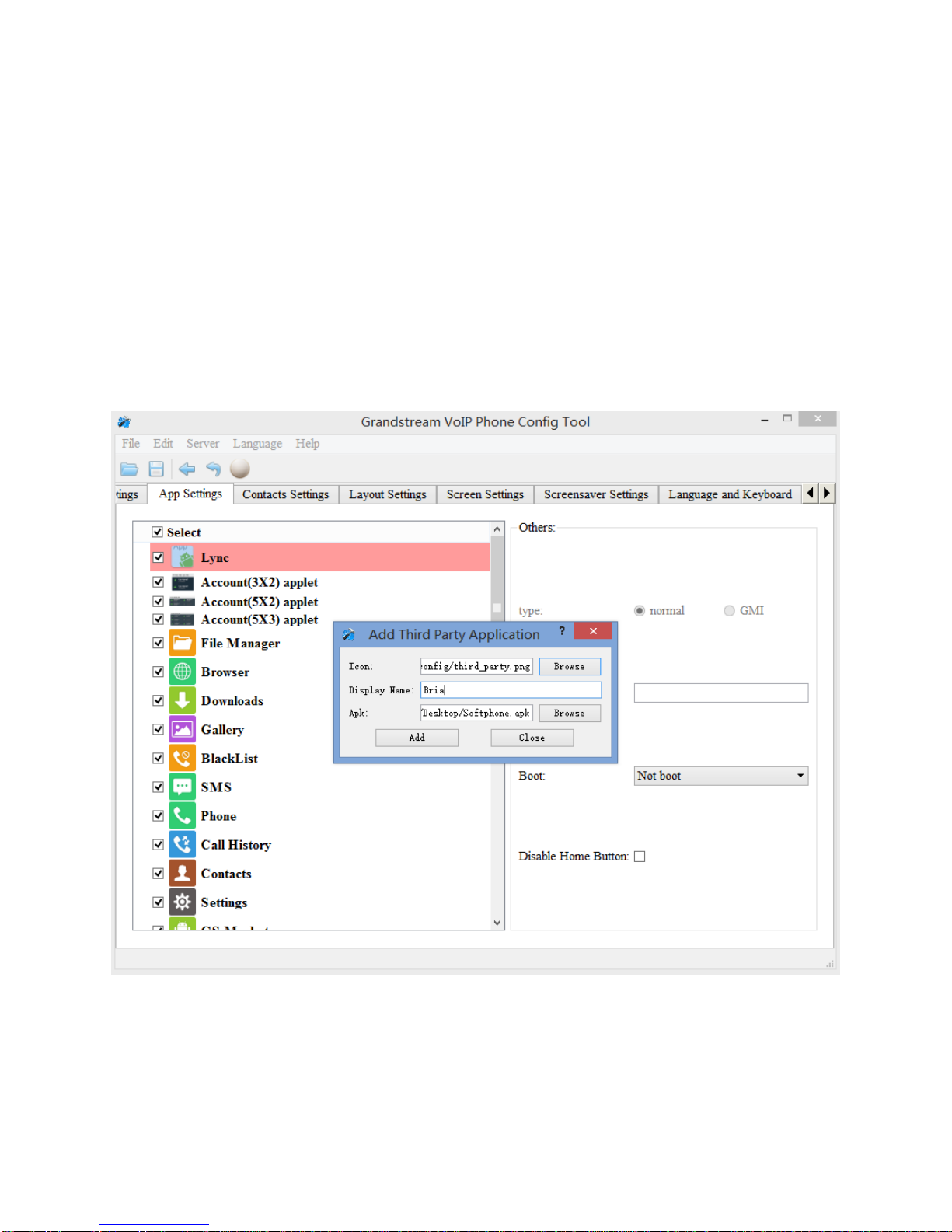

Click on “add3rdApp”, a pop-up window “Add Third Party Application” will be shown like the following.
Browse and select an “icon” and an “apk”, enter a “Display Name”, and click on “Add”.
Figure 2: Add a Third Part Application
A third-party application with the icon and display name shows up in the left panel.
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 6 of 11
LAYOUT SETTING
The following figure shows the "Layout Setting" section on the Config Tool. Users could customize the
following for the GXV3240 desktop layout.
Figure 3: Layout Settings
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 7 of 11
CONTACTS SETTINGS

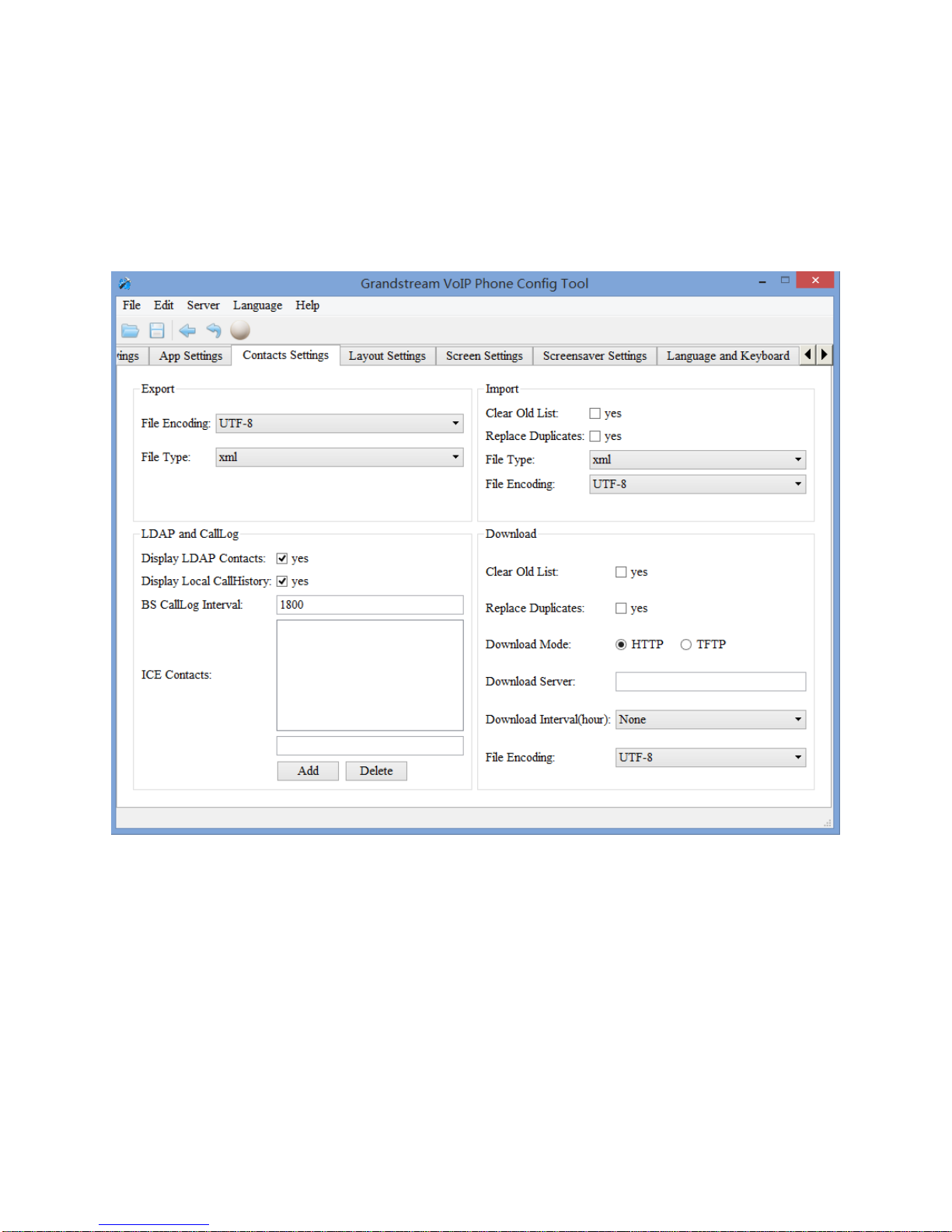

The following figure shows the "Contacts Settings" section on the Config Tool. As can be seen, in this
section, parameters for phonebook download such as Download Mode, URL and Update-Interval can be
set up for the GXV3240.
Figure 4: Contacts Interface
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 8 of 11
SCREENSAVER SETTINGS

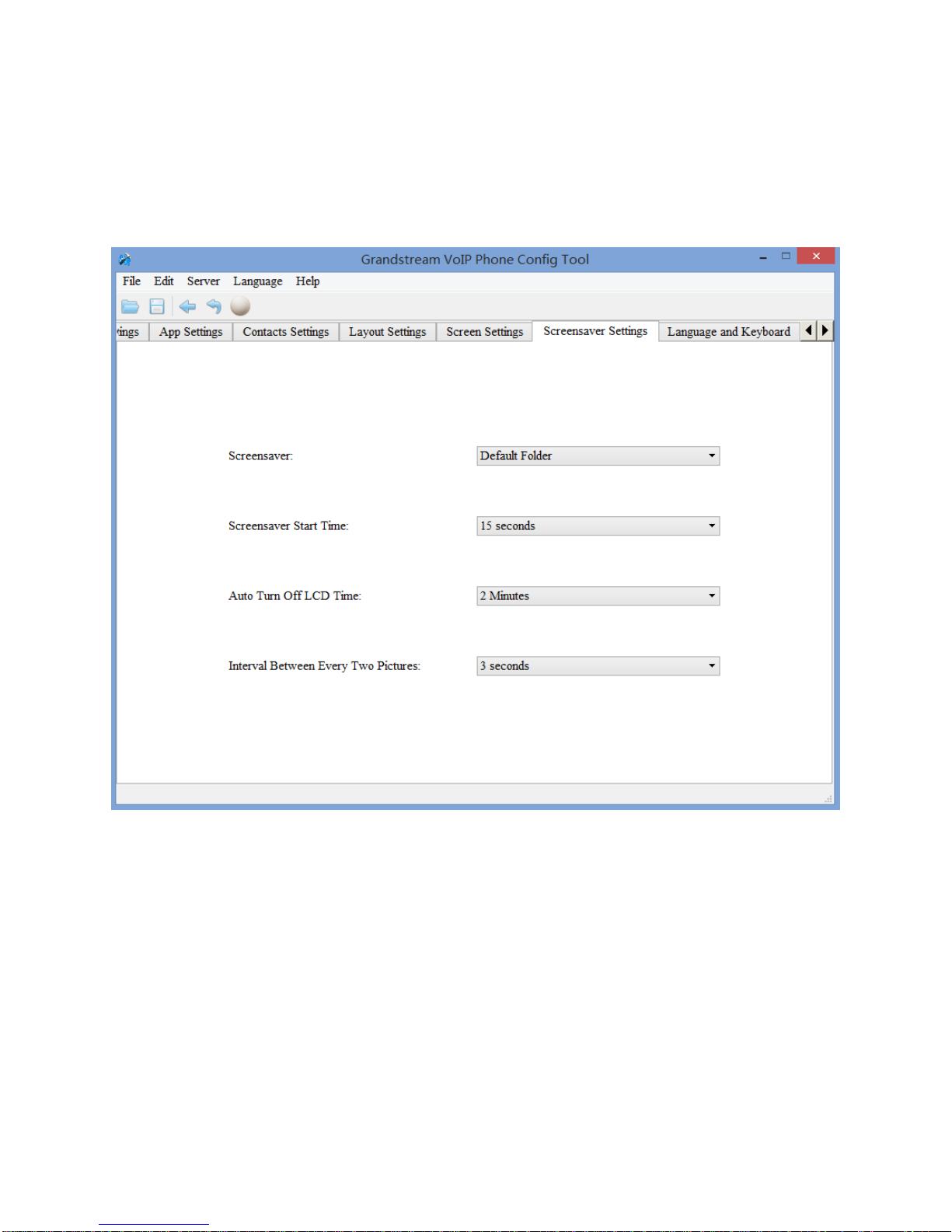

The following figure shows the "Screen Display Setting" section on the Config Tool. Users could customize
the screen saver and background image on the idle screens for GXV3240.
Figure 5: Screensaver Settings
Firmware Version 3.6.3 GXV3240 GUI CUSTOMIZATION GUIDE Page 9 of 11
LANGUAGE AND KEYBOARD SETTING
The following figure shows the "Language and Keyboard Settings" section on the Config Tool. Users could
select display languages and input method.
Figure 6: Language and Keyboard Settings
