Grandstream Networks HT-503 Manual

Grandstream HT503 Gateway Setup

1. Introduction

The Grandstream HT503 is a single line FXO/FXS telephone gateway. This gateway will

give the ability to dial on a standard POTS line. This guide is for a quick registration of

the ht503 to the Lynx Controller. Pictures are for reference only and may not reflect

the needed configuration listed in the text.

2. Connect to the HT503

a. Connect the HT503 gateway to the network through the Ethernet port and

power it up using the included power supply.

**Note: Do not connect this device to a POE powered port.

b. Follow the instructions in the quick start guide: ht503_usermanual_english.pdf

c. Use your browser and navigate to the IP (192.168.2.1 default). Password:

admin

3. Basic Settings

a. Web Port “80”

b. Choose “statically configured as:”

c. IP Address (IP Address you are assigning this gateway).

d. Subnet Mask (your networks subnet).

e. Default Router (the networks internet router IP address).

f. DNS (the internet DNS (optional)

g. Reply to ICMP on WAN port (Yes)

h. Wan side HTTP/Telnet access (Yes)

i. White list for WAN side (Your PC IP address)

j. Apply and reboot and connect to the WAN port and browse to the new IP assigned at

c.

k. Bridge radio button

l. Enable LAN DHCP - Choose “No”

m. Unconditional Call Forward to VOIP –User ID - “s”

n. Sip Server - (Lynx Controller IP)

o. Click Apply and Reboot

4. Advanced Settings

a. Update Firmware if necessary.

5. FXS Port

a. Account Active –Choose “No”.

b. Local SIP port “5061”

c. Click Apply

6. FXO Port

a. Account Active –Choose “Yes”

b. Primary SIP Server (The Lynx Controller IP Address)

c. Outbound Proxy (The Lynx Controller IP Address)

d. SIP User ID (PSTN1-5)

e. Authenticate ID (same as SIP User ID)

f. Authenticate Password “RevConLynx”

g. Name (same as SIP User ID)

h. SIP Registration - Choose “Yes”

i. Local SIP port “5060”

j. Use Random Port –Choose “No”

k. Dial Plan “{xx+}”

l. Preferred Vocoder choice 1 “PCMU”

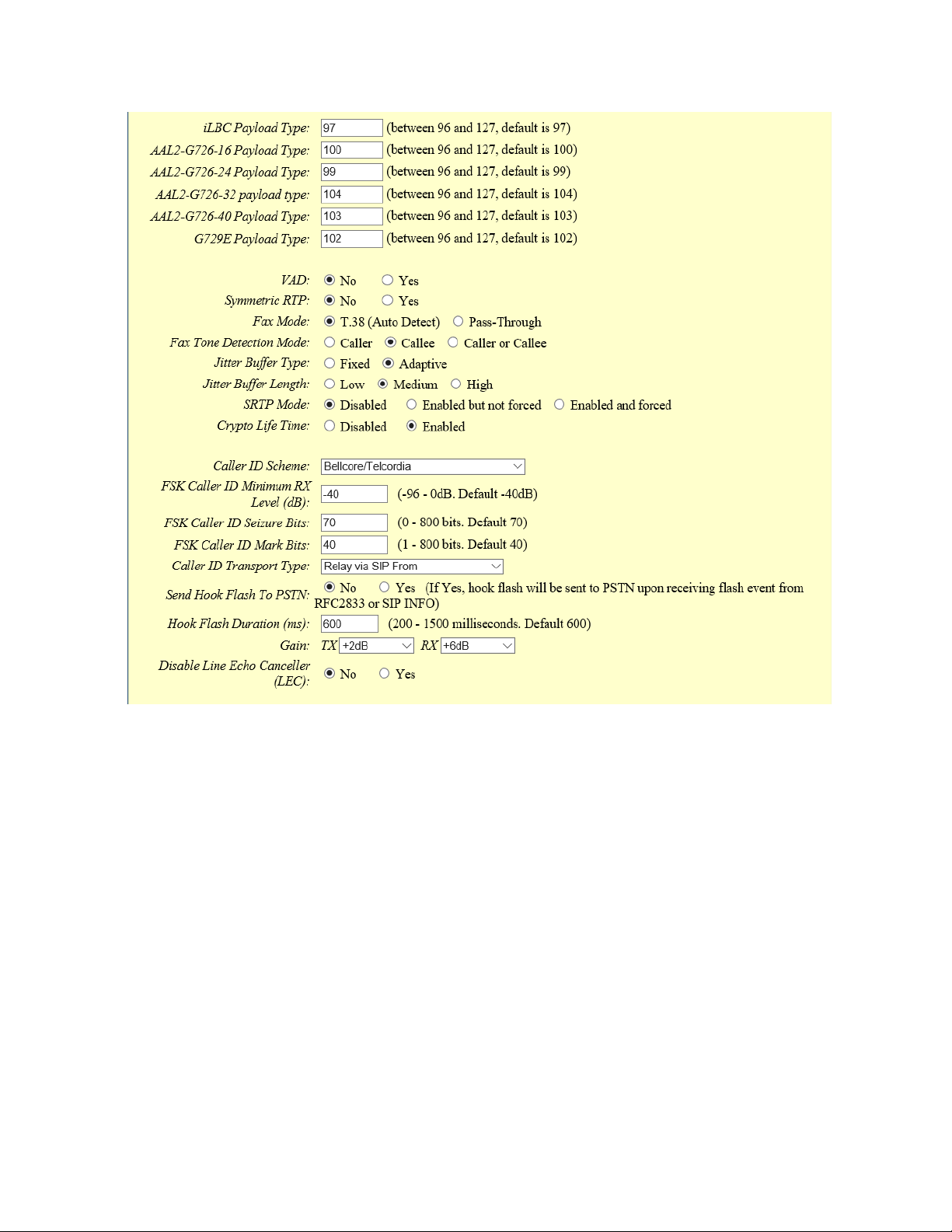

m. Gain TX “+2dB” RX “+6dB”

n. Disable Line Echo Canceller –Choose “No”

o. Current Disconnect Threshold “300”

p. Enable PSTN Disconnect Tone Detection –Choose “Yes”

q. Number of Rings “1”

r. PSTN Ring Thru FXS –Choose “No”

s. PSTN Idle Wait Timeout between Outgoing Calls “0”
