Graco Line Lazer 3500 Manual de operación

308941

Rev. A

First choice when

quality counts.

INSTRUCTIONS-PARTS LIST

INSTRUCTIONS

This manual contains important

warnings and information.

READ AND KEEP FOR REFERENCE.

Kits, Line Guide

Line Lazer 3500, 5000

Line Lazer II 3900, 5900

Model 241101, Series A (short) and

Model 241102, Series A (long)

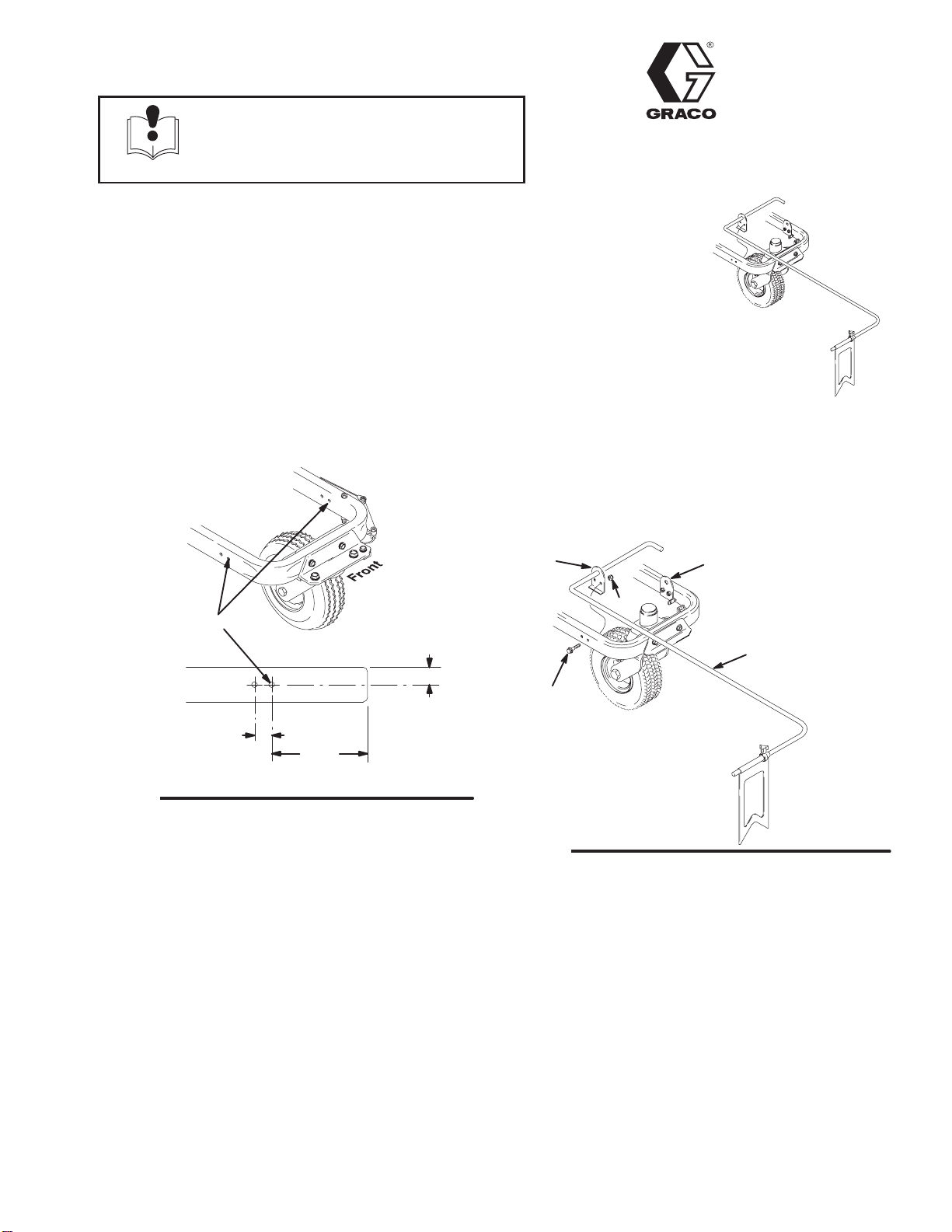

Installation

Fig. 1 8851A

1.0 in

5.55 in

Front

4X Ĭ.330

Thru. Both Walls

NOTE: Steps 1 and 2 apply to LineLazer 3500 and

LineLazer 5000 only.

1. Drill two holes on both sides of chassis frame as

shown in Fig. 1.

2. Fig. 2. Mount one bracket (6) on right side of

chassis (viewed from front) with two flange screws

(7) and two lock nuts (8).

NOTE: Steps 3 and 4 apply to all LineLazers.

3. Slide bracket (6) on rod (1). Note bracket orienta-

tion. Insert rod in bracket mounted on right side.

4. Mount second bracket (6) on left side of chassis

(viewed from front) with two flange screws (7) and

two lock nuts (8).

Fig. 2

6,7,8

8850A

Operation

For new stripes:

The dual point guide allows for line placement on the

same side of layout string or chalk, traveling either

direction. Center the pointer on the center of paint

guns and when painting alternate between points for

each direction traveled.

1. Put line guide in down position to paint.

2. When finished store line guide in up position.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Graco Inc. is registered to I.S. EN ISO 9001

8850A

- 2 -

2308962



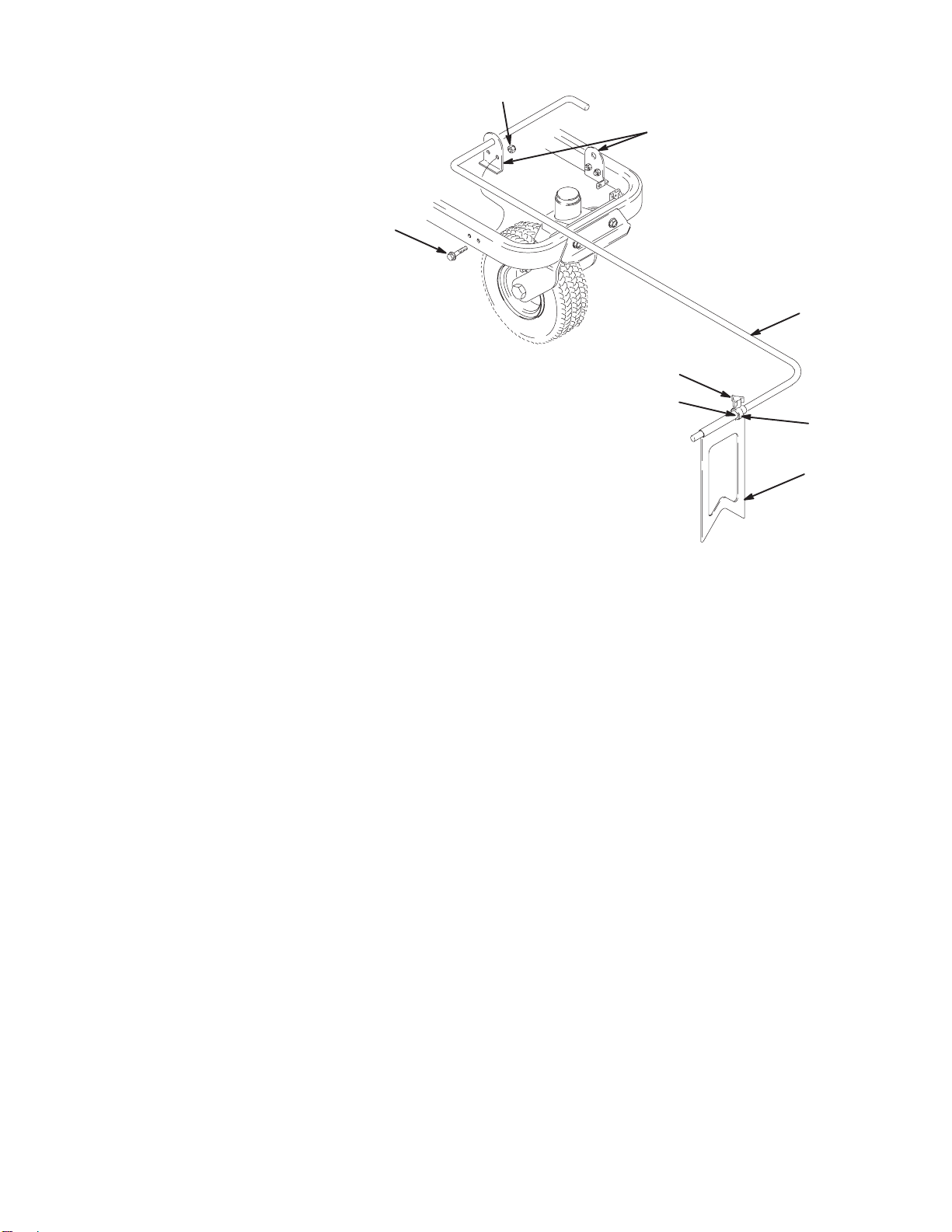

Ref

No. Part No. Description Qty

241101 KITASSY, guide, line, short Ref

241102 KITASSY, guide, line, long Ref

1 193668 . ROD (used on 241101) 1

194066 . ROD (used on 241102) 1

2 193667 . INDICATOR 1

3 114685 . COLLAR, setscrew 1

4 114966 .KNOB, pronged 1

5 114965 . WASHER,spring,wave 1

6 193666 .BRACKET 2

7 110837 . SCREW, flange, hex 4

8 111040 . NUT, lock, nylock 4

8850A



TO PLACE AN ORDER

, contact your Graco distributor, or call this number to identify the distributor closest to you:

1–800–690–2894 Toll Free.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Sales Offices: Minneapolis, Detroit

Foreign Offices: Belgium, England, Korea, France, Germany, Hong Kong, Japan

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

http://www.graco.com

PRINTEDIN USA 308941 January 1999
