Graco InvisiPac Manual de usuario

Read instruction manual 334784 for complete

instructions and warnings. This Quick Guide is not

a substitute for reading and understanding all

instructions manuals and warnings labels

supplied with the equipment.

Turn System

Screen Navigation

Turn System

Off

Integrated Systems

Stand-Alone Systems

Select

Program

1. Arrow left _ __to

navigate to the “PC

Control” screen.

2. Enter the screen ___

and arrow up or

down _ __. Press

___ to select a pro-

gram.

Clear

Errors

Acknowledge errors by

pressing _ __ once for

each error.

Display will show “No

Active Errors” unless

error was unable to

clear. Seek technical

support if any error

persists.

- or -

335007B

Quick Guide

InvisiPac®Pattern Controller

335007

Wiring Installation

Integrated InvisiPac Systems

• Use melter System Enable

instead of this one

• Use this Disable to hold

guns from dispensing with-

out shutting off the heat.

Power

RED

BLACK

GRN/YL

PLC Inputs

0-30 VDC

Bi-polar

Isolated

Alarm Outputs

0-30 VDC or 0-240 VAC

Dry contact output

No alarm: closed

Alarm: open

Valves (Guns)

24 VDC

1A max each

Triggers

24 VDC

NPN, PNP, Dry Contact

Encoders

15 VDC

Line driver (RS422)

Differential A/B signals

(Z is not used)

NOTE: Swap A with B to

reverse direction

Run Ups

24 VDC

I/P or V/P

Enable

Rising edge enables

Falling edge disables

Disable

Pull high to disable

Program Select

4 bits, 15 programs

(0000 is unused)

EXAMPLE:

1010 into 3,2,1,0

Selects program 10

LINE 1 ALARM

LINE 2 ALARM

CAN

COMMUNICATION

BROWN

BLACK

BLUE

WHITE

BROWN

BLACK

BLUE

WHITE

RED

BROWN

WHITE

YELLOW

GREEN

BLUE

BARE

BLUE

GREEN

YELLOW

WHITE

BROWN

RED

BROWN

BLK or WH

BLUE

BLK or WH

BROWN

Dial Settings

0 - Integrated

1 - Stand-alone

Mini DIN

BLUE

BROWN

DIN “I”

BLACK

2335007

Line

Mode 2.

No Encoder

• Check time based or dis-

tance mode.

• Un-check encoder box

(PC-8e only) _ _ ._.

• Set fixed speed ___ to

adjust last measured

product length_ _.

Encoder (PC-8e only)

• Un-check time based

mode.

• Check encoder box_ __.

• Set pulses per mm_ __to

adjust last measured

product length_ _.

• Set low line speed advi-

sory level__ _.

Trigger

Setup 3. • Set trigger polarity _ _. Indicators show on __or off __.

• Assign to line 1 or 2 (PC-8e only) ___ .

General 4.

No Run Up

• Disable pressure com-

pensation.

• Enable or disable modu-

lated bead (PC-8e only).

Run Up (PC-8e only)

• Enable pressure

compensation.

Gun (Valve)

Setup 5.

Set gun open___and- ---close compensation

• ~5ms for high speed guns

• ~10ms for standard guns

NOTE: Applies to high speed lines requiring precise beads.

Run Up

Control 6.

Set Modulated Bead Curve

• Set output value ___ at

line speed___ .

• Set max and min _ _ .

Set Run Up Curve

• Set output value _ _ at

line speed___ .

• Set max and min _ _ .

PC Setup Screens

1. Event Map 2. Line Mode

3. Trigger Setup 4. General

5. Gun (Valve) Setup 6. Run Up Control

3335007

Select

Program

Select and Name Programs

1. Enter page ___ to select program to edit.

2. Name program ___ .

3. Copy ___ or delete ___ program.

Tips

• Copy existing to start new programs

• Make backup copies before editing

Enter Event

Map

Set Up Even Map

1. Assign triggers to valve __.

2. Set gun-to-trigger offset _ ___ .

3. Set minimum box length (optional) ___.

4. Enable or disable pattern mirroring___ .

5. Set stitch savings ___ and interval _ __.

Define

Pattern

Enter Bead Information

1. Enter page___ ,use arrows _ __and

press enter ___ to edit beads.

2. Offset from start of product__ _ .

3. Length of bead _ ___.

4. Stitched or not ___.

NOTE: Stitch option not shown when sav-

ings on Event Map is set to 0%.

5. Confirm changes ___.

Preview Pattern

• See which beads are solid or stitched

• View endpoint of last bead on each gun

• View trigger assignment (red if none)

4335007B, May 2017, Original instructions. This manual contains English. MM 335007.

Otros manuales de Controladores de Graco

Graco

Graco Reactor 2 H-30 Instrucciones de funcionamiento

Graco

Graco Series A Manual de lista de piezas

Graco

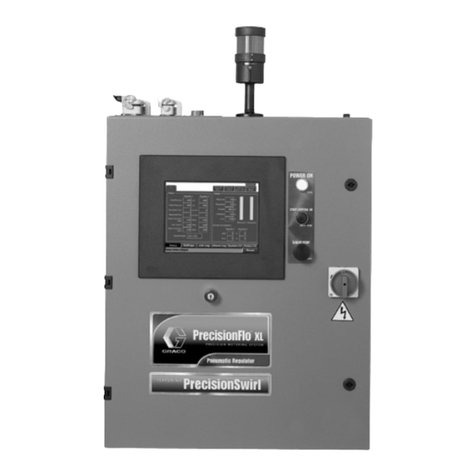

Graco PrecisionFlo XL Manual de usuario
