GoMax Electronics MA-3188 Manual de usuario

8x8 3G/HD/SD-SDI Matrix

User Manual

rev: 160801

Made in Taiwan

A-

-3

Safety and Notice

The MA-3188 8x8 3G/HD/SD-SDI Matrix has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic equipments, the

MA-3188 should be used with care. Please read and follow the safety instructions to protect yourself from

possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a stable

surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

TABLE OF CONTENTS

INTRODUCTION................................................................................................................1

FEATURES ........................................................................................................................1

PACKAGE CONTENTS......................................................................................................1

SPECIFICATIONS..............................................................................................................2

PANEL DESCRIPTIONS....................................................................................................3

CONNECTION DIAGRAM..................................................................................................4

HARDWARE INSTALLATION ............................................................................................4

OPERATION APPROACH..................................................................................................5

LIMITED WARRANTY........................................................................................................9

INTRODUCTION

The MA-3188 8x8 3G/HD/SD-SDI Matrix provides the most flexible and cost effective solution in the

market to route 3Gbps high definition video sources from any of the eight SDI sources to the any eight

SDI receivers at the same time. This solution is well suited for use in home theater, conference room

presentation systems, or other similar setting or application.

FEATURES

Inputs meet SMPTE 259M, 292M, 424M,425M

Allows any SDI display to view any SDI source at any time

Auto-Reclocking

The matrix master can switch every output channels to any SDI inputs by push-in button, IR remote

controller or RS-232 control

Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively

PACKAGE CONTENTS

1x MA-3188

1x Rack-mounting ear set

1x IR Remote control

1x User Manual

1x Installation software CD

1x UL AC power cord

2x BNC Terminator Plug

SPECIFICATIONS

Model Name

MA-3188

Technical

Role of usage

True 8x8 matrix

Video bandwidth

2.97 & 2.97/1.001Gbps

Video support

[3G] 1080p@50/59.94/60 (4:2:2)

[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60

[SD] NT[email protected], PAL@50Hz

Audio support

Yes

Cable equalization

[3G] up to 100m(300ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m

(1000ft)

Reclocking function

Yes

PCB stack-up

4-layer board [impedance control — differential 100Ω; single 50Ω]

Input

8x SDI BNC + 1x Synchronized BNC + 1x RS-232

Output

8x SDI BNC + 1x Synchronized BNC loop-out

SDI Input selection

Push button / IR remote / RS-232

IR remote control

Electro-optical characteristics: τ= 25°/ Carrier frequency: 38kHz

RS-232 connector

DE-9 [9-pin D-sub female]

Mechanical

Housing

Metal case

Dimensions

[L x W x H]

Model

440 x 280 x 42mm [1’5” x 0.9’ x 1.6”]

Package

513 x 456 x 144mm [1’7” x 1’5” x 5.6”]

Carton

535 x 320 x 495mm [1’8” x 1’ x 1’6”]

Weight

Model

4051g [8.9 lbs]

Package

4900g [10.8 lbs]

Fixedness

1U rack-mount with ears and wall hanging holes

Power supply

AC Power 100-240V

Power consumption

35 Watts [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

PANEL DESCRIPTIONS

Front Panel

1. Power Switch: Power ON/OFF switch

2. IR Sensor: IR sensor for receiving the IR commands from IR remote

3. Output Push Button & 7-segment LED: Front panel push buttons used to select the number of

display channels & LED display for output ports

4. Input Push Button & 7-Segment LED: Front panel push buttons used to select the number of input

source & LED display for input channels

Rear Panel

5. RS-232: RS-232 control port

6. INPUT PORT 1-8: SDI inputs

7. OUTPUT PORT 1-8: SDI outputs

8. AC Power: 100-240V

CONNECTION DIAGRAM

HARDWARE INSTALLATION

MA-3188

1. Connect all sources to SDI Inputs on the 8x8 SDI matrix

2. Connect all outputs to SDI Receiver

3. Connect the AC power supply to the 8x8 SDI matrix

4. Power on the 8x8 SDI matrix MA-3188

OPERATION APPROACH

Method A: Push-in Button

IN/OUT MAP

1) Use the “+”or “-“ output push button to select the number of display

2) Use the “+”or “-“ input push button to select the number of input source

“+”: change selected input/output port in ascending order

“-” : change selected input/output port in descending order

Method B: IR Remote Control

Button

Function

Mute off the video output

OFF

Mute the video output

Mute

Output port number + Mute + Take

CLEAR

Clear the remote setting

STATUS

Output port number + Status + Take

Preset Mapping

Number + Preset + Take

[Memory 6 sets of configuration]

Save Mapping

Number + Save + Take

[Memory 6 sets of configuration]

F1, F2, F3, F4

Reserved Buttons

Route input to

output output port number + To + input port number + Take

Method C: Software Control through RS-232 port

System Requirements and Precautions

1. Whenever power off MA-3188, please stay unpowered at least 5 to 10 seconds to allow power

capacitors to discharge.

2. The MA-3188 provides software control program under Microsoft Windows XP, 7, 8 through the

interface of RS-232 control port

3. Before you click on the icon of the software, make sure you have secured the connection between

your computer RS-232 port and the MA-3188

Start the software control program

When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7,

please run as administrator).

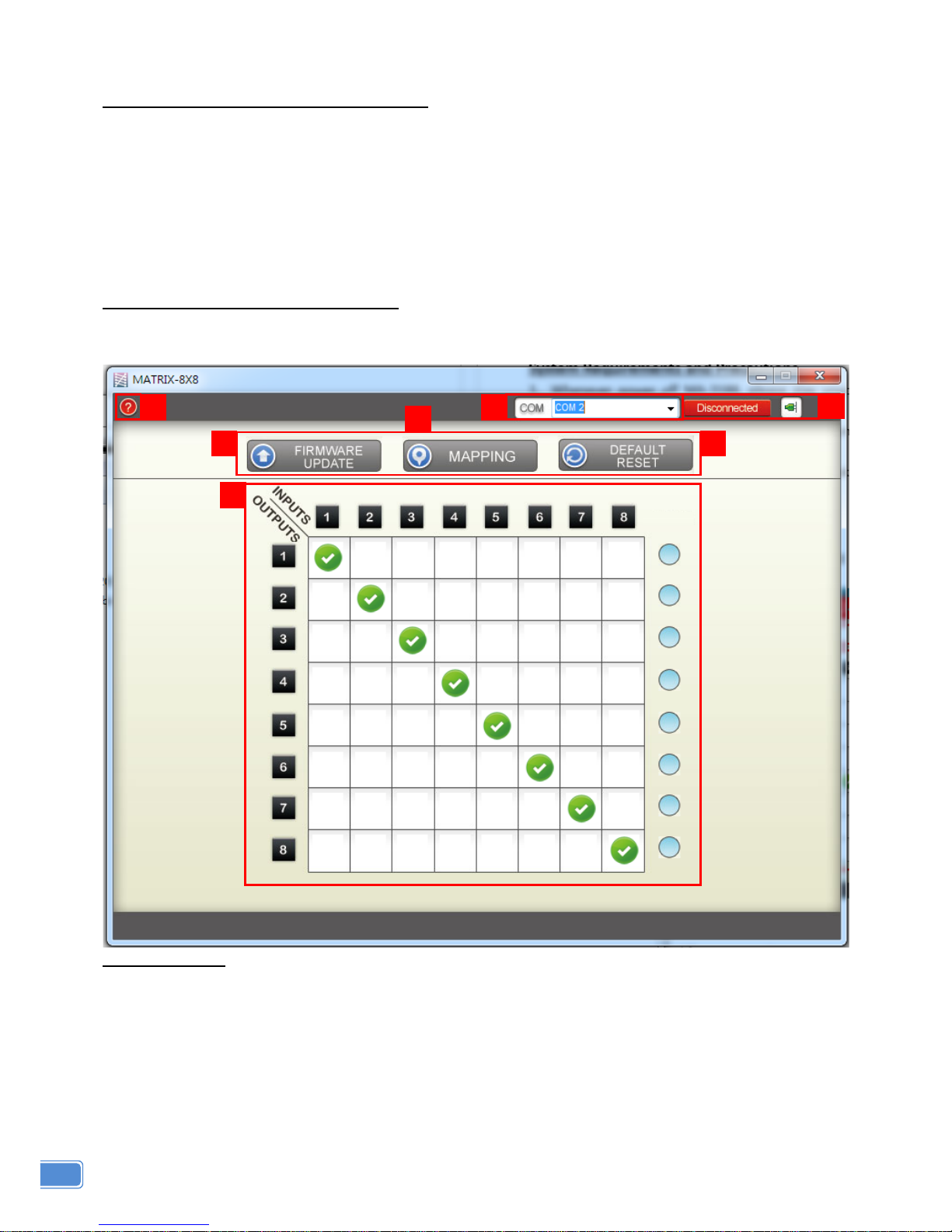

Control Interface

1. Info

Read the software and firmware version.

2. COM Port selection

Use RS-232 cable to connect the port on device and computer. Select correct COM port and click the

button.

3. Connection Status

Show the connect status (Connected or Disconnected).

4. In/Out switch panel

For each output, you can assign arbitrary video source or mute output video here.

5. Firmware Update

The “Firmware update” window shows up as below. Before firmware update process, please ensure

your RS-232 cable is connecting and the status is “CONNECTED”.

Click button to select the firmware file which you want to update.

Click button.

Recycle power.

Click button and the firmware will start to update.

Front Panel firmware update

Click button to select the firmware file which you want to update.

Click button.

Recycle power and the front panel firmware will start to update.

Press the lower left button of front panel until the firmware update process is finished.

6. Mapping

Save/Recall the Mapping Configuration. In this part, you can rename the mapping, save the current

mapping or recall previous saved mapping.

7. Default Reset

To do factory default reset. This default reset process will take about 10 seconds.

Method D: Terminal control:

Baud rate: 115200

Data length: 8bit

Parity check: No

Stop bit: 1

COMMAND

ACTION

ST + 0x0d

Show all mapping

PON + 0x0d

Power on the device

POFF + 0x0d

Power off the device

MUTE + number (ASCII) + 0x0d

Mute output video

VR + 0x0d

Show the firmware version

P + number (ASCII) + I + number (ASCII) + 0x0d

Switch I/O mapping

SMAP + number (ASCII) + 0x0d

Save mapping

LMAP + number (ASCII) + 0x0d

Recall mapping

WHO + 0x0d

Show the model no.

FST## + 0x0d

Factory reset

SH + number (ASCII) + 0x0d

Show signal port
